3D Item Highlighter – Easier to Adjust, Supports All Directions

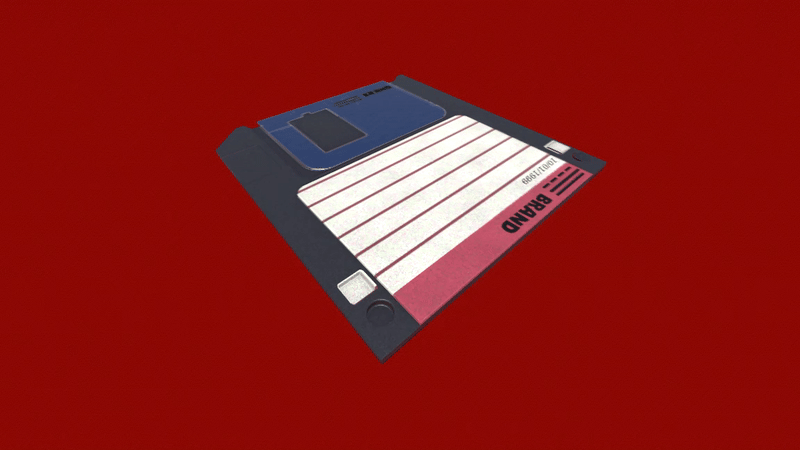

This shader is based on the Item Highlighter shader by OzMaister. The floppy disk used in the gif showing off the shader is made by styloo and can be found here!

By switching the periodic function used in the shader to a pulse wave I’ve been able to make the variables that determine shine_speed, shine_width and cycle_interval independent of each other. This makes it easier to configure the highlight. I’ve also made it possible to change the direction of the highlight HighlightDirection and configure how much the shine fades when looked at straight on angle_fade.

HOW TO USE:

Using the shader is as easy as applying it to Next Pass in the Surface Material of a MeshInstance.

Shader code

shader_type spatial;
render_mode unshaded, depth_draw_never;

group_uniforms Highlight;
uniform vec4 shine_color : source_color = vec4(1.0);
uniform float shine_speed : hint_range(0, 25) = 1.0;
uniform float shine_width : hint_range(0, 2) = 1.0;
uniform float cycle_interval : hint_range(0, 100) = 1.0;
uniform float angle_fade : hint_range(0, 1) = 1.0;

group_uniforms HighlightDirection;
uniform float x_direction : hint_range(-1, 1) = 0.0;
uniform float y_direction : hint_range(-1, 1) = 0.0;
uniform float z_direction : hint_range(-1, 1) = 1.0;

float sawtooth(float x) {
	return 2.0 * ( (x + shine_speed * TIME) / (shine_width + cycle_interval) - floor( 0.5 + (x + shine_speed * TIME) / (shine_width + cycle_interval) ) );
}

void fragment() {
	vec3 w_vertex = ( INV_VIEW_MATRIX * vec4(VERTEX, 1.0) ).xyz;

	float projection = dot( w_vertex, normalize(vec3(x_direction, y_direction, z_direction)) );

	float frequency = ceil( sawtooth(projection) - sawtooth(projection + shine_width) );

	ALBEDO = shine_color.xyz;
	ALPHA = clamp( ( 1.0 - dot(NORMAL, VIEW) * angle_fade) * frequency * shine_color.a, 0.0, 1.0 );
}
