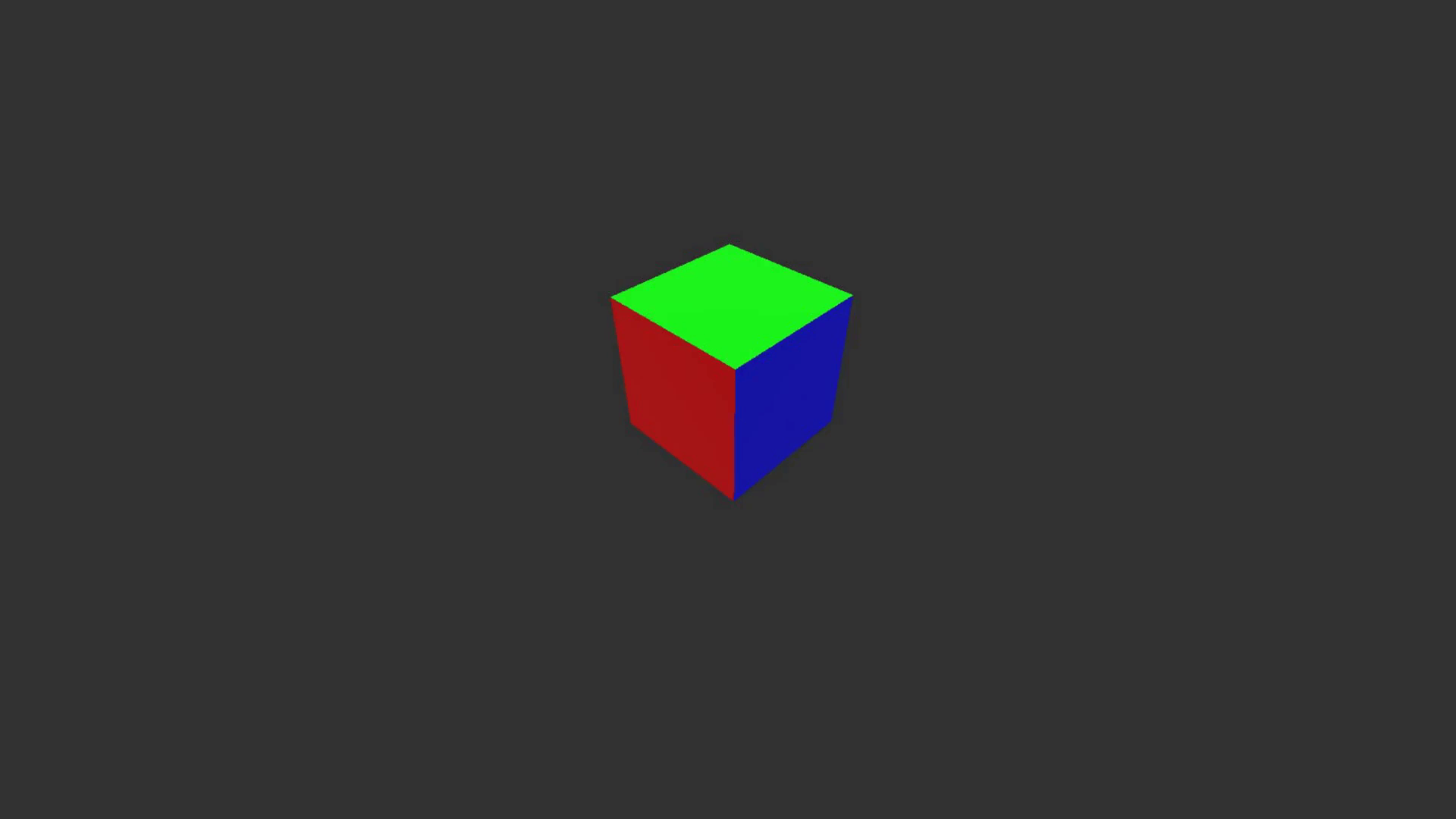

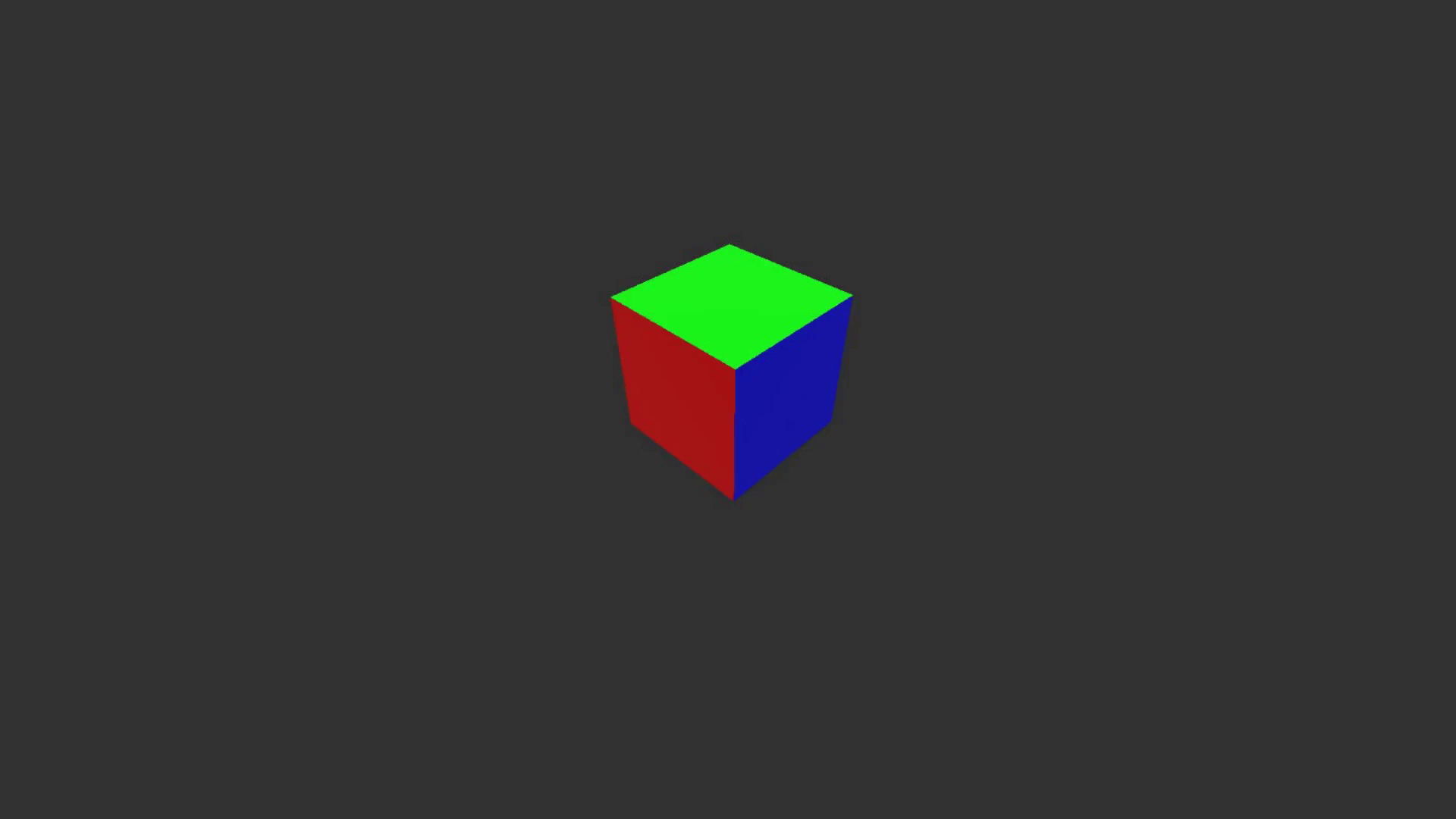

3D Transformations

Shader code

// CC0, ElSuicio, 2025
// GODOT v4.4.1.stable
shader_type spatial;
render_mode ambient_light_disabled;
render_mode skip_vertex_transform;

#define TRANSLATION_MATRIX(t) mat4(\
	vec4(1, 0, 0, t.x),\
	vec4(0, 1, 0, t.y),\
	vec4(0, 0, 1, t.z),\
	vec4(0, 0, 0, 1)\
	);

#define ROTATION_MATRIX_X(a) mat4(\
	vec4(1, 0, 0, 0),\
	vec4(0, cos(a), -sin(a), 0),\
	vec4(0, sin(a),  cos(a), 0),\
	vec4(0, 0, 0, 1)\
	);
#define ROTATION_MATRIX_Y(b) mat4(\
	vec4( cos(b), 0, sin(b), 0),\
	vec4(0, 1, 0, 0),\
	vec4(-sin(b), 0, cos(b), 0),\
	vec4(0, 0, 0, 1)\
	);
#define ROTATION_MATRIX_Z(c) mat4(\
	vec4(cos(c), -sin(c), 0, 0),\
	vec4(sin(c),  cos(c), 0, 0),\
	vec4(0, 0, 1, 0),\
	vec4(0, 0, 0, 1)\
	);

#define ESCALATION_MATRIX(s) mat4(\
	vec4(s.x, 0, 0, 0),\
	vec4(0, s.y, 0, 0),\
	vec4(0, 0, s.z, 0),\
	vec4(0, 0, 0, 1)\
	);

group_uniforms _Transform;
uniform vec3 _Position = vec3(0.0);
uniform vec3 _Rotation = vec3(0.0);
uniform vec3 _Scale = vec3(1.0);

varying vec4 vertex_os;
varying vec4 normal_os;
varying vec4 binormal_os;
varying vec4 tangent_os;

varying vec3 color;

mat4 ROTATION_MATRIX(vec3 euler_angles_rad)
{
	mat4 x = ROTATION_MATRIX_X(euler_angles_rad.x)
	mat4 y = ROTATION_MATRIX_Y(euler_angles_rad.y)
	mat4 z = ROTATION_MATRIX_Z(euler_angles_rad.z)
	return y * x * z;
}

void vertex()
{
	/* 3D AXIS COLOR */
	color = normalize(NORMAL * NORMAL); // Axis in Object Space prev to 3D transform.

	/* ROTATION */
	vec3 angle_rad = radians(_Rotation);

	/* VERTEX */
	vertex_os = vec4(VERTEX, 1.0);

	vertex_os *= ESCALATION_MATRIX(_Scale)

	vertex_os *= ROTATION_MATRIX(angle_rad);

	vec4 vertex_ws = MODEL_MATRIX * vertex_os;

	vertex_ws *= TRANSLATION_MATRIX(_Position)

	vec4 vertex_vs = VIEW_MATRIX * vertex_ws;

	VERTEX = vertex_vs.xyz;

	/* NORMAL */
	normal_os = vec4(NORMAL, 0.0);

	normal_os *= ROTATION_MATRIX(angle_rad);

	vec4 normal_ws = MODEL_MATRIX * normal_os;

	vec4 normal_vs = VIEW_MATRIX * normal_ws;

	NORMAL = normalize(normal_vs.xyz);

	/* BINORMAL */
	binormal_os = vec4(BINORMAL, 0.0);

	binormal_os *= ROTATION_MATRIX(angle_rad);

	vec4 binormal_ws = MODEL_MATRIX * binormal_os;

	vec4 binormal_vs = VIEW_MATRIX * binormal_ws;

	BINORMAL = normalize(binormal_vs.xyz);

	/* TANGENT */
	tangent_os = vec4(TANGENT, 0.0);

	tangent_os *= ROTATION_MATRIX(angle_rad);

	vec4 tangent_ws = MODEL_MATRIX * tangent_os;

	vec4 tangent_vs = VIEW_MATRIX * tangent_ws;

	TANGENT = normalize(tangent_vs.xyz);

	/* PROJECTION */
	vec4 vertex_proj = PROJECTION_MATRIX * vertex_vs;

	POSITION = vertex_proj;
}

void fragment()
{
	ALBEDO = color;
}
