Cartoon 3D Fire

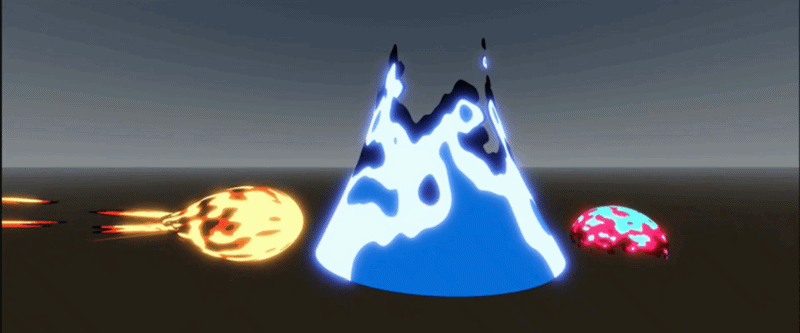

Modified version of Sivabalan’s stylized 3d fire appliable to all kind of meshes, fully customizable with colors, textures and outlines
check out my cartoon water shader too
Shader code
shader_type spatial;
render_mode unshaded;
group_uniforms FlameShape;
uniform bool apply_shape_deform = false; // use only for a cylindric shape flame
uniform float top_radius : hint_range(0.0, 1.5);
uniform float bottom_radius : hint_range(0.0, 1.5);
uniform float center_radius : hint_range(0.0, 5.0);
uniform float center_position : hint_range(0.0, 1.0);
uniform float cylinder_height : hint_range(0.0, 10.0) = 1.0;
uniform float bottom_curve = 0.4;
uniform float _vibrate_amplitude = 0.015;
uniform float _vibrate_frequency = 200.0;
group_uniforms;
group_uniforms FlameAppearance;
uniform float _speed = 2.0;
uniform float _scale = 2.0;
uniform vec4 color_inner : source_color = vec4(1.353, 0.919, 0.416, 0.0);
uniform vec4 color_outer : source_color = vec4(0.737, 0.141, 0.0, 0.678);
uniform float color_threshold : hint_range(0.0, 1.0) = 0.5;
uniform float flame_height = 1.0;
uniform float flame_height_offset = 0.0;
uniform float pattern_scale = 2.5;
uniform bool use_additional_texture = false;
uniform sampler2D flame_additional_texture : source_color;
uniform float texture_scale = 1.0;
uniform float texture_blend : hint_range(0.0, 1.0) = 1.0;
group_uniforms;
group_uniforms ToonOutline;
uniform bool outline_enabled = true;
uniform vec4 outline_color : source_color = vec4(0.0, 0.0, 0.0, 1.0);
uniform float outline_thickness : hint_range(0.0, 0.15) = 0.04;
group_uniforms;
varying vec3 local_pos;
void vertex() {
vec3 v_pos = VERTEX;
if (apply_shape_deform) {
float original_height = v_pos.y;
float relative_height = (original_height + 1.0) / 2.0;
float scaledHeight = relative_height * cylinder_height;
v_pos.y = scaledHeight + sin(TIME * _vibrate_frequency) * _vibrate_amplitude;
float radius;
if (relative_height <= center_position) {
float t = relative_height / center_position;
t = pow(t, bottom_curve);
t = smoothstep(0.0, 1.0, t);
radius = mix(bottom_radius, center_radius, t);
} else {
float t = (relative_height - center_position) / (1.0 - center_position);
t = smoothstep(0.0, 1.0, t);
radius = mix(center_radius, top_radius, t);
}
float current_radius = length(vec2(v_pos.x, v_pos.z));
if (current_radius > 0.0) {
float scale_factor = radius / current_radius;
v_pos.x *= scale_factor;
v_pos.z *= scale_factor;
}
}
local_pos = v_pos;
VERTEX = v_pos;
}
vec3 mod2893(vec3 x) {
return x - floor(x * (1.0 / 289.0)) * 289.0;
}
vec4 mod289(vec4 x) {
return x - floor(x * (1.0 / 289.0)) * 289.0;
}
vec4 permute(vec4 x) {
return mod289(((x * 34.0) + 1.0) * x);
}
vec4 taylorInvSqrt(vec4 r) {
return 1.79284291400159 - 0.85373472095314 * r;
}
float snoise(vec3 v) {
const vec2 C = vec2(1.0 / 6.0, 1.0 / 3.0);
const vec4 D = vec4(0.0, 0.5, 1.0, 2.0);
vec3 i = floor(v + dot(v, C.yyy));
vec3 x0 = v - i + dot(i, C.xxx);
vec3 g = step(x0.yzx, x0.xyz);
vec3 l = 1.0 - g;
vec3 i1 = min(g.xyz, l.zxy);
vec3 i2 = max(g.xyz, l.zxy);
vec3 x1 = x0 - i1 + C.xxx;
vec3 x2 = x0 - i2 + C.yyy;
vec3 x3 = x0 - D.yyy;
i = mod2893(i);
vec4 p = permute(permute(permute(
i.z + vec4(0.0, i1.z, i2.z, 1.0))
+ i.y + vec4(0.0, i1.y, i2.y, 1.0))
+ i.x + vec4(0.0, i1.x, i2.x, 1.0));
float n_ = 0.142857142857;
vec3 ns = n_ * D.wyz - D.xzx;
vec4 j = p - 49.0 * floor(p * ns.z * ns.z);
vec4 x_ = floor(j * ns.z);
vec4 y_ = floor(j - 7.0 * x_);
vec4 x = x_ * ns.x + ns.yyyy;
vec4 y = y_ * ns.x + ns.yyyy;
vec4 h = 1.0 - abs(x) - abs(y);
vec4 b0 = vec4(x.xy, y.xy);
vec4 b1 = vec4(x.zw, y.zw);
vec4 s0 = floor(b0) * 2.0 + 1.0;
vec4 s1 = floor(b1) * 2.0 + 1.0;
vec4 sh = -step(h, vec4(0.0));
vec4 a0 = b0.xzyw + s0.xzyw * sh.xxyy;
vec4 a1 = b1.xzyw + s1.xzyw * sh.zzww;
vec3 p0 = vec3(a0.xy, h.x);
vec3 p1 = vec3(a0.zw, h.y);
vec3 p2 = vec3(a1.xy, h.z);
vec3 p3 = vec3(a1.zw, h.w);
vec4 norm = taylorInvSqrt(vec4(dot(p0, p0), dot(p1, p1), dot(p2, p2), dot(p3, p3)));
p0 *= norm.x;
p1 *= norm.y;
p2 *= norm.z;
p3 *= norm.w;
vec4 m = max(0.6 - vec4(dot(x0, x0), dot(x1, x1), dot(x2, x2), dot(x3, x3)), 0.0);
m = m * m;
return 42.0 * dot(m * m, vec4(dot(p0, x0), dot(p1, x1), dot(p2, x2), dot(p3, x3)));
}
float getNoise(vec3 pos, float t) {
float SCALE = _scale;
float noise = snoise(vec3(pos.x * SCALE, pos.y * SCALE * 4.0 + t * _speed, pos.z * SCALE));
SCALE = 6.0;
noise += snoise(vec3(pos.x * SCALE + t * _speed, pos.y * SCALE, pos.z * SCALE)) * 0.2;
noise = (noise / 2.0 + 0.5);
return noise;
}
float getDepth(float n, float cutoff, float steps) {
float d = (n - cutoff) / (1.0 - cutoff);
d = floor(d * steps) / steps;
return d;
}
float getNoiseAt(vec3 pos, float height01, float t) {
float cutoff = 1.1 - height01 * 2.5;
float noise = getNoise(pos, t);
return step(cutoff, noise);
}
void fragment() {
float steps = 4.0;
float height01 = clamp((local_pos.y - flame_height_offset) / max(flame_height, 0.0001), 0.0, 1.0);
vec3 pos = local_pos;
pos.x *= pattern_scale;
pos.z *= pattern_scale;
float t = TIME * 3.0;
float cutoff = 1.1 - height01 * 2.5;
float noise = getNoise(pos, t);
if (noise < cutoff) {
if (outline_enabled) {
float d = outline_thickness;
float n_up = getNoiseAt(pos + vec3(0.0, d, 0.0), height01, t);
float n_down = getNoiseAt(pos + vec3(0.0, -d, 0.0), height01, t);
float n_left = getNoiseAt(pos + vec3(-d, 0.0, 0.0), height01, t);
float n_right = getNoiseAt(pos + vec3( d, 0.0, 0.0), height01, t);
float edge = max(max(n_up, n_down), max(n_left, n_right));
if (edge > 0.5) {
ALBEDO = outline_color.rgb;
ALPHA = outline_color.a;
} else {
ALPHA = 0.0;
}
} else {
ALPHA = 0.0;
}
} else {
float d = getDepth(noise, cutoff, steps);
vec3 col = d >= color_threshold ? color_inner.rgb : color_outer.rgb;
if (use_additional_texture) {
vec3 blend_weights = abs(NORMAL);
blend_weights /= (blend_weights.x + blend_weights.y + blend_weights.z);
vec3 tex_pos = local_pos * texture_scale;
vec3 tex_x = texture(flame_additional_texture, tex_pos.yz).rgb;
vec3 tex_y = texture(flame_additional_texture, tex_pos.xz).rgb;
vec3 tex_z = texture(flame_additional_texture, tex_pos.xy).rgb;
vec3 tex_color = tex_x * blend_weights.x + tex_y * blend_weights.y + tex_z * blend_weights.z;
col = mix(col, col * tex_color, texture_blend);
}
ALBEDO = col * 1.5;
ALPHA = 1.0;
}
}
