In the beginning God created the heavens and the earth. Not saying I’m god of course, because with this sky shader you’re in control. Lush skies, Gloomy clouds and dark nights are all possible.

There’s also a version with some presets here.

Features

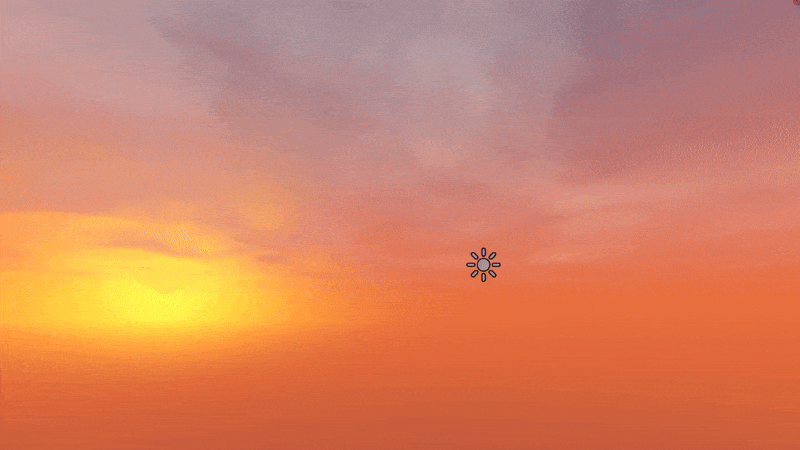

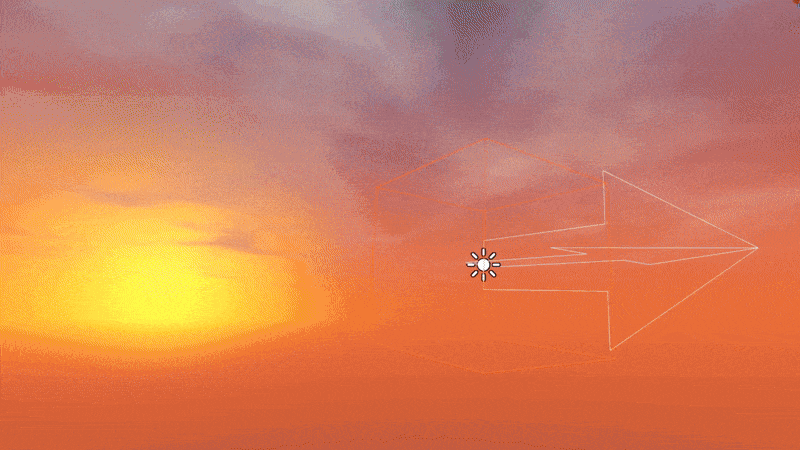

• Sun follows scene’s directional light (optionally can use a slider instead)
• Seamless blending between day, sunset and night.
• Customizable clouds with noise textures. Stylization is up to you!
• Parallax effect on clouds to give 3D effect.
• Customizable stars.

Shader code

shader_type sky;

group_uniforms Sky;
uniform vec4 sky_day : source_color = vec4(0.0,0.3,0.7,1.0);
uniform vec4 horizon_day : source_color = vec4(0.75,0.85,0.85,1.0);
uniform vec4 horizon_sunset : source_color = vec4(0.9,0.4,0.1,1.0);
uniform vec4 sky_sunset : source_color = vec4(0.15, 0.2, 0.4, 1.0);
uniform vec4 horizon_night : source_color = vec4(0.1, 0.15, 0.2, 1.0);
uniform vec4 sky_night : source_color = vec4(0.05, 0.10, 0.15, 1.0);
uniform float day_night_mix : hint_range(-1.0, 1.0, 0.1) = 0.8;
uniform bool use_directional_light = true;
uniform float horizon_exponent = 2.0;
uniform float sunset_amount_exponent = 0.7;
uniform float night_amount_exponent = 4.0;

group_uniforms Clouds;
uniform sampler2D cloud_tex_01;
uniform sampler2D cloud_tex_02;
uniform vec4 cloud_color : source_color = vec4(0.8, 0.8, 0.8, 1.0);
uniform vec2 cloud_tiling = vec2(1.0);
uniform vec2 wind_speed = vec2(0.5);
uniform float cloud_density : hint_range(0.0, 5.0, 0.1) = 0.7;
uniform float cloud_depth = 2.0;
uniform float cloud_shape_exponent = 2.0;
uniform float cloud_occlude_exponent = 1.0;

group_uniforms Stars;
uniform sampler2D night_noise_01;
uniform sampler2D night_noise_02;

group_uniforms Sun;
uniform float sun_scale = 0.05;
uniform float sun_strength = 15.0;
uniform vec4 sun_color : source_color = vec4(1.0,0.9,0.0,1.0);

float plane_intersection(vec3 origin, vec3 normal, vec3 ray_start, vec3 ray_dir) {
	return dot(origin - ray_start, normal) / dot(ray_dir, normal);
}

float get_cloud_height(sampler2D tex, vec2 uv) {
	float height = texture(tex, uv).r;
	height = clamp((height - (1.0 - cloud_density)) / (cloud_density), 0.0, 1.0);
	return pow(height, cloud_shape_exponent);
}

void sky() {
	float t = plane_intersection(vec3(0.0, 1.0, 0.0), vec3(0.0, -1.0, 0.0), vec3(0.0), EYEDIR);

	float blend = day_night_mix;
	if(use_directional_light){
		blend = LIGHT0_DIRECTION.y;
	}

	vec3 sky = vec3(0.0);
	vec3 horizon_color = vec3(0.0);
	vec3 sky_color = vec3(0.0);

	float cloud_value = 0.0;
	if(t >= 0.0){
		vec3 wind = vec3(wind_speed.x, 0.0, wind_speed.y) * TIME * 0.1;
		vec3 tiling = vec3(cloud_tiling.x, 1.0, cloud_tiling.y) * 0.2;
		vec3 cloud_pos1 = EYEDIR * t * tiling + wind;
		vec3 cloud_pos2 = EYEDIR * t * tiling + (wind*0.5);

		float height1 = get_cloud_height(cloud_tex_01, cloud_pos1.xz);
		float height2 = get_cloud_height(cloud_tex_02, cloud_pos2.xz);
		cloud_pos1 += EYEDIR * height1 * cloud_depth * 0.1;
		cloud_pos2 += EYEDIR * height2 * cloud_depth * 0.1;
		height1 = get_cloud_height(cloud_tex_01,cloud_pos1.xz);
		height2 = get_cloud_height(cloud_tex_02,cloud_pos2.xz);
		cloud_value = min(height1, height1 * height2);

		cloud_value *= smoothstep(0.0, 0.2, EYEDIR.y);
	}

	float sun_distance = clamp(1.0 - distance(EYEDIR, LIGHT0_DIRECTION) - pow(cloud_value,cloud_occlude_exponent),0.0,1.0);
	float sun_disc = clamp(smoothstep(1.0 - sun_scale, 1.0, sun_distance), 0.0, 1.0);
	float sun_glow = clamp(0.0, 1.0, (pow(sun_distance, 4.0)*0.07));
	vec3 sun = mix(vec3(0.0), sun_color.rgb * sun_strength, max(sun_disc, sun_glow));

	float night_noise = texture(night_noise_02, (EYEDIR / ((1.0 - abs(t) * 0.05))).xz).r;
	float stars = smoothstep(0.9, .95, texture(night_noise_01, (EYEDIR / ((1.0 - abs(t) * 0.05))).xz).r);
	float night_blend = clamp(0.0,1.0,0.0 - blend);
	stars = clamp(clamp((stars - cloud_value * 2.0), 0.0, 1.0) * night_blend, 0.0, 1.0) + (night_noise*0.01);

	horizon_color = mix(horizon_sunset, horizon_day, clamp(blend,0.0,1.0)).rgb;
	horizon_color = mix(horizon_night.rgb, horizon_color, pow(clamp(1.0+blend,0.0,1.0), 4.0)).rgb;

	vec3 sky_night_mix = sky_night.rgb * (night_noise * 0.5 + 0.5);
	sky_color = mix(sky_sunset, sky_day, clamp(blend,0.0,1.0)).rgb;
	sky_color = mix(sky_night_mix, sky_color, clamp(pow(1.0+blend, 4.0),0.0,1.0)).rgb;

	sky = mix(sky_color, horizon_color, pow(1.0 - abs(EYEDIR.y), horizon_exponent));
	sky = mix(sky, cloud_color.rgb * 1.0, pow(cloud_value, 0.8));


	sky += stars * 1.0;

	sky = mix(sky, mix(sky_color * 0.5, horizon_color, EYEDIR.y + 1.0).rgb, clamp(pow(1.0 - EYEDIR.y, 2.0), 0.0, 1.0));
	if(use_directional_light) {
		sky += sun * clamp(pow(EYEDIR.y + 1.0, 16.0),0.0,1.0);
	}

	COLOR = sky;
}
