Decal shader 4.0 port

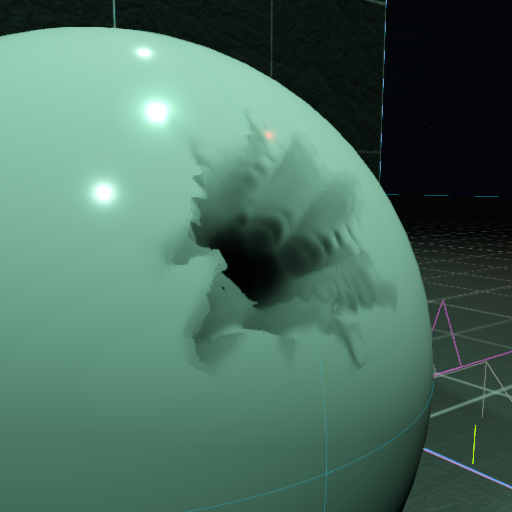

A Godot 4.0 port of this decal shader.

Check the original for more information.

Shader code
shader_type spatial;
render_mode world_vertex_coords, unshaded;
uniform vec4 albedo : source_color;
uniform sampler2D texture_albedo : source_color;
uniform sampler2D DEPTH_TEXTURE: hint_depth_texture;
uniform float cube_half_size = 1.0;

varying mat4 INV_MODEL_MATRIX;

void vertex(){

// Credit:
vec3 world_pos_from_depth(float depth, vec2 screen_uv, mat4 inverse_proj, mat4 inverse_view) {
	float z = depth;
	vec4 clipSpacePosition = vec4(screen_uv * 2.0 - 1.0, z, 1.0);
	vec4 viewSpacePosition = inverse_proj * clipSpacePosition;
	viewSpacePosition /= viewSpacePosition.w;
	vec4 worldSpacePosition = inverse_view * viewSpacePosition;

void fragment() {
	float depth = texture(DEPTH_TEXTURE, SCREEN_UV).x;
	vec3 world_pos = world_pos_from_depth(depth, SCREEN_UV, INV_PROJECTION_MATRIX, (INV_VIEW_MATRIX));
	vec4 test_pos = (INV_MODEL_MATRIX * vec4(world_pos, 1.0));
	if (abs(test_pos.x) > cube_half_size ||abs(test_pos.y) > cube_half_size || abs(test_pos.z) > cube_half_size) {
	ALBEDO = texture(texture_albedo, (test_pos.xz) + 0.5).rgb * albedo.rgb;
4.0, decal
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
