Flat Parallax Turf

This is a fluffy uniform noise based turf grass, for a stylised simple grass aesthetic!

First seen and based upon this reel : https://www.instagram.com/reel/DNv2EjjWAHC/

Shader code
shader_type spatial;
render_mode blend_mix, depth_draw_opaque, cull_back;

group_uniforms Shape;
uniform sampler2D noise_texture : filter_linear_mipmap, repeat_enable;
uniform int layers = 20;
uniform float depth_scale : hint_range(0.01, 1) = 0.2;
uniform float depth_strength : hint_range(0.0,1.0) = 0.4;

group_uniforms Detail;
uniform sampler2D detail_noise_texture : filter_linear_mipmap, repeat_enable;
uniform float shape_detail_mix_factor : hint_range(0.0,1.0) = 0.4;
uniform vec2 detail_scale = vec2(4.0, 4.0);

group_uniforms Colour;
uniform vec3 highlight_color : source_color = vec3(0.576, 0.757, 0.424);
uniform vec3 base_color : source_color = vec3(0.341, 0.569, 0.282);

group_uniforms Colour.colour_variation;
uniform float mix_amount : hint_range(0.0,1.0) = 0.0;
uniform sampler2D colour_noise_texture : filter_linear_mipmap, repeat_enable;


void fragment() {
	float tangent = dot(VIEW, TANGENT);
	float binormal = dot(-VIEW, BINORMAL);
	float normal = dot(VIEW, NORMAL);

	float inv_layers = 1.0 / float(layers);

	vec2 uv_offset_total = (vec2(tangent, binormal) / normal) * depth_scale * 0.05;
	vec2 uv_step = uv_offset_total * inv_layers;

	vec2 current_uv = UV;
	vec3 final_albedo = base_color;

	float base_threshold = depth_strength + 0.3;
	float detail_weight = 1.0 - shape_detail_mix_factor;

	for (int i = 0; i < layers; i++) {
		float depth_ratio = float(i) * inv_layers;

		float base_noise = texture(noise_texture, current_uv).x;
		float detail_noise = texture(detail_noise_texture, current_uv * detail_scale).x;

		float combined_noise = mix(base_noise, detail_noise, detail_weight);
		float threshold = base_threshold * (1.0 - depth_ratio);

		vec3 final_colour = mix(highlight_color, texture(colour_noise_texture, UV).rgb, mix_amount);

		if (combined_noise > threshold) {
			final_albedo = mix(final_colour, base_color, depth_ratio);
			break;
		}

		current_uv -= uv_step;
	}

	ALBEDO = final_albedo;
	ROUGHNESS = 0.9;
	SPECULAR = 0.05;
}

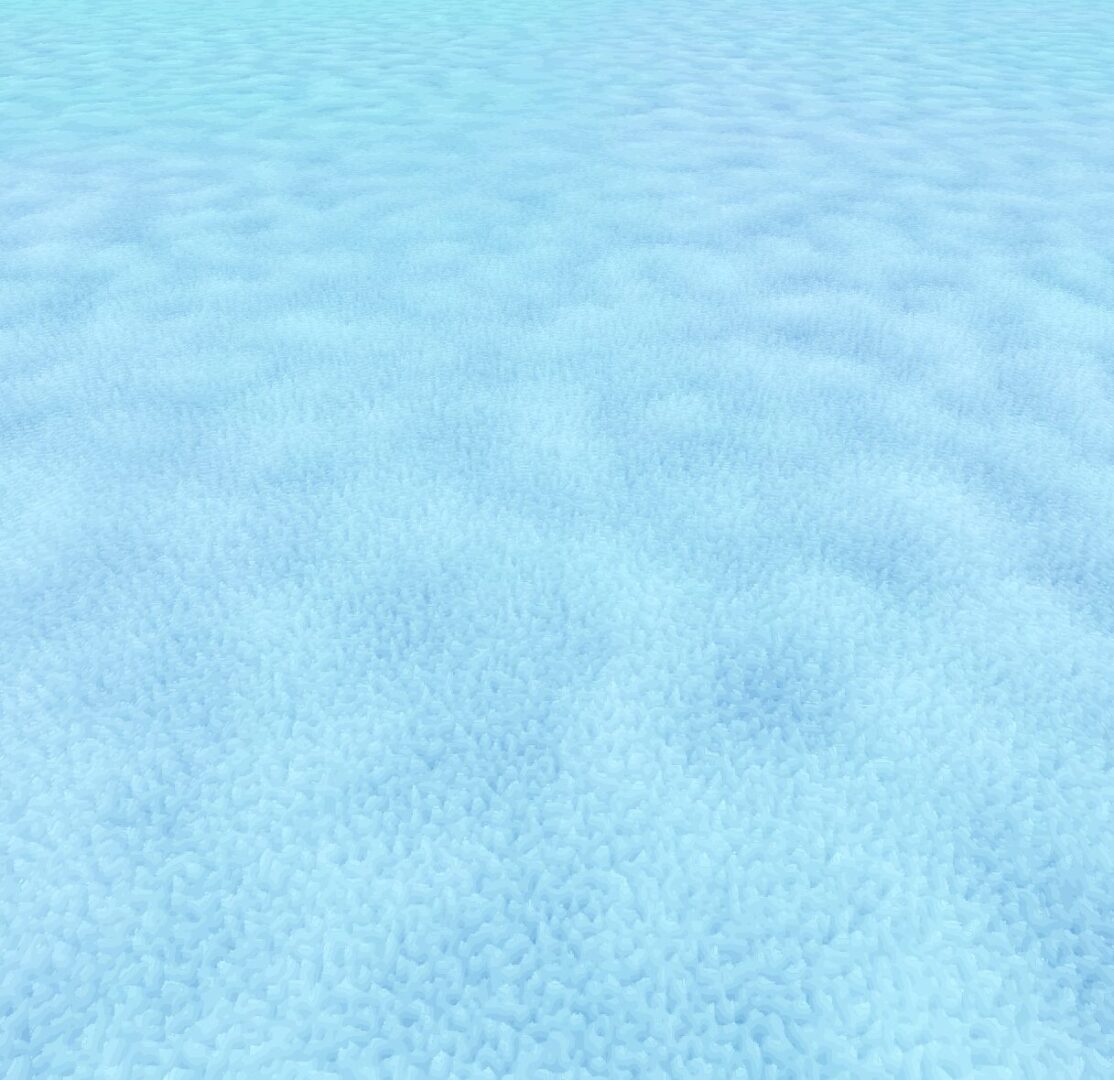

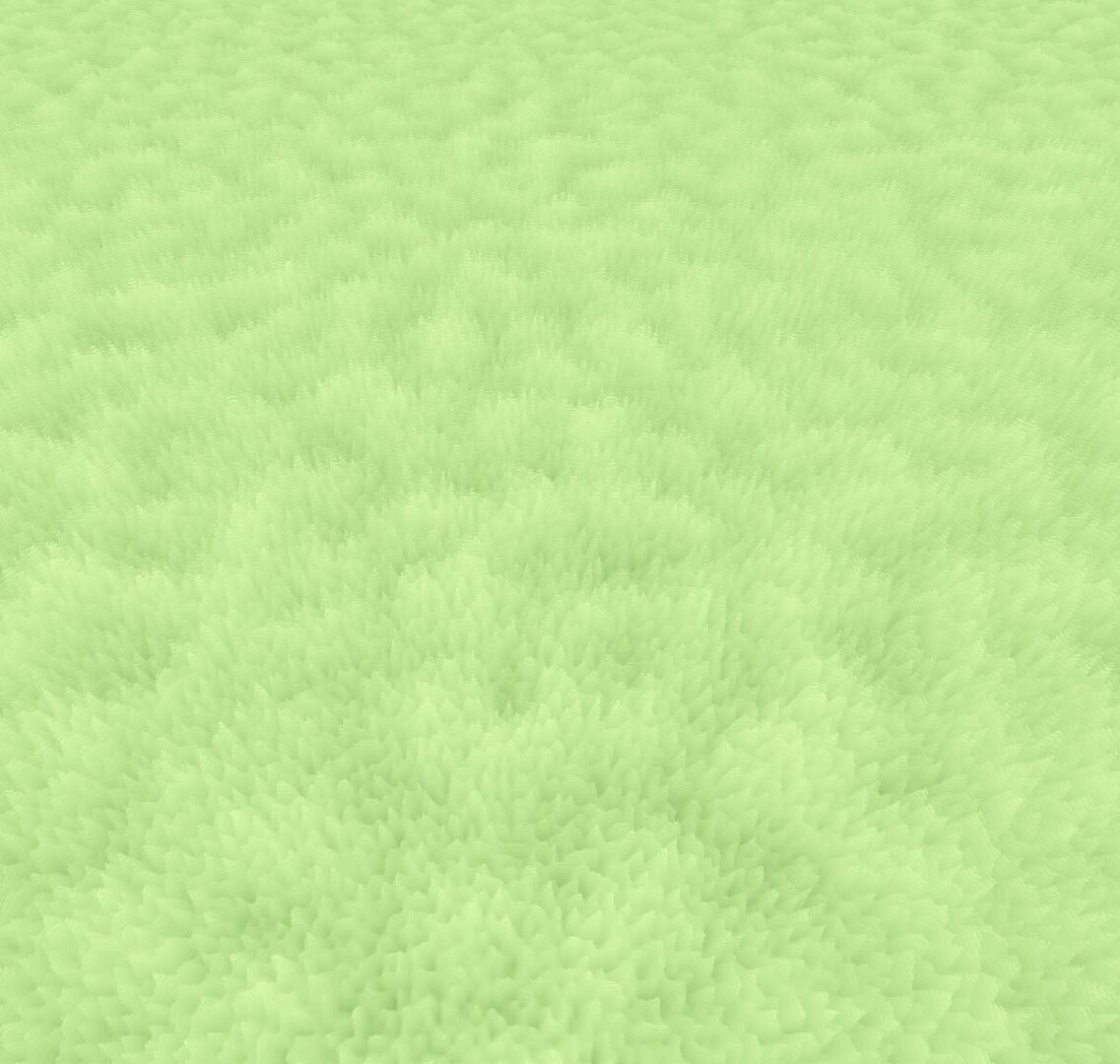

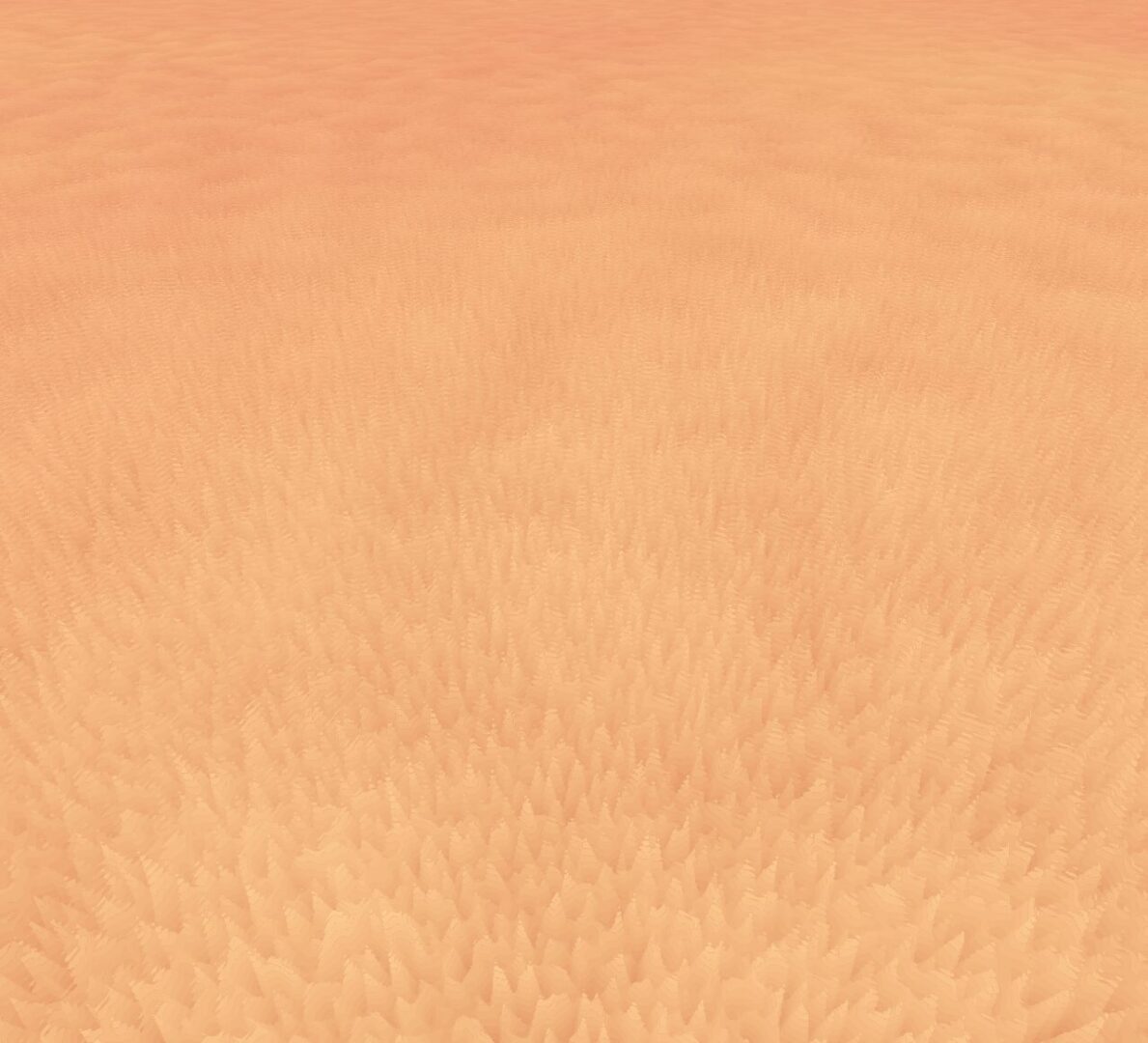

Live Preview
Tags
3d, environment, foliage, grass, nature, parallax, stylised
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
