Game Endeavor Shader Updated to Godot 4.4

The shader provided by https://www.youtube.com/@GameEndeavor in his video
https://www.youtube.com/watch?v=XaJ58TxKTTc. In his description there is a link to their patreon post https://www.patreon.com/posts/42040761 that has the shader, but this is for an older version of godot so when I was looking around for ways to make lighting look better and I came across this one I decided we need this for Godot 4+
So here it is!

Shoutout to GameEndeavor for providing this for free! I feel like it’s only fair to carry on the same way!

If you want to follow allong with the game I am making where I am using this you can find all my socials and the steam page on https://www.flowforgestudios.co.uk

Shader code
shader_type canvas_item;
render_mode blend_mix, unshaded;

uniform vec2 camera_position;
uniform vec2 camera_zoom;
uniform vec2 viewport_size;
uniform sampler2D light_data;
uniform int n_lights = 0;
uniform vec4 dark_color : source_color = vec4(0.1, 0.1, 0.2, 1.0);
uniform vec4 default_light_color : source_color = vec4(1.0, 1.0, 1.0, 1.0);
uniform float light_level : hint_range(0.0, 1.0) = 0.3;
uniform float offset_modifier : hint_range(0.0, 8.0) = 1.0;
uniform int n_light_bands : hint_range(1, 13) = 5;
uniform bool will_smooth_shade = false;
uniform float band_decay_rate : hint_range(0.0, 1.0, 0.05) = 0.7;
uniform float light_strength_modifier : hint_range(0.0, 2.0) = 1.5;
uniform sampler2D screen_texture : hint_screen_texture;

varying vec2 world_position;

void vertex() {
	// Convert screen position to world position manually
	// VERTEX ranges from (0,0) to viewport_size
	vec2 screen_pos = VERTEX;

	// Convert to normalized coordinates (-0.5 to 0.5)
	vec2 normalized_pos = (screen_pos / viewport_size) - 0.5;

	// Scale by zoom and offset by camera position
	world_position = camera_position + (normalized_pos * viewport_size / camera_zoom);
}

void fragment() {
	vec2 frag_position = floor(world_position);
	vec4 final_color = vec4(0.0); // Start with black instead of dark_color

	for (int i = 0; i < n_lights; i++) {
		vec4 texel = texelFetch(light_data, ivec2(i, 0), 0);
		float radius = texel.a;
		float strength = texel.b;
		vec4 light_color = texelFetch(light_data, ivec2(i, 1), 0);

		float dist = distance(texel.xy, frag_position);
		dist = min(dist / radius, 1.0);
		dist = max((dist * offset_modifier) - (offset_modifier - 1.0), 0.0);

		float value = 0.0;
		if (will_smooth_shade) {
			value = (1.0 - dist) * strength * light_strength_modifier;
		} else {
			float offset = pow(band_decay_rate, float(n_light_bands));
			for (int p = 0; p < n_light_bands; p++) {
				float radius_check = 1.0 - pow(band_decay_rate, float(p + 1)) + offset;
				if (dist < radius_check) {
					value = (pow(band_decay_rate, float(p)) - offset)
							* strength * light_strength_modifier;
					break;
				}
			}
		}

		value = clamp(value, 0.0, 1.0);

		// Screen blend mode - but only blend the light contribution
		if (value > 0.0) {
			vec4 light_contribution = light_color * value;
			// Screen blend: 1 - (1-a) * (1-b)
			final_color = vec4(1.0) - (vec4(1.0) - final_color) * (vec4(1.0) - light_contribution);
		}
	}

	// Calculate light intensity BEFORE mixing with dark_color
	float light_intensity = min(length(final_color.rgb), 1.0);

	// Remap light_level (0.05 to 0.45) to a more useful range
	float normalized_light = (light_level - 0.05) / (0.45 - 0.05);
	normalized_light = clamp(normalized_light, 0.0, 1.0);

	// Base darkening amount based on time of day
	float base_darkening = 1.0 - normalized_light;

	// Lights completely remove darkening - use a stronger power curve
	float final_darkening = base_darkening * pow(1.0 - light_intensity, 2.0);

	// Mix the final light result with dark_color
	vec4 ambient_color = mix(dark_color, final_color, light_intensity);
	ambient_color.a *= final_darkening;

	vec2 screen_uv = SCREEN_UV;
	vec4 screen_color = texture(screen_texture, screen_uv);
	COLOR = screen_color * ambient_color;
}

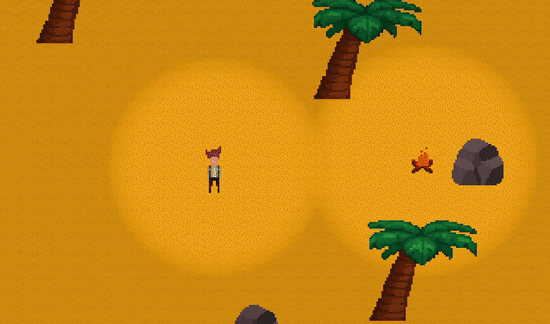

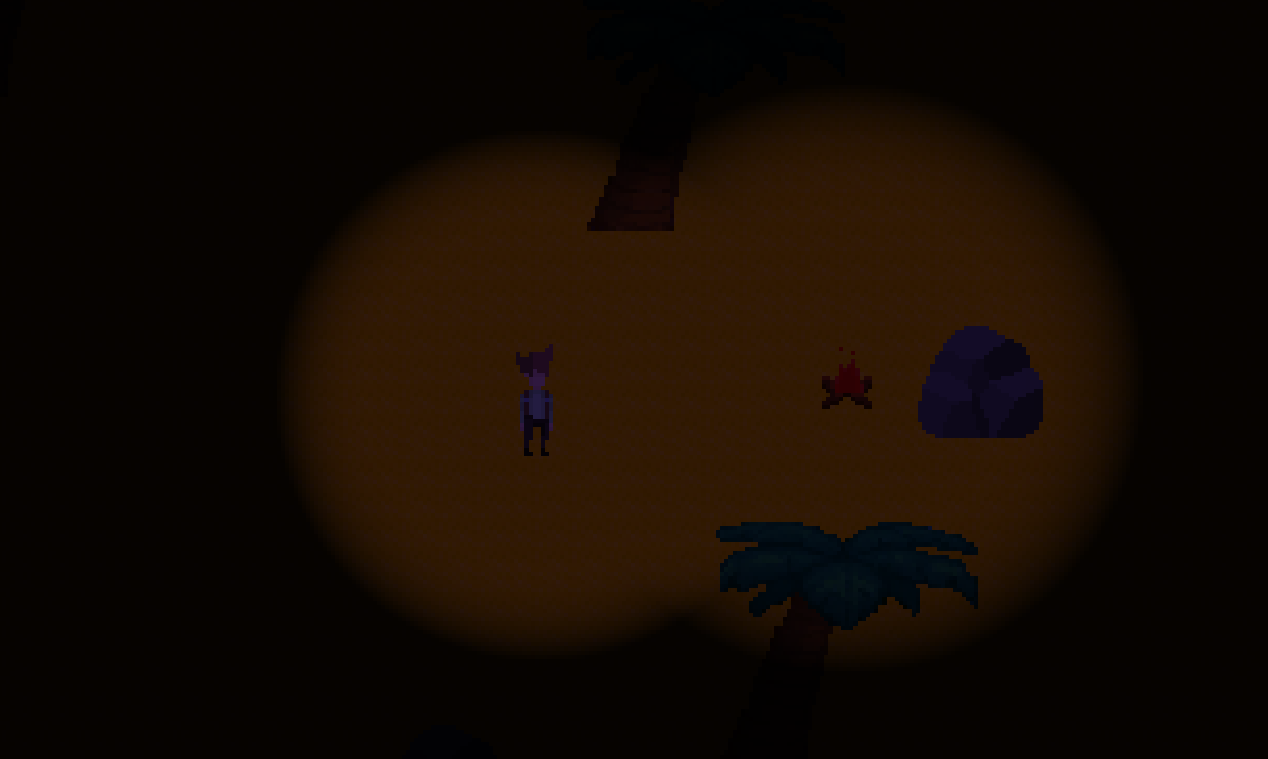

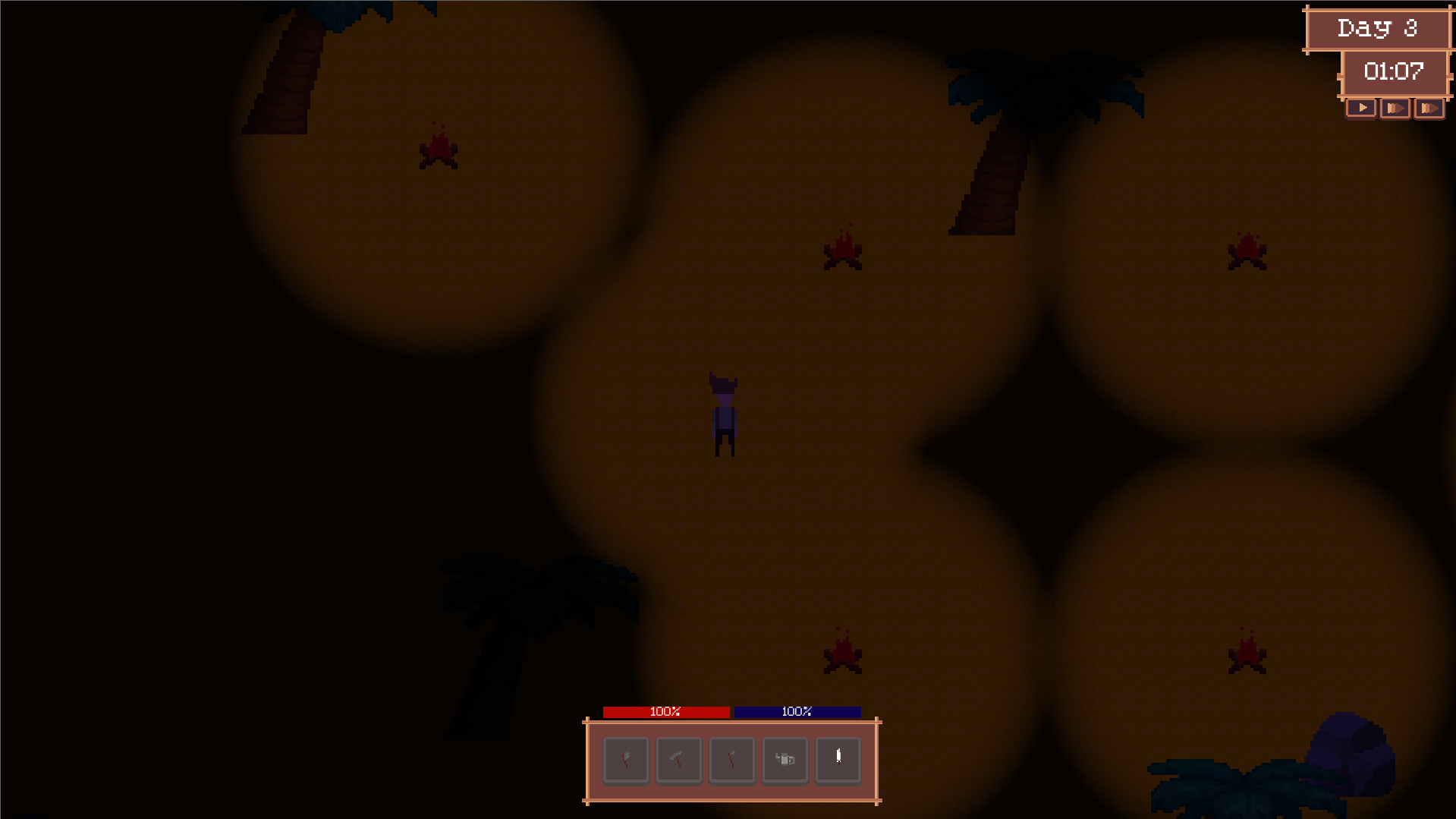

Live Preview
Tags
lights2d
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
