Simple Gradient Mapping

一个渐变映射shader。

据说……是很多美术老哥的偷懒神器。

用来做(蒸汽波)动画也很不错。

可以自定义双色渐变或三色渐变,可以选择保持明度,可以选择填充百分比。

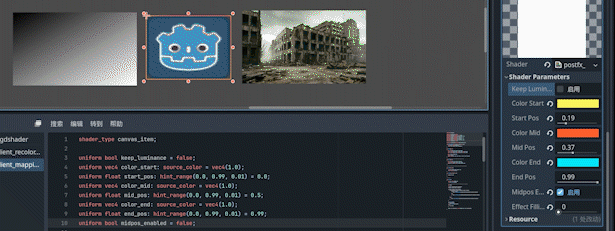

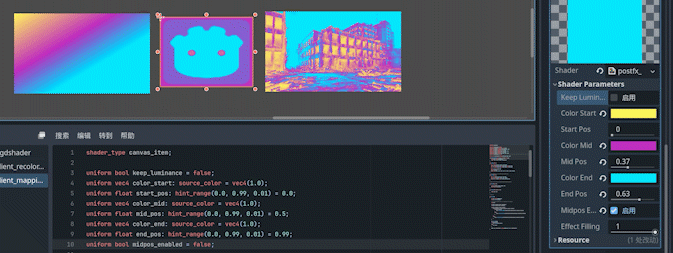

下面的两个动图演示了主要功能,可以点开看看。



A shader to recolor your texture with fancy gradient mapping effect.

  • You can utilize the “start_pos”/”mid_pos”/”end_pos” parameters to create your own gradient.
  • You can check “keep_luminance” or change the “effect_filling” parameter to make it less stylized.



See the screenshots for more demonstration.

Shader code
shader_type canvas_item;

uniform bool keep_luminance = false;
uniform vec4 color_start: source_color = vec4(1.0);
uniform float start_pos: hint_range(0.0, 0.99, 0.01) = 0.0;
uniform vec4 color_mid: source_color = vec4(1.0);
uniform float mid_pos: hint_range(0.0, 0.99, 0.01) = 0.5;
uniform vec4 color_end: source_color = vec4(1.0);
uniform float end_pos: hint_range(0.0, 0.99, 0.01) = 0.99;
uniform bool midpos_enabled = false;

uniform float effect_filling: hint_range(0.0, 1.0, 0.01) = 1.0;

vec3 rgb2hsv(vec3 c)
{
    vec4 K = vec4(0.0, -1.0 / 3.0, 2.0 / 3.0, -1.0);
    vec4 p = mix(vec4(c.bg, K.wz), vec4(c.gb, K.xy), step(c.b, c.g));
    vec4 q = mix(vec4(p.xyw, c.r), vec4(c.r, p.yzx), step(p.x, c.r));

    float d = q.x - min(q.w, q.y);
    float e = 1.0e-10;
    return vec3(abs(q.z + (q.w - q.y) / (6.0 * d + e)), d / (q.x + e), q.x);
}

// All components are in the range [0…1], including hue.
vec3 hsv2rgb(vec3 c)
{
    vec4 K = vec4(1.0, 2.0 / 3.0, 1.0 / 3.0, 3.0);
    vec3 p = abs(fract(c.xxx + K.xyz) * 6.0 - K.www);
    return c.z * mix(K.xxx, clamp(p - K.xxx, 0.0, 1.0), c.y);
}

//function from: https://gamedev.stackexchange.com/a/75928
vec4 to_gray(vec4 tex)
{
	float avg = (tex.r + tex.g + tex.b) / 3.0;
	return vec4(vec3(avg),tex.a);
}

vec4 to_color(vec4 gray, vec4 col)
{
	return gray * col;
}

void fragment()
{
	vec4 tex = texture(TEXTURE, UV);
	vec3 hsv = rgb2hsv(tex.rgb);

	// the .r here represents HUE, .g is SATURATION, .b is LUMINANCE
	vec4 color;

	if (hsv.b  end_pos) {color = color_end;}

	if (hsv.b > start_pos && hsv.b  start_pos && mid_pos  mid_pos){
				color = mix(color_mid, color_end, (hsv.b-mid_pos)/(end_pos-mid_pos));
			}
			else{
				color = mix(color_start, color_mid, (hsv.b-start_pos)/(mid_pos-start_pos));
			}
		}
		else {
			color = mix(color_start, color_end, (hsv.b-start_pos)/(end_pos-start_pos));
		}
	}

	tex = to_gray(tex);
	if (keep_luminance){
		tex = to_color(tex, color);}
	else{
		tex = color;
	}

	COLOR = mix( texture(TEXTURE, UV), tex, effect_filling);
	COLOR.a = min( texture(TEXTURE, UV).a, tex.a);
}
Tags
2d, Color, godot4, gradient, Gradient Mapping, palette
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
