Infinite Ground Grid

A proper 3D infinite ground grid, with perspective independent line thickness and correct depth. Similar to grid in Godot’s editor viewport and most 3D modeling apps.

  • projected on camera facing quad or sprite, no need for ground geometry

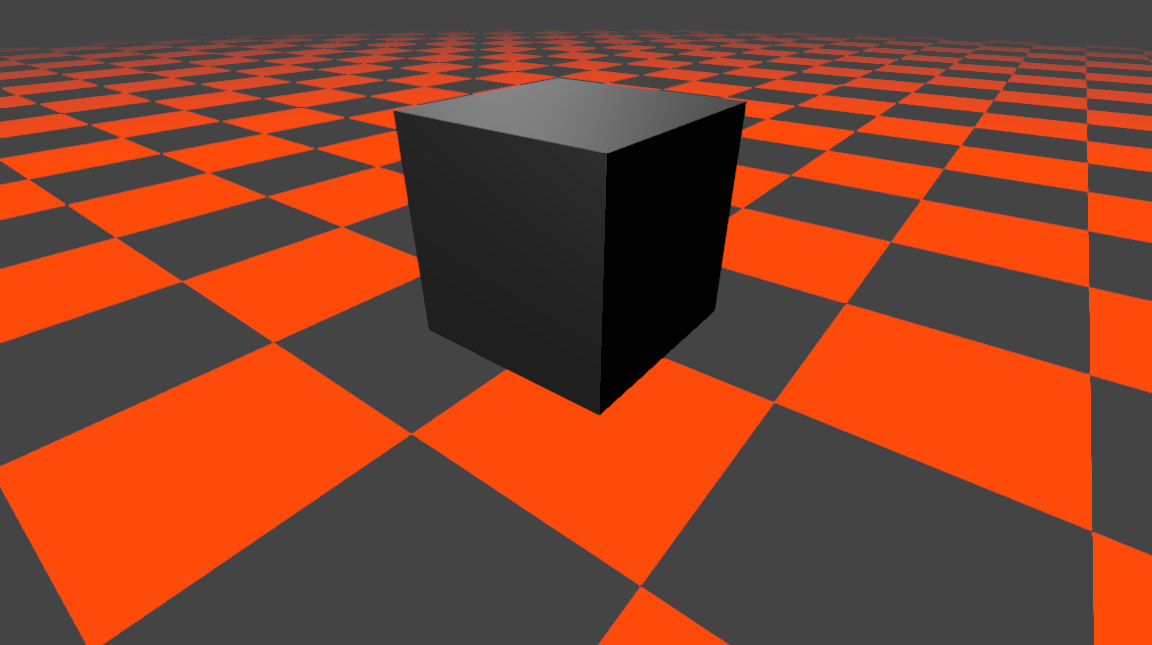

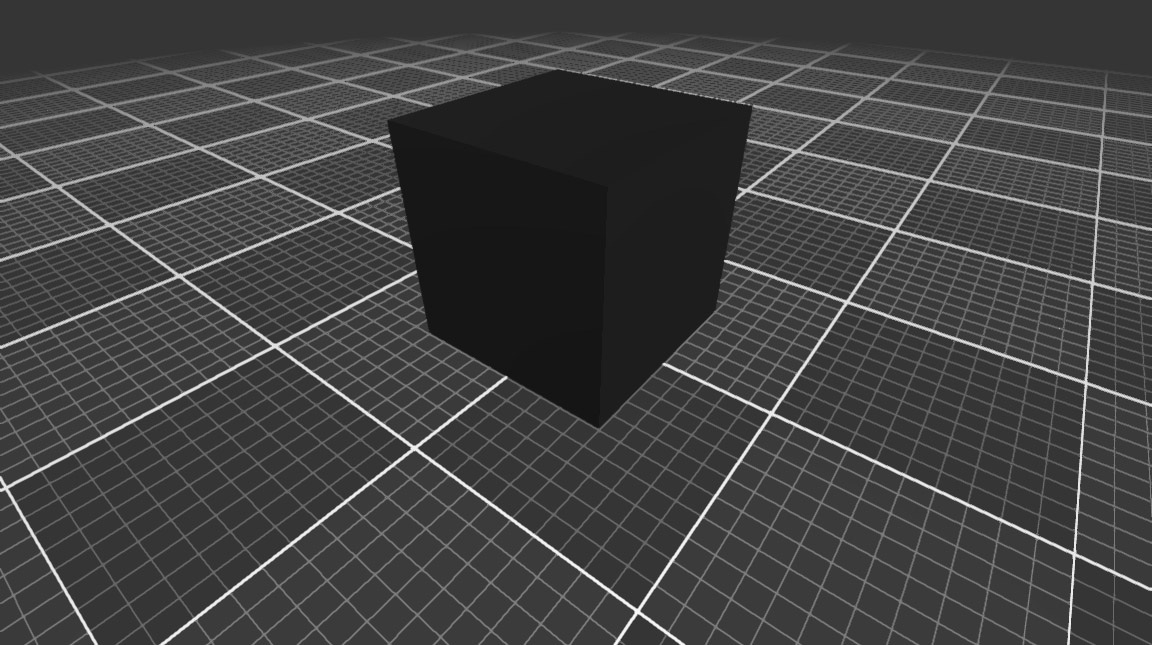

  • renders grid, checkerboard or both combined
  • major and minor grid lines
  • adjustable line thickness, subdivisions, colors and transparency

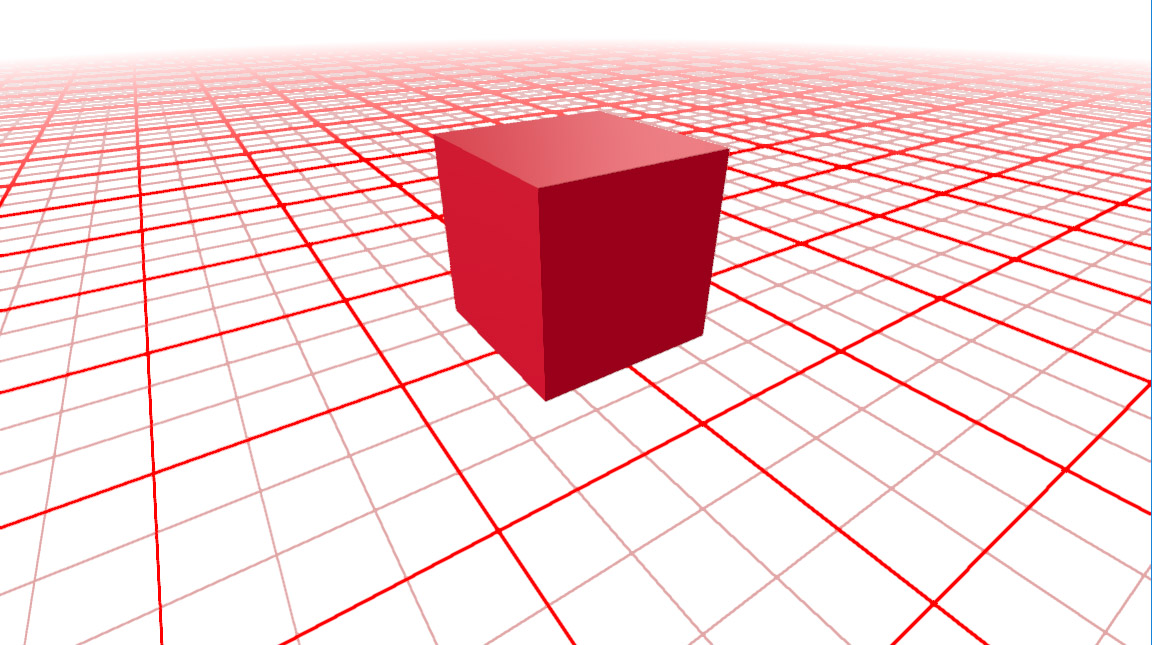

  • adjustable distance fade zone
  • adjustable ground plane elevation and center offset

Usage: Assign a shader to a 3D sprite or a quad and put it directly in front of camera so that it covers the entire view.

Shader code
shader_type spatial;
render_mode blend_mix,depth_draw_opaque, unshaded;

uniform vec4 gridColor: source_color;
uniform vec4 checkerColor: source_color;
uniform float fadeStart = 0.0;
uniform float fadeEnd = 10.0;
uniform float unitSize = 1.0;
uniform int subdivisions: hint_range(1, 10) = 5;
uniform float majorLineThickness = 2.0;
uniform float minorLineThickness = 1.0;
uniform float minorLineAlpha: hint_range(0.0, 1.0) = .3;
uniform vec3 centerOffset = vec3(0.0, 0.0, 0.0);

// calculate line mask, usning a bit of fwidth() magic to make line width not affected by perspective
float grid(vec2 pos, float unit, float thickness){
	vec2 threshold = fwidth(pos) * thickness * .5 / unit;
	vec2 posWrapped = pos / unit;
	vec2 line = step(fract(-posWrapped), threshold) + step(fract(posWrapped), threshold);
	return max(line.x, line.y);
}

// calculate checkerboard mask
float checker(vec2 pos, float unit){
	float square1 = step(.5, fract(pos.x / unit *.5));
	float square2 = step(.5, fract(pos.y / unit *.5));
	return max(square1,square2) - square1 * square2;
}

void fragment() {
	// ray from camera to fragemnt in wrold space
	vec3 rayWorld = normalize(mat3(INV_VIEW_MATRIX) * VIEW) ;

	// calculate fragment position in world space
	vec3 posWorld;
	float t = -(CAMERA_POSITION_WORLD.y - centerOffset.y) / (rayWorld.y );
	posWorld.y = -centerOffset.y;
	posWorld.xz = CAMERA_POSITION_WORLD.xz + t * rayWorld.xz + centerOffset.xz;

	// calculate planar distance from camera to fragment (used for fading)
	float distPlanar = distance(posWorld.xz, centerOffset.xz);

	// grid
	float line = grid(posWorld.xz, unitSize, majorLineThickness);
	line += grid(posWorld.xz, unitSize / float(subdivisions), minorLineThickness) * minorLineAlpha;
	line = clamp(line, 0.0, 1.0);

	// checkerboard
	float chec = checker(posWorld.xz, unitSize);

	// distance fade factor
	float fadeFactor = 1.0 - clamp((distPlanar - fadeStart) / (fadeEnd - fadeStart), 0.0, 1.0);

	// write ground plane depth into z buffer
	vec4 pp = (PROJECTION_MATRIX * (VIEW_MATRIX * vec4(posWorld, 1.0)));
	DEPTH = pp.z / pp.w;

	// final alpha
	float alphaGrid = line * gridColor.a;
	float alphaChec = chec * checkerColor.a;
	ALPHA = clamp(alphaGrid + alphaChec, 0.0, 1.0) * fadeFactor;
	// eliminate grid above the horizon
	ALPHA *= step(t, 0.0);

	// final color (premultiplied alpha blend)
	ALBEDO = (checkerColor.rgb * alphaChec) * (1.0 - alphaGrid) + (gridColor.rgb * alphaGrid);

}
Tags
3d, grid, ground, infinite, projected, Spatial
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
