Line pattern cell shading

Jtad September 23, 2024

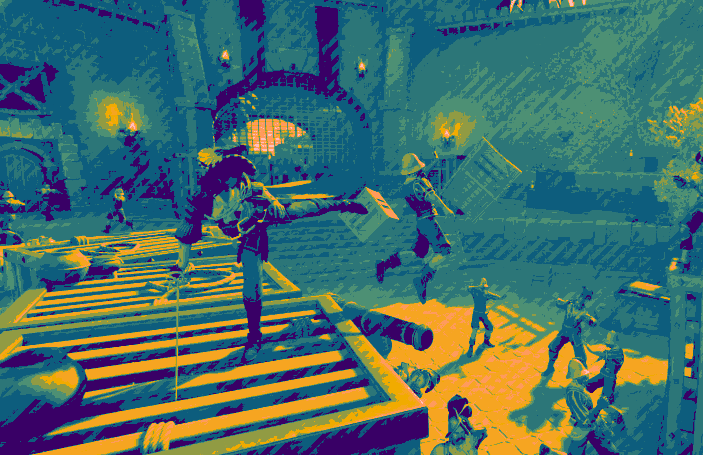

Post processing shader that makes everything cell shaded, with line pattern dithering in between different shades. Adjust parameters according to your needs.

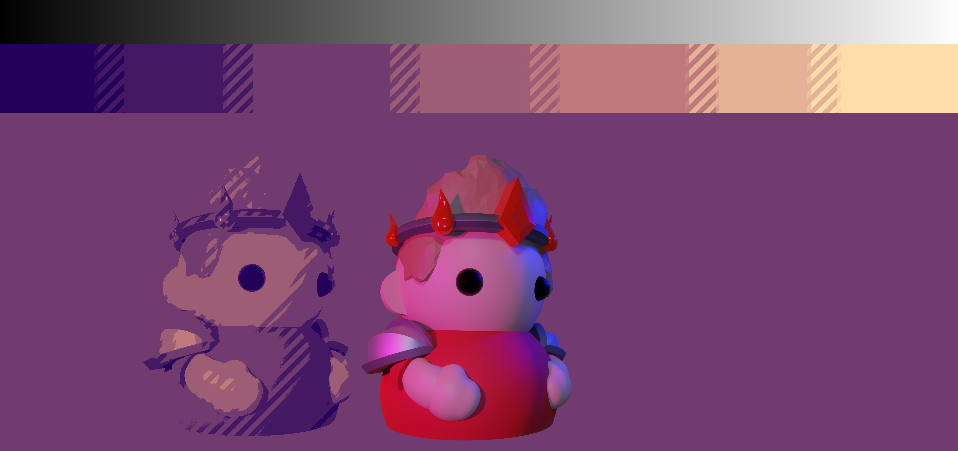

Requires you to import a constant gradient parameter. You can try to replicate the example in the screenshot, or customize your own.

See more about this shader

Shader code

shader_type canvas_item;

uniform sampler2D screen_texture:hint_screen_texture,repeat_disable,filter_nearest;
uniform sampler2D gradient: hint_default_black;
uniform float depth = 0.03;
uniform int line_thickness = 7;

void fragment() {
    vec3 color = texture(screen_texture,SCREEN_UV).rgb;
    float grayscale_value = dot(color, vec3(0.299, 0.587, 0.114));
    if (int(VERTEX.x+VERTEX.y)%(2*line_thickness) < line_thickness){
        grayscale_value -= depth;
        }

    vec3 sampled_color = texture(gradient, vec2(grayscale_value, 0.0)).rgb;

    COLOR.rgb = sampled_color;
}

Tags

cell shaded, gradient, monochrome, Post processing, retro

The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
