Procedural Hex Barrier Shader

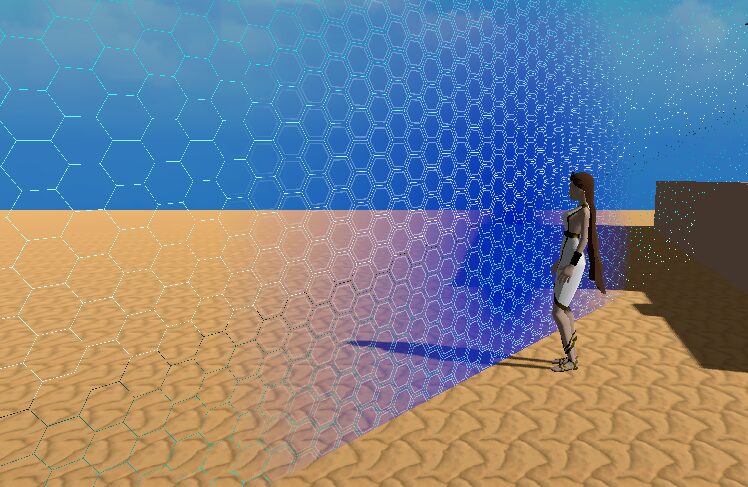

A procedural hex barrier shader.

You needs set to pos1~pos6 (that is world position) for displaying barrier.

Shader code
/*
	壁シールドシェーダー by あるる(きのもと 結衣) @arlez80
	Wall Shield Shader by KINOMOTO Yui

	MIT License
*/

shader_type spatial;
render_mode depth_draw_never;

uniform float scale = 15.0;
uniform float line_speed = 0.5;
uniform float ripple_speed = 1.564;

uniform vec4 line_color : hint_color = vec4( 0.2, 1.0, 1.0, 1.0 );
uniform vec4 ripple_color : hint_color = vec4( 0.6, 0.7, 1.0, 0.7 );
uniform vec4 surface_color : hint_color = vec4( 0.01, 0.18, 0.7, 0.4 );

uniform float sphere_size = 2.0;

uniform vec3 pos1 = vec3( 0.0, 0.0, 0.0 );
uniform vec3 pos2 = vec3( 10000, 10000, 10000 );
uniform vec3 pos3 = vec3( 10000, 10000, 10000 );
uniform vec3 pos4 = vec3( 10000, 10000, 10000 );
uniform vec3 pos5 = vec3( 10000, 10000, 10000 );
uniform vec3 pos6 = vec3( 10000, 10000, 10000 );

varying vec3 world_vertex;

float hex_cells( vec2 uv )
{
	float x = uv.x * scale;
	float y = mod( floor( x ), 2.0 ) * 0.5 + ( uv.y * scale / 1.25 );
	vec2 base_chip = abs( vec2( 0.5 ) - mod( vec2( x, y ), 1.0 ) );
	return abs( max( base_chip.x * 1.5 + base_chip.y, base_chip.y * 2.0 ) - 1.0 );
}

void vertex( )
{
	world_vertex = (WORLD_MATRIX * vec4(VERTEX, 1.0)).xyz;
}

void fragment( )
{
	// 六角形計算
	float hex = hex_cells( UV );

	// ライン色計算
	vec3 final_line_color = clamp( line_color.rgb + ( fract( length( UV * scale * 0.5 ) + TIME * line_speed ) * 2.0 - 1.0 ), vec3( 0.0 ), vec3( 1.0 ) );

	// 波紋計算
	float ripple = float( abs( hex - mod( -TIME * ripple_speed, 1.0 ) ) * 5.0 < 0.2 );

	// 最終色出力
	vec4 final = mix(
		mix(
			surface_color
		,	ripple_color
		,	ripple
		)
	,	vec4( final_line_color, 1.0 )
	,	float( hex < 0.02 )
	);

	// 最短キャラ位置計算
	float min_dist = min(
		length( pos1 - world_vertex )
	,	min(
		length( pos2 - world_vertex )
	,	min(
		length( pos3 - world_vertex )
	,	min(
		length( pos4 - world_vertex )
	,	min(
		length( pos5 - world_vertex )
	,	length( pos6 - world_vertex )
	)))));

	ALBEDO = final.rgb;
	ALPHA = clamp( final.a * sphere_size - min_dist, 0.0, 1.0 );
}
Tags
hex, Procedural
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
