Realistic Water with Traced and Simple Reflection and Refraction (V2)

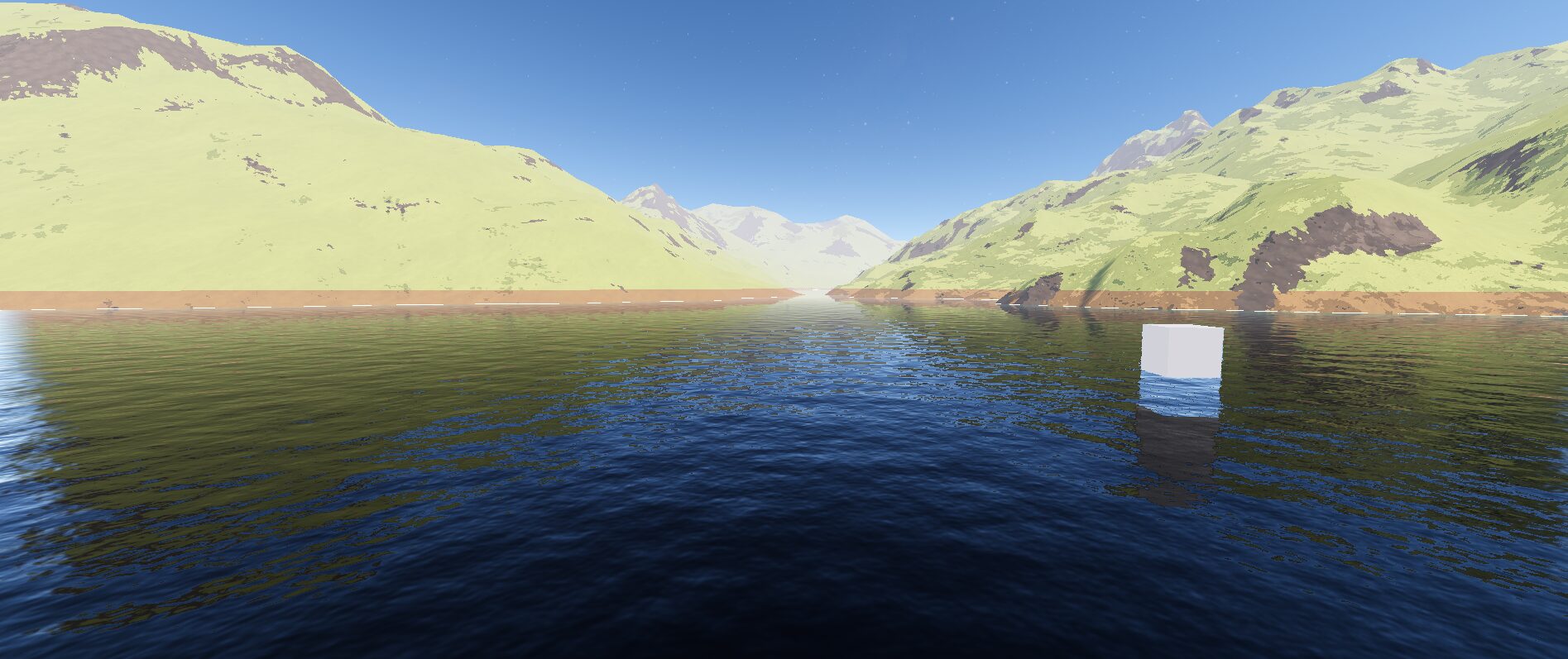

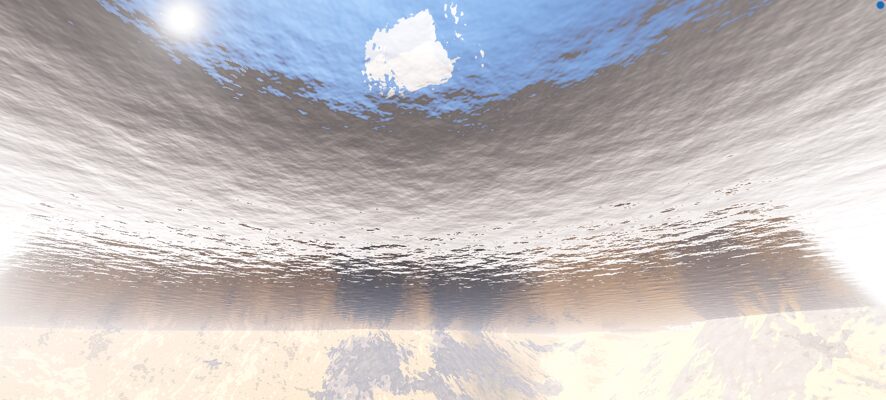

A realistic, controllable water shader with SSR, screen space refraction, fog, and Snell’s window. This one is mostly as controllable as the last shader, with some more realistic features.
Attach to a plane or quad, set height strength to 0 if you aren’t using subdivision.
This shader only works facing up.

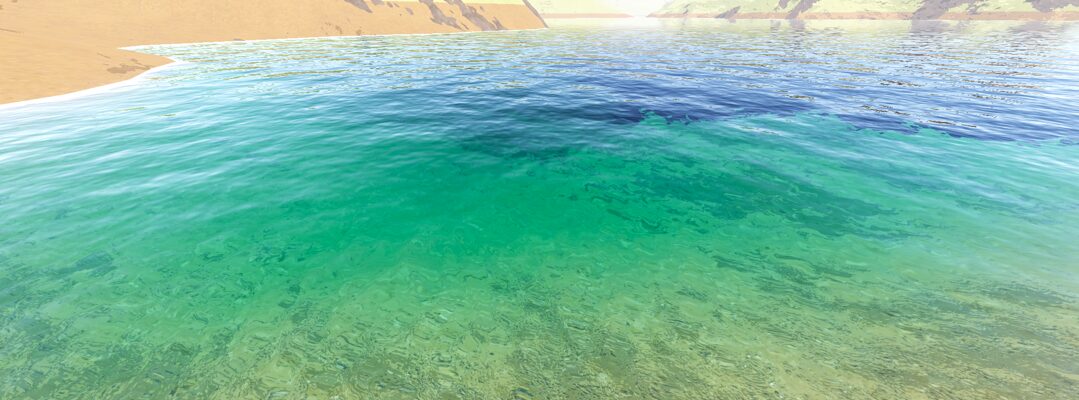

Refraction:
- None: Doesn’t refract, just applies fog
- Simple: Refracts based on normal map

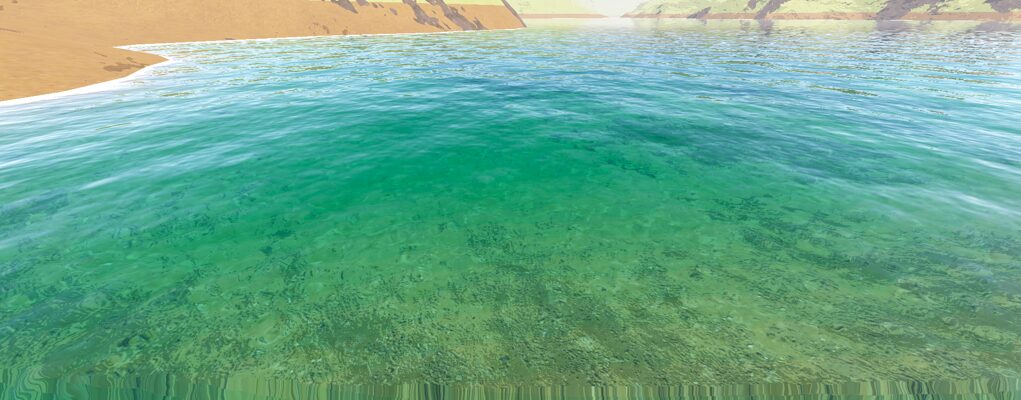

- Traced: Traces (maybe) physically accurate refraction vector (WILL RESULT IN ARTIFACTS)
Reflection:
- None: Doesn’t reflect
- Simple: Flipped image
- Traced: Screen-space raytracing
Absorbtion color: Mixes to that color based on color^(depth*multiplier)
Shader code
shader_type spatial;
render_mode world_vertex_coords, cull_disabled, depth_draw_always;
uniform sampler2D screen : hint_screen_texture, filter_linear_mipmap_anisotropic, repeat_disable;
group_uniforms colours;
uniform vec3 absorptioncolour : source_color;
uniform float absorptionmultiplier = 1.0;
group_uniforms material;
uniform float AirIOR = 1.0;
uniform float IOR = 1.33;
group_uniforms textures;
uniform vec2 sampler1speed = vec2(0.02, 0.0);
uniform vec2 sampler2speed = vec2(0.0, 0.02);
uniform float samplermix : hint_range(0.0, 1.0, 0.1) = 0.5;
uniform vec2 samplerscale = vec2(0.1);
uniform sampler2D normal1tex : filter_linear_mipmap_anisotropic, hint_normal;
uniform sampler2D normal2tex : filter_linear_mipmap_anisotropic, hint_normal;
uniform float normalstrength : hint_range(0.0, 5.0, 0.01) = 1.0;
uniform sampler2D height1tex : filter_linear_mipmap_anisotropic;
uniform sampler2D height2tex : filter_linear_mipmap_anisotropic;
uniform float heightstrength : hint_range(0.0, 5.0, 0.01) = 0.12;
uniform sampler2D edge1tex : filter_linear_mipmap_anisotropic;
uniform sampler2D edge2tex : filter_linear_mipmap_anisotropic;
varying vec2 position;
varying vec3 wposition;
group_uniforms refraction;
uniform int refraction_type : hint_enum("None", "Simple", "Traced") = 1;
uniform float simple_refraction_amount = 0.1;
uniform float traced_refraction_far_clip = 50.0;
uniform int traced_refraction_steps : hint_range(64, 1024, 16) = 512;
group_uniforms edge;
uniform float edge_size : hint_range(0.01, 0.5, 0.01) = 0.1;
uniform bool foam_or_fade = false;
uniform sampler2D DEPTH_TEXTURE : hint_depth_texture, filter_linear_mipmap, repeat_disable;
group_uniforms screen_space_reflection;
uniform int ssr_type : hint_enum("None", "Simple", "Traced") = 2;
uniform float traced_ssr_far_clip = 50.0;
uniform int traced_ssr_steps : hint_range(64, 1024, 16) = 512;
uniform float ssr_screen_fade : hint_range(0.01, 0.5, 0.01) = 0.05;
float schlickfresnel(float ior1, float ior2, vec3 view, vec3 norm) {
float incident = dot(view, norm);
float reflectance = ((ior2 - ior1)/(ior2 + ior1)) * ((ior2 - ior1)/(ior2 + ior1));
float fresnelincident = reflectance + (1.0 - reflectance) * pow(1.0 - cos(incident), 5.0);
return clamp(fresnelincident / incident, 0.0, 1.0);
}
void vertex() {
position = VERTEX.xz;
UV = VERTEX.xz * samplerscale + (sampler1speed * TIME);
UV2 = VERTEX.xz * samplerscale + (sampler2speed * TIME);
float height = mix(texture(height1tex, UV),texture(height2tex, UV2),samplermix).x;
VERTEX.y += (height - 0.5) * heightstrength;
wposition = VERTEX;
// Called for every vertex the material is visible on.
}
float snells_window(vec3 normal, vec3 view, float ior) {
float cos_theta = dot(normal, view);
return step(sqrt(1.0 - cos_theta * cos_theta) * ior, 1.0);
}
float linear_depth(float nonlinear_depth, mat4 inv_projection_matrix) {
#if CURRENT_RENDERER == RENDERER_COMPATIBILITY
nonlinear_depth = nonlinear_depth * 2.0 - 1.0;
#endif
return 1.0 / (nonlinear_depth * inv_projection_matrix[2].w + inv_projection_matrix[3].w);
}
float nonlinear_depth(float linear_depth, mat4 inv_projection_matrix) {
#if CURRENT_RENDERER == RENDERER_COMPATIBILITY
linear_depth = linear_depth * 0.5 + 0.5;
#endif
return (1.0 / linear_depth - inv_projection_matrix[3].w) / inv_projection_matrix[2].w;
}
vec2 view2uv(vec3 position_view_space, mat4 proj_m)
{
vec4 position_clip_space = proj_m * vec4(position_view_space.xyz, 1.0);
vec2 position_ndc = position_clip_space.xy / position_clip_space.w;
return position_ndc.xy * 0.5 + 0.5;
}
float remap(float x, float min1, float max1, float min2, float max2) {
return ((x - min1) / (max1 - min1) + min2) * (max2 - min2);
}
float remap1(float x, float min1, float max1) {
return (x - min1) / (max1 - min1);
}
float edge_fade(vec2 uv, float size) {
float x1 = clamp(remap1(uv.x, 0.0, size), 0.0, 1.0);
float x2 = clamp(remap1(uv.x, 1.0, 1.0 - size), 0.0, 1.0);
float y1 = clamp(remap1(uv.y, 0.0, size), 0.0, 1.0);
float y2 = clamp(remap1(uv.y, 1.0, 1.0 - size), 0.0, 1.0);
return x1*x2*y1*y2;
}
void refraction(vec3 normal, vec3 vertex, vec2 normmap, bool reverse, mat4 projection_matrix, vec3 tangent, vec3 binormal, vec2 screen_uv, vec2 viewport_size, inout vec3 emission) {
vec3 view = normalize(-vertex);
mat4 inv_proj_mat = inverse(projection_matrix);
if (refraction_type == 2) {
vec3 refracted = refract(view, normal, AirIOR / -IOR);
if (reverse) {
refracted = refract(view, normal, -IOR / AirIOR);
}
vec3 pos = vertex;
float dist = 0.0;
int curstep = 0;
bool finished = false;
vec2 uv;
float currentdepth;
float lastdepth1 = -vertex.z;
while (curstep < traced_refraction_steps) {
float step_scale = float(curstep + 1) / float(traced_refraction_steps);
float step_dist = step_scale * step_scale * traced_refraction_far_clip;
pos += refracted * step_dist;
dist += step_dist;
curstep += 1;
float lastdepth2 = lastdepth1;
float lastdepth1 = currentdepth;
currentdepth = -pos.z;
uv = view2uv(pos, projection_matrix);
float testdepth = linear_depth(texture(DEPTH_TEXTURE, uv).r, inv_proj_mat);
if (testdepth < lastdepth2) {
break;
}
if (testdepth < currentdepth) {
finished = true;
break;
}
}
float lineardepth = linear_depth(texture(DEPTH_TEXTURE, uv).r, inv_proj_mat);
//float selfdepth = 1.0/(1.0 + 2.0 * distance(wposition, CAMERA_POSITION_WORLD));
//vec3 newvolcolour = mix(volumecolour, vec3(1.0), clamp(1.0 / (depth_diff * 1.0), 0.0, 1.0));
vec3 newvolcolour = vec3(1.0);
if (reverse) {
} else {
newvolcolour = pow(absorptioncolour, vec3(dist * absorptionmultiplier));
}
emission = newvolcolour * texture(screen, uv).rgb;
} else if (refraction_type == 1) {
float lineardepth = linear_depth(texture(DEPTH_TEXTURE, screen_uv).r, inv_proj_mat);
float selfdepth = -vertex.z;
float depth_diff = lineardepth - selfdepth;
float x_mult = viewport_size.y / viewport_size.x;
vec3 tanx = binormal * (normmap.x - 0.5) * normalstrength * x_mult;
vec3 tany = tangent * (normmap.y - 0.5) * normalstrength;
vec2 refracted_uv = screen_uv + (tanx + tany).xy * simple_refraction_amount * depth_diff / lineardepth;
float newdepth = linear_depth(texture(DEPTH_TEXTURE, refracted_uv).r, inv_proj_mat);
if (newdepth >= selfdepth) {
depth_diff = newdepth - selfdepth;
}
//float selfdepth = 1.0/(1.0 + 2.0 * distance(wposition, CAMERA_POSITION_WORLD));
//vec3 newvolcolour = mix(volumecolour, vec3(1.0), clamp(1.0 / (depth_diff * 1.0), 0.0, 1.0));
vec3 newvolcolour;
if (reverse) {
newvolcolour = vec3(1.0);
} else {
newvolcolour = pow(absorptioncolour, vec3(depth_diff * absorptionmultiplier));
}
emission = newvolcolour * texture(screen, refracted_uv).rgb;
if (newdepth < selfdepth) {
emission = newvolcolour * texture(screen, screen_uv).rgb;
}
} else {
float lineardepth = linear_depth(texture(DEPTH_TEXTURE, screen_uv).r, inv_proj_mat);
float selfdepth = -vertex.z;
float depth_diff = lineardepth - selfdepth;
vec3 newvolcolour;
if (reverse) {
newvolcolour = vec3(1.0);
} else {
newvolcolour = pow(absorptioncolour, vec3(depth_diff * absorptionmultiplier));
}
emission = newvolcolour * texture(screen, screen_uv).rgb;
}
}
void reflection(vec3 normal, vec3 vertex, mat4 projection_matrix, inout vec3 emission, inout float specular) {
vec3 view = normalize(-vertex);
mat4 inv_proj_mat = inverse(projection_matrix);
if (ssr_type == 2) {
vec3 reflected = -reflect(view, normal);
vec3 pos = vertex;
int curstep = 0;
bool finished = false;
vec2 uv;
float currentdepth;
float lastdepth1 = -vertex.z;
while (curstep < traced_ssr_steps) {
float step_scale = float(curstep + 1) / float(traced_ssr_steps);
float step_dist = step_scale * step_scale * traced_ssr_far_clip;
pos += reflected * step_dist;
curstep += 1;
float lastdepth2 = lastdepth1;
float lastdepth1 = currentdepth;
currentdepth = -pos.z;
uv = view2uv(pos, projection_matrix);
if (!(uv.x < 1.0 && uv.y < 1.0 && uv.x > 0.0 && uv.y > 0.0)) {
break;
}
float testdepth = linear_depth(texture(DEPTH_TEXTURE, uv).r, inv_proj_mat);
if (testdepth < lastdepth2) {
break;
}
if (testdepth < currentdepth) {
finished = true;
break;
}
}
if (finished && currentdepth < traced_ssr_far_clip * 0.99) {
specular *= 1.0 - edge_fade(uv, ssr_screen_fade);
emission += texture(screen, uv).xyz * schlickfresnel(1.0, 1.33, view, normal) * edge_fade(uv, ssr_screen_fade);
}
} else if (ssr_type == 1) {
vec3 reflected = -reflect(view, normal);
if (reflected.z < 0.0) {
vec2 uv = view2uv(reflected, projection_matrix);
float testdepth = texture(DEPTH_TEXTURE, uv).r;
if (testdepth > 0.0) {
specular *= 1.0 - edge_fade(uv, ssr_screen_fade);
emission += texture(screen, uv).xyz * schlickfresnel(1.0, 1.33, view, normal) * edge_fade(uv, ssr_screen_fade);
}
}
}
}
void fragment() {
vec3 onorm = NORMAL;
vec2 normmap = mix(texture(normal1tex, UV),texture(normal2tex, UV2),samplermix).xy;
NORMAL += TANGENT * (normmap.x - 0.5) * normalstrength;
NORMAL += BINORMAL * (normmap.y - 0.5) * normalstrength;
vec3 wnorm = (vec4(NORMAL, 0.0) * VIEW_MATRIX).xyz;
vec3 wview = (vec4(VIEW, 0.0) * VIEW_MATRIX).xyz;
ROUGHNESS = 0.05;
METALLIC = 0.0;
ALBEDO = vec3(0.0);
if (FRONT_FACING) {
float fres = clamp(schlickfresnel(AirIOR, IOR, VIEW, NORMAL), 0.0, 1.0);
float lineardepth = linear_depth(texture(DEPTH_TEXTURE, SCREEN_UV).r, INV_PROJECTION_MATRIX);
float selfdepth = -VERTEX.z;
float depth_diff = lineardepth - selfdepth;
// REFRACTION
refraction(NORMAL, VERTEX, normmap, false, PROJECTION_MATRIX, TANGENT, BINORMAL, SCREEN_UV, VIEWPORT_SIZE, EMISSION);
EMISSION *= 1.0 - fres;
// SSR
reflection(NORMAL, VERTEX, PROJECTION_MATRIX, EMISSION, SPECULAR);
// EDGE EFFECT
float distfromedge = depth_diff * dot(normalize(NORMAL), normalize(-VERTEX)) / VIEW.z;
if (distfromedge < edge_size) {
distfromedge /= edge_size;
if (foam_or_fade) {
ALPHA = distfromedge;
} else {
float edgetex = mix(texture(edge1tex, UV).r, texture(edge2tex, UV2).r, samplermix);
if (edgetex > distfromedge) {
ALBEDO = vec3(1.0);
ROUGHNESS = 1.0;
METALLIC = 1.0;
EMISSION = vec3(0.0);
NORMAL = onorm;
}
}
} else {
ALPHA = 1.0;
}
} else {
// SNELLS WINDOW
float window = dot(refract(VIEW, NORMAL, IOR / AirIOR), -NORMAL);
if (window >= 1.00) {
SPECULAR = 0.0;
refraction(NORMAL, VERTEX, normmap, true, PROJECTION_MATRIX, TANGENT, BINORMAL, SCREEN_UV, VIEWPORT_SIZE, EMISSION);
} else if (window <= 0.0) {
// SSR
reflection(NORMAL, VERTEX, PROJECTION_MATRIX, EMISSION, SPECULAR);
} else {
SPECULAR *= clamp(1.0 - window, 0.0, 1.0);
refraction(NORMAL, VERTEX, normmap, true, PROJECTION_MATRIX, TANGENT, BINORMAL, SCREEN_UV, VIEWPORT_SIZE, EMISSION);
EMISSION *= window;
// SSR
reflection(NORMAL, VERTEX, PROJECTION_MATRIX, EMISSION, SPECULAR);
}
}
ALPHA = clamp(ALPHA, 0.0, 1.0);
}Live Preview
