Scrolling Line Background

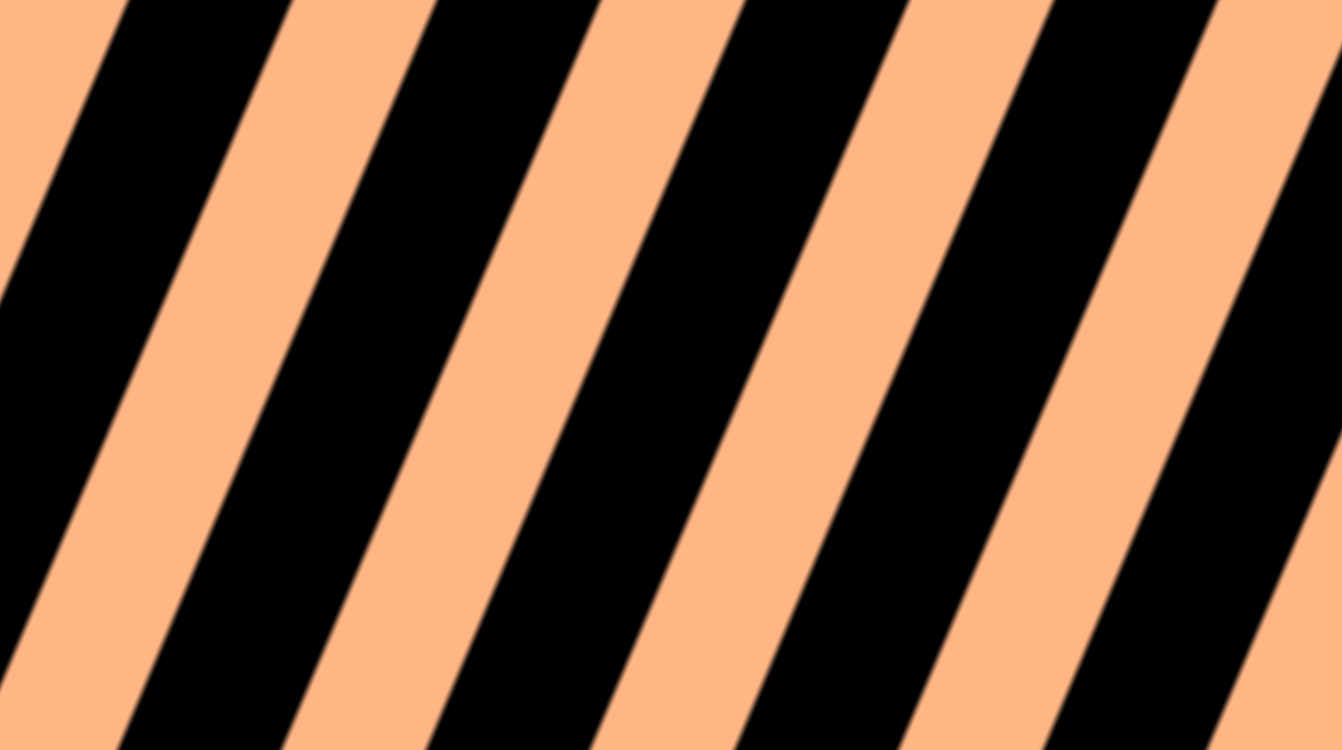

Simple scrolling line background. Change Colors, Speed, Angle, Blur and Line Count!



Shader code
shader_type canvas_item;

uniform vec3 color_one : source_color;
uniform vec3 color_two : source_color;

uniform float angle = 20.0;
uniform float line_count = 20.0;
uniform float speed = 10.0;
uniform float blur : hint_range(0.0, 2.0, 0);

vec2 rotate(vec2 uv, float rotation_angle) {
    float radians_angle = radians(rotation_angle);
    float cos_angle = cos(radians_angle);
    float sin_angle = sin(radians_angle);
    mat2 rotation_matrix = mat2(vec2(cos_angle, -sin_angle), vec2(sin_angle, cos_angle));
    return uv * rotation_matrix;
}

float stripe(vec2 uv) {
    return cos(uv.x * 0.0 - TIME*speed + uv.y * -line_count/2.0);
}

void fragment() {
    vec2 uv = UV;
    vec2 resolution = 1.0 / TEXTURE_PIXEL_SIZE;
    float a = TEXTURE_PIXEL_SIZE.x / TEXTURE_PIXEL_SIZE.y;
    uv.x *= a;
    uv = rotate(uv, angle);
    float g = stripe(uv);
    vec3 col = mix(color_one, color_two, smoothstep(0.0, blur, g));
    COLOR = vec4(col, 1.0);
}
Tags
background, line, scrolling
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
