Simple spatial CRT effect

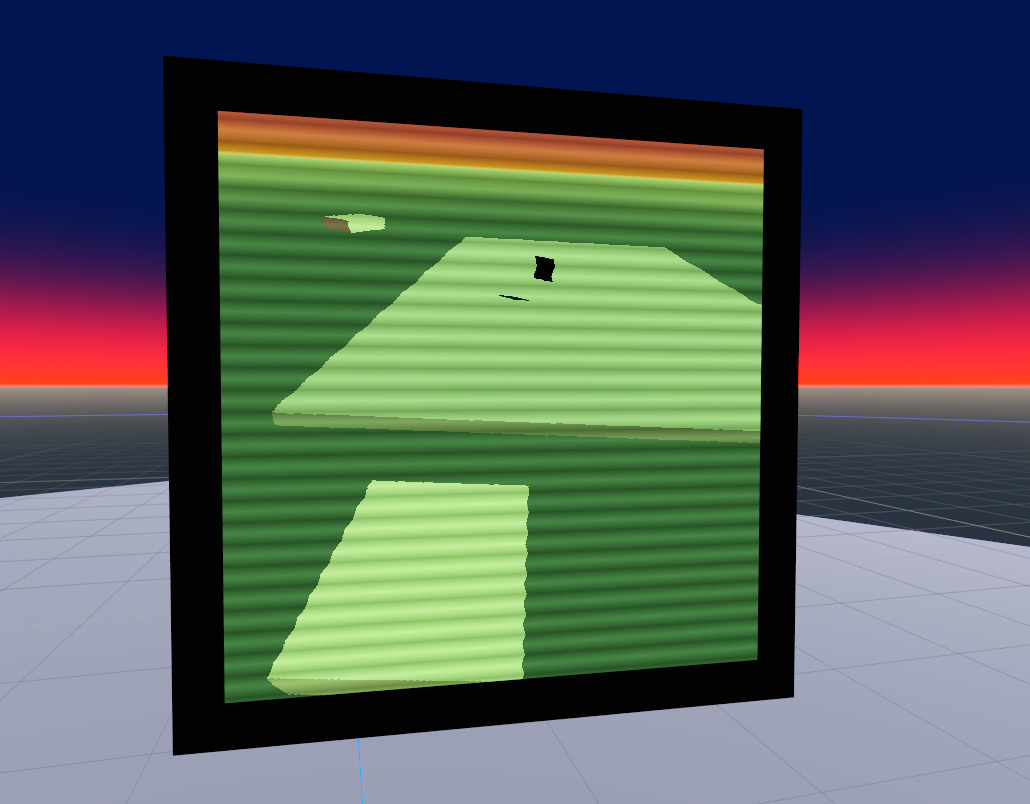

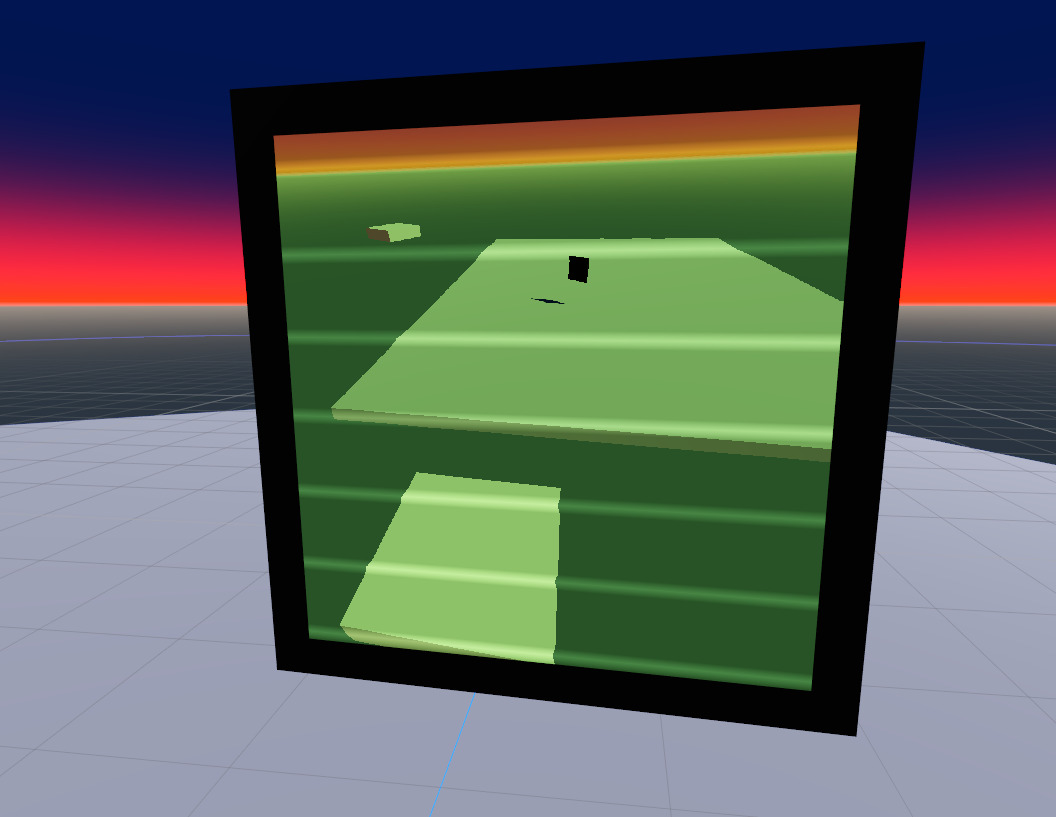

Simple spatial shaders for a fake CRT effect, useful for in-game screens, e.g. security cameras, when paired with a ViewportTexture. It provides:

  • an overlaid hue (green-ish by default)
  • scanlines
  • uv distortion with each scanline

Every parameter can be customized through uniforms.

Shader code
shader_type spatial;
render_mode blend_mix,unshaded;

uniform sampler2D base_texture : hint_albedo;

uniform vec4 hue: hint_color;
uniform bool flip = false;
uniform bool run = true;
uniform float uv_mult : hint_range(1.0, 50.0, .5) =  6.5;
uniform float lines_speed : hint_range(.1, 2.0, .01) =  .4;
uniform float line_alpha : hint_range(0.0, 1.0, .01) =  .5;
uniform float distortion : hint_range(-1.0, 1.0, .01) =  1.0;
uniform float intensity : hint_range(0.0, 2.0, .01) =  2.0;
uniform float line_definition : hint_range(0.0, 1.0, .01) =  .98;
uniform float min_thickness : hint_range(0.0, 1.0, .01) =  .03;

float map(float val, float min1, float max1, float min2, float max2)
{
	if (val < min1)
	{
		return min2;
	}

	if (val > max1)
	{
		return max2;
	}

	float delta1 = (max1-min1);
	float delta2 = (max2-min2);

	float scale = delta2/delta1;
	float offset = -min1*scale + min2;
	return val*scale + offset;
}

float smooth_compare(float val, float ref, float delta, float harhsness)
{
	float diff = abs(val-ref);

	return map(diff, harhsness/2.0, delta/2.0, 0.0, 1.0);
}

void fragment() {
	float coord = fract(UV.y*uv_mult + TIME*lines_speed*float(run));

	float mask = smooth_compare(coord, .5, 1.0 - line_definition, min_thickness);
	if (flip)
	{
		mask = 1.0 - mask;
	}

	float lines_mult = mask + (1.0 - mask)*(1.0 - line_alpha);

	vec2 base_uv = UV;
	base_uv.x += (distortion / 100.0)*lines_mult;
	vec4 albedo_tex = texture(base_texture,base_uv);

	ALBEDO = albedo_tex.rgb * hue.rgb * lines_mult * intensity;
}
Tags
3d, CRT, Spatial
