Simple UI Noise Mask

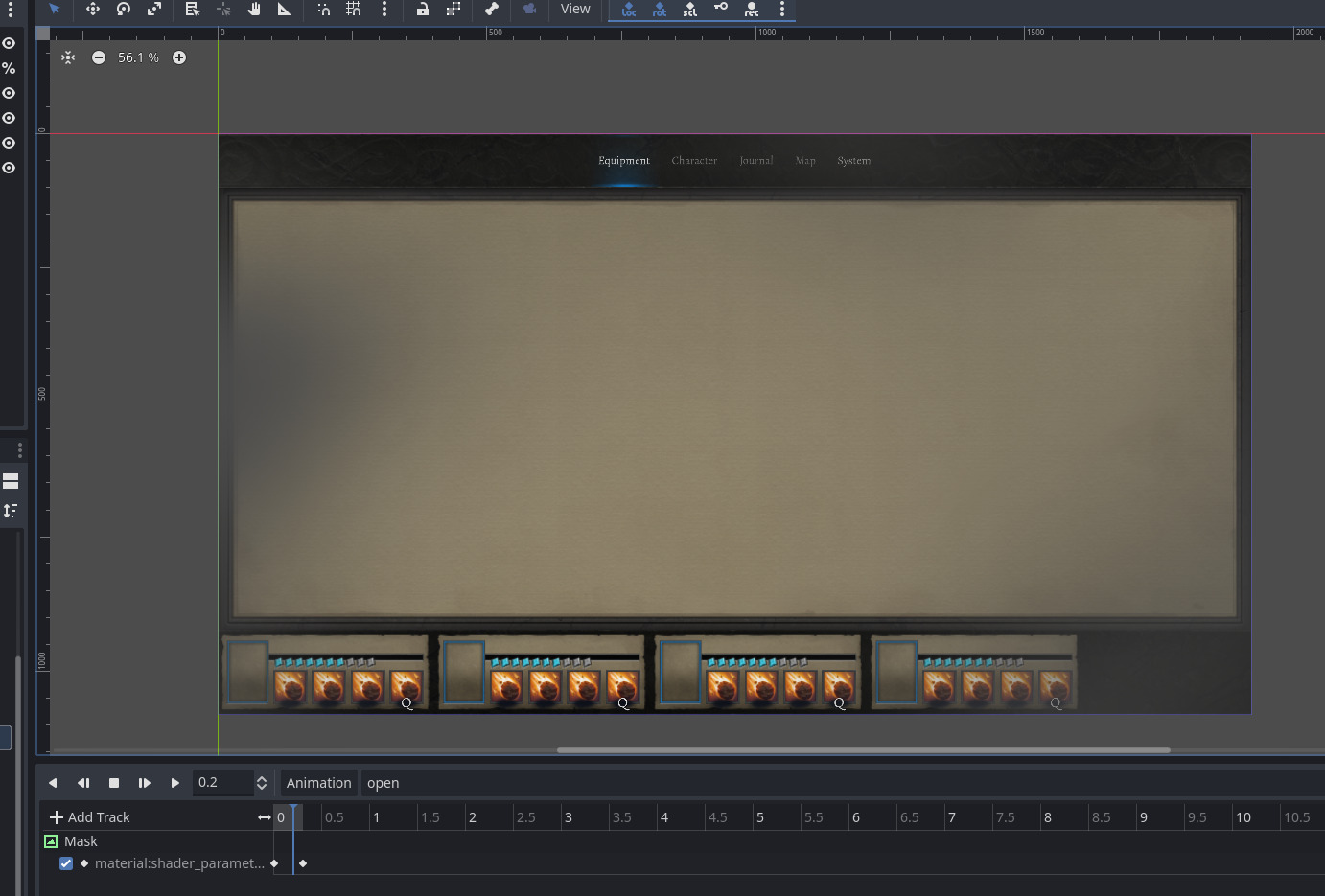

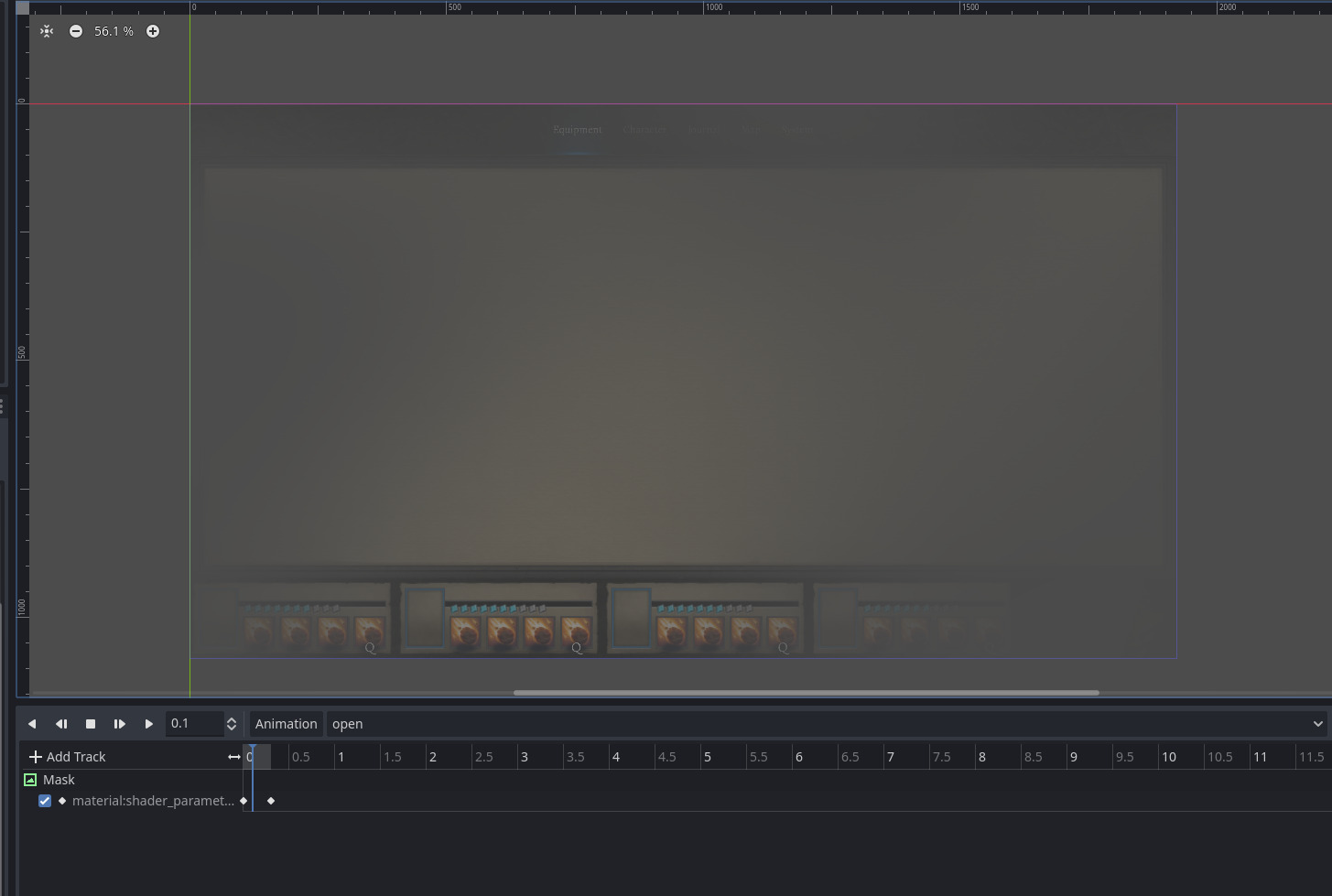

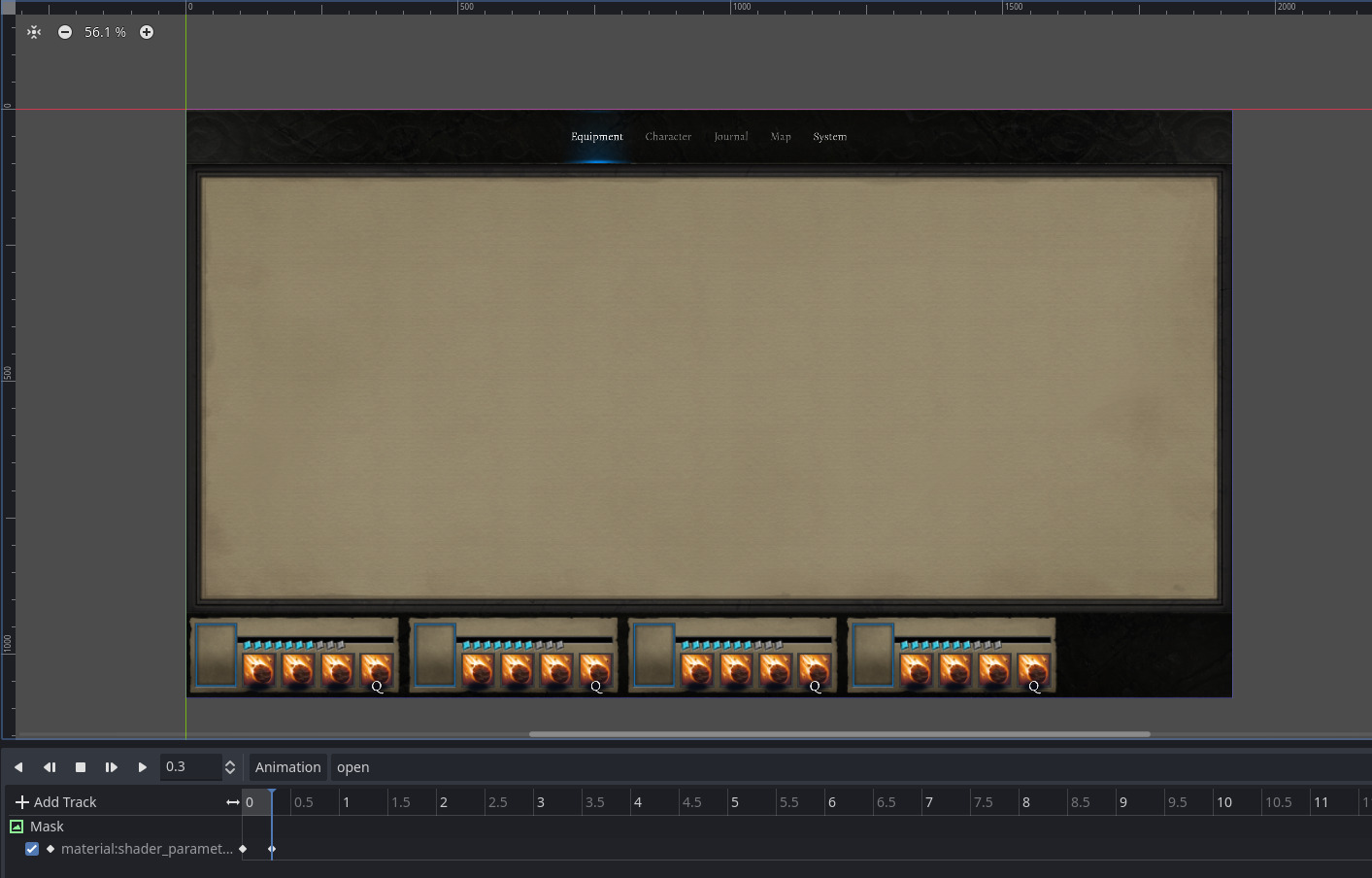

I was confused when I couldn’t find a way to properly mask something anyway here’s a pretty dumb shader to progressively mask controls with noise (Noise code from GLSL Noise Algorithms (github.com)) – Simply add that shader to a control node’s material, enable child clipping, and then in the material settings you can control noise size and mask progression. Easily used it with an animation player with a TextureRect node (make sure to add a PlaceholderTexture2D to it and size it correctly)

There’s probably about 1000 better ways to do that but hey.

Shader code

shader_type canvas_item;

uniform vec2 noise_scale;
uniform float progress;

uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, filter_linear_mipmap;

vec3 permute(vec3 x) { return mod(((x*34.0)+1.0)*x, 289.0); }

float snoise(vec2 v){
	const vec4 C = vec4(0.211324865405187, 0.366025403784439,
	        -0.577350269189626, 0.024390243902439);
	vec2 i  = floor(v + dot(v, C.yy) );
	vec2 x0 = v -   i + dot(i, C.xx);
	vec2 i1;
	i1 = (x0.x > x0.y) ? vec2(1.0, 0.0) : vec2(0.0, 1.0);
	vec4 x12 = x0.xyxy + C.xxzz;
	x12.xy -= i1;
	i = mod(i, 289.0);
	vec3 p = permute( permute( i.y + vec3(0.0, i1.y, 1.0 ))
	+ i.x + vec3(0.0, i1.x, 1.0 ));
	vec3 m = max(0.5 - vec3(dot(x0,x0), dot(x12.xy,x12.xy),
	dot(x12.zw,x12.zw)), 0.0);
	m = m*m ;
	m = m*m ;
	vec3 x = 2.0 * fract(p * C.www) - 1.0;
	vec3 h = abs(x) - 0.5;
	vec3 ox = floor(x + 0.5);
	vec3 a0 = x - ox;
	m *= 1.79284291400159 - 0.85373472095314 * ( a0*a0 + h*h );
	vec3 g;
	g.x  = a0.x  * x0.x  + h.x  * x0.y;
	g.yz = a0.yz * x12.xz + h.yz * x12.yw;
	return 130.0 * dot(m, g);
}

void fragment() {
    COLOR = texture(SCREEN_TEXTURE, SCREEN_UV);
    COLOR.a = smoothstep(snoise(UV/noise_scale) * progress, 1.0, progress);
}
