Slime/Slug wavy walk

This shader uses this https://godotshaders.com/shader/pixel-melt/ as a base to make an texture wobbly the closer they are to y=1 (the bottom).

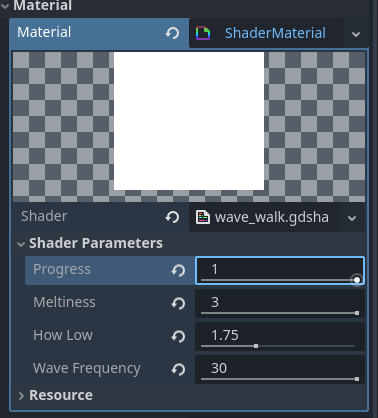

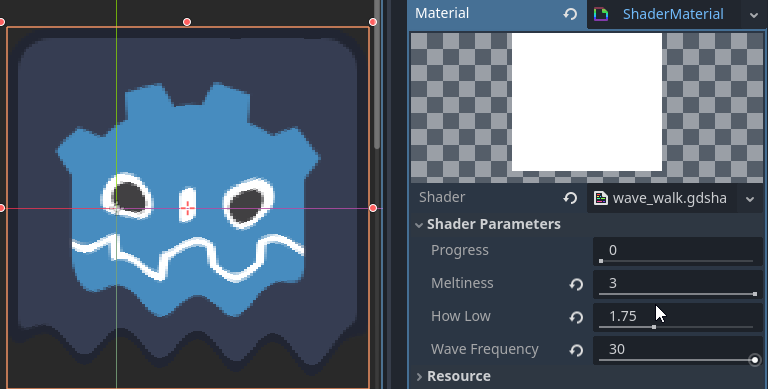

Setting how_low to 5 will make the waves affect the bottom part way more than the top part. Having as 0 will have it affect every y pixel the same.

Think of Gary from Sponge Bob walking. 🙂

Shader code

shader_type canvas_item;

// Animate from 0 to 1, result in 0 should be the same as in 1, a loop
uniform float progress: hint_range(0.0, 1.0) = 0.0;

// How jagged each band of melting pixels are
// This is also the amplitude of the wave
uniform float meltness: hint_range(0.0, 3.0) = 1.0;

// If it should affect only lower parts of the shader, it also increases the meltness
uniform float how_low: hint_range(0.0, 5.0) = 1.0;

// How wavy.
uniform float wave_frequency: hint_range(0.0, 30.0) = 20.0;

float wave(float x) {
	return x - 2.5 + cos(2.0 * PI * progress + wave_frequency * x);
}

void fragment() {
	vec2 uv = UV;

	uv.y -= pow( uv.y,how_low ) * 0.02 * meltness * wave( UV.x - mod( UV.x, TEXTURE_PIXEL_SIZE.x ));

	COLOR = texture(TEXTURE, uv);

	// "delete" pixels out of range
	if (uv.y <= 0.0 || uv.y >= 1.0) {
		COLOR.a = 0.0;
	}
}
