Smooth outline 2D with enable disable system

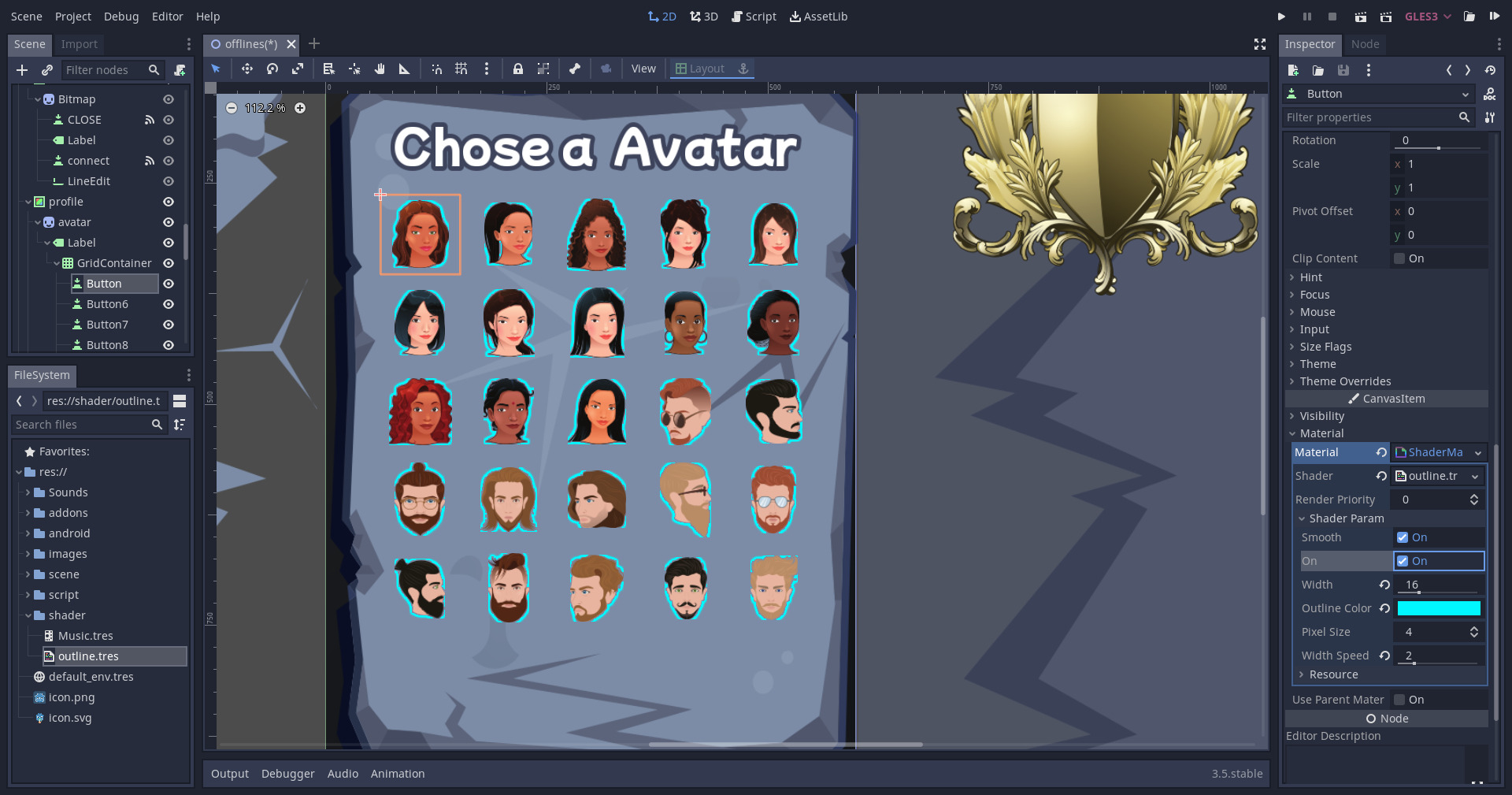

A shader for outline, with smoothness to fade out edges. Also an option for having the shader pulse over time. This is a update version of this shader

Shader code
shader_type canvas_item;
render_mode unshaded;

uniform bool Smooth = true;
uniform bool on = true;
uniform float width : hint_range(0.0, 64) = 1.0;
uniform vec4 outline_color : hint_color = vec4(0.0, 0.0, 0.0, 1.0);
uniform int pixel_size : hint_range(1, 10) = 4;
uniform float width_speed :hint_range(0.1, 10) = 1;


void fragment(){
	if(on==true){
		float _width = width + ((sin(TIME*width_speed) + 1.0f) -2.0f) * 10.0f;
		vec2 unit = (1.0/float(pixel_size) ) / vec2(textureSize(TEXTURE, 0));
		vec4 pixel_color = texture(TEXTURE, UV);
		if (pixel_color.a == 0.0) {
			pixel_color = outline_color;
			pixel_color.a = 0.0;
			for (float x = -ceil(_width); x <= ceil(_width); x++) {
				for (float y = -ceil(_width); y <= ceil(_width); y++) {
					if (texture(TEXTURE, UV + vec2(x*unit.x, y*unit.y)).a == 0.0 || (x==0.0 && y==0.0)) {
						continue;}
					if (Smooth) {
						pixel_color.a += outline_color.a / (pow(x,2)+pow(y,2)) * (1.0-pow(2.0, -_width));
						if (pixel_color.a > 1.0) {
							pixel_color.a = 1.0;}} else {pixel_color.a = outline_color.a;}}}}
		COLOR = pixel_color;
	}else{COLOR = texture(TEXTURE, UV);}
	}
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
