splatmap_tile_V2

Shader code

shader_type canvas_item;

// Red channel overlays
uniform sampler2D overlay_tex_red : repeat_enable, filter_nearest;
uniform sampler2D another_overlay_tex_red : repeat_enable, filter_nearest;
// Green channel overlays
uniform sampler2D overlay_tex_green : repeat_enable, filter_nearest;
uniform sampler2D another_overlay_tex_green : repeat_enable, filter_nearest;
// Blue channel overlays
uniform sampler2D overlay_tex_blue : repeat_enable, filter_nearest;
uniform sampler2D another_overlay_tex_blue : repeat_enable, filter_nearest;

// Individual noise textures for each channel
uniform sampler2D noise_tex_red : repeat_enable, filter_nearest;
uniform sampler2D noise_tex_green : repeat_enable, filter_nearest;
uniform sampler2D noise_tex_blue : repeat_enable, filter_nearest;

// Scale and rotation uniforms
uniform vec2 scale_r = vec2(0.02, 0.02);
uniform float angle_r = 0.0;
uniform vec2 scale_g = vec2(0.02, 0.02);
uniform float angle_g = 0.0;
uniform vec2 scale_b = vec2(0.02, 0.02);
uniform float angle_b = 0.0;
uniform vec2 global_scale = vec2(1.0, 1.0);
uniform float scale_multiplier = 1.0;

varying vec2 world_position;
varying vec2 tile_uv;

// Rotate UV coordinates by a given angle
vec2 rotateUV(vec2 uv, float angle) {
    float s = sin(angle);
    float c = cos(angle);
    return vec2(c * uv.x - s * uv.y, s * uv.x + c * uv.y);
}

void vertex() {
    world_position = (MODEL_MATRIX * vec4(VERTEX, 1.0, 1.0)).xy;
    tile_uv = UV;
}

void fragment() {
    // Combine scales with global scale and multiplier
    vec2 combined_scale_r = (scale_r * global_scale) / scale_multiplier;
    vec2 combined_scale_g = (scale_g * global_scale) / scale_multiplier;
    vec2 combined_scale_b = (scale_b * global_scale) / scale_multiplier;

    // Sample base texture and compute its size for snapping
    vec4 base_color = texture(TEXTURE, tile_uv);
    vec2 base_tex_size = 1.0 / TEXTURE_PIXEL_SIZE;
    vec2 snapped_world_pos = floor(world_position * base_tex_size) / base_tex_size;

    // Compute overlay UVs for each channel
    vec2 overlay_uv_r = snapped_world_pos * combined_scale_r;
    vec2 overlay_uv_g = snapped_world_pos * combined_scale_g;
    vec2 overlay_uv_b = snapped_world_pos * combined_scale_b;

    // Apply individual rotations
    overlay_uv_r = rotateUV(overlay_uv_r, angle_r);
    overlay_uv_g = rotateUV(overlay_uv_g, angle_g);
    overlay_uv_b = rotateUV(overlay_uv_b, angle_b);

    // Snap UVs to texel centers for red overlay
    ivec2 red_tex_size_i = textureSize(overlay_tex_red, 0);
    vec2 red_tex_size = vec2(red_tex_size_i);
    overlay_uv_r = (floor(overlay_uv_r * red_tex_size) + 0.5) / red_tex_size;

    // Snap UVs for green overlay
    ivec2 green_tex_size_i = textureSize(overlay_tex_green, 0);
    vec2 green_tex_size = vec2(green_tex_size_i);
    overlay_uv_g = (floor(overlay_uv_g * green_tex_size) + 0.5) / green_tex_size;

    // Snap UVs for blue overlay
    ivec2 blue_tex_size_i = textureSize(overlay_tex_blue, 0);
    vec2 blue_tex_size = vec2(blue_tex_size_i);
    overlay_uv_b = (floor(overlay_uv_b * blue_tex_size) + 0.5) / blue_tex_size;

    // Sample individual noise textures for each channel
    vec2 noise_uv_red = tile_uv * vec2(10.0, 10.0); // Adjust scale as needed
    float noise_value_red = texture(noise_tex_red, noise_uv_red).r;

    vec2 noise_uv_green = tile_uv * vec2(10.0, 10.0); // Adjust scale as needed
    float noise_value_green = texture(noise_tex_green, noise_uv_green).r;

    vec2 noise_uv_blue = tile_uv * vec2(10.0, 10.0); // Adjust scale as needed
    float noise_value_blue = texture(noise_tex_blue, noise_uv_blue).r;

    // Blend overlays for each channel using their respective noise values
    vec4 overlay_red_1 = texture(overlay_tex_red, overlay_uv_r);
    vec4 overlay_red_2 = texture(another_overlay_tex_red, overlay_uv_r);
    vec4 mixed_overlay_red = mix(overlay_red_1, overlay_red_2, noise_value_red);

    vec4 overlay_green_1 = texture(overlay_tex_green, overlay_uv_g);
    vec4 overlay_green_2 = texture(another_overlay_tex_green, overlay_uv_g);
    vec4 mixed_overlay_green = mix(overlay_green_1, overlay_green_2, noise_value_green);

    vec4 overlay_blue_1 = texture(overlay_tex_blue, overlay_uv_b);
    vec4 overlay_blue_2 = texture(another_overlay_tex_blue, overlay_uv_b);
    vec4 mixed_overlay_blue = mix(overlay_blue_1, overlay_blue_2, noise_value_blue);

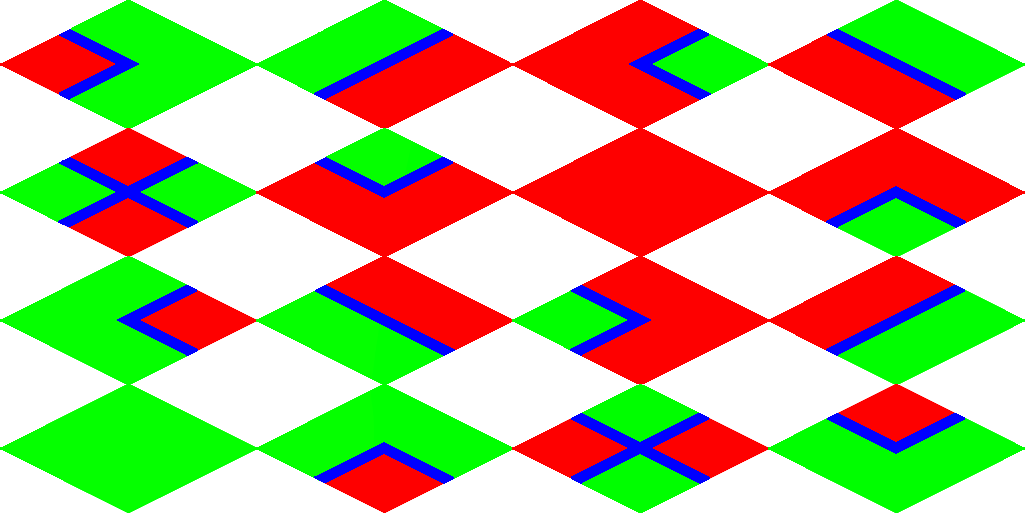

    // Define strict channel masks based on the base texture
    float mask_r = step(0.9, base_color.r) * (1.0 - step(1.0, base_color.g + base_color.b));
    float mask_g = step(0.9, base_color.g) * (1.0 - step(1.0, base_color.r + base_color.b));
    float mask_b = step(0.9, base_color.b) * (1.0 - step(1.0, base_color.r + base_color.g));

    // Apply the blended overlays based on the channel masks
    vec4 final_color = base_color;
    final_color = mix(final_color, mixed_overlay_red, mask_r);
    final_color = mix(final_color, mixed_overlay_green, mask_g);
    final_color = mix(final_color, mixed_overlay_blue, mask_b);

    // Handle alpha thresholding
    final_color.a *= step(0.5, base_color.a);
    if (final_color.a < 0.01) discard;

    COLOR = final_color;
}
