Texture based overlay (animated)

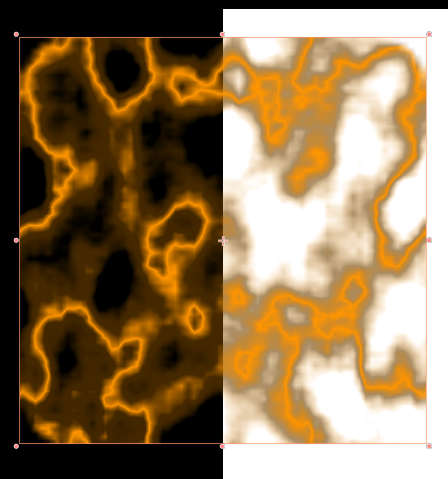

use a color gradient as opacity and 2 noise texture to make a fire/ice/smoke effect based on the texture alpha of the sprite (animated)

Shader code
shader_type canvas_item;

uniform sampler2D noise_texx1;
uniform sampler2D noise_texx2;
uniform vec4 color_texture : hint_color;
uniform sampler2D alpha_texture;
uniform vec2 dir1;
uniform vec2 dir2;

void fragment(){
    vec4 main_texture = texture(TEXTURE, UV);
    float dissolve_value = mix(0.5, 0.6, sin(TIME));
    float noise_texture1 = texture(noise_texx1, UV + dir1 * TIME).r;
    float noise_texture2 = texture(noise_texx1, UV + dir2 * TIME).r; //texture(noise_texx1, UV+vec2(10.0*sin(TIME/5.0),10.0*cos(TIME/5.0))/5.0);
	vec2 energyx = vec2(noise_texture1 * noise_texture2);
    vec4 noise_texture = texture(alpha_texture,energyx);
    vec4 mult = (noise_texture*1.0);
	//vec4 color_texture1 = texture(color_texture,UV);
    main_texture = mult * color_texture;
    main_texture.a *= texture(TEXTURE,UV).a;
    COLOR = main_texture;
Godot 3.5
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
