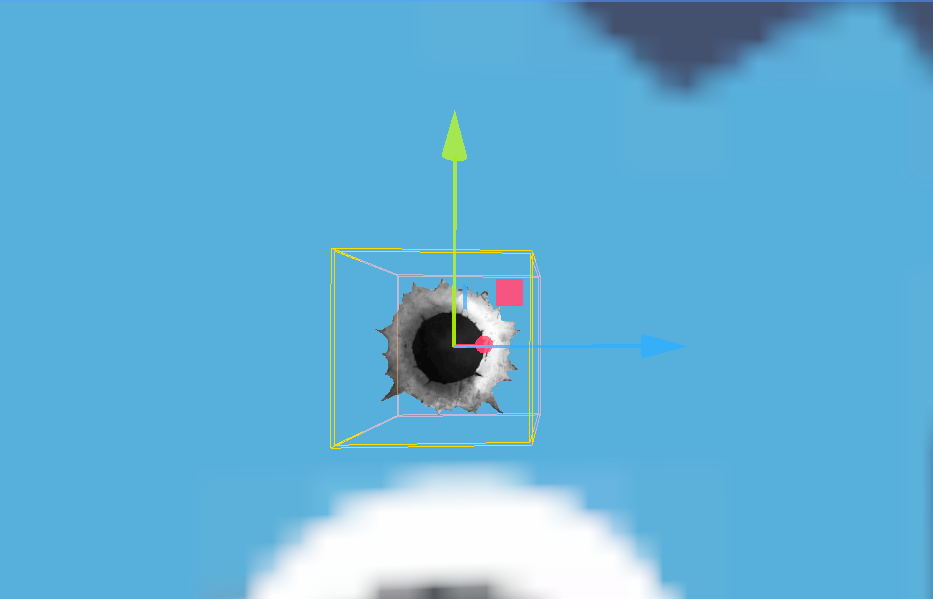

TwistedTwigleg-Olis-Elvisish Decals for Mobile Renderer
Decals for Mobile Renderer. Based on:
- https://godotshaders.com/shader/decal-shader-4-0-port/
- https://godotshaders.com/shader/shader/decal-example/
Shader code
shader_type spatial;
render_mode world_vertex_coords, unshaded, depth_draw_never;
uniform vec4 albedo : source_color;
uniform sampler2D texture_albedo : source_color, repeat_disable;
uniform sampler2D DEPTH_TEXTURE: hint_depth_texture;
uniform float scale = 0.2;
uniform float alpha_clip = 0.5;
varying mat4 INV_MODEL_MATRIX;
void vertex(){
INV_MODEL_MATRIX = inverse(MODEL_MATRIX);
}
// Credit: https://stackoverflow.com/questions/32227283/getting-world-position-from-depth-buffer-value
vec3 world_pos_from_depth(float depth, vec2 screen_uv, mat4 inverse_proj, mat4 inverse_view) {
float z = depth;
vec4 clipSpacePosition = vec4(screen_uv * 2.0 - 1.0, z, 1.0);
vec4 viewSpacePosition = inverse_proj * clipSpacePosition;
viewSpacePosition /= viewSpacePosition.w;
vec4 worldSpacePosition = inverse_view * viewSpacePosition;
return worldSpacePosition.xyz;
}
void fragment() {
float depth = texture(DEPTH_TEXTURE, SCREEN_UV ).x;
vec3 world_pos = world_pos_from_depth(depth, SCREEN_UV, INV_PROJECTION_MATRIX, (INV_VIEW_MATRIX));
vec4 test_pos = (INV_MODEL_MATRIX * vec4(world_pos, 1.0));
vec4 tex = texture(texture_albedo, (test_pos.xz * scale + 0.5) ) * albedo;
ALBEDO = tex.rgb;
ALPHA = tex.a;
ALPHA_SCISSOR_THRESHOLD = alpha_clip;
}
