UV stitching and scrolling

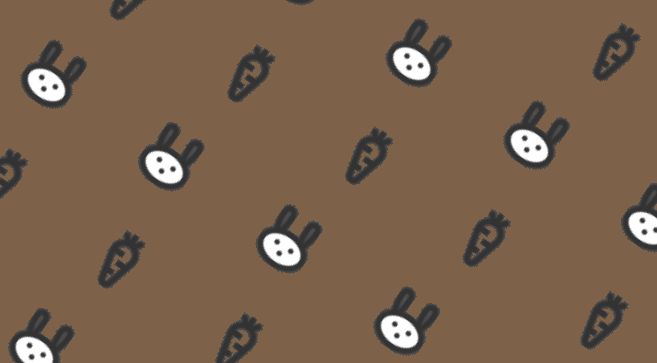

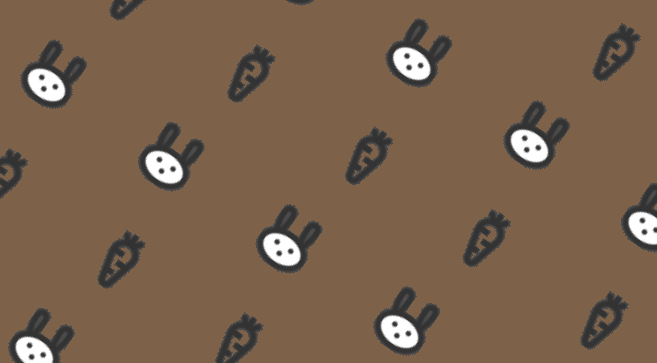

This is a shader that arranges two rows of images in an interleaved manner and scrolls them, with adjacent rows scrolling in opposite directions. It can also rotate.

Shader code
shader_type canvas_item;

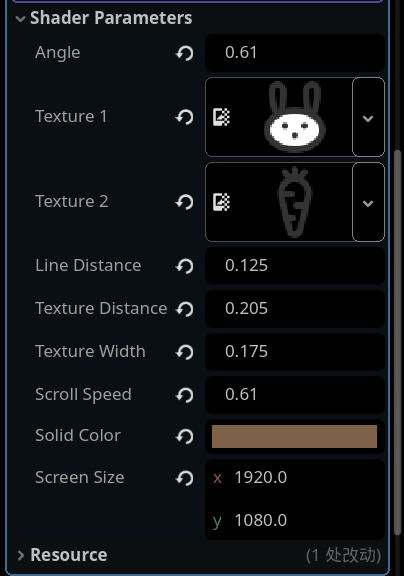

// Uniforms
uniform float angle;
//1:1
uniform sampler2D texture_1;
uniform sampler2D texture_2;

uniform float line_distance;
uniform float texture_distance;
uniform float texture_width;
uniform float scroll_speed;
uniform vec4 solid_color:source_color;
uniform vec2 screen_size;

void fragment() {
    float aspect_condition = step(screen_size.x, screen_size.y); // screen_size.x <= screen_size.y时为1.0
    float multi_width_x = mix(screen_size.y / screen_size.x, 1.0, aspect_condition);
    float multi_width_y = mix(1.0, screen_size.x / screen_size.y, aspect_condition);

    float uv_x = UV.x / multi_width_x;
    float uv_y = UV.y / multi_width_y;

    float real_uv_x = uv_x * cos(angle) + uv_y * sin(angle);
    float real_uv_y = -uv_x * sin(angle) + uv_y * cos(angle);

    vec2 real_uv = vec2(real_uv_x, real_uv_y);
    float line_index = floor(real_uv.y / (texture_width + line_distance));

    float line_local_y = fract(real_uv.y / (texture_width + line_distance));

    float texture_selector = mod(line_index, 2.0);
    float scroll_direction = (texture_selector < 0.5) ? 1.0 : -1.0;

    float horizontal_scroll = TIME * scroll_speed * scroll_direction;

    float local_x = fract(real_uv.x / (texture_width + texture_distance) + horizontal_scroll);

    vec2 processed_uv = vec2(local_x, line_local_y);

    vec2 texture_uv = processed_uv * vec2(
        (texture_distance + texture_width) / texture_width,
        (texture_width + line_distance) / texture_width
    );


    vec4 color;
    if(texture_uv.x > 1.0 || texture_uv.y > 1.0) {
        color = solid_color;
    } else if(texture_selector < 0.5) {
        color = texture(texture_1, texture_uv);
    } else {
        color = texture(texture_2, texture_uv);
    }

    COLOR = (color.a == 0.0) ? solid_color : color;
}
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
