Volumetric Billboards (3D Texture sampled by plane stacking)

Wrote this for a personal project. Please feel free to use it as you see fit, and if possible, kindly provide citations. Your acknowledgment is greatly appreciated!

You will need to apply this shader to geometry with unmerged quads. The higher the number of quads, the greater the resolution (and overdraw too, yikes!).

Additionally, the shader utilizes a 3D texture to sample the volume. You can generate one using MagicaVoxel or any other software of your preference.

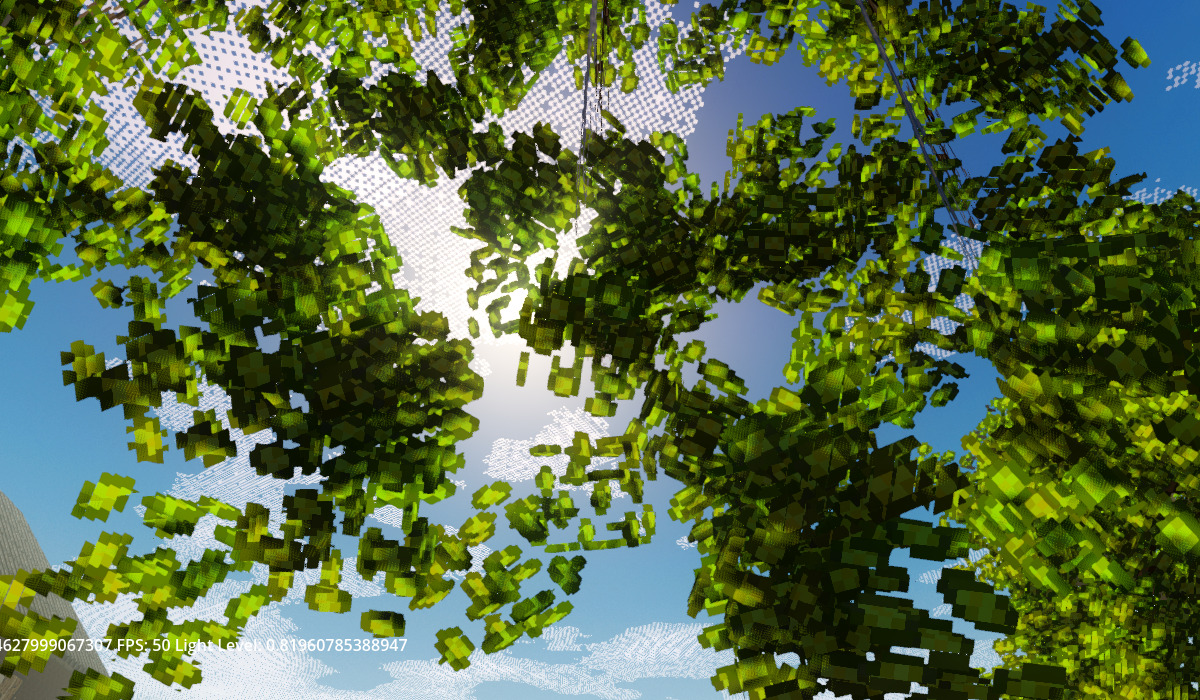

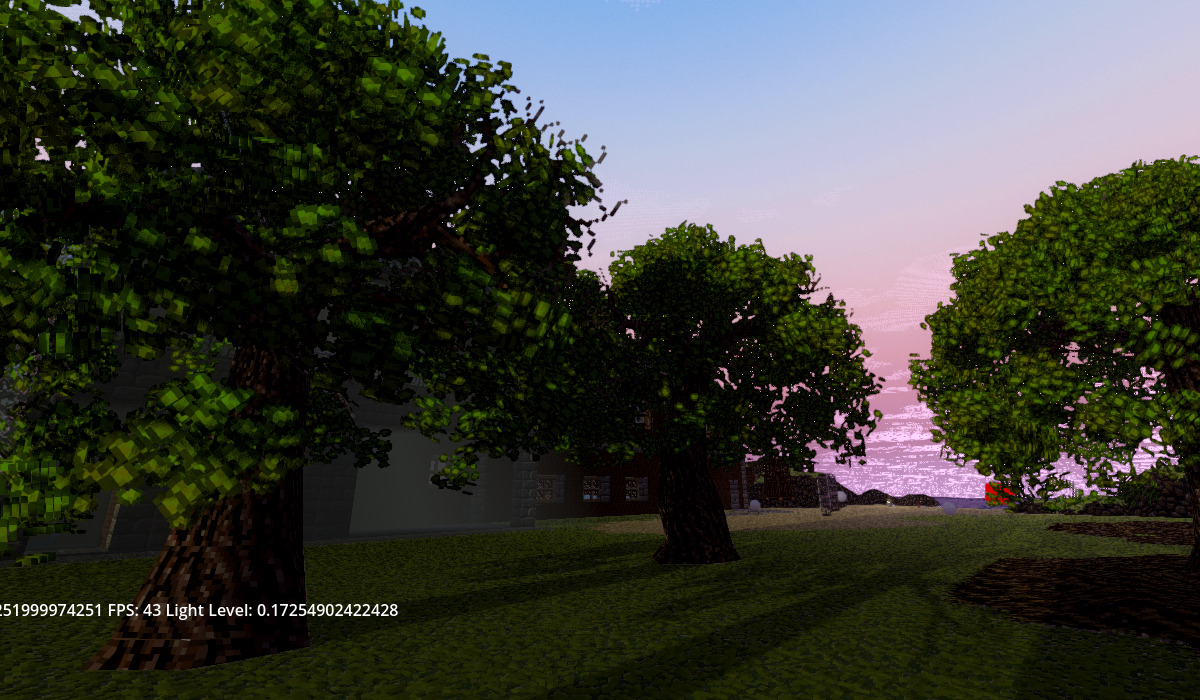

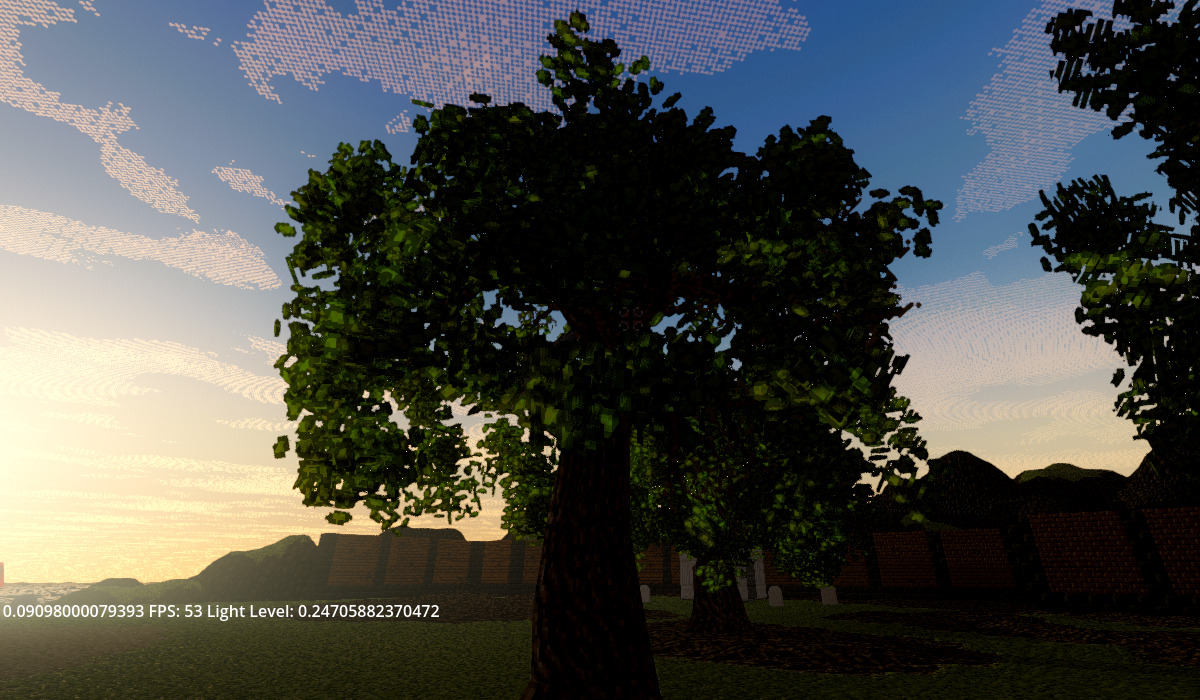

I’m using 34 quads per particle cluster in the example images, sampling a 16x16x16 voxels texture. For pixel art style it works fine.

For good results use a 3D model where Quad_num > Texture_width * 2.

Dio from Lunar Blank.

Shader code
shader_type spatial;
render_mode blend_mix, cull_front, depth_prepass_alpha;

uniform float sqrt3 = 1.73205080757;
uniform float particle_size = 2.0;

uniform float quads_num_x2 = 68.0;

uniform sampler3D alpha_tex : source_color, filter_nearest;
varying vec4 vertx;

void vertex() {
	// we'll use the UV's of each plane in our geometry to billboard them
	// center the UV's
	vec2 off_uv = UV - vec2(0.5,0.5);
	// for each QUAD, offset its vertices
	// we are using their IDs to know whether a vertex is part of a QUAD
	vec3 new_uv = vec3(off_uv, (-float(VERTEX_ID/4)*(sqrt3/quads_num_x2))) + vec3(0,0,0.5);
	// transform into billboards
	VERTEX = particle_size * vec4( vec4(new_uv,0.0) * VIEW_MATRIX * MODEL_MATRIX ).xyz;
	// pass coordinates to fragment so the 3D texture can be sampled
	vertx = 1.0/particle_size * 2.0*sqrt3 * vec4(VERTEX,0.0) * MODEL_MATRIX;

void fragment() {
	// normals in world space to use for ligthing
	vec4 v = (INV_VIEW_MATRIX * vertx) - vec4(NODE_POSITION_WORLD,0.0);
	v = v * inverse(MODEL_MATRIX);
	// offset our vertices
	vec4 newvertx = vertx/2.0 + vec4(0.5,0.5,0.5,0.0);
	// make normals point up
	v = newvertx * vec4(0,1.0,0,0);
	// sample the texture
	vec4 tex_sample = texture(alpha_tex, newvertx.xyz);
	// blend texture with the position to add color variation
	ALBEDO = tex_sample.xyz * 1.4*mix(vec3(0.6,0.4,0.2), newvertx.xyz, 0.2);
	// alpha clip the bounding box
	if( (newvertx.z < 1.0 && newvertx.z > 0.0) &&
		(newvertx.y < 1.0 && newvertx.y > 0.0) &&
		(newvertx.x < 1.0 && newvertx.x > 0.0)){
		ALPHA = clamp( tex_sample.w, 0.0, 1.0 );
	else {
		ALPHA = 0.0;
	SPECULAR = 0.2;
	NORMAL = normalize(v.xyz);

void light() {
	// for directional light (sun/moon) apply a yellowish-green to highlight the leaves
	{										//change this color if you are not using for vegetation
		DIFFUSE_LIGHT = clamp(ATTENUATION * vec3(0.6,0.7,0.0) * LIGHT_COLOR, 0.0, 1.0);
