Water Hotspring Exercise

NekotoArts

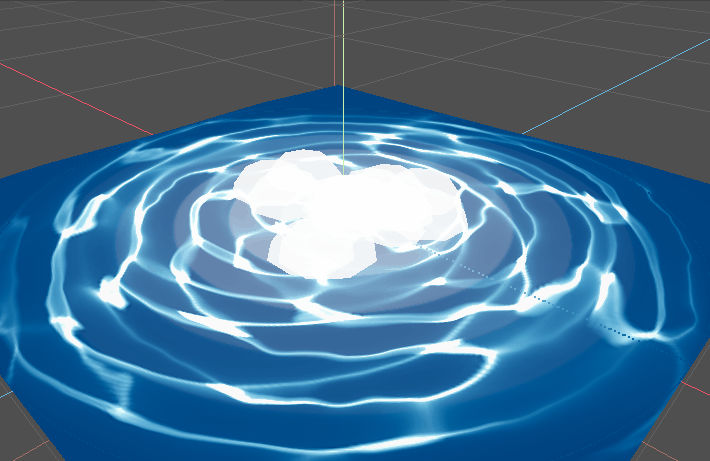

The shader for a little water shader I made and posted on twitter.

I made a written article for the full breakdown of this effect here: Polar Water Breakdown

Keep in mind that this is meant more as a personal shader exercise and a way to present some shader topics, you will very likely need to adapt this to suit your own game.

See more about this shader
Shader code
shader_type spatial;

uniform sampler2D caustics_texture : hint_black;
uniform sampler2D color_gradient : hint_albedo;
uniform sampler2D distort_noise : hint_black;

uniform float flow_speed = 0.3;
uniform float vignette_size = 0.3;
uniform float vignette_blend = 0.1;
uniform float distort_strength = 0.1;
uniform float disc_speed = 0.5;

const float TAU = 6.283185307;

vec2 polar_coordinates(vec2 uv, vec2 center, float zoom, float repeat)
{
	vec2 dir = uv - center;
	highp float radius = length(dir) * 2.0;
	highp float angle = atan(dir.y, dir.x) / TAU;
	return mod(vec2(radius * zoom, angle * repeat), 1.0);
}

void vertex(){
	float dn = texture(distort_noise, UV + TIME * 0.1).r;
	VERTEX.y += dn * 0.1;
}

void fragment(){
	// Polar UVs + Noise for caustics
	vec2 base_uv = UV;
	float dn = texture(distort_noise, UV + TIME * 0.1).r;
	base_uv += dn * distort_strength;
	base_uv -= distort_strength / 2.0;
	highp vec2 polar_uv = polar_coordinates(base_uv, vec2(0.5), 1.0, 1.0);
	polar_uv.x -= TIME * flow_speed;
	float caus = texture(caustics_texture, polar_uv).r;

	// Fade out caustics
	float cd = distance(UV, vec2(0.5));
	float vign = 1.0 - smoothstep(vignette_size, vignette_size + vignette_blend, cd);

	// Color the caustics
	float grad_uv = caus * vign;
	vec3 color = texture(color_gradient, vec2(grad_uv)).rgb;

	// Center discs
	float global_disc = 0.0;
	for (int i = 0; i < 20; i++){
		float offset = float(i) * 0.2;
		float radius_disc = 0.8;
		float loop = fract((TIME + offset) * disc_speed) * radius_disc;
		float disc = smoothstep(cd, cd + 0.01, loop);
		float fade = abs(loop - radius_disc);
		fade = pow(fade, 5.0);
		disc *= fade;
		disc = clamp(disc, 0.0, 1.0);
		global_disc += disc;
	}
	global_disc *= 0.6;

	ALBEDO = color + global_disc;
}
Tags
hot spring, polar, pool, puddle, water
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
