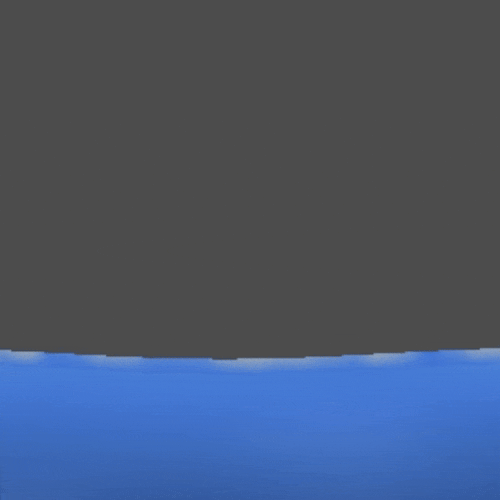

2D Liquid Wave

2D liquid wave for object or any body of water as you see fit.

Top layer is foam to react like a water foam and bottom layer is used noise to randomize water depth color. With toggleable bubble for extra effect.

If you put this shader on multiple object, make sure to duplicate it

var mat = material.duplicate()
material = mat

Shader code

// Made by PWira
// MIT License
shader_type canvas_item;

// Liquid Property
uniform float liquid_level : hint_range(0.0, 1.0) = 0.5;
uniform vec4 liquid_color : source_color = vec4(0.2, 0.5, 1.0, 0.8);
uniform vec4 foam_color : source_color = vec4(0.8, 0.9, 1.0, 0.6);

// Wave property
uniform float wave_amplitude : hint_range(0.0, 0.1) = 0.02;
uniform float wave_frequency : hint_range(0.0, 20.0) = 5.0;
uniform float wave_speed : hint_range(0.0, 5.0) = 2.0;

// Gravity property
uniform float gravity_angle : hint_range(-3.14159, 3.14159) = 0.0; // rotate in radian
uniform vec2 gravity_direction = vec2(0.0, 1.0);

// Visual property
uniform float foam_thickness : hint_range(0.0, 0.1) = 0.02;
uniform float shine_intensity : hint_range(0.0, 1.0) = 0.3;
uniform bool add_bubble = true;
uniform float bubble_scale : hint_range(0.0, 50.0) = 10.0;
uniform float bubble_speed : hint_range(0.0, 2.0) = 0.5;

// Simple Noise
float random(vec2 st) {
    return fract(sin(dot(st.xy, vec2(12.9898, 78.233))) * 43758.5453123);
}

float noise(vec2 st) {
    vec2 i = floor(st);
    vec2 f = fract(st);

    float a = random(i);
    float b = random(i + vec2(1.0, 0.0));
    float c = random(i + vec2(0.0, 1.0));
    float d = random(i + vec2(1.0, 1.0));

    vec2 u = f * f * (3.0 - 2.0 * f);

    return mix(a, b, u.x) + (c - a)* u.y * (1.0 - u.x) + (d - b) * u.x * u.y;
}

vec2 rotate(vec2 v, float angle) {
    float c = cos(angle);
    float s = sin(angle);
    return vec2(v.x * c - v.y * s, v.x * s + v.y * c);
}

void fragment() {
    vec2 uv = UV;
    vec2 centered_uv = uv - 0.5;
    vec2 rotated_uv = rotate(centered_uv, -gravity_angle);
    rotated_uv += 0.5;

    // Wave based on X in gravity coordinate
    float wave = sin(rotated_uv.x * wave_frequency + TIME * wave_speed) * wave_amplitude;
    float surface_y = (1.0 - liquid_level) + wave;


    if (rotated_uv.y > surface_y) {

        vec4 base_color = liquid_color;

        float internal_wave = noise(vec2(rotated_uv.x * 3.0, rotated_uv.y * 3.0 + TIME * 0.5)) * 0.1;
        base_color.rgb += vec3(internal_wave);


		if (add_bubble){
			vec2 bubble_uv = rotated_uv * bubble_scale;
	        bubble_uv.y += TIME * bubble_speed;
	        float bubble_noise = noise(bubble_uv);
	        float bubbles = step(0.95, bubble_noise);
	        base_color.rgb += vec3(bubbles * 0.3);
		}

        float shine = pow(1.0 - abs(uv.x - 0.5) * 2.0, 3.0) * shine_intensity;
        base_color.rgb += vec3(shine);

        float depth_factor = 1.0 - (rotated_uv.y - surface_y) / (1.0 - surface_y);
        base_color.rgb *= 0.7 + depth_factor * 0.3;

        COLOR = base_color;

    } else if (rotated_uv.y > surface_y - foam_thickness) {

        float foam_factor = (surface_y - rotated_uv.y) / foam_thickness;
        float foam_noise = noise(vec2(rotated_uv.x * 20.0, TIME * 2.0));
        foam_factor *= foam_noise;

        vec4 final_foam = mix(liquid_color, foam_color, foam_factor);
        COLOR = final_foam;

    } else {

        COLOR = vec4(0.0, 0.0, 0.0, 0.0);
    }
}
