2D outline/inline, configured for CanvasGroup

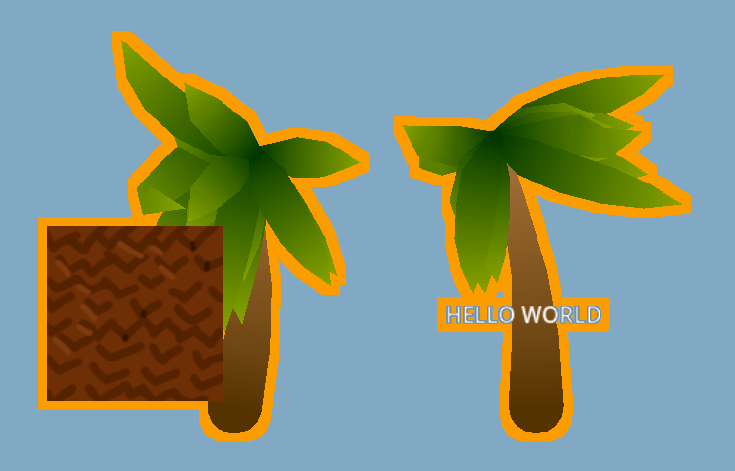

This shader allows you to add an outline/inline to your Canvas Groups. You can learn more about Canvas Groups here.

The base for the material was taken from Juulpowers shader, which you can get here.

The shader is unmodified, other than to change from UV coordinate space into screen coordinate space.



Shader code
shader_type canvas_item;

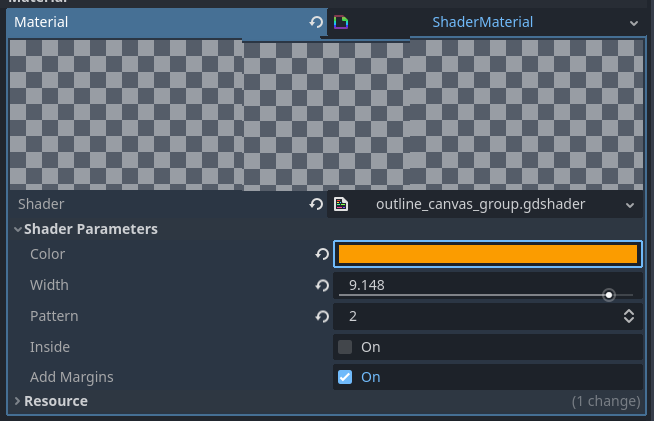

uniform sampler2D screen_texture : hint_screen_texture, repeat_disable, filter_nearest;

uniform vec4 color : source_color = vec4(1.0);
uniform float width : hint_range(0, 10) = 1.0;
uniform int pattern : hint_range(0, 2) = 0; // diamond, circle, square
uniform bool inside = false;
uniform bool add_margins = true; // only useful when inside is false

void vertex() {
	if (add_margins) {
		VERTEX += (UV * 2.0 - 1.0) * width;
	}
}

bool hasContraryNeighbour(vec2 uv, vec2 texture_pixel_size, sampler2D texture) {
	for (float i = -ceil(width); i <= ceil(width); i++) {
		float x = abs(i) > width ? width * sign(i) : i;
		float offset;

		if (pattern == 0) {
			offset = width - abs(x);
		} else if (pattern == 1) {
			offset = floor(sqrt(pow(width + 0.5, 2) - x * x));
		} else if (pattern == 2) {
			offset = width;
		}

		for (float j = -ceil(offset); j <= ceil(offset); j++) {
			float y = abs(j) > offset ? offset * sign(j) : j;
			vec2 xy = uv + texture_pixel_size * vec2(x, y);

			if ((xy != clamp(xy, vec2(0.0), vec2(1.0)) || texture(texture, xy).a == 0.0) == inside) {
				return true;
			}
		}
	}

	return false;
}

void fragment() {
	vec2 uv = SCREEN_UV;

    vec4 base_color = vec4(0.15);

   	if (base_color.a > 0.0001) {
        base_color.rgb /= base_color.a;
    }

	vec4 base_color2 = base_color;

	if (add_margins) {
		vec2 texture_pixel_size = vec2(1.0) / (vec2(1.0) / SCREEN_PIXEL_SIZE + vec2(width * 2.0));

		uv = (uv - texture_pixel_size * width) * SCREEN_PIXEL_SIZE / texture_pixel_size;

		if (uv != clamp(uv, vec2(0.0), vec2(1.0))) {
			base_color.a = 0.0;
		} else {
			base_color = textureLod(screen_texture, uv, 0.0);
		}
	} else {
		base_color = textureLod(screen_texture, uv, 0.0);
	}

	if ((base_color.a > 0.0) == inside && hasContraryNeighbour(uv, SCREEN_PIXEL_SIZE, screen_texture)) {
		base_color.rgb = inside ? mix(base_color.rgb, color.rgb, color.a) : color.rgb;
		base_color.a += (1.0 - base_color.a) * color.a;
	}

	COLOR = base_color;
}
Tags
CanvasGroup, godot4, outline
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
