2D Perspective wall shader

Looking for a 2D perspective view of a wall or a roof whithout a 3D object? You can try this!

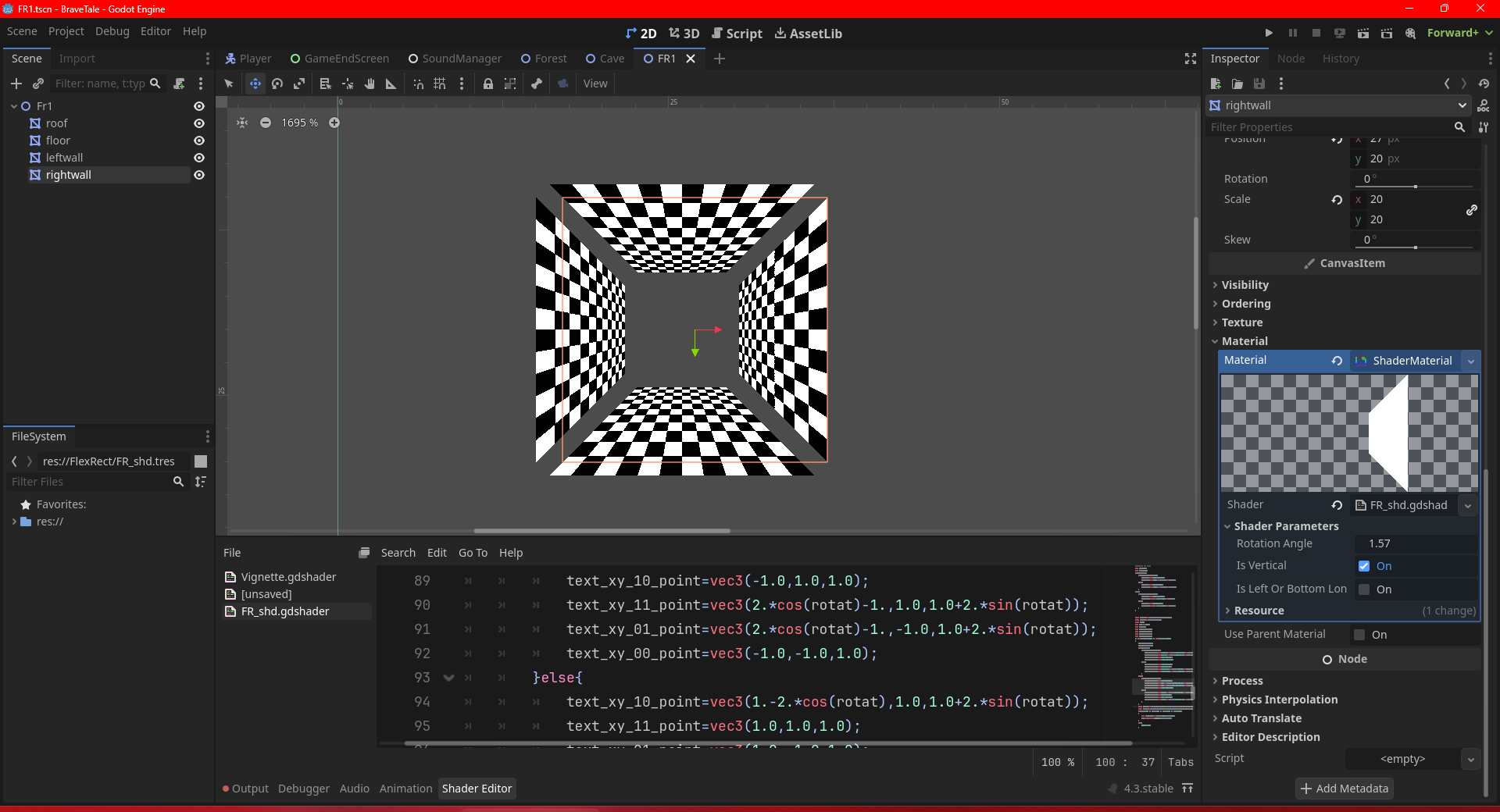

rotation_angle:Adjust the angle of its rotation. In the cover image, there are 4 planes which are all 1.57(pi/2) rotated, which means they are straightly forwarded inside and the camera is at center.

isVertical:Tick it if it is a wall! Don’t tick it if it is a roof or floor.

isBottomOrLeftLonger:Tick it if it is a leftwall/floor, which has a wider edge on left/bottom side.

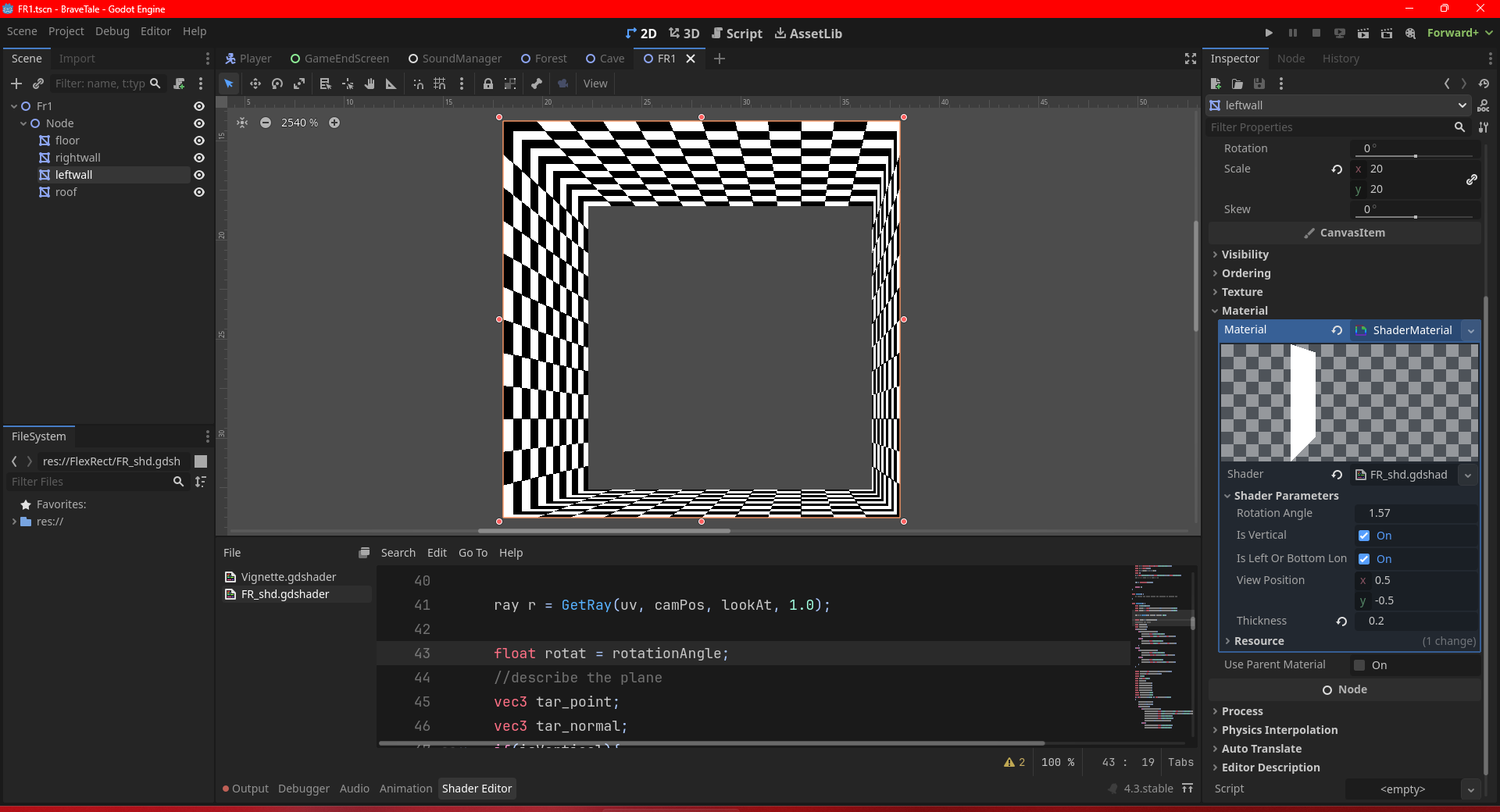

viewPosition:The offset of viewer from the center.eg. (-0.1,-0.2)means move the camera 0.1 left and 0.2 down

thickness:Control the depth of the wall or roof/floor

(3 Sep,2024 updated)

Shader code

#define pi 3.14159265358979323

shader_type canvas_item;

uniform float rotationAngle;
uniform bool isVertical;
uniform bool isLeftOrBottomLonger;
uniform vec2 viewPosition;
uniform float thickness=0.5;

struct ray{
    vec3 o,d;
};

ray GetRay(vec2 uv, vec3 camPos, vec3 lookAt, float zoom){
    ray a;
    a.o = camPos;

    vec3 f = normalize(lookAt-camPos);
    vec3 r = normalize(cross(vec3(0.0,1.0,0.0),f));
    vec3 u = cross(f,r);
    vec3 c = camPos + f * zoom;
	vec3 i;
	i = vec3(0.,0.,1.)+uv.x*vec3(0.,1.,0.)+uv.y*vec3(1.,0.,0.);
	//i = c + uv.x * u + uv.y * r;

    a.d = normalize(i-a.o);

    return a;
}

void vertex() {
	// Called for every vertex the material is visible on.
}

void fragment() {
	vec2 uv=2.*(UV-.5);
	vec3 camPos = vec3(viewPosition.y,viewPosition.x,0.0);
    vec3 lookAt = vec3(viewPosition.y,viewPosition.x,1.0);

    ray r = GetRay(uv, camPos, lookAt, 1.0);

    float rotat = rotationAngle;
    //describe the plane
    vec3 tar_point;
    vec3 tar_normal;
	if(isVertical){
		if(isLeftOrBottomLonger){
			tar_point=vec3(-1.0,-1.0,1.0);
			tar_normal=vec3(0.0,sin(rotat),-cos(rotat));
		}else{
			tar_point=vec3(1.0,1.0,1.0);
			tar_normal=vec3(0.0,-sin(rotat),-cos(rotat));
		}
	}else{
		if(isLeftOrBottomLonger){
			tar_point=vec3(-1.0,-1.0,1.0);
			tar_normal=vec3(sin(rotat),0.,-cos(rotat));
		}else{
			tar_point=vec3(1.0,1.0,1.0);
			tar_normal=vec3(-sin(rotat),0.,-cos(rotat));
		}
	}

    float dividend=dot(tar_normal,(tar_point-r.o));
    float divider=dot(tar_normal,r.d);
    float t=0.0;
    vec3 col=vec3(0.0);
    vec3 hitPoint;
	vec3 text_xy_10_point;
	vec3 text_xy_11_point;
	vec3 text_xy_01_point;
	vec3 text_xy_00_point;
	float text_x_bound=4.0;
	float text_y_bound=4.0;
    if (abs(divider)>=1e-6 && abs(dividend)>=1e-6)
	{
        t=dividend/divider;
        hitPoint=r.o+t*r.d;
		if(isVertical){
			if(isLeftOrBottomLonger){
				text_xy_10_point=vec3(-1.0,thickness*2.*cos(rotat)-1.0,1.0+thickness*2.*sin(rotat));
    			text_xy_11_point=vec3(1.0,thickness*2.*cos(rotat)-1.0,1.0+thickness*2.*sin(rotat));
    			text_xy_01_point=vec3(1.0,-1.0,1.0);
    			text_xy_00_point=vec3(-1.0,-1.0,1.0);
				text_x_bound*=thickness*thickness;
			}else{
				text_xy_10_point=vec3(-1.0,1.0,1.0);
    			text_xy_11_point=vec3(1.0,1.0,1.0);
    			text_xy_01_point=vec3(1.0,1.-thickness*2.*cos(rotat),1.0+thickness*2.*sin(rotat));
    			text_xy_00_point=vec3(-1.0,1.-thickness*2.*cos(rotat),1.0+thickness*2.*sin(rotat));
				text_x_bound*=thickness*thickness;
			}
		}else{
			if(isLeftOrBottomLonger){
				text_xy_10_point=vec3(-1.0,1.0,1.0);
    			text_xy_11_point=vec3(thickness*2.*cos(rotat)-1.,1.0,1.0+thickness*2.*sin(rotat));
    			text_xy_01_point=vec3(thickness*2.*cos(rotat)-1.,-1.0,1.0+thickness*2.*sin(rotat));
    			text_xy_00_point=vec3(-1.0,-1.0,1.0);
				text_y_bound*=thickness*thickness;
			}else{
				text_xy_10_point=vec3(1.-thickness*2.*cos(rotat),1.0,1.0+thickness*2.*sin(rotat));
    			text_xy_11_point=vec3(1.0,1.0,1.0);
    			text_xy_01_point=vec3(1.0,-1.0,1.0);
    			text_xy_00_point=vec3(1.-thickness*2.*cos(rotat),-1.0,1.0+thickness*2.*sin(rotat));
				text_y_bound*=thickness*thickness;
			}
		}
    	float text_x=dot((hitPoint-text_xy_00_point),(text_xy_10_point-text_xy_00_point));
    	float text_y=dot((hitPoint-text_xy_00_point),(text_xy_01_point-text_xy_00_point));
		if(text_x<text_x_bound && text_y<text_y_bound && text_x>0.0 && text_y>0.0)
    	{
    		vec2 tex_coord=vec2(text_x,text_y);
			tex_coord/=4.0;
			if(isVertical){
				tex_coord.x/=thickness*thickness;
			}else{
				tex_coord.y/=thickness*thickness;
			}
    		col=vec3(texture(TEXTURE,tex_coord).x);
    	}
		else{
			COLOR.a=0.0;
		}
	}
	else{
		COLOR.a=0.0;
	}
    // Output to screen
    COLOR.xyz = col;
	// Called for every pixel the material is visible on.
}

//void light() {
	// Called for every pixel for every light affecting the CanvasItem.
	// Uncomment to replace the default light processing function with this one.
//}
