2D Pixel Art Water

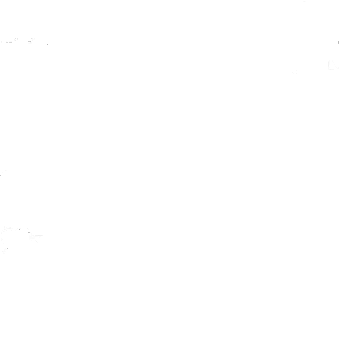

A 2D style water surface and edge water foam, random bright spots. The water foam is generated using the tileset, based on the change of the gray value of the edge (use another shader to calculate the position of the pixel to the edge, the closer the gray value is, the smaller it is). The original texture is provided with the screenshot.

Shader code

shader_type canvas_item;

uniform vec4 base_color: source_color = vec4(0.833, 0.954, 1.0, 1.0);
uniform vec4 main_color: source_color = vec4(0, 0.786, 0.97, 1.0);
uniform	sampler2D water_base: repeat_enable, filter_nearest;
uniform sampler2D noise: repeat_enable, filter_nearest;

uniform float scale_water: hint_range(0.1, 10, 0.1) = 1.0;
uniform float scale_water_extra: hint_range(0.1, 10, 0.1) = 1.0;
uniform float rippling: hint_range(0.0, 0.01, 0.001) = 0.1;

varying vec2 world_pos;

uniform sampler2D gradient_edge_texture: filter_nearest;
uniform sampler2D foam_texture: filter_nearest, repeat_enable;
uniform float foam_scale: hint_range(0.0, 10.0, 0.1) = 1.0;


float easeInOut(float t) {
    return t * t * (3.0 - 2.0 * t);
}
float easeInOutSine(float t) {
    return 0.5 * (1.0 - cos(t * 3.1415926));
}
void foam_feature(in vec4 color, in vec2 origin_uv, out vec4 out_color) {
	float gray_value = texture(gradient_edge_texture, origin_uv).r;
	vec2 foam_uv = origin_uv*16.0/float(textureSize(foam_texture, 0).x)*foam_scale;
	vec4 foam_color = texture(foam_texture, foam_uv);
	float alpha =step(gray_value, 85.0/255.0); // filter grayvalue
	out_color = mix(color, foam_color, foam_color.a*color.a*alpha); // 混合foam
	// 85 for my example , gray value edge may be different in your case
	float t = step(gray_value, 85.0/255.0)*step(gray_value, (1.0 - abs((sin(TIME*1.0+PI/2.0))))*95.0/255.0+14.0/255.0);
	out_color.a = (1.-t)*out_color.a;
}

void vertex() {
	// Called for every vertex the material is visible on.
	world_pos = (MODEL_MATRIX * vec4(VERTEX, 0, 1.0)).xy;
}

#define float4 vec4
#define lerp mix
void Blend_Overlay_Vec4(vec4 Base, vec4 Blend, float Opacity, out vec4 Out)
{
    vec4 result1 = 1.0 - 2.0 * (1.0 - Base) * (1.0 - Blend);
    vec4 result2 = 2.0 * Base * Blend;
    vec4 zeroOrOne = step(Base, vec4(0.5));
    Out = result2 * zeroOrOne + (1.0 - zeroOrOne) * result1;
    Out = mix(Base, Out, Opacity);
}

void Blend_Subtract_float4(float4 Base, float4 Blend, float Opacity, out float4 Out)
{
    Out = Base - Blend;
    Out = lerp(Base, Out, Opacity);
}

void highlight(vec2 uv, int floor_pixels, float scale, out float light){

	float pixles = float(floor_pixels);
	uv = floor(uv*pixles)/pixles;
	vec4 noise_value = texture(noise, uv*scale+TIME*.2);
	vec4 noise_value2 = texture(noise, uv*scale-TIME*.2);
	vec4 result;
	Blend_Overlay_Vec4(noise_value, noise_value2, 1.0, result);

	vec4 noise_value3 = texture(noise, uv);
	vec4 res2;
	Blend_Subtract_float4(noise_value3, result, 1.0, res2);
	light = step(res2.x,0.6);
}
const float water_base_texture_size = 340.0; // tilset texture
const float noise_texture_size = 512.0;
const float tile_cell_size = 16.0; // tilemap cell size
void fragment() {
        // for effective, get from const parameters
	//float noise_texture_size = float(textureSize(noise, 0).x);
	//float water_base_texture_size = float(textureSize(water_base, 0).x);
	vec2 uv = world_pos/tile_cell_size;
	vec2 water_uv = uv*tile_cell_size/water_base_texture_size;

	vec2 noise_uv = uv*tile_cell_size/noise_texture_size;
	vec4 noise_color = texture(noise, noise_uv+TIME*.1);
	vec2 offset_rand = noise_color.xy;

	float noise_fade = texture(noise, noise_uv).x;

	water_uv = mix (water_uv, water_uv - offset_rand, vec2(rippling));
	water_uv = floor(water_uv*water_base_texture_size)/water_base_texture_size; // pixelate
	vec4 water_color = texture(water_base, water_uv*vec2(scale_water, scale_water+scale_water_extra));
	float white_alpha = water_color.a ;//* noise_fade;//step(0.5, noise_fade); // 0 or 1
	white_alpha *= clamp(noise_fade-0.2, 0.0, 1.0);
	water_color = mix(water_color, main_color, 1.0 - white_alpha);
	water_color = mix(water_color, water_color*base_color, white_alpha); // white bar with fade color




	float not_include_edge = (1.0-step(COLOR.r, 0))*(step(COLOR.g, 0))*(step(COLOR.b, 0));
	COLOR = mix(COLOR, water_color, not_include_edge); //
	// highlight
	float light = 0.0;
	highlight(noise_uv, 1024, 20, light);
	COLOR = mix(COLOR, vec4(1.0), step(light, 0.3)*white_alpha*not_include_edge);
	vec4 color;
	foam_feature(COLOR, UV, color);
	COLOR = color;
}
