2D waterfall

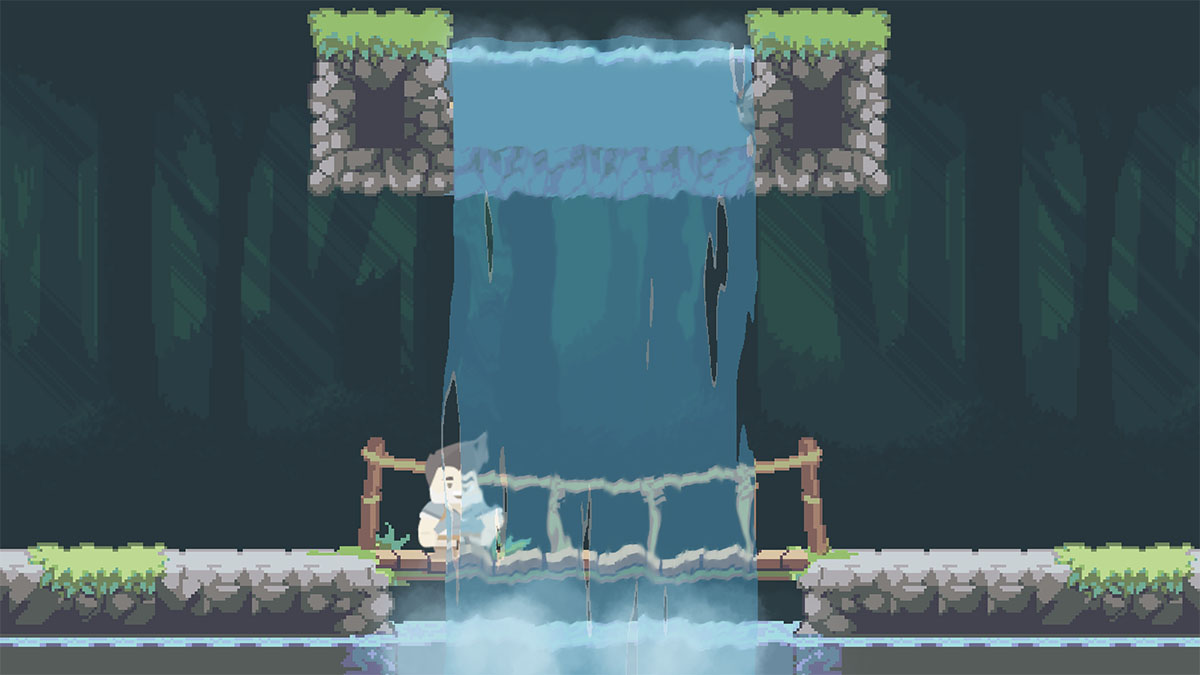

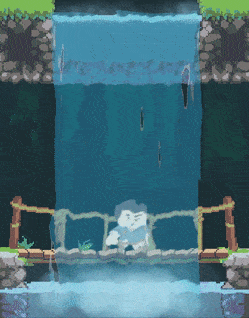

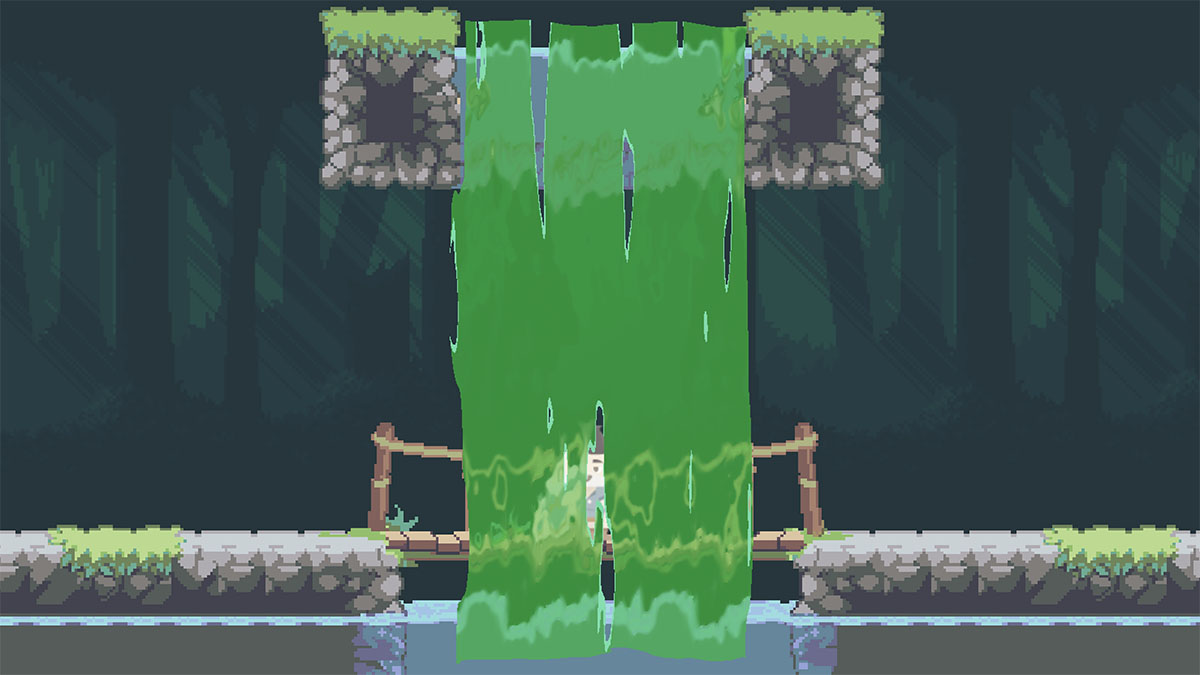

Make a waterfall from a Sprite node. Resize the sprite to resize the waterfall. See it in action in the screenshots below.

There are several uniforms that can be set:

  • Refraction Map: Noise texture for the refraction effect. Use the built-in SimplexNoise.
  • Water Mask: Noise texture for the flow gaps. Use the built-in SimplexNoise.
  • Gap Stretch: Squeeze the texture to get the shape of the gaps as you like
  • Refraction Stretch: Squeeze the refraction texture to get the effect that you like
  • Refraction Strength: How intense you want the refraction effect to be
  • Water Tint: The color of the waterfall. Use alpha to lower intensity
  • Water Highlight: The color of gap edges. Use alpha to lower intensity
  • Speed: The speed of the flow
  • Flow Gaps: Size of the gaps
  • Highlight width: Size of the gap edges that will be colored with Water Highlight

Instructions

Add a Sprite and set any texture to it (icon.png perhaps). Create the shader with the code below and set a new NoiseTexture with SimplexNoise to both Refraction Map and Water Mask. Check the Seamless parameter.

To make the waterfall behave the way you expect when rescaling and zooming you will have to add a bit of code to the Sprite and connect the item_rect_changed() signal. Create a new script for the Sprite and add the code below, don’t forget to connect the signal.

tool
extends Sprite

func _process(delta):
	get_material().set_shader_param("zoom", get_viewport_transform().y.y)

#Connect the item_rect_changed() signal to this function
func _on_Waterfall_item_rect_changed():
	get_material().set_shader_param("scale", scale)

Don’t forget to add the tool keyword at the top of the script or the changes won’t be seen in the editor.

(The zoom effect is not consistent for all viewport settings when going from editor to the game. Perhaps someone know a better way to fix this)

That’s it! Play around with the different uniform values to get the waterfall look you want.

It’s not working

If it’s not working now, it is most likely because the scale and zoom parameters are not getting data from the script. Try reloading the scene and then resizing the sprite.

Shader code
/*
Shader from Godot Shaders - the free shader library.
godotshaders.com/shader/2d-waterfall

Feel free to improve and change this shader according to your needs
and consider sharing the modified result on godotshaders.com.
*/

shader_type canvas_item;

uniform vec2 scale; // Used for sprite script. Don't edit this value in the inspector.
uniform float zoom; // Used for sprite script. Don't edit this value in the inspector.

uniform sampler2D refraction_map;
uniform sampler2D water_mask;

uniform vec2 gap_stretch = vec2(0.8, 0.05);
uniform vec2 refraction_stretch = vec2(2.0, 0.8);
uniform float refraction_strength : hint_range(0.0, 0.1) = 0.02;

uniform vec4 water_tint : hint_color = vec4(0.2, 0.6, 1.0, 0.1);
uniform vec4 water_highlight : hint_color = vec4(1.0, 1.0, 1.0, 0.3);
uniform float speed = 1.0;
uniform float flow_gaps : hint_range(0.0, 1.0) = 0.33;
uniform float highlight_width : hint_range(0.0, 0.3) = 0.02;

void fragment()
{
	// Get the two noise textures and make them move on the y axis. The gaps move twice as fast as the refraction, but you can tweak this by changing (speed * 0.5)
	vec2 refraction_offset = texture(refraction_map, vec2(UV.x, UV.y + -TIME * speed * 0.5) * scale * refraction_stretch).xy;
	vec2 gap_mask = texture(water_mask, vec2(UV.x, UV.y + -TIME * speed) * scale * gap_stretch).xy;

	// Set values between -0.5 and 0.5 (instead of 0 and 1). Otherwise the reflection will move whith increased refraction_strength
	refraction_offset -= 0.5;

	// Get the screen texture and distort it
	vec4 refraction = texture(SCREEN_TEXTURE, SCREEN_UV - refraction_offset * refraction_strength * zoom);


	// Create holes and apply colors and textures //

	vec4 color = vec4(1.0);

	// Define what values will be the water highlight color (the gap border)
	float inner_edge = flow_gaps + highlight_width;

	// See if the pixel is within the edges range and use the water colors alpha to blend between showing color or refraction texture.
	if (gap_mask.x < inner_edge)
	{
		color.rgb = mix(refraction.rgb, water_highlight.rgb, water_highlight.a);
	}
	else
	{
		color.rgb = mix(refraction.rgb, water_tint.rgb, water_tint.a);
	}

	// If the value is below the gap threshhold make it transparent (a gap)
	if (gap_mask.x < flow_gaps)
	{
		color.a = 0.0;
	}


	// Crate Edge Shape //

	// Set the shape for the top and bottom edges. Use water_mask as shape but with other values to flatten it out horizontally.
	vec2 water_edge = texture(water_mask, vec2(UV.x, UV.y + -TIME * 0.1) * scale * vec2(0.15, 0.6)).xy;
	water_edge -= 0.5;

	// Use the same mask as for the gaps for left and right edge.
	vec2 vertical_edge_mask = gap_mask - 0.5;

	// Apply the new masks to the edges. This will make the wobble effect.
	color.a = mix(0.0, color.a, step(UV.x + vertical_edge_mask.x * 0.2, 0.92)); // Right edge
	color.a = mix(color.a, 0.0, step(UV.x - vertical_edge_mask.x * 0.2, 0.08)); // Left edge

	color.a = mix(0.0, color.a, step(UV.y + water_edge.y * 0.1, 0.95));  //Bottom edge
	color.a = mix(color.a, 0.0, step(UV.y - water_edge.y * 0.05, 0.05)); //Top edge

	COLOR = color;
}
Tags
2d, refraction, water, waterfall
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
