Waveforms

Create waveforms to simulate the visual representation of audio.

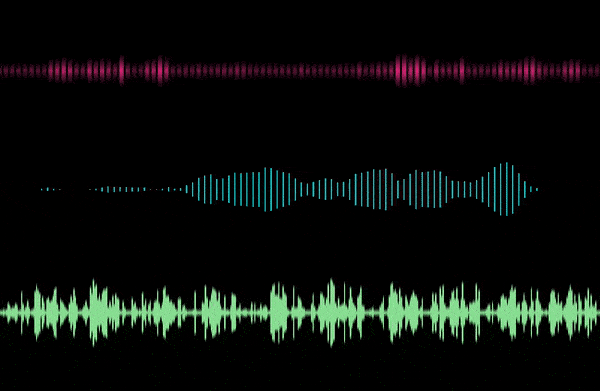

🎥 Animation below!

There are several uniforms to set amplitude, frequency, intensity, color, line sizes and drop-off fades, and a toggle to simulate someone talking (a bit more erratic wave pattern).

Edit: Added a “dot matrix” effect

Use “Progress” to turn the waveform on and off from outside the shader. Value 0-1 can be animated and will shrink the wave.

Instructions
Simply paste the code into a new shader for a ColorRect.

Shader code
/*
Shader from Godot Shaders - the free shader library.
godotshaders.com/shader/waveforms

This shader is under CC0 license. Feel free to use, improve and
change this shader according to your needs and consider sharing
the modified result to godotshaders.com.
*/

shader_type canvas_item;
render_mode blend_premul_alpha;

uniform int lines = 80; // Amount of lines the waveform is build up of
uniform float amplitude : hint_range(0.0, 1.0) = 0.9; // Height of the wave
uniform float frequency : hint_range(0.0, 0.5) = 0.1; // Set a lower value for a smoother wave
uniform float intensity : hint_range(0.0, 1.0) = 0.75; // Lower values creates gaps in the wave while higher make the wave more solid
uniform float line_sharpness : hint_range(0.0, 1.0) = 0.5; // Fuzzy edges on each line
uniform float line_size : hint_range(0.0, 1.0) = 0.8; // Thickness of the lines
uniform float fade : hint_range(0.0, 0.5) = 0.1; // Blurres the top and bottom of the lines
uniform float rest_size : hint_range(-2., 2.) = -0.2; // The size of the lines when the line is not animating, i.e at value 0. Tweak if Fade is used.
uniform float edge : hint_range(0.0, 0.5) = 0.05; // How close to the edges should the animation beginn
uniform float speed = 0.5; // Speed of wave animation
uniform vec4 color : hint_color = vec4(.8, 0.25, 0.5, 1.0); // Color of wave
uniform bool dot_matrix = false;
uniform int dot_matriz_size = 80;

uniform bool speech_sim = true; // Toggle to simulate speach. Will create a more erratic movement in the wave
uniform float speech_intensity : hint_range(0.0, 2.0) = 0.8; // How fast will the speech movement be
uniform float progress : hint_range(0.0, 1.0) = 1.0; // Use to turn the animation on and off from outside the shader. 0 - off, 1 - on. Can animate values between which will shrink the wave.

float random(vec2 uv) {
	return fract(sin(dot(uv.xy,
	vec2(12.9898,78.233))) * 43758.5453123);
}

float noise(vec2 uv) {
	vec2 uv_index = floor(uv);
	vec2 uv_fract = fract(uv);

	// Four corners in 2D of a tile
	float a = random(uv_index);
	float b = random(uv_index + vec2(1.0, 0.0));
	float c = random(uv_index + vec2(0.0, 1.0));
	float d = random(uv_index + vec2(1.0, 1.0));

	vec2 blur = smoothstep(0.0, 1.0, uv_fract);

	return mix(a, b, blur.x) +
				(c - a) * blur.y * (1.0 - blur.x) +
				(d - b) * blur.x * blur.y;
}

float fbm(vec2 uv) {
	int octaves = 4;
	float amp = 0.5;
	float freq = 4.;
	float value = 0.0;

	for(int i = 0; i < octaves; i++) {
		value += amp * noise(freq * uv - 0.5);
		amp *= 0.6;
		freq *= 2.;
	}
	return value;
}


void fragment()
{
	// Some initialising
	float time = TIME;
	vec4 c = vec4(vec3(0.0), 1.0);
	float f_columns = float(lines);

	// Make some distance to the edges before the animation starts
	float cutoff = smoothstep(0.0, edge, (round ((UV.x) * (f_columns) ) / f_columns) );
	cutoff *= 1. - smoothstep(1.-edge, 1.0, (round ((UV.x) * (f_columns) ) / f_columns) );

	// Speech simulation setup
	float ss = 1.0;
	if (speech_sim == true){
		ss = fbm(vec2(1.0, time * speed * 1.3) * speech_intensity) * 1.5;
	}

	// Create the noise that controlls the animation
	float noise = fbm(vec2( round( (UV.x) * f_columns ) * frequency, time * speed) ) * ss * progress;
	noise *= cutoff; // Apply edge cutoff

	// Make wave values based on the noise
	float wave = smoothstep(1.-intensity, 1.0, noise) * amplitude;
	wave = wave + (rest_size * 0.2);

	// Create the lines
	float line = abs( sin(( f_columns * 3.1416 * UV.x) + 1.5) );
	line = smoothstep(1.-line_size, (1.-line_size) + (1.-line_sharpness), line);

	// Simulate dot_matrix
	if (dot_matrix){
		float dm = abs( sin(( float(dot_matriz_size) * 3.1416 * UV.y) + 1.5) );
		dm = smoothstep(1.-line_size, (1.-line_size) + (1.-line_sharpness), dm);
		line *= dm;
	}

	// Duplicate mask on top an bottom and apply to line
	float mask = 1.0 - smoothstep(wave, wave + fade, abs(UV.y - 0.5) * 2.);
	line *= mask;

	c = vec4(line) * color;

	COLOR = c;
}
Tags
audio, effect, graph
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.

More from pend00

2D mirror effect

Energy Beams

God rays

Subscribe
Notify of
guest

6 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
Rajbir Modak
Rajbir Modak
2 years ago

is their any way to sync it with the music

Rajbir98
2 years ago
Reply to  Rajbir Modak

Same Question Arises in my mind too

Rajbir98
2 years ago

what does speech sim does

holysmokes
holysmokes
8 months ago
it hase in error messege the error is. error(24): expected valid type hint after ':'. uniform vec4 color : hint_color = vec4(.8, 0.25, 0.5, 1.0); // Color of wave this is the line of code that makes the error
