3D Pixel art outline & highlight Shader (Adapted for In-Editor/ Perspective)

This is my version of 3D Pixel art outline & highlight Shader (Post-processing/object)

Tested using Godot v4.0/ 4.1

HOW TO USE

  • Create a MeshInstance3D
  • Make the mesh a QuadMesh with size (2, 2) and “Flip faces” set to true
  • Create a new ShaderMaterial for it and add this shader
  • Use the “Disable Shader” button (in the shader params) if you want to hide the pixelation effect.
  • Enjoy!

CHANGES MADE FROM THE ORIGINAL:

  • Make the Quad always infront of the camera using:
void vertex(){
    POSITION = vec4(VERTEX, 1.0);
}
  • Changed the calculation of the UVs and other pixel-size related stuff.
  • Added a checkbox to disable the effect
Shader code
shader_type spatial;
render_mode unshaded;

// MIT License. Made by Leo Peltola. Adapted by ARez.
// Inspired by https://threejs.org/examples/webgl_postprocessing_pixel.html

uniform sampler2D DEPTH_TEXTURE : hint_depth_texture, filter_linear_mipmap;
uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, filter_linear_mipmap;
uniform sampler2D NORMAL_TEXTURE : hint_normal_roughness_texture, filter_nearest;

uniform bool disable_shader = false;
uniform float MAX_DEPTH : hint_range(0.0, 10000, 1) = 1000;

uniform bool shadows_enabled = true;
uniform bool highlights_enabled = true;
uniform float shadow_strength : hint_range(0.0, 1.0, 0.01) = 0.4;
uniform float highlight_strength : hint_range(0.0, 1.0, 0.01) = 0.1;
uniform vec3 highlight_color : source_color = vec3(0.45);
uniform vec3 shadow_color : source_color = vec3(0.0);


float getDepth(vec2 screen_uv, sampler2D depth_texture, mat4 inv_projection_matrix){
//	Credit: https://godotshaders.com/shader/depth-modulated-pixel-outline-in-screen-space/
	float raw_depth = texture(depth_texture, screen_uv)[0];
	vec3 normalized_device_coordinates = vec3(screen_uv * 2.0 - 1.0, raw_depth);
    vec4 view_space = inv_projection_matrix * vec4(normalized_device_coordinates, 1.0);
	view_space.xyz /= view_space.w;
	return -view_space.z;
}


float normalIndicator(vec3 normalEdgeBias, vec3 baseNormal, vec3 newNormal, float depth_diff){
	// Credit: https://threejs.org/examples/webgl_postprocessing_pixel.html
	float normalDiff = dot(baseNormal - newNormal, normalEdgeBias);
	float normalIndicator = clamp(smoothstep(-.01, .01, normalDiff), 0.0, 1.0);
	float depthIndicator = clamp(sign(depth_diff * .25 + .0025), 0.0, 1.0);
	return (1.0 - dot(baseNormal, newNormal)) * depthIndicator * normalIndicator;
}


void vertex(){
	POSITION = vec4(VERTEX, 1.0);
}

uniform int pixelSize: hint_range(2, 16, 1) = 4;
void fragment() {
	if (disable_shader) {
		discard;
	}
	//vec2 uv = SCREEN_UV;
	vec2 iRes = VIEWPORT_SIZE.xy;
	vec2 onePixelSize = 1.0 / iRes;
	vec2 cellSize = float(pixelSize) * onePixelSize;
	vec2 e = cellSize;
	vec2 uv = cellSize * round(SCREEN_UV / cellSize);
	vec2 orig_uv = SCREEN_UV;


//	Shadows
	float depth_diff = 0.0;
	float neg_depth_diff = 0.0;
	if (shadows_enabled) {
		float depth = getDepth(uv, DEPTH_TEXTURE, INV_PROJECTION_MATRIX);
		if (depth > MAX_DEPTH) {
			discard;
		}
		float du = getDepth(uv+vec2(0.0, -1.0)*e, DEPTH_TEXTURE, INV_PROJECTION_MATRIX);
		float dr = getDepth(uv+vec2(1.0, 0.0)*e, DEPTH_TEXTURE, INV_PROJECTION_MATRIX);
		float dd = getDepth(uv+vec2(0.0, 1.0)*e, DEPTH_TEXTURE, INV_PROJECTION_MATRIX);
		float dl = getDepth(uv+vec2(-1.0, 0.0)*e, DEPTH_TEXTURE, INV_PROJECTION_MATRIX);
		depth_diff += clamp(du - depth, 0.0, 1.0);
		depth_diff += clamp(dd - depth, 0.0, 1.0);
		depth_diff += clamp(dr - depth, 0.0, 1.0);
		depth_diff += clamp(dl - depth, 0.0, 1.0);
		neg_depth_diff += depth - du;
		neg_depth_diff += depth - dd;
		neg_depth_diff += depth - dr;
		neg_depth_diff += depth - dl;
		neg_depth_diff = clamp(neg_depth_diff, 0.0, 1.0);
		neg_depth_diff = clamp(smoothstep(0.5, 0.5, neg_depth_diff)*10.0, 0.0, 1.0);
		depth_diff = smoothstep(0.2, 0.3, depth_diff);

		//ALBEDO = vec3(depth_diff);
	}

//	Highlights
	float normal_diff = 0.;
	if (highlights_enabled) {
		vec2 uv_use = max(uv, orig_uv);
		vec3 normal = texture(NORMAL_TEXTURE, uv_use).rgb * 2.0 - 1.0;
		vec3 nu = texture(NORMAL_TEXTURE, uv_use+vec2(0.0, -1.0)*e).rgb * 2.0 - 1.0;
		vec3 nr = texture(NORMAL_TEXTURE, uv_use+vec2(1.0, 0.0)*e).rgb * 2.0 - 1.0;
		vec3 nd = texture(NORMAL_TEXTURE, uv_use+vec2(0.0, 1.0)*e).rgb * 2.0 - 1.0;
		vec3 nl = texture(NORMAL_TEXTURE, uv_use+vec2(-1.0, 0.0)*e).rgb * 2.0 - 1.0;
		vec3 normal_edge_bias = (vec3(1.0, 1.0, 1.0));
		normal_diff += normalIndicator(normal_edge_bias, normal, nu, depth_diff);
		normal_diff += normalIndicator(normal_edge_bias, normal, nr, depth_diff);
		normal_diff += normalIndicator(normal_edge_bias, normal, nd, depth_diff);
		normal_diff += normalIndicator(normal_edge_bias, normal, nl, depth_diff);
		normal_diff = smoothstep(0.2, 0.8, normal_diff);
		normal_diff = clamp(normal_diff-neg_depth_diff, 0., 1.);
		//ALBEDO = vec3(normal_diff);
	}

	vec3 original_color = ALBEDO;
	original_color = texture(SCREEN_TEXTURE, uv).rgb;
	vec3 final_highlight_color = mix(original_color, highlight_color, highlight_strength);
	vec3 final_shadow_color = mix(original_color, shadow_color, shadow_strength);
	vec3 final = original_color;
	if (highlights_enabled) {
		final = mix(final, final_highlight_color, normal_diff);
	}
	if (shadows_enabled) {
		final = mix(final, final_shadow_color, depth_diff);
	}
	//ALBEDO = original_color;
	ALBEDO = vec3(normal_diff);
	//ALBEDO = vec3(depth_diff);
	//ALBEDO = vec3(depth_diff + normal_diff);
	//ALBEDO = texture(NORMAL_TEXTURE, uv).rgb * 2.0 - 1.0;
	ALBEDO = final;

	float alpha_mask = depth_diff * float(shadows_enabled) + normal_diff * float(highlights_enabled);
	ALPHA = clamp((alpha_mask) * 5.0, 0.0, 1.0);
	//ALPHA = 1.0;
}
Tags
3D pixelart, highlight, outline, pixelart
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.

Related shaders

3D Pixel art outline & highlight Shader (Post-processing/object)

3D Pixel art outline/highlight Shader (Old)

Thick 3D Screen Space – Depth – & Normal – Based Outline Shader.

Subscribe
Notify of
guest

6 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
DmD
DmD
10 months ago

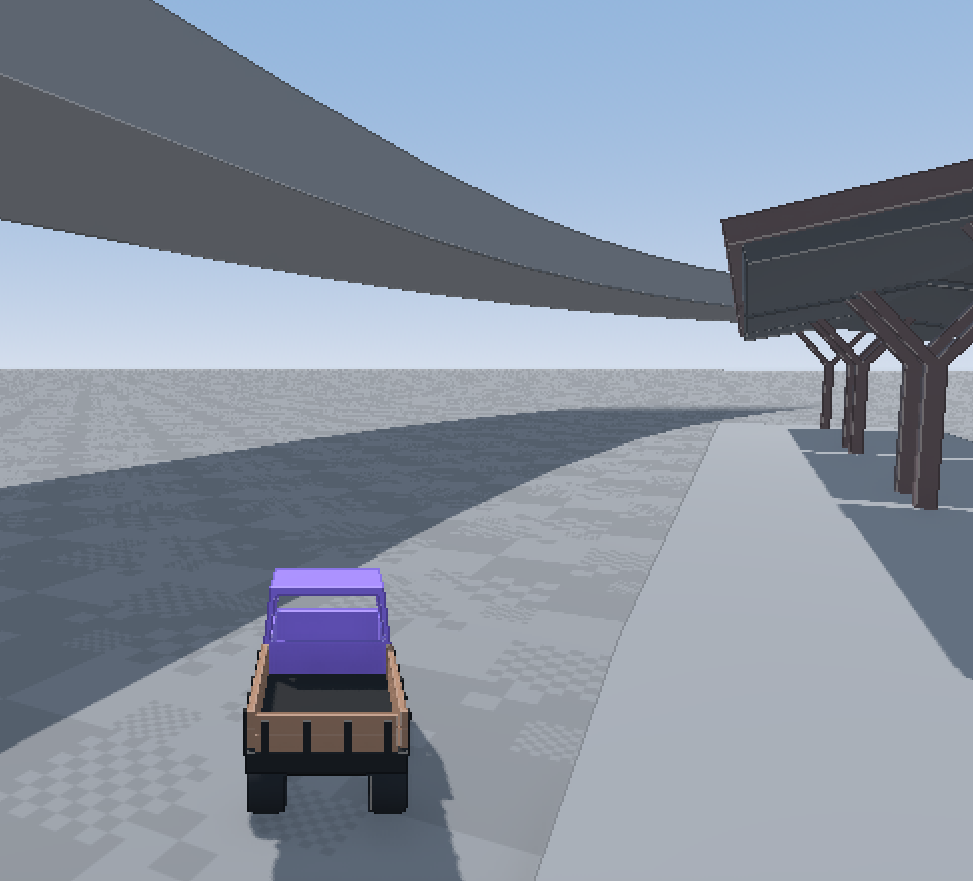

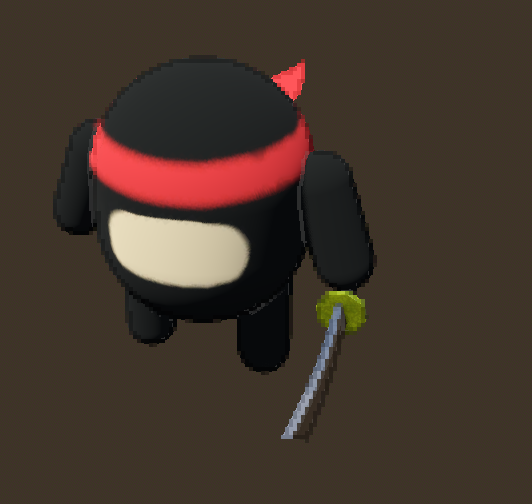

appears blurry for me despite disabling anti-aliasing

lynxwish
lynxwish
8 months ago

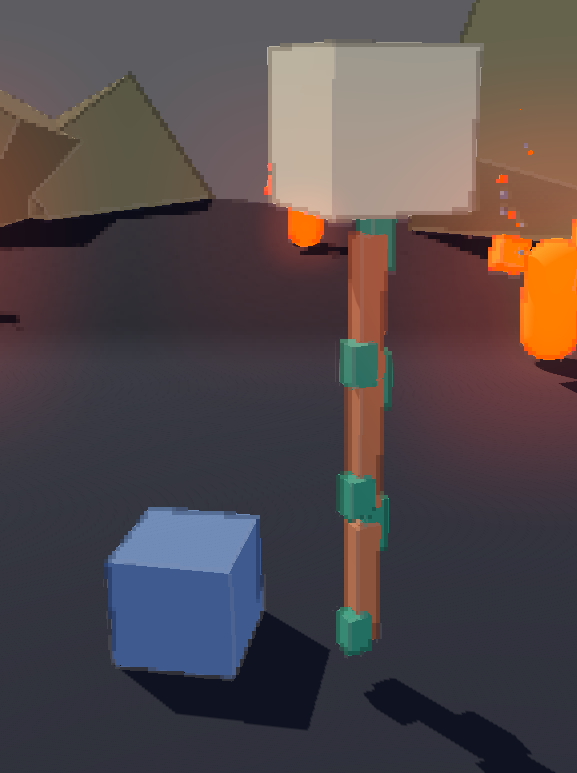

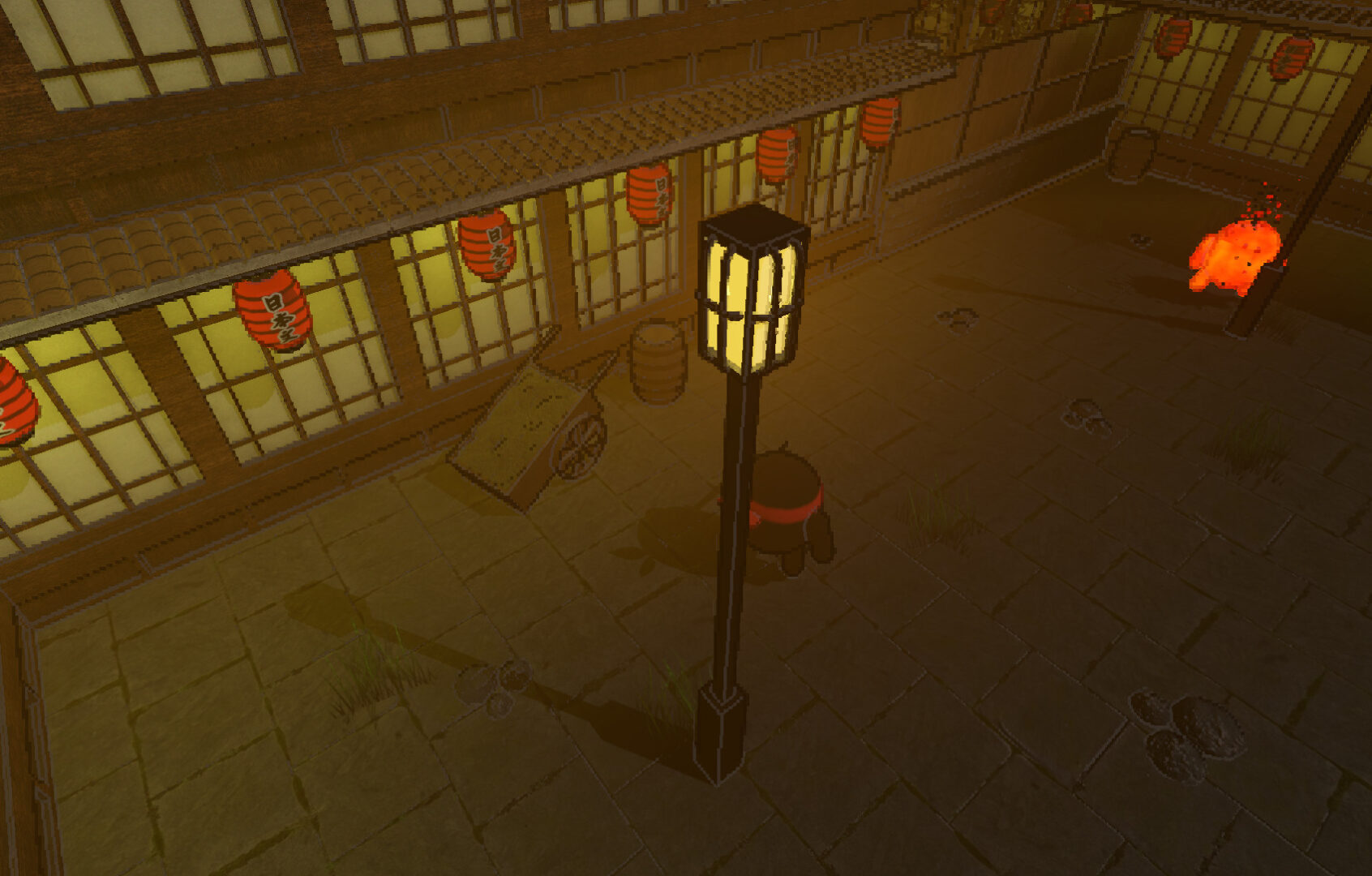

How do you get rid of the weird shadow thats happening in the middle?

Liam
8 months ago

where do I put the
void vertex(){
   POSITION = vec4(VERTEX, 1.0);
}
statement?
