3D Pixel art outline & highlight Shader [Perspective Camera]

A quick adjustment to the great shader by @leopeltola

https://godotshaders.com/shader/3d-pixel-art-outline-highlight-post-processing-shader/

A shader that adds outlines and highlights to low-res 3D pixel art. Made for Godot 4.

This shader works as both a post-processing and standard material shader.

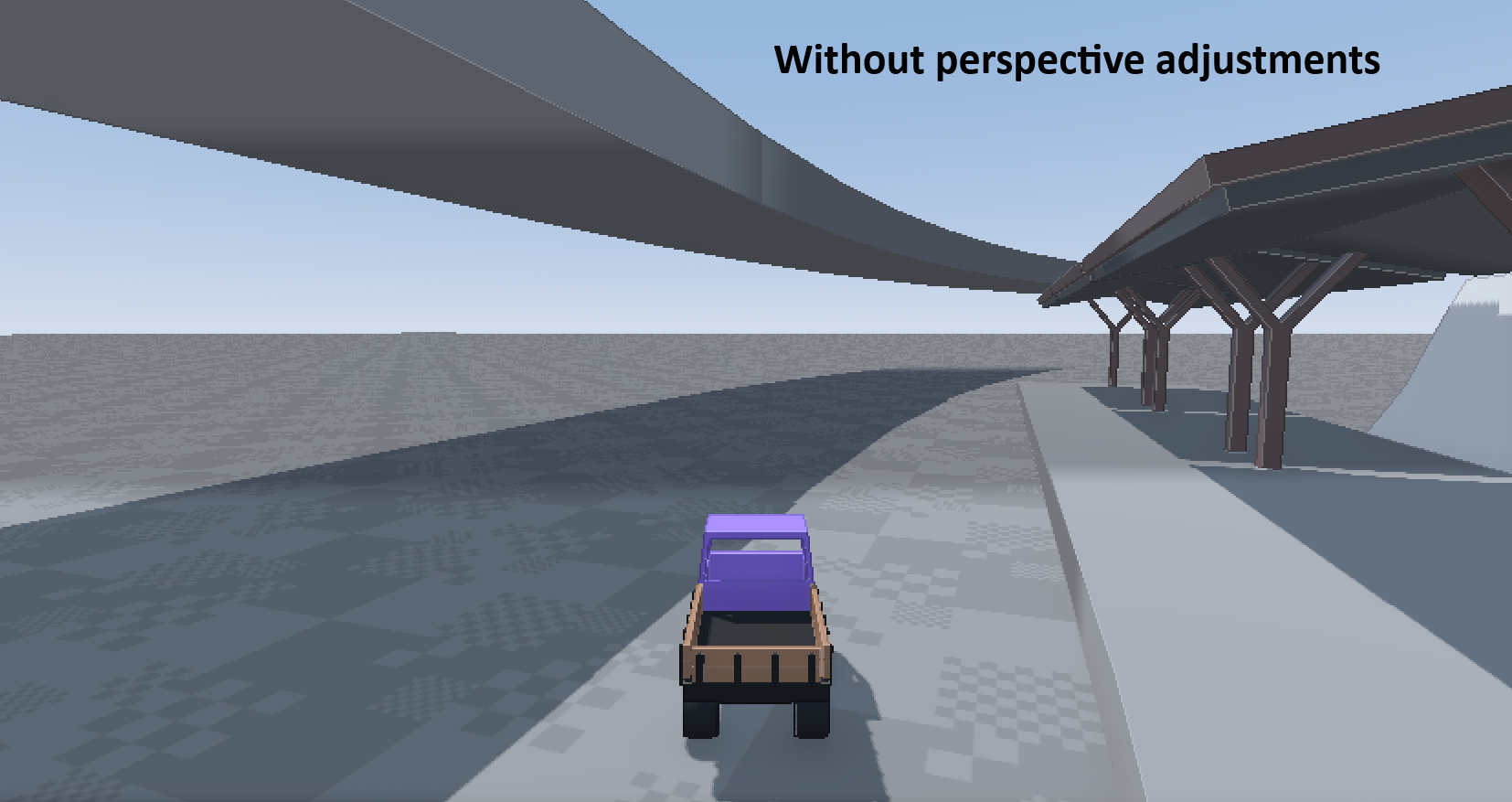

Original shader did not work well with some long perspective camera angles, making further distances always render as shadowed.

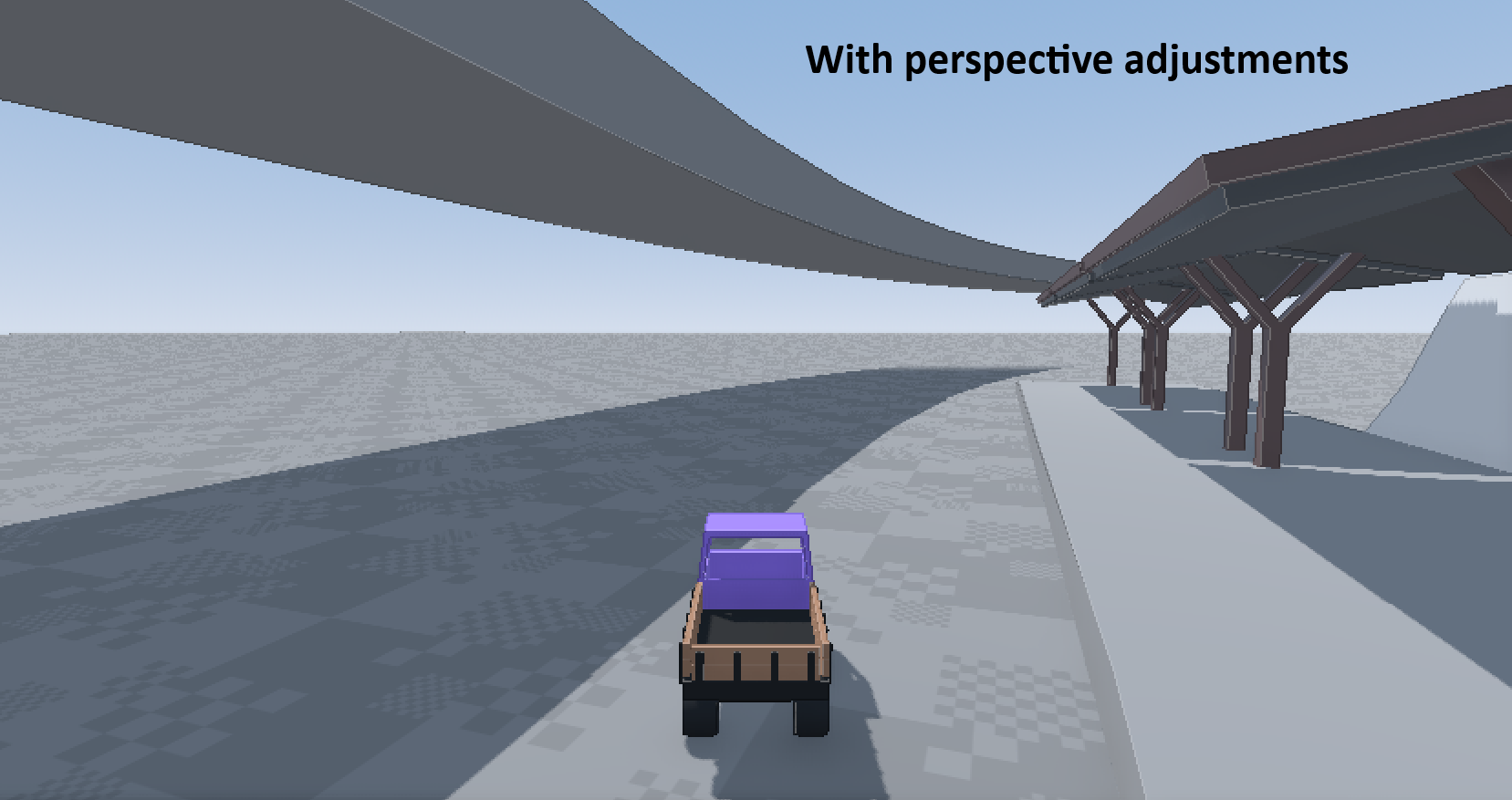

This issue is fixed with this version of the shader!

I’ve added a flag that is enabled by default that will perform the adjustment.

Shader code

shader_type spatial;
render_mode unshaded;

// MIT License
// Made by Leo Peltola
// Perspective adjustments by Riley Evans
// https://godotshaders.com/shader/3d-pixel-art-outline-highlight-post-processing-shader/
// Inspired by https://threejs.org/examples/webgl_postprocessing_pixel.html


uniform sampler2D DEPTH_TEXTURE : hint_depth_texture, filter_nearest;
uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, filter_nearest;
uniform sampler2D NORMAL_TEXTURE : hint_normal_roughness_texture, filter_nearest;

uniform bool shadows_enabled = true;
uniform bool highlights_enabled = true;
uniform float shadow_strength : hint_range(0.0, 1.0, 0.01) = 0.4;
uniform float highlight_strength : hint_range(0.0, 1.0, 0.01) = 0.1;
uniform vec3 highlight_color : source_color = vec3(1.);
uniform vec3 shadow_color : source_color = vec3(0.0);

uniform bool is_perspective_camera = true;

varying mat4 model_view_matrix;


float getDepth(vec2 screen_uv, sampler2D depth_texture, mat4 inv_projection_matrix){
	//	Credit: https://godotshaders.com/shader/depth-modulated-pixel-outline-in-screen-space/
	float raw_depth = texture(depth_texture, screen_uv)[0];
	vec3 normalized_device_coordinates = vec3(screen_uv * 2.0 - 1.0, raw_depth);
    vec4 view_space = inv_projection_matrix * vec4(normalized_device_coordinates, 1.0);
	view_space.xyz /= view_space.w;
	return -view_space.z;
}

float normalIndicator(vec3 normalEdgeBias, vec3 baseNormal, vec3 newNormal, float depth_diff){
	// Credit: https://threejs.org/examples/webgl_postprocessing_pixel.html
	float normalDiff = dot(baseNormal - newNormal, normalEdgeBias);
	float normalIndicator = clamp(smoothstep(-.01, .01, normalDiff), 0.0, 1.0);
	float depthIndicator = clamp(sign(depth_diff * .25 + .0025), 0.0, 1.0);
	return (1.0 - dot(baseNormal, newNormal)) * depthIndicator * normalIndicator;
}

void vertex() {
    model_view_matrix = VIEW_MATRIX * mat4(INV_VIEW_MATRIX[0], INV_VIEW_MATRIX[1], INV_VIEW_MATRIX[2], MODEL_MATRIX[3]);
	POSITION = vec4(VERTEX.xy, 1.0, 1.0);
}

void fragment() {
	vec2 e = vec2(1./VIEWPORT_SIZE.xy);

	//	Shadows
	float depth_diff = 0.0;
	float neg_depth_diff = .5;
	if (shadows_enabled) {
		float depth = getDepth(SCREEN_UV, DEPTH_TEXTURE, INV_PROJECTION_MATRIX);
		float du = getDepth(SCREEN_UV+vec2(0., -1.)*e, DEPTH_TEXTURE, INV_PROJECTION_MATRIX);
		float dr = getDepth(SCREEN_UV+vec2(1., 0.)*e, DEPTH_TEXTURE, INV_PROJECTION_MATRIX);
		float dd = getDepth(SCREEN_UV+vec2(0., 1.)*e, DEPTH_TEXTURE, INV_PROJECTION_MATRIX);
		float dl = getDepth(SCREEN_UV+vec2(-1., 0.)*e, DEPTH_TEXTURE, INV_PROJECTION_MATRIX);

		float clamp_min = is_perspective_camera ? -1. : 0.;
		depth_diff += clamp(du - depth, clamp_min, 1.);
		depth_diff += clamp(dd - depth, clamp_min, 1.);
		depth_diff += clamp(dr - depth, clamp_min, 1.);
		depth_diff += clamp(dl - depth, clamp_min, 1.);
		neg_depth_diff += depth - du;
		neg_depth_diff += depth - dd;
		neg_depth_diff += depth - dr;
		neg_depth_diff += depth - dl;

		neg_depth_diff = clamp(neg_depth_diff, 0., 1.);
		neg_depth_diff = clamp(smoothstep(0.5, 0.5, neg_depth_diff)*10., 0., 1.);
		depth_diff = smoothstep(0.2, 0.3, depth_diff);
		//ALBEDO = vec3(neg_depth_diff);
	}

//	Highlights
	float normal_diff = 0.;
	if (highlights_enabled) {
		vec3 normal = texture(NORMAL_TEXTURE, SCREEN_UV).rgb * 2.0 - 1.0;
		vec3 nu = texture(NORMAL_TEXTURE, SCREEN_UV+vec2(0., -1.)*e).rgb * 2.0 - 1.0;
		vec3 nr = texture(NORMAL_TEXTURE, SCREEN_UV+vec2(1., 0.)*e).rgb * 2.0 - 1.0;
		vec3 nd = texture(NORMAL_TEXTURE, SCREEN_UV+vec2(0., 1.)*e).rgb * 2.0 - 1.0;
		vec3 nl = texture(NORMAL_TEXTURE, SCREEN_UV+vec2(-1., 0.)*e).rgb * 2.0 - 1.0;
		vec3 normal_edge_bias = (vec3(1., 1., 1.));
		normal_diff += normalIndicator(normal_edge_bias, normal, nu, depth_diff);
		normal_diff += normalIndicator(normal_edge_bias, normal, nr, depth_diff);
		normal_diff += normalIndicator(normal_edge_bias, normal, nd, depth_diff);
		normal_diff += normalIndicator(normal_edge_bias, normal, nl, depth_diff);
		normal_diff = smoothstep(0.2, 0.8, normal_diff);
		normal_diff = clamp(normal_diff-neg_depth_diff, 0., 1.);
		//ALBEDO = vec3(normal_diff);
	}


	vec3 original_color = texture(SCREEN_TEXTURE, SCREEN_UV).rgb;
	vec3 final_highlight_color = mix(original_color, highlight_color, highlight_strength);
	vec3 final_shadow_color = mix(original_color, shadow_color, shadow_strength);
	vec3 final = original_color;
	if (highlights_enabled) {
		final = mix(final, final_highlight_color, normal_diff);
	}
	if (shadows_enabled) {
		final = mix(final, final_shadow_color, depth_diff);
	}
	ALBEDO = final;

	float alpha_mask = depth_diff * float(shadows_enabled) + normal_diff * float(highlights_enabled);
	ALPHA = clamp((alpha_mask) * 5., 0., 1.);
}
