Absorption Based Stylized Water

UPDATED!

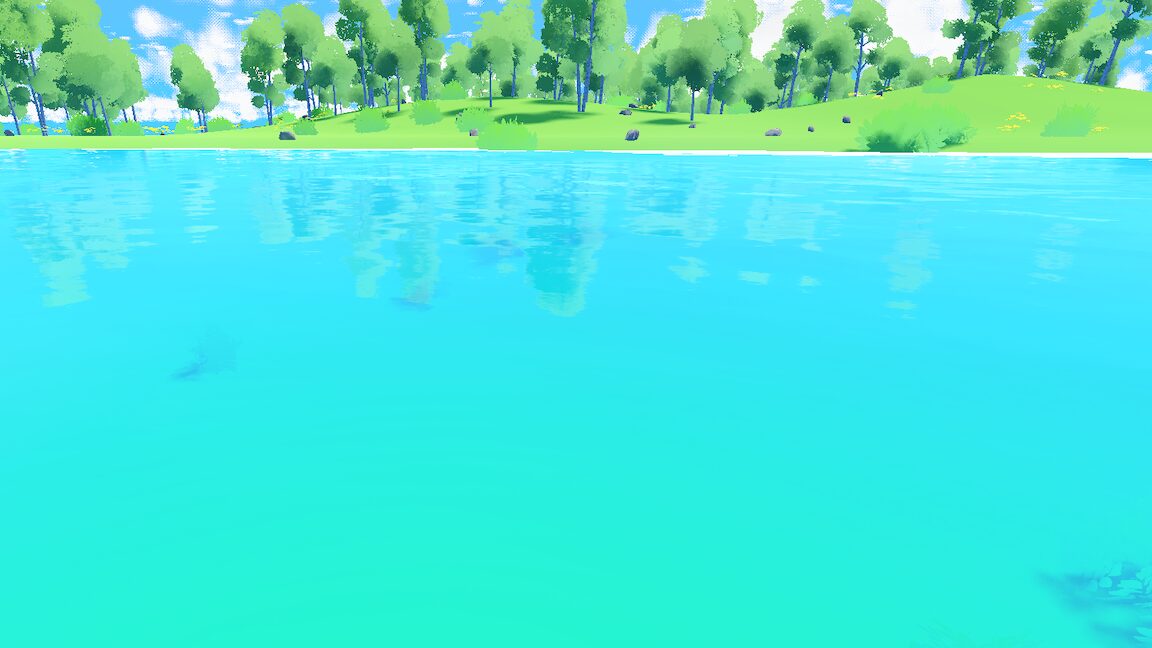

An advanced water shader that samples the screen texture and absorbs defined color values depending on depth. Comes with simple player interactions and refraction. Reflections are possible through Godot’s own post-processing methods, of which I highly recommend reflection probes. Now comes with Screen Space Reflections with interpolated step distance for higher performance/quality! Other Godot internal reflection methods are still desirable to cover off screen reflections.

Caustics are now refracted and depend on the coordinates of the underlying mesh.

Set up

• Create a new mesh instance with a plane.
• Add a ShaderMaterial with this shader.
• Go to Project Settings > Globals > Shader Globals and add wind_intensity(float), wind_direction(vec3) and player_position(vec3).
• Add suitable noise textures in the shader parameters.
• Add to your player movement script a way to adjust the player_position unifrom through the RenderingServer with the global position.

Fresnel, Displacement, Player Interaction, Screen Space Reflection and Caustic (not in the screenshots) effects can be toggled by commenting out the respective #define effects to customize the look in a performance friendly way.

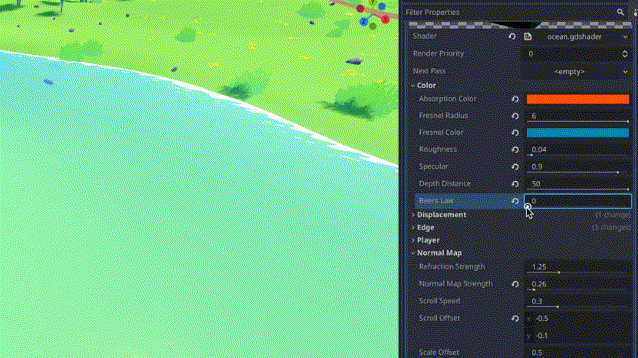

Parameters explanation

• Absorption color – Color that is absorbed from the screen texture
• Fresnel radius – angle at which the Fresnel color is blendet in
• Fresnel color – Color used at high angles
• Roughness – Very low for reflections
• Specular – PBR Specular
• Depth Distance – Considered to be the maximum depth
• Beers Law – How quickly the color absorption ramps up

• Displacement Strength – Wave bump height
• Displacement Scroll Speed – Speed at which the displacement texture is moved across the world
• Displacement Scroll Offset – directional offset by which a copy of the displacement texture is shifted
• Displacement Scale Offset – Scaling factor for the copied texture
• Displacement Scale – base scale of the displacement texture
• Displacement texture – Simplex, Perlin or Cellular

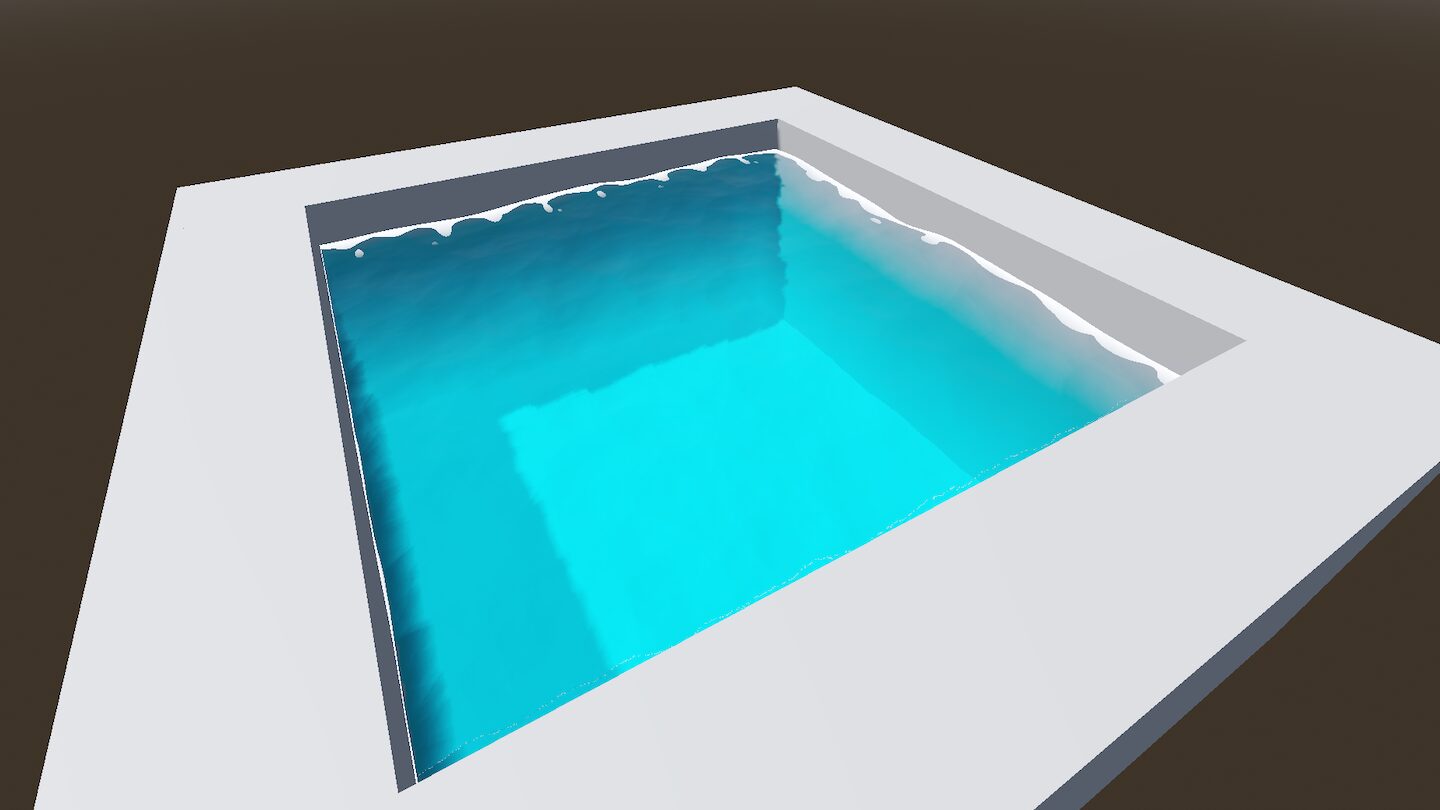

• Edge Thickness – Scale of the edge where neighboring meshes overlap
• Edge speed – speed at which the edge noise texture is scrolled
• Edge noise scale – Size of the edge noise texture
• Edge noise – Cellular noise
• Edge Ramp – Very steep gradient1D texture (0.0 > white, 0.08 > black)

• Influence Size – Size of the waves caused by the player
• Player Wave Frequency – Amount of waves caused by the player
• Player Wave Speed – Speed of the wave animation

• Caustics Size – Scale of the caustic noise
• Caustic Range – Range at which caustics are no longer visible
• Caustic Strength – Strength of the caustic effect

• SSR Mix Strength – Alpha of the captured reflections on the water (effected by roughness)
• SSR Travel – The maximum distance a reflection ray takes
• SSR Resolution Near – Distance between SSR samples close to the surface
• SSR Resolution Far – Distance between SSR samples at the maximum travel distance (interpolated linearly)
• SSR Tolerance – Percentage of Screen Depth Tolerance relative to the current SSR resolution

• Refraction Strength – Amount of which the Normal Map offset the screen sample
• Normal Map Strength – Amount of which the Normal Map effects the lighting pass
• Scroll Speed – Speed at which the normal texture is moved across the world
• Scroll Offset – directional offset by which a copy of the normal texture is moved
• Scale Offset – Scaling factor for the copied texture
• Normal Map Scale – base scale of the normal texture
• Normal Map – Cellular

Shader code

shader_type spatial;
render_mode shadows_disabled;

#define CAUSTICS
#define FRESNEL
#define PLAYER_WAVES
#define DISPLACEMENT
#define SSR

group_uniforms color;
uniform vec3 absorption_color : source_color = vec3(1.0, 0.35, 0.0);
#ifdef FRESNEL
uniform float fresnel_radius : hint_range(0.0, 6.0, 0.01) = 2.0;
uniform vec3 fresnel_color : source_color = vec3(0.0, 0.57, 0.72);
#endif
uniform float roughness : hint_range(0.0, 1.0, 0.01) = 0.15;
uniform float specular : hint_range(0.0, 1.0, 0.01) = 0.25;
// Depth adjustment
uniform float depth_distance : hint_range(0.0, 50.0, 0.1) = 25.0;
uniform float beers_law : hint_range(0.0, 20.0, 0.1) = 4.5;

#ifdef DISPLACEMENT
group_uniforms displacement;
uniform float displacement_strength : hint_range(0.0, 5.0, 0.1) = 0.3;
uniform float displacement_scroll_speed : hint_range(0.0, 1.0, 0.001) = 0.1;
uniform vec2 displacement_scroll_offset = vec2 (-0.2, 0.3);
uniform float displacement_scale_offset = 0.5;
uniform vec2 displacement_scale = vec2(0.04);
uniform sampler2D displacement_texture : hint_default_black, repeat_enable;
#endif

group_uniforms edge;
uniform float edge_thickness : hint_range(0.0, 1.0, 0.001) = 0.3;
uniform float edge_speed : hint_range(0.0, 1.0, 0.001) = 0.35;
uniform vec2 edge_noise_scale = vec2(0.4);
uniform sampler2D edge_noise : repeat_enable;
uniform sampler2D edge_ramp : repeat_disable;

#ifdef PLAYER_WAVES
group_uniforms player;
uniform float influence_size : hint_range(0.0, 4.0, 0.1) = 1.0;
uniform float player_wave_frequenzy : hint_range(0.0, 20.0, 0.1) = 10.0;
uniform float player_wave_speed : hint_range(0.0, 10.0, 0.1) = 5.0;
#endif

#ifdef CAUSTICS
group_uniforms caustics;
uniform float caustic_size : hint_range(0.0, 8.0, 0.01) = 2.0;
uniform float caustic_range : hint_range(0.0, 256.0, 0.1) = 40.0;
uniform float caustic_strength : hint_range(0.0, 1.0, 0.01) = 0.08;
#endif

#ifdef SSR
group_uniforms screen_space_reflections;
uniform float ssr_mix_strength : hint_range(0.0, 1.0, 0.01) = 0.65;
uniform float ssr_travel : hint_range(0.0, 300.0, 0.5) = 100.0;
uniform float ssr_resolution_near : hint_range(0.1, 10.0, 0.1) = 1.0;
uniform float ssr_resolution_far : hint_range(2.0, 20.0, 0.1) = 5.0;
uniform float ssr_tolerance : hint_range(0.0, 2.0, 0.01) = 1.0;
#endif

group_uniforms normal_map;
uniform float refraction_strength : hint_range(0.0, 4.0, 0.01) = 1.25;
uniform float normal_map_strength : hint_range(0.0, 4.0, 0.01) = 1.0;
uniform float scroll_speed : hint_range(0.0, 1.0, 0.01) = 0.3;
uniform vec2 scroll_offset = vec2(0.1, -0.3);
uniform float scale_offset = 0.5;
uniform vec2 normal_map_scale = vec2(0.1);
uniform sampler2D normal_map : hint_normal, filter_linear_mipmap;

// Hidden Uniforms
global uniform float wind_intensity; // Global shader parameter between 0.0 and 1.0
global uniform vec3 wind_direction;
#ifdef PLAYER_WAVES
global uniform vec3 player_position;
#endif
uniform sampler2D screen_texture: hint_screen_texture, filter_linear_mipmap, repeat_disable;
uniform sampler2D depth_texture: hint_depth_texture, filter_linear_mipmap, repeat_disable;

varying vec3 global_position;

#ifdef CAUSTICS
// Permutation polynomial hash credit Stefan Gustavson
vec4 permute(vec4 t) {
    return t * (t * 34.0 + 133.0);
}

// Gradient set is a normalized expanded rhombic dodecahedron
vec3 grad(float hash) {

    // Random vertex of a cube, +/- 1 each
    vec3 cube = mod(floor(hash / vec3(1.0, 2.0, 4.0)), 2.0) * 2.0 - 1.0;

    // Random edge of the three edges connected to that vertex
    // Also a cuboctahedral vertex
    // And corresponds to the face of its dual, the rhombic dodecahedron
    vec3 cuboct = cube;
    cuboct[int(hash / 16.0)] = 0.0;

    // In a funky way, pick one of the four points on the rhombic face
    float type = mod(floor(hash / 8.0), 2.0);
    vec3 rhomb = (1.0 - type) * cube + type * (cuboct + cross(cube, cuboct));

    // Expand it so that the new edges are the same length
    // as the existing ones
    vec3 grad = fma(cuboct, vec3(1.22474487139), rhomb);

    // To make all gradients the same length, we only need to shorten the
    // second type of vector. We also put in the whole noise scale constant.
    // The compiler should reduce it into the existing floats. I think.
    grad *= fma(-0.042942436724648037, type, 1.0) * 3.5946317686139184;

    return grad;
}

// BCC lattice split up into 2 cube lattices
vec4 os2NoiseWithDerivativesPart(vec3 X) {
    vec3 b = floor(X);
    vec4 i4 = vec4(X - b, 2.5);

    // Pick between each pair of oppposite corners in the cube.
    vec3 v1 = b + floor(dot(i4, vec4(.25)));
    vec3 v2 = b + vec3(1, 0, 0) + vec3(-1, 1, 1) * floor(dot(i4, vec4(-.25, .25, .25, .35)));
    vec3 v3 = b + vec3(0, 1, 0) + vec3(1, -1, 1) * floor(dot(i4, vec4(.25, -.25, .25, .35)));
    vec3 v4 = b + vec3(0, 0, 1) + vec3(1, 1, -1) * floor(dot(i4, vec4(.25, .25, -.25, .35)));

    // Gradient hashes for the four vertices in this half-lattice.
    vec4 hashes = permute(mod(vec4(v1.x, v2.x, v3.x, v4.x), 289.0));
    hashes = permute(mod(hashes + vec4(v1.y, v2.y, v3.y, v4.y), 289.0));
    hashes = mod(permute(mod(hashes + vec4(v1.z, v2.z, v3.z, v4.z), 289.0)), 48.0);

    // Gradient extrapolations & kernel function
    vec3 d1 = X - v1; vec3 d2 = X - v2; vec3 d3 = X - v3; vec3 d4 = X - v4;
    vec4 a = max(0.75 - vec4(dot(d1, d1), dot(d2, d2), dot(d3, d3), dot(d4, d4)), 0.0);
    vec4 aa = a * a; vec4 aaaa = aa * aa;
    vec3 g1 = grad(hashes.x); vec3 g2 = grad(hashes.y);
    vec3 g3 = grad(hashes.z); vec3 g4 = grad(hashes.w);
    vec4 extrapolations = vec4(dot(d1, g1), dot(d2, g2), dot(d3, g3), dot(d4, g4));

    // Derivatives of the noise
    vec4 derivative = -8.0 * mat4(vec4(d1,0.), vec4(d2,0.), vec4(d3,0.), vec4(d4,0.)) * (aa * a * extrapolations)
        + mat4(vec4(g1, 0.), vec4(g2, 0.), vec4(g3, 0.), vec4(g4, 0.)) * aaaa;

    // Return it all as a vec4
    return vec4(derivative.xyz, dot(aaaa, extrapolations));
}

// Rotates domain, but preserve shape. Hides grid better in cardinal slices.
// Good for texturing 3D objects with lots of flat parts along cardinal planes.
vec4 os2NoiseWithDerivatives_Fallback(vec3 X) {
    X = dot(X, vec3(2.0/3.0)) - X;

    vec4 result = os2NoiseWithDerivativesPart(X) + os2NoiseWithDerivativesPart(X + 144.5);

    return vec4(dot(result.xyz, vec3(2.0/3.0)) - result.xyz, result.w);
}
#endif

#ifdef FRESNEL
float fresnel(vec3 normal, vec3 view) {
	return pow((1.0 - clamp(dot(normalize(normal), normalize(view)), 0.0, 1.0 )), fresnel_radius);
}
#endif


vec2 refract_uv(inout vec2 uv, vec3 normal, float depth){
	float strength1 = refraction_strength * depth;
	uv += fma(strength1, length(normal), strength1 * -1.2);
	return uv;
}

#ifdef SSR
vec2 get_uv_from_view_position(vec3 position_view_space, mat4 proj_m)
{
	vec4 position_clip_space = proj_m * vec4(position_view_space.xyz, 1.0);
	vec2 position_ndc = position_clip_space.xy / position_clip_space.w;
	return position_ndc.xy * 0.5 + 0.5;
}

vec3 get_view_position_from_uv(vec2 uv, float depth, mat4 inv_proj_m)
{
	vec4 position_ndc = vec4((uv * 2.0) - 1.0, depth, 1.0);
	vec4 view_position = inv_proj_m * position_ndc;
	return view_position.xyz /= view_position.w;
}
#endif

bool in_bounds(vec2 uv) {
	vec2 fruv = abs(floor(uv));
	return fruv.x + fruv.y < 0.1;
}


void vertex() {
	global_position = (MODEL_MATRIX * vec4(VERTEX, 1.0)).xyz;

	#ifdef DISPLACEMENT
	float time = TIME * displacement_scroll_speed * fma(wind_intensity, 0.7, 0.3);
	float displace1 = texture(displacement_texture, fma(global_position.xz, displacement_scale, time * -wind_direction.xz)).r;
	float displace2 = texture(displacement_texture, fma(global_position.xz, displacement_scale * displacement_scale_offset, time * (-wind_direction.xz + displacement_scroll_offset))).r;
	float displacement_mixed = mix(displace1, displace2, 0.4);
	float offset = fma(displacement_mixed, 2.0, -1.0) * displacement_strength;
	VERTEX.y += offset;
	global_position.y += offset;
	#endif
}


void fragment() {
	vec3 opposing_color = vec3(1.0) - absorption_color.rgb;
	vec3 normalized_wind_direction = normalize(wind_direction);
	float wind_intens_factor = fma(wind_intensity, 0.7, 0.3);
	#ifdef FRESNEL
	float fresnel_value = fresnel(NORMAL, VIEW);
	#endif

	float time_factor = TIME * scroll_speed * wind_intens_factor;
	vec3 n1 = textureLod(normal_map, fma(global_position.xz, normal_map_scale, time_factor * -normalized_wind_direction.xz), 2.0).xyz;
	vec3 n2 = textureLod(normal_map, fma(global_position.xz, normal_map_scale * scale_offset, time_factor * 0.8 * (-normalized_wind_direction.xz + scroll_offset)), 2.0).xyz;
	NORMAL_MAP = mix(n1, n2, 0.5);
	NORMAL_MAP_DEPTH = normal_map_strength;

	float depth_tex = texture(depth_texture, SCREEN_UV).r;

	vec3 ndc = vec3(fma(SCREEN_UV, vec2(2.0), vec2(-1.0)), depth_tex);
	vec4 world = INV_VIEW_MATRIX * INV_PROJECTION_MATRIX * vec4(ndc, 1.0);
	world.y /= world.w;
	float vertey_y = (INV_VIEW_MATRIX * vec4(VERTEX, 1.0)).y;
	float relative_depth = vertey_y - world.y;


	// Create Edge caused by other Objects
	float edge_blend = clamp(relative_depth / -edge_thickness + 1.0, 0.0, 1.0);
	vec2 edge_noise_uv = global_position.xz * edge_noise_scale * fma(normalized_wind_direction.xz, vec2(0.5), vec2(0.5));
	edge_noise_uv = fma(-normalized_wind_direction.xz * TIME * edge_speed, vec2(wind_intens_factor), edge_noise_uv);
	float edge_noise_sample = texture(edge_noise, edge_noise_uv).r;
	float edge_mask = normalize( texture(edge_ramp, vec2(edge_noise_sample * fma(edge_blend, -1., 1.))).r);

	// Create Ripples caused by player
	float player_effect_mask = 0.0;
	#ifdef PLAYER_WAVES
	vec3 player_relative = vec3(global_position - player_position);
	float player_height = smoothstep(1.0, 0.0, abs(player_relative.y));
	float player_position_factor = smoothstep(influence_size, 0.0, length(player_relative.xz));
	float player_waves = pow( fma( sin(fma(player_position_factor, player_wave_frequenzy, TIME * player_wave_speed)), 0.5, 0.5), 6.0);
	float wave_distort = texture( edge_ramp, vec2( player_waves * (edge_noise_sample + 0.2) * player_position_factor * player_height)).x;
	player_effect_mask = clamp(normalize( fma(wave_distort, -1.0, 0.4)), 0.0, 1.0);
	#endif

	// combine Edge Mask with Player Ripples
	float ripple_mask = clamp( fma( edge_mask, edge_blend, player_effect_mask), 0.0, 1.0);

	// Calculate Fragment Depth
	vec4 clip_pos = PROJECTION_MATRIX * vec4(VERTEX, 1.0);
	clip_pos.xyz /= clip_pos.w;
	DEPTH = clip_pos.z;
	// Refract UV
	vec2 refracted_uv = SCREEN_UV;
	refract_uv(refracted_uv, NORMAL_MAP, sqrt(DEPTH) * relative_depth);

	vec3 screen;
	float depth_blend;
	float refracted_depth_tex = texture(depth_texture, refracted_uv).x;
	ndc = vec3(fma(refracted_uv, vec2(2.0), vec2(-1.0)), refracted_depth_tex);
	world = INV_VIEW_MATRIX * INV_PROJECTION_MATRIX * vec4(ndc, 1.0);
	world.xyz /= world.w;
	float depth_test = vertey_y - world.y;

	// Caustic Effects
	#ifdef CAUSTICS
	float range_mod = clamp((VERTEX.z + caustic_range) * 0.05, 0.0, 1.0);
	float caustic_value = 0.0;
	// Protect yourself from calculating Noise at runtime with this handy if statement!
	if (range_mod > 0.0) {
		vec3 X = vec3(world.xz * caustic_size, mod(TIME, 578.0) * 0.8660254037844386);
		vec4 noiseResult = os2NoiseWithDerivatives_Fallback(X);
		noiseResult = os2NoiseWithDerivatives_Fallback(X - noiseResult.xyz / 16.0);
		caustic_value = fma(noiseResult.w, 0.5, 0.5) * range_mod * range_mod;
	}
	#endif

	/*
	Sometimes the Water Refraction would cause the sampling of a screen position that is either
	outside the screen bounds or where another object is infront of the water.
	Switching back to the unrefracted SCREEN_UV fixes that.
	*/

	if (depth_test > -0.0001 && in_bounds(refracted_uv)) {
		screen = texture(screen_texture, refracted_uv).rgb * 0.9;
		depth_blend = clamp(depth_test / depth_distance, 0.0, 1.0);
		depth_blend = fma(exp(-depth_blend * beers_law), -1.0, 1.0);
	} else {
		screen = texture(screen_texture, SCREEN_UV).rgb * 0.9;
		depth_blend = clamp(relative_depth / depth_distance, 0.0, 1.0);
		depth_blend = fma(exp(-depth_blend * beers_law), -1.0, 1.0);
	}

	#ifdef SSR
	vec3 view_normal_map = mat3(VIEW_MATRIX) * (vec3(NORMAL_MAP.x, 0.0, NORMAL_MAP.y) * 2.0 - 1.0);
	vec3 combined_normal = normalize(view_normal_map * (NORMAL_MAP_DEPTH * 0.15) + NORMAL);
	vec3 reflacted_path = reflect(-VIEW, combined_normal);

	vec2 current_screen_pos = vec2(0.0);
	vec3 current_view_pos = VERTEX;
	vec3 sampled_color = vec3(-1.0);
	float current_stepD = 0.0;
	float current_depth = 0.0;
	float alpha_hit = 0.0;
	for(float i = 0.01; i < ssr_travel; i++) {
		current_stepD = mix(ssr_resolution_near, ssr_resolution_far,float(i) / float(ssr_travel));
		current_view_pos += reflacted_path * current_stepD;
		current_screen_pos = get_uv_from_view_position(current_view_pos, PROJECTION_MATRIX);
		if (!in_bounds(current_screen_pos)) {break;}
		current_depth = get_view_position_from_uv(current_screen_pos, texture(depth_texture, current_screen_pos).x, INV_PROJECTION_MATRIX).z - current_view_pos.z;

		if (current_depth > -0.0001 && current_depth <= ssr_tolerance * current_stepD) {
			sampled_color = textureLod(screen_texture, current_screen_pos, 0.5).rgb;
			vec2 ruv = 1.0 - abs(current_screen_pos * 2.0 - 1.0);
			ruv = pow(ruv, vec2(0.5));
			alpha_hit = clamp(min(ruv.x, ruv.y), 0.0, 1.0);
			break;
		}
		i += current_stepD;
	}
	#endif

	vec3 color = clamp(screen - absorption_color.rgb * depth_blend, vec3(0.0), vec3(1.0)); // Absorb Screen Color
	color = mix(color, opposing_color, depth_blend*depth_blend); // Apply depth color
	#ifdef FRESNEL
	color = mix(color, fresnel_color, fresnel_value); // Apply fresnel color
	#endif
	#ifdef CAUSTICS
	color = clamp(color + caustic_value * caustic_strength * (1.0 - depth_blend), vec3(0.0), vec3(1.0));
	#endif
	#ifdef SSR
	color = mix(color, sampled_color, alpha_hit * (1.0 - roughness) * ssr_mix_strength);
	#endif
	color = mix(color, vec3(0.98), ripple_mask); // Apply Ripples
	ALBEDO = color;
	ROUGHNESS = roughness;
	SPECULAR = specular;
}

Tags
