Analog Horror VHS (tracking, chroma, grain)

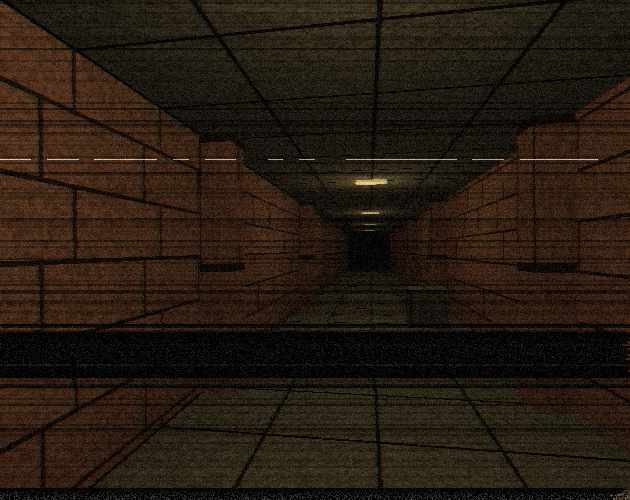

Godot 4 canvas_item VHS tape look: rolling tracking band, per-line wobble, head-switch noise, chroma shift/bleed, grain, static streaks, tint and flicker.
Drop onto a ColorRect / BackBufferCopy post-process (or use the free LITE pack’s drop-in node). Uniforms are exposed for intensity, chroma, tracking and noise.
AI Assisted: shader code written with AI assistance, then tested in Godot 4. No AI-generated art or audio.
Full pack (CRT curvature, PSX jitter, dither, demo): https://assetsmithpixels.itch.io/analog-horror-vhs-shader-pack-godot-4
Free LITE on Godot Asset Store: https://store.godotengine.org/asset/assetsmith/analog-horror-vhs-shader-lite/
Shader code
// Analog Horror VHS Shader Pack LITE - VHS tape effect (tracking, noise, chroma bleed)
// (c) 2026 assetsmithpixels — MIT License (see LICENSE.txt)
shader_type canvas_item;
uniform sampler2D screen_tex : hint_screen_texture, filter_linear, repeat_disable;
uniform float intensity : hint_range(0.0, 1.0) = 1.0;
group_uniforms Chroma;
uniform float chroma_shift : hint_range(0.0, 12.0) = 2.5; // horizontal color fringe in pixels
uniform float chroma_bleed : hint_range(0.0, 1.0) = 0.6; // horizontal color smear
uniform float saturation : hint_range(0.0, 2.0) = 0.8;
uniform vec3 tint : source_color = vec3(1.0, 0.96, 0.9);
group_uniforms Tracking;
uniform float line_wobble : hint_range(0.0, 6.0) = 1.2; // per-line jitter in pixels
uniform float tracking_amount : hint_range(0.0, 1.0) = 0.35;
uniform float tracking_speed : hint_range(0.0, 4.0) = 0.6;
uniform float tracking_height : hint_range(0.01, 0.4) = 0.08;
uniform float head_switch_height : hint_range(0.0, 0.15) = 0.03; // distorted band at bottom
group_uniforms Noise;
uniform float noise_amount : hint_range(0.0, 1.0) = 0.12;
uniform float static_lines : hint_range(0.0, 1.0) = 0.25;
uniform float flicker : hint_range(0.0, 0.3) = 0.04;
float hash(vec2 p) {
return fract(sin(dot(p, vec2(12.9898, 78.233))) * 43758.5453);
}
const vec3 LUMA = vec3(0.299, 0.587, 0.114);
void fragment() {
vec2 uv = SCREEN_UV;
vec2 px = SCREEN_PIXEL_SIZE;
float t = TIME;
float line = floor(uv.y / px.y);
float frame = floor(t * 30.0);
// per-line horizontal wobble
float off = (hash(vec2(line * 0.07, frame)) - 0.5) * line_wobble * px.x;
// rolling tracking band
float band_y = 1.0 - fract(t * tracking_speed * 0.15);
float band = smoothstep(tracking_height, 0.0, abs(uv.y - band_y));
off += band * tracking_amount * (hash(vec2(line, frame + 3.0)) - 0.3) * 40.0 * px.x;
// head-switching noise at the bottom of the frame
float head = smoothstep(1.0 - head_switch_height, 1.0, uv.y) * step(0.0001, head_switch_height);
off += head * (0.5 + hash(vec2(line, frame)) * 0.5) * 30.0 * px.x;
vec2 suv = clamp(uv + vec2(off, 0.0), vec2(0.0), vec2(1.0));
vec3 src = texture(screen_tex, suv).rgb;
// sharp luma, blurry shifted chroma (like composite video)
float y = dot(src, LUMA);
vec3 acc = vec3(0.0);
for (int i = -2; i <= 2; i++) {
float dx = (float(i) * chroma_bleed * 3.0 + chroma_shift) * px.x;
acc += texture(screen_tex, clamp(suv + vec2(dx, 0.0), vec2(0.0), vec2(1.0))).rgb;
}
acc /= 5.0;
vec3 col = vec3(y) + (acc - vec3(dot(acc, LUMA))) * saturation;
// extra red/blue fringe
col.r = mix(col.r, texture(screen_tex, suv + vec2(chroma_shift * px.x, 0.0)).r, 0.35);
col.b = mix(col.b, texture(screen_tex, suv - vec2(chroma_shift * px.x, 0.0)).b, 0.35);
// grain
float n = hash(uv * vec2(1.0 / px.x, 1.0 / px.y) * 0.001 + fract(t * 7.13));
col += (n - 0.5) * noise_amount;
// white static streaks
float streak = step(1.0 - static_lines * 0.015, hash(vec2(line * 0.13, frame)));
streak *= step(0.4, hash(vec2(floor(uv.x * 40.0), line + frame)));
col += streak * 0.6;
// noise inside tracking / head bands
col += (band * tracking_amount + head) * (hash(vec2(uv.x * 300.0, line + frame)) - 0.4) * 0.5;
col *= tint;
col *= 1.0 - flicker * hash(vec2(frame, 1.7));
COLOR = vec4(mix(texture(screen_tex, uv).rgb, clamp(col, 0.0, 1.0), intensity), 1.0);
}
