AnimatedSprite3D with normals

Add the shader as Material Override in geometry and then add the following script:

@tool

extends AnimatedSprite3D

var _is_connected := false

var _shader_material : ShaderMaterial

func _ready():

_connect_signals()

_shader_material = material_override as ShaderMaterial

func _connect_signals():

if _is_connected:

return

_is_connected = true

connect("frame_changed", Callable(self, "_on_frame_changed"))

_on_frame_changed()

func _on_frame_changed():

if _shader_material and sprite_frames:

var frame_texture = sprite_frames.get_frame_texture(animation, frame)

_shader_material.set_shader_parameter("tex", frame_texture)

var frame_texture_normal = sprite_frames.get_frame_texture(animation + "_normal", frame)

_shader_material.set_shader_parameter("frame_hash", float(frame))

_shader_material.set_shader_parameter("normal", frame_texture_normal)

func _exit_tree():

_disconnect_signals()

func _disconnect_signals():

if not _is_connected:

return

_is_connected = false

disconnect("frame_changed", Callable(self, "_on_frame_changed"))

How to use it:

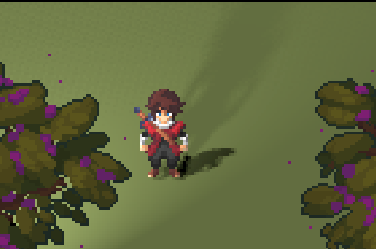

for each animation you will need the animation with just the normals suffixed with _normal (see the screenshot bellow).

Shader code

shader_type spatial;

render_mode cull_disabled, depth_prepass_alpha;

uniform sampler2D tex: source_color, filter_nearest;
uniform sampler2D normal_map: source_color, hint_normal, filter_nearest;
uniform float frame_hash;

void fragment() {
    vec4 color = texture(tex, UV);
    if (color.a <= 0.0) {
        discard;
    }

    ALBEDO = color.rgb;
    ALPHA = color.a;

    // Read normal from normal map (in tangent space)
    vec3 n = texture(normal_map, UV).rgb * 2.0 - 1.0;

    // Since AnimatedSprite3D doesn't provide tangent/bitangent, simulate normal blending
    NORMAL = normalize(NORMAL + n * 0.5);
}
