Automotive Paint

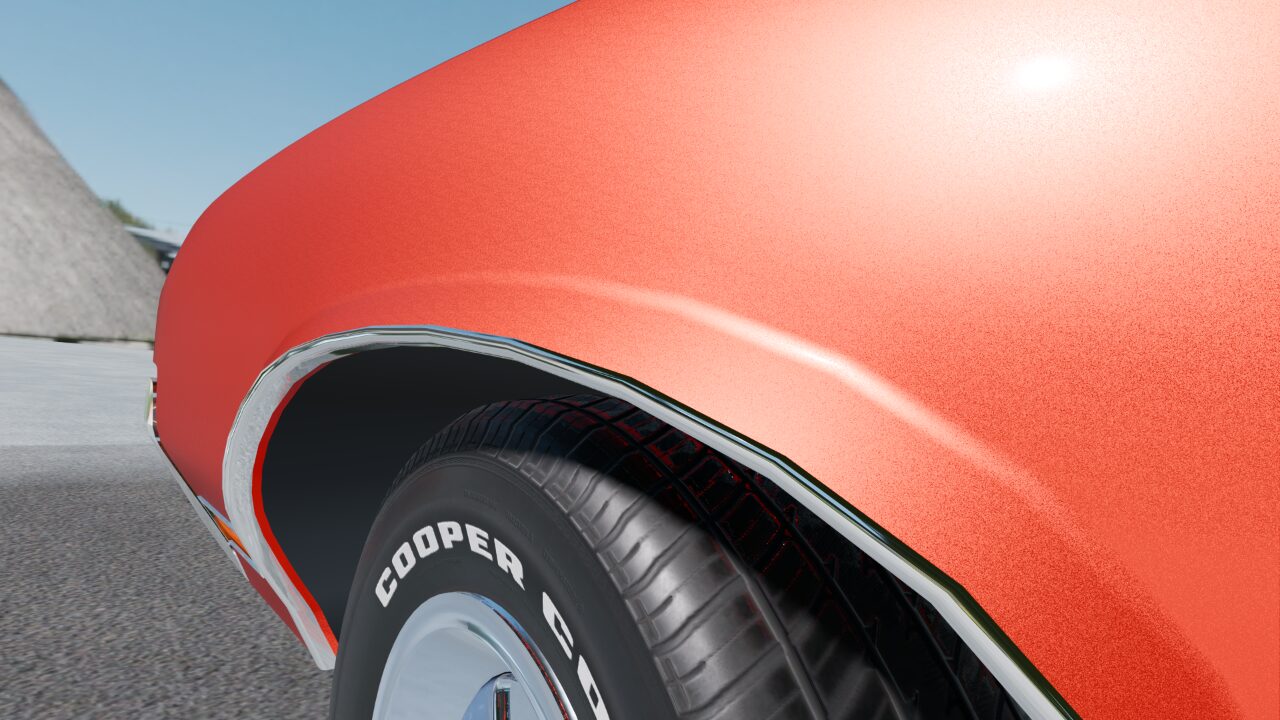

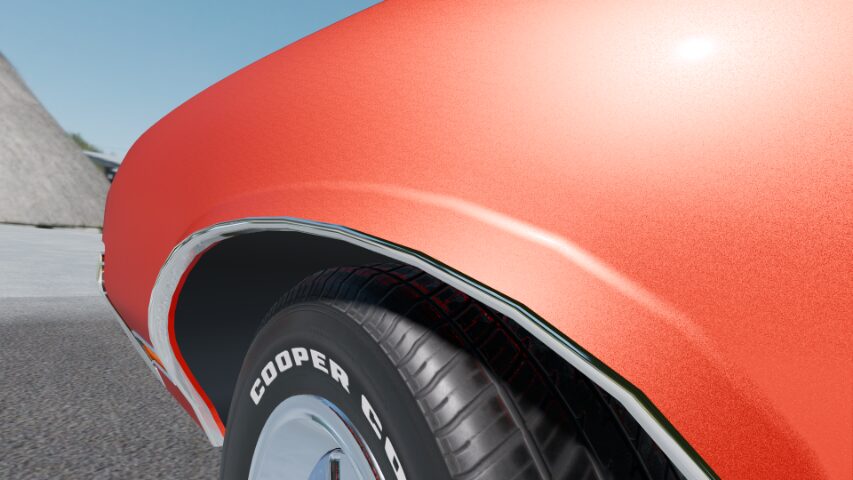

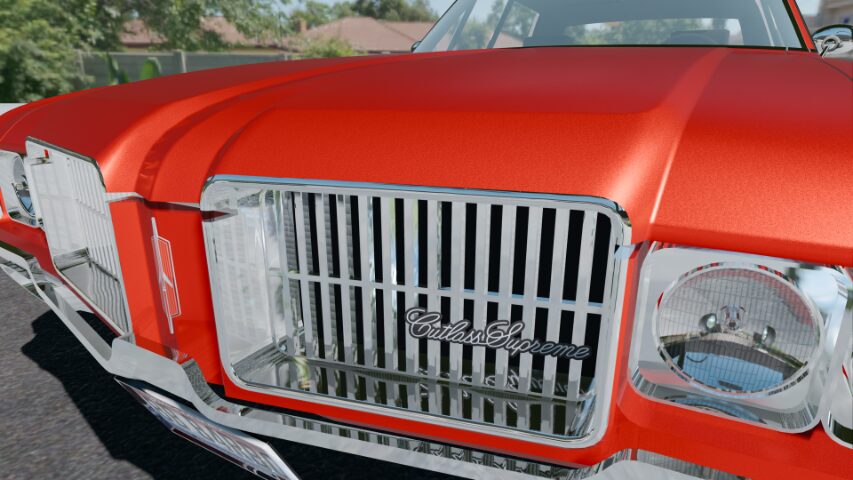

Simple car paint using a fresnel color blend, clear coat, and voroni noise texture for metallic flakes (settings). High resolution photos

Based on Ben Cloward’s tutorial for Unreal and Unity.

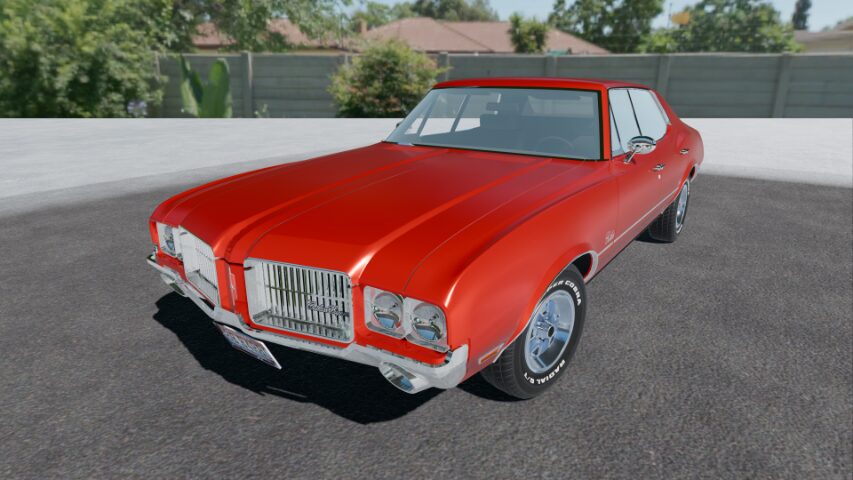

1971 Oldsmobile Cutlass Supreme Sedan 3d model by Barbo on Sketchfab.

Shader code

shader_type spatial;
render_mode blend_mix, depth_draw_opaque, cull_back, diffuse_burley, specular_schlick_ggx;

group_uniforms Base_Paint;
uniform vec3 facing_color : source_color = vec3(0.15, 0.5, 0.9);
uniform vec3 glancing_color : source_color = vec3(0.0, 0.05, 0.2);
uniform float fresnel_exponent : hint_range(0.1, 10.0) = 2.0;
uniform float paint_metallic : hint_range(0.0, 1.0) = 0.8;
uniform float paint_specular : hint_range(0.0, 1.0) = 0.5;

group_uniforms Metallic_Flakes;
uniform sampler2D flake_texture : hint_default_white, filter_linear_mipmap, repeat_enable;
uniform float flake_scale : hint_range(1.0, 500.0) = 150.0;
uniform float base_roughness : hint_range(0.0, 1.0) = 0.4;
uniform float flake_roughness : hint_range(0.0, 1.0) = 0.1;

group_uniforms Clear_Coat;
uniform float clearcoat_amount : hint_range(0.0, 1.0) = 1.0;
uniform float clearcoat_roughness : hint_range(0.0, 1.0) = 0.02;

void fragment() {
	// Fresnel
	float fresnel = 1.0 - clamp(dot(NORMAL, VIEW), 0.0, 1.0);
	fresnel = pow(fresnel, fresnel_exponent);

	ALBEDO = mix(facing_color, glancing_color, fresnel);
	METALLIC = paint_metallic;
	SPECULAR = paint_specular;

	// Flakes
	float flakes = texture(flake_texture, UV * flake_scale).r;
	ROUGHNESS = mix(base_roughness, flake_roughness, flakes);

	// Clear coat
	CLEARCOAT = clearcoat_amount;
	CLEARCOAT_ROUGHNESS = clearcoat_roughness;
}

Live Preview
