Balatro Paint Mix

The original paint swirl shader ported from Balatro into godot.

Recommended use:

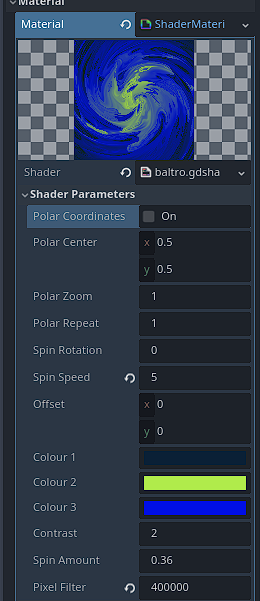

Make a ColorRect node and add the shader as its material. Yeah thats about it

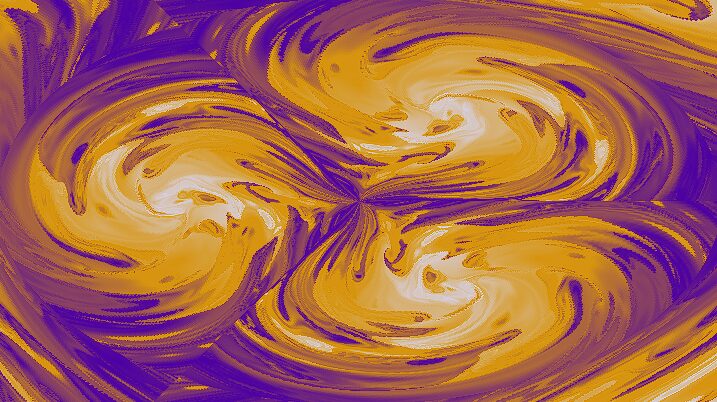

Any property with “polar” in its name only affects the shader when “polar coordinates” are enabled.

Go play balatro it’s really fun.

Shader code

shader_type canvas_item;
//I DONT OWN THIS i just took it directly from balatros source code teehee
//and then converted it into godots shader language myself
//shoutouts localthunk, buy balatro

uniform bool polar_coordinates = false;  //cool polar coordinates effect
uniform vec2 polar_center = vec2(0.5);
uniform float polar_zoom = 1.;
uniform float polar_repeat = 1.;

uniform highp float spin_rotation;
uniform highp float spin_speed = 1;
uniform highp vec2 offset = vec2(0., 0.);
uniform highp vec4 colour_1 : source_color;
uniform highp vec4 colour_2 : source_color;
uniform highp vec4 colour_3 : source_color;
uniform highp float contrast = 2.;
uniform highp float spin_amount = 0.36;
uniform highp float pixel_filter = 700.;
#define SPIN_EASE 1.0


vec4 effect(vec2 screenSize, vec2 screen_coords){
	//Convert to UV coords (0-1) and floor for pixel effect
	highp float pixel_size = length(screenSize.xy) / pixel_filter;
    highp vec2 uv = (floor(screen_coords.xy*(1./pixel_size))*pixel_size - 0.5*screenSize.xy)/length(screenSize.xy) - offset;
    highp float uv_len = length(uv);

	//Adding in a center swirl, changes with time. Only applies meaningfully if the 'spin amount' is a non-zero number
    highp float speed = (spin_rotation*SPIN_EASE*0.2) + 302.2;
    highp float new_pixel_angle = (atan(uv.y, uv.x)) + speed - SPIN_EASE*20.*(1.*spin_amount*uv_len + (1. - 1.*spin_amount));
    highp vec2 mid = (screenSize.xy/length(screenSize.xy))/2.;
    uv = (vec2((uv_len * cos(new_pixel_angle) + mid.x), (uv_len * sin(new_pixel_angle) + mid.y)) - mid);

	//Now add the paint effect to the swirled UV
    uv *= 30.;
    speed = TIME*(spin_speed);
	highp vec2 uv2 = vec2(uv.x+uv.y);

	for(int i=0; i < 5; i++) {
		uv2 += sin(max(uv.x, uv.y)) + uv;
		uv  += 0.5*vec2(cos(5.1123314 + 0.353*uv2.y + speed*0.131121),sin(uv2.x - 0.113*speed));
		uv  -= 1.0*cos(uv.x + uv.y) - 1.0*sin(uv.x*0.711 - uv.y);
	}

	//Make the paint amount range from 0 - 2
    highp float contrast_mod = (0.25*contrast + 0.5*spin_amount + 1.2);
	highp float paint_res = min(2., max(0.,length(uv)*(0.035)*contrast_mod));
    highp float c1p = max(0.,1. - contrast_mod*abs(1.-paint_res));
    highp float c2p = max(0.,1. - contrast_mod*abs(paint_res));
    highp float c3p = 1. - min(1., c1p + c2p);


	highp vec4 ret_col = (0.3/contrast)*colour_1 + (1. - 0.3/contrast)*(colour_1*c1p + colour_2*c2p + vec4(c3p*colour_3.rgb, c3p*colour_1.a));
	return ret_col;
}

vec2 polar_coords(vec2 uv, vec2 center, float zoom, float repeat){
	vec2 dir = uv - center;
	float radius = length(dir) * 2.0;
	float angle = atan(dir.y , dir.x) * 1.0 / (PI * 2.0);
	return mod(vec2(radius * zoom, angle * repeat), 1.0);
}

void fragment() {
	vec2 polarCoords = UV;
	if (polar_coordinates){
		polarCoords = polar_coords(UV.xy, polar_center, polar_zoom, polar_repeat);
	}
	COLOR *= effect(TEXTURE_PIXEL_SIZE, polarCoords);
}
