Black Souls Dribble/Schizo/Insanity

Needs opaque material/mesh below this, since this is fully transparent except the lines ofc.

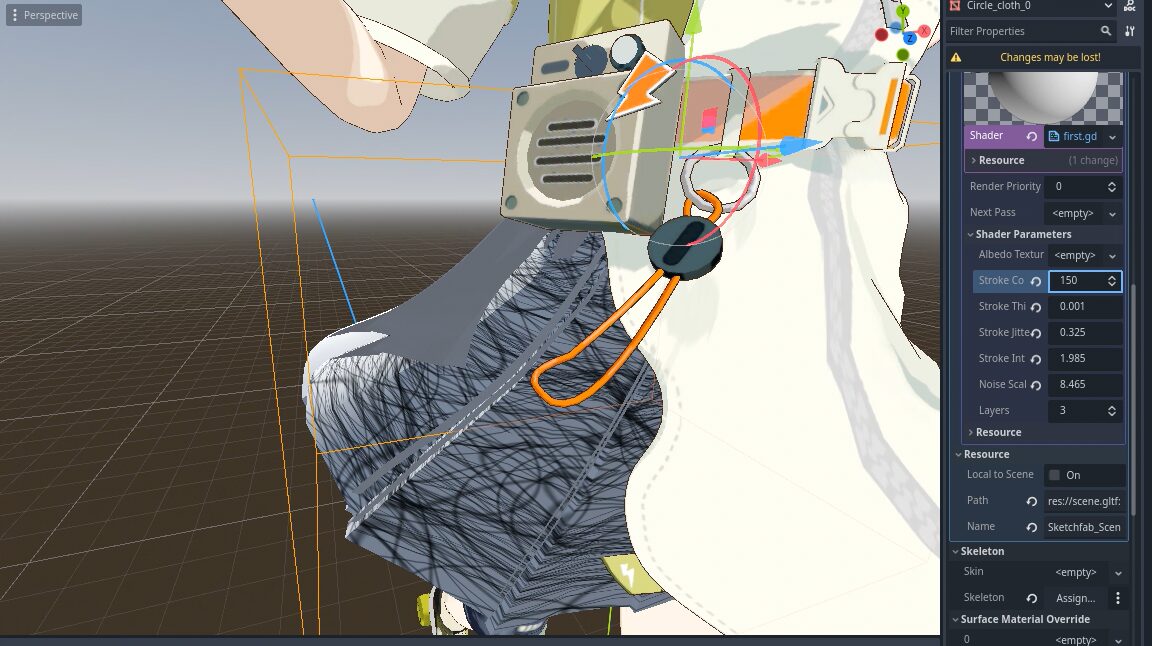

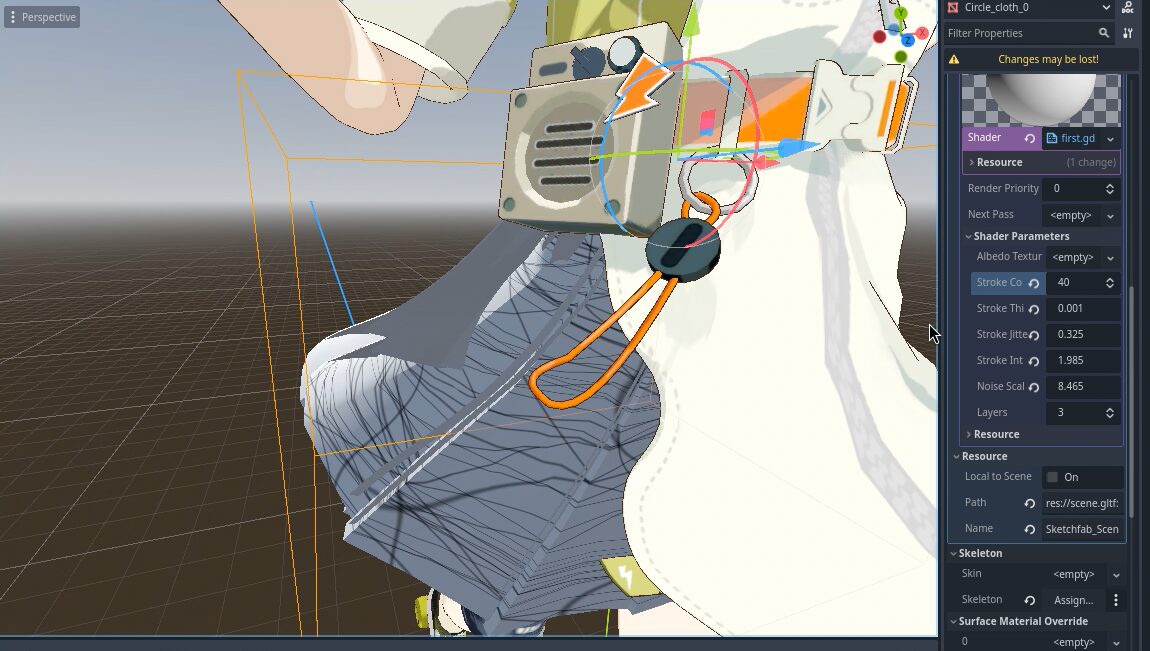

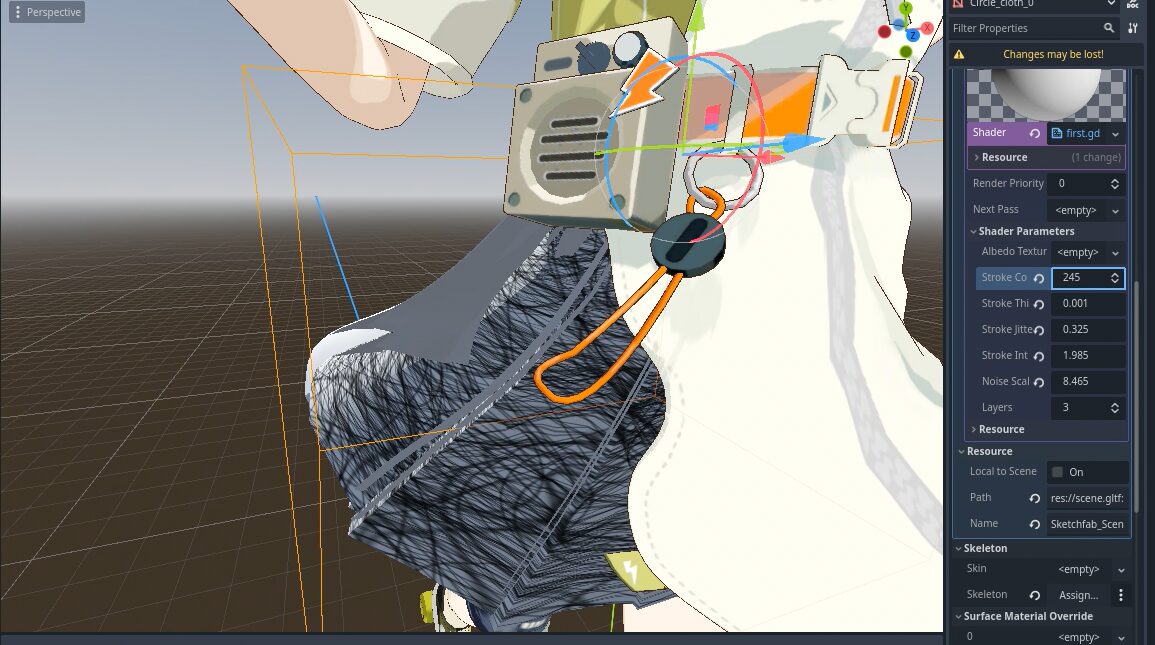

Increase `stroke_count` for insanity effect.

Shader code

shader_type spatial;

uniform sampler2D albedo_texture : source_color;
uniform int stroke_count = 40;        // number of strokes per layer
uniform float stroke_sharpness_multiplier = 1;
uniform float stroke_jitter = 0.4;   // Randomized per camera shot
uniform float stroke_intensity = 0.7;
uniform float noise_scale = 8.0;       // Randomized per camera shot
uniform int layers = 3;                // default overlapping stroke layers

float hash(float n){ return fract(sin(n*12.9898)*43758.5453); }
float hash2(vec2 p){ return fract(sin(dot(p, vec2(12.9898,78.233)))*43758.5453); }
float noise(vec2 p){
    vec2 i = floor(p);
    vec2 f = fract(p);
    float a = hash2(i);
    float b = hash2(i + vec2(1.0,0.0));
    float c = hash2(i + vec2(0.0,1.0));
    float d = hash2(i + vec2(1.0,1.0));
    vec2 u = f*f*(3.0-2.0*f);
    return mix(a,b,u.x) + (c-a)*u.y*(1.0-u.x) + (d-b)*u.x*u.y;
}

void fragment() {
    vec4 base = texture(albedo_texture, UV);
    vec3 color = base.rgb;

    for(int l = 0; l < layers; l++){
        float angle = hash(float(l)) * 6.2831;
        vec2 dir = vec2(cos(angle), sin(angle));
        vec2 perp = vec2(-dir.y, dir.x);

        for(int i = 0; i < stroke_count; i++){
            float t = float(i)/float(stroke_count);
            vec2 center = dir * t;

            float dist = dot(UV - center, perp);
            dist += (noise(UV*noise_scale + float(i)*10.0 + float(l)*20.0) - 0.5) * stroke_jitter;

            float line = 1.0 - smoothstep(0.0, 0.001 * stroke_sharpness_multiplier, abs(dist));

            // blend without dividing by layers (optional)
            color = mix(color, vec3(0.0), line * stroke_intensity);
        }
    }

    ALBEDO = color;
    ALPHA = base.a;
}

Live Preview
