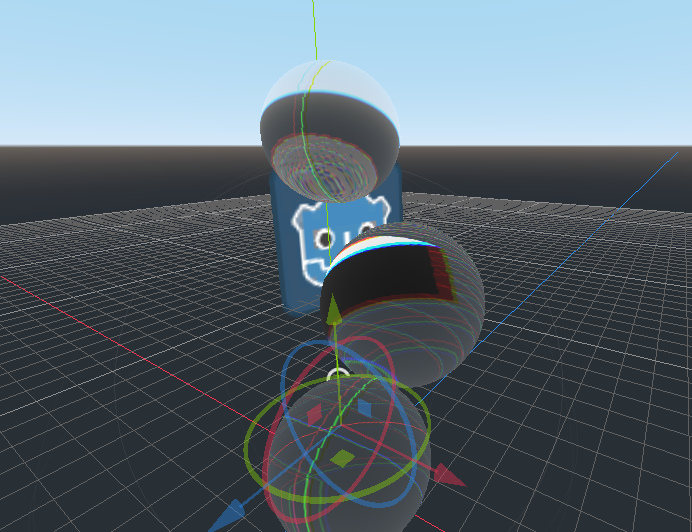

Bubble/Glass spatial shader with chromatic aberration
A fairly simple and lightweight bubble shader with chromatic aberration, background warping, homemade rim lighting which only really works on spheres (set `rim_lighting` to `0.0` to disable) and slight contrast adjustment of the background. It is compatible with Godot Engine 3 and 4 (in fact I initially wrote it in Godot 3). Definitely works on GLES 2, should work on different renderers (untested). Documentation of uniforms is in the shader.
Shader code
shader_type spatial;
render_mode unshaded;
/* Bubble or Glass shader, best applied to spheres.
* It is not affected by lighting in the scene, only whatever's behind it.
*
* Set rim_lightness to 0.0 to be more glass and less bubble.
* Set it to 0.6 for full Good Witch Of The North vibes.
*
* Setting chromatic_aberration to 0.0 removes the effect (no performance difference).
* It gets ridiculous if you set it past around 0.25.
*
* Warping affects the degree to which the backdrop is warped (not technically accurate).
*
* Greyness is effectively a contrast control for whatever's behind it.
* 0.0 is full contrast, 1.0 is pure 0.5 grey.
*
* Should be compatitable with Godot Engine 3 and 4.
*/
// comment out for godot >=4.0
#define OLD_GODOT
uniform float chromatic_aberration = 0.01;
uniform float warping = 0.1;
uniform float greyness = 0.2;
uniform float rim_lightness = 0.15;
#ifndef OLD_GODOT
uniform sampler2D SCREEN_TEXTURE: hint_screen_texture;
#endif
void vertex() {
//
}
void fragment() {
ALBEDO.r = texture(SCREEN_TEXTURE, SCREEN_UV - (NORMAL.xz * warping + (0.5 * chromatic_aberration))).r;
ALBEDO.g = texture(SCREEN_TEXTURE, SCREEN_UV - (NORMAL.xz * warping)).g;
ALBEDO.b = texture(SCREEN_TEXTURE, SCREEN_UV - (NORMAL.xz * warping - (0.2 * chromatic_aberration))).b;
ALBEDO = mix(ALBEDO, vec3(0.5), greyness);
ALBEDO += (1.0 - dot(NORMAL, VIEW)) * rim_lightness;
}
