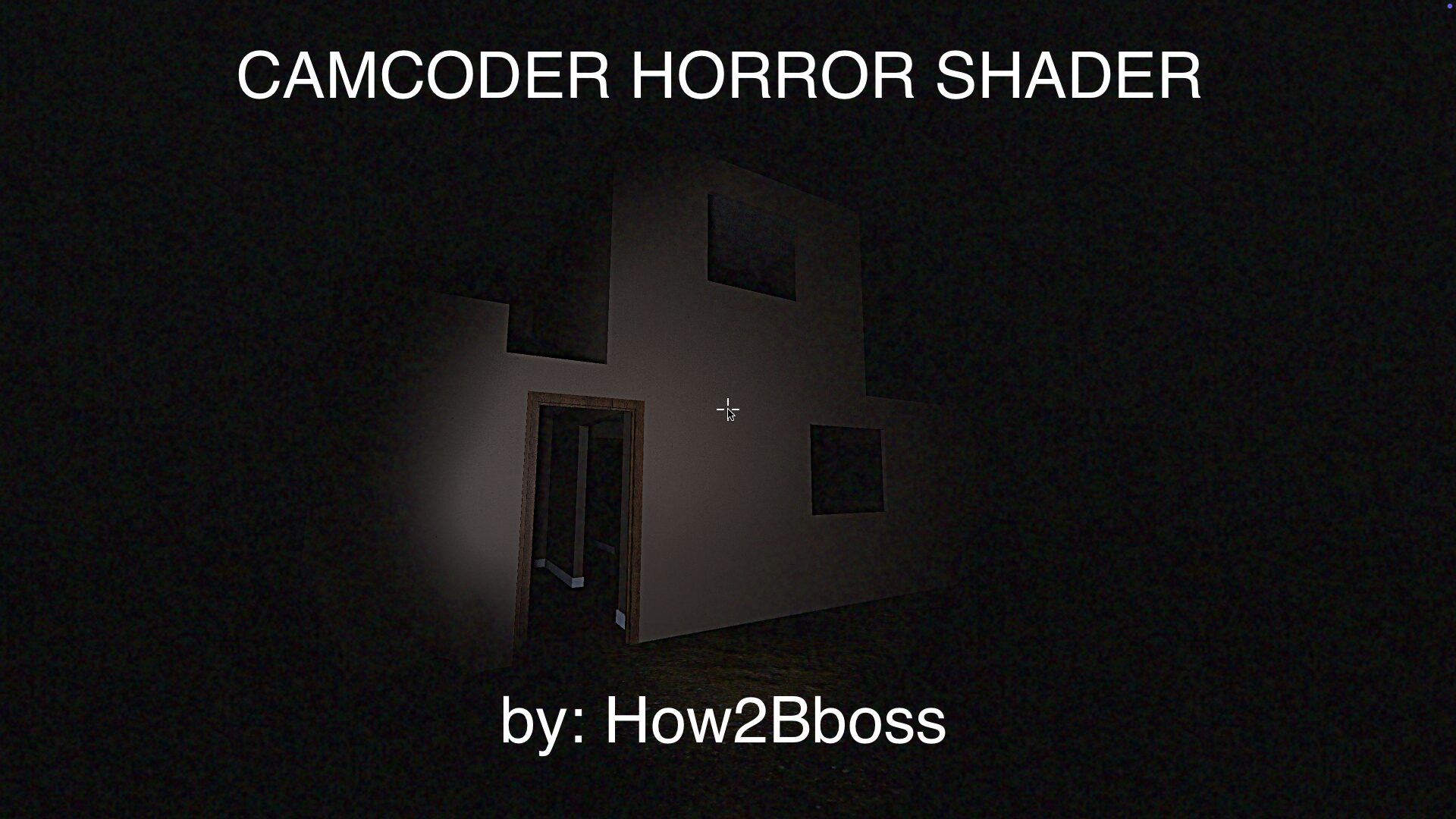

Camcorder horror shader

This is a shader I wrote that has chromatic aberration, film grain, sharpness, and color bleeding, to immitate the way a camcorder looks. Every uniform variable should be pretty self explanitory and all modules of the shader are toggleable for performance.

Chromatic aberration can be blurred to taste, but still retains the sharpness of the original image.
The film grain effect seems very intense in still pictures, but it is a lot more subtle in motion.
The sharpness method used only uses image LODs so its fairly quick.
Color bleeding blurs the image horizontally using LODs and tries to retain image clarity.

If you want to get rid of the film grain clamping the black values, make sure to set darkness_clamp to 0 (this will effectively disable film grain in the dark.

Credit would be appreciated but not necessary.
This shader is CC0

*UPDATES:

– Replaced all UV vars with SCREEN_UV.
– Chromatic abberation is now magenta/green rather than red/blue (this can be easily swapped by making the greenCol var use the regular SCREEN_UV and making blueCol use UV2.
– Added color bleed module

Shader code

shader_type canvas_item;

//place this shader on a color rect that fills the screen

uniform sampler2D screen_texture : hint_screen_texture, filter_linear_mipmap;

uniform bool color_bleed_enabled = true;
uniform bool chromatic_abberation_enabled = true;
uniform bool film_grain_enabled = true;
uniform bool sharpness_enabled = true;

group_uniforms chromatic_abberation;
uniform float chromatic_abberation_seperation : hint_range(0.0, 0.1, 0.001) = 0.016;
uniform float chromatic_abberation_intensity : hint_range(0.0, 3.0, 0.1) = 1.5;
uniform float chromatic_abberation_blur_strength : hint_range(0.0, 2.0, 1.0) = 1.0;

group_uniforms film_grain;
uniform sampler2D film_grain_noise : filter_linear_mipmap, repeat_enable;
uniform float film_grain_intensity : hint_range(0.0, 1.0, 0.01) = 1.0;
uniform float grain_size : hint_range(0.0, 3.0, 0.1) = 2.0;
uniform float darkness_clamp : hint_range(0.0, 0.5, 0.01) = 0.28;

group_uniforms sharpness;
uniform float sharpness_size : hint_range(0.0, 2.0, 1.0) = 1.0;
uniform float sharpness_intensity : hint_range(0.0, 3.0, 0.01) = 0.7;

group_uniforms color_bleed;
uniform float color_bleed_seperation : hint_range(0.0, 0.1, 0.001) = 0.02;
uniform float color_bleed_intensity : hint_range(0.0, 1.0, 0.01) = 0.2;
uniform float anti_bleed_intensity : hint_range(0.0, 3.0, 0.01) = 1.8;
uniform float color_bleed_blur_strength : hint_range(0.0, 4.0, 1.0) = 1.0;
uniform int color_bleed_quality : hint_range(1, 16, 1) = 5;

void fragment() {

	vec4 screenColor = texture(screen_texture, SCREEN_UV);
	//float screenGrayscale = screenColor.r * 0.299 + screenColor.g * 0.587 + screenColor.b * 0.114;
	vec4 screenColorLOD = textureLod(screen_texture, SCREEN_UV, 1.0);

	if (sharpness_enabled || sharpness_size <= 0.0001){ //a very cheap sharpness effect using texture LODs
		vec4 newColor = screenColor - textureLod(screen_texture, SCREEN_UV, sharpness_size);
		screenColor += (newColor) * sharpness_intensity;
	}

	if (film_grain_enabled || film_grain_intensity <= 0.0001){
		vec2 newUV = (3.5 - grain_size) * SCREEN_UV;
		float grainR = texture(film_grain_noise, newUV + vec2(sin(TIME * 11.01321) + 13.0, cos(TIME * 11.01321))).r;
		float grainG = texture(film_grain_noise, newUV + vec2(sin(TIME * 12.2124) + 5.0, cos(TIME * 12.2124))).g;
		float grainB = texture(film_grain_noise, newUV + vec2(sin(TIME * 11.5315) + 2.0, cos(TIME * 11.5315))).b;
		vec3 grainColor = mix(vec3(grainR, grainG, grainB), vec3(0.5), 1.0 - film_grain_intensity);
		float screenAveraged = (screenColorLOD.r + screenColorLOD.g + screenColorLOD.b)/3.0;
		screenColor *= mix(grainR, 1.0, 0.95);
		screenColor += clamp(vec4(grainColor, 1.0), 0.0, 1.0) * clamp(darkness_clamp - screenAveraged, 0.0, darkness_clamp) * 0.5;
	}
	else{
		float screenAveraged = (screenColorLOD.r + screenColorLOD.g + screenColorLOD.b)/3.0;
		screenColor += clamp(darkness_clamp - screenAveraged, 0.0, darkness_clamp) * 0.25;
	}

	if (color_bleed_enabled){ //shares a good chunk of code with chromatic aberration
		float strength = color_bleed_seperation;
		float intensity = color_bleed_intensity;

		vec4 bloom = vec4(0.0);
		int amount = color_bleed_quality;
		for (int i = 0; i < amount; i++){
			float mul = float(i + 1)/float(amount);
			float blurShift = float(i*2)/float(amount);

			vec2 UVLeftShift = vec2(SCREEN_UV.x - mul * strength, SCREEN_UV.y);
			vec2 UVRightShift = vec2(SCREEN_UV.x + mul * strength, SCREEN_UV.y);
			vec4 leftBleedCol1 = textureLod(screen_texture, UVLeftShift, color_bleed_blur_strength + blurShift)/float(amount * 2);
			vec4 rightBleedCol1 = textureLod(screen_texture, UVRightShift, color_bleed_blur_strength + blurShift)/float(amount * 2);
			bloom += leftBleedCol1 + rightBleedCol1;
		}
		bloom -= texture(screen_texture, SCREEN_UV) * (anti_bleed_intensity);
		bloom = clamp(bloom, vec4(0.0), vec4(1.0));
		screenColor += bloom * intensity;
	}

	if (chromatic_abberation_enabled){
		float strength = (chromatic_abberation_seperation * distance(SCREEN_UV, vec2(0.5)));
		float intensity = chromatic_abberation_intensity * distance(SCREEN_UV, vec2(0.5));

		vec2 UV1 = (SCREEN_UV - vec2(0.5)) * (1.0 + strength) + vec2(0.5);
		vec2 UV2 = (SCREEN_UV - vec2(0.5)) * (1.0 - strength) + vec2(0.5);

		float redCol = textureLod(screen_texture, UV1, chromatic_abberation_blur_strength).r;
		float greenCol = textureLod(screen_texture, UV2, chromatic_abberation_blur_strength).g;
		float blueCol = textureLod(screen_texture, SCREEN_UV, chromatic_abberation_blur_strength).b;
		vec4 newColor = vec4(redCol, greenCol, blueCol, 1.0);
		newColor -= textureLod(screen_texture, SCREEN_UV, chromatic_abberation_blur_strength);
		screenColor += newColor * vec4(vec3(intensity), 1.0);
	}

	COLOR = screenColor;
}
