CMYK Halftone

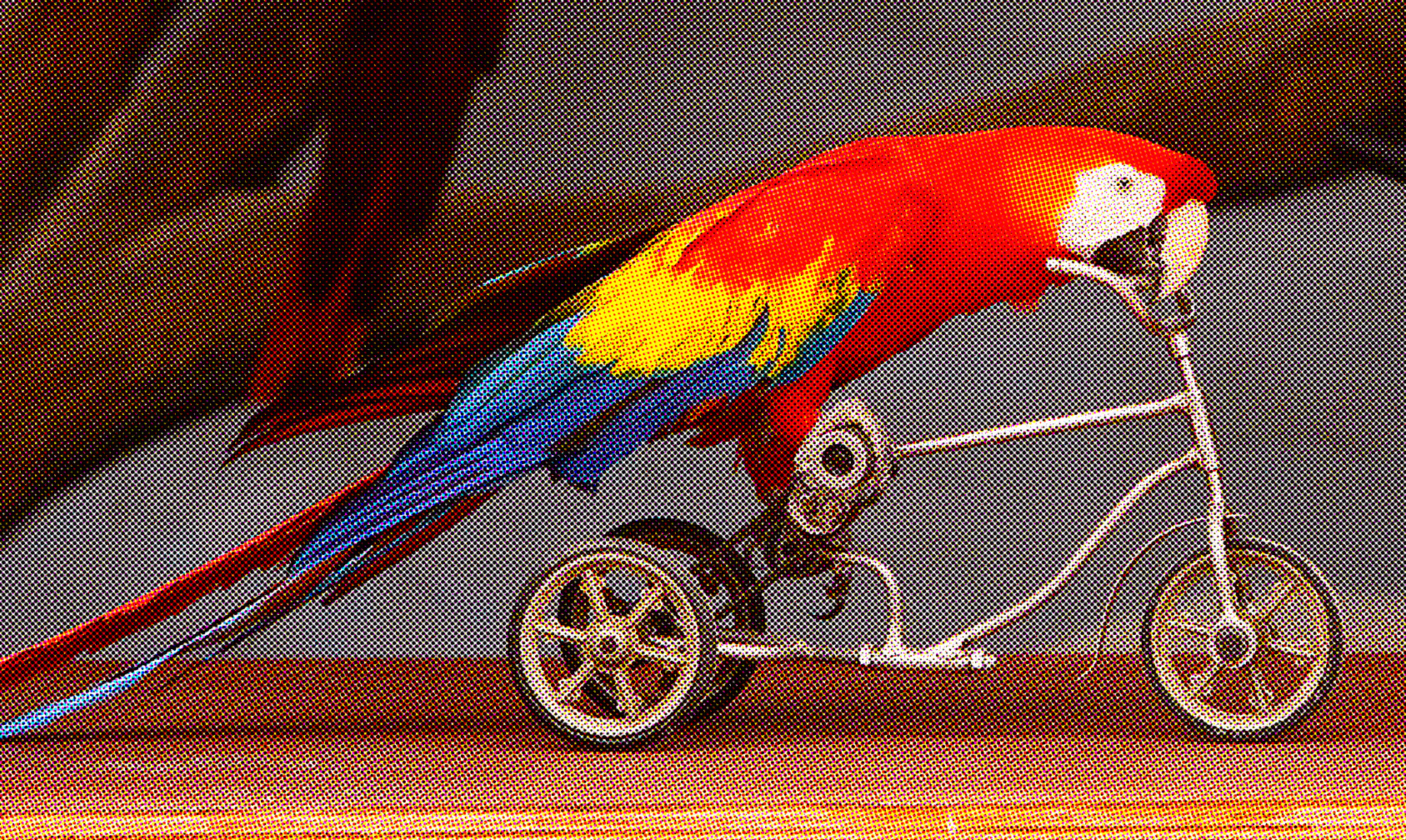

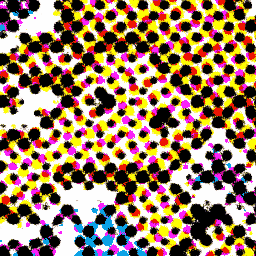

A canvas item shader that attempts to emulate the look of halftone printing, like something you would see in a newspaper. It is capable of both object space and screen space shading. Some compromises where made since it’s real time rendering, so it’s not completely accurate. Feel free to improve.
Notes and how-tos:
- An example of a texture for the Halftone Dither Pattern is included as one of the screenshots in this post. It also need to have repeat enabled in import settings to work.
- If object_space is false it uses screen space.
- To use object space read the comments in the top of the shader on how-to.
- You can see what most of the parameters do by simply dragging the sliders.
- Might be slow at high pattern_scaling and resolution, try lowering sampling_quality if it’s slow.
- Have ‘filter’ turned on in image import settings. Pixel art will look good filtered with this shader.
References:
- Inspired by Mrmo Tarius’ halftone shader – https://mrmotarius.itch.io/mrmo-halftone
- Got some help with the dithering from this shader – https://godotshaders.com/shader/dither-gradient-shader/
- RGB to CMYK conversion from here – https://www.rapidtables.com/convert/color/rgb-to-cmyk.html
- I’ve begun to enjoy making shaders. I may start to share more shaders on my twitter – https://twitter.com/OGosbol
Shader code
shader_type canvas_item;
// KNOWN ISSUES:
// - Unfiltered images create sharp unnatural transitions. Filtered pixel art looks fine here. Don't worry.
// - Result is a bit too saturated.
// IDEAS OF ADDITIONS:
// - Animate offsets slightly with TIME.
// - Paper texture.
// - Distance maps for transparent images.
/****** TO USE object_space TWO TRANSFORMS HAS TO BE FED TO THE SHADER IN process() ******/
// The canvasitem-inherited node needs this script:
/*
#tool # If you want to see the shader in the editor.
extends CanvasItem
func _process(_delta):
material.set_shader_param("canvas_global_transform", get_global_transform())
material.set_shader_param("camera_global_transform", get_viewport_transform())
*/
/**** NOTE: The script above isn't needed in screen space mode ****/
uniform float sampling_quality: hint_range(0.0, 1.0) = 1.0;
uniform float pattern_scaling: hint_range(1.05, 100.0) = 20.0;
uniform float cyan_pattern_rotation: hint_range(-180, 180) = 0.0;
uniform float magenta_pattern_rotation: hint_range(-180, 180) = 15.0;
uniform float yellow_pattern_rotation: hint_range(-180, 180) = 30.0;
uniform float black_pattern_rotation: hint_range(-180, 180) = 45.0;
uniform float alpha_threshold: hint_range(0.0, 1.0) = 0.5;
uniform vec4 paper_color: hint_color = vec4(1.0);
uniform vec4 cyan_color: hint_color = vec4(0.0, 1.0, 1.0, 1.0);
uniform vec4 magenta_color: hint_color = vec4(1.0, 0.0, 1.0, 1.0);
uniform vec4 yellow_color: hint_color = vec4(1.0, 1.0, 0.0, 1.0);
uniform vec4 black_color: hint_color = vec4(0.0, 0.0, 0.0, 1.0);
uniform vec2 cyan_offset_position = vec2(0.0,0.0);
uniform vec2 magenta_offset_position = vec2(0.0,0.0);
uniform vec2 yellow_offset_position = vec2(0.0,0.0);
uniform vec2 black_offset_position = vec2(0.0,0.0);
uniform float cyan_offset_rotation: hint_range(-180.0, 180.0) = 0.0;
uniform float magenta_offset_rotation: hint_range(-180.0, 180.0) = 0.0;
uniform float yellow_offset_rotation: hint_range(-180.0, 180.0) = 0.0;
uniform float black_offset_rotation: hint_range(-180.0, 180.0) = 0.0;
uniform bool object_space = false;
uniform mat4 canvas_global_transform;
uniform mat4 camera_global_transform;
// MUST HAVE REPEAT ENABLED
uniform sampler2D halftone_dither_pattern;
varying vec2 world_p;
// https://matthew-brett.github.io/teaching/rotation_2d.html
vec2 rotated(vec2 v, float d_angle) {
float x = cos(radians(d_angle)) * v.x - sin(radians(d_angle)) * v.y;
float y = sin(radians(d_angle)) * v.x + cos(radians(d_angle)) * v.y;
return vec2(x,y);
}
// tl_uv, tr_uv, bl_uv, br_uv: top left corner, top right corner etc. l_uv: uv within those four corners.
vec4 one_pass(vec2 tl_uv, vec2 tr_uv, vec2 bl_uv, vec2 br_uv, vec2 l_uv, sampler2D tex) {
vec2 top_uv = mix(tl_uv, tr_uv, l_uv.x);
vec2 bot_uv = mix(bl_uv, br_uv, l_uv.x);
vec2 pass_uv = mix(top_uv, bot_uv, l_uv.y);
// Offset the base color UV for each CMYK channel
vec2 c_uv = rotated(pass_uv + cyan_offset_position, cyan_offset_rotation);
vec2 m_uv = rotated(pass_uv + magenta_offset_position, magenta_offset_rotation);
vec2 y_uv = rotated(pass_uv + yellow_offset_position, yellow_offset_rotation);
vec2 k_uv = rotated(pass_uv + black_offset_position, black_offset_rotation);
vec4 c_base_color = texture(tex, c_uv);
vec4 m_base_color = texture(tex, m_uv);
vec4 y_base_color = texture(tex, y_uv);
vec4 k_base_color = texture(tex, k_uv);
// Get base_colors' CMYK values. Source: https://www.rapidtables.com/convert/color/rgb-to-cmyk.html
float c_k = 1.0 - max(max(c_base_color.r, c_base_color.g), max(c_base_color.g, c_base_color.b));
float m_k = 1.0 - max(max(m_base_color.r, m_base_color.g), max(m_base_color.g, m_base_color.b));
float y_k = 1.0 - max(max(y_base_color.r, y_base_color.g), max(y_base_color.g, y_base_color.b));
float k = 1.0 - max(max(k_base_color.r, k_base_color.g), max(k_base_color.g, k_base_color.b));
float c = (1.0 - c_base_color.r - c_k) / (1.0 - c_k);
float m = (1.0 - m_base_color.g - m_k) / (1.0 - m_k);
float y = (1.0 - y_base_color.b - y_k) / (1.0 - y_k);
float a = texture(tex, pass_uv).a < alpha_threshold ? 0.0f : 1.0f;
// https://godotshaders.com/shader/dither-gradient-shader/
ivec2 pattern_size = textureSize(halftone_dither_pattern, 0);
vec2 screen_size = vec2(textureSize(tex, 0));
vec2 inv_pattern_size = vec2(1.0 / float(pattern_size.x), 1.0 / float(pattern_size.y));
vec2 pattern_uv = pass_uv * inv_pattern_size * screen_size * pattern_scaling;
float threshold = texture(halftone_dither_pattern, pattern_uv).r;
// A threshold for each CMYK channel. And each one has differently rotated pattern_uv
vec2 c_pattern_uv = rotated(pattern_uv, cyan_pattern_rotation);
vec2 m_pattern_uv = rotated(pattern_uv, magenta_pattern_rotation);
vec2 y_pattern_uv = rotated(pattern_uv, yellow_pattern_rotation);
vec2 k_pattern_uv = rotated(pattern_uv, black_pattern_rotation);
float c_threshold = texture(halftone_dither_pattern, c_pattern_uv).r;
float m_threshold = texture(halftone_dither_pattern, m_pattern_uv).r;
float y_threshold = texture(halftone_dither_pattern, y_pattern_uv).r;
float k_threshold = texture(halftone_dither_pattern, k_pattern_uv).r;
vec3 paper_base = paper_color.rgb;
// Setting UVs outside of [0, 1] to paper color.
if (c > c_threshold && c_uv.x >= 0.0 && c_uv.x <= 1.0 && c_uv.y >= 0.0 && c_uv.y <= 1.0)
{ paper_base = paper_base - ((paper_color.rgb - cyan_color.rgb)); }
if (m > m_threshold && m_uv.x >= 0.0 && m_uv.x <= 1.0 && m_uv.y >= 0.0 && m_uv.y <= 1.0)
{ paper_base = paper_base - ((paper_color.rgb - magenta_color.rgb)); }
if (y > y_threshold && y_uv.x >= 0.0 && y_uv.x <= 1.0 && y_uv.y >= 0.0 && y_uv.y <= 1.0)
{ paper_base = paper_base - ((paper_color.rgb - yellow_color.rgb)); }
if (k > k_threshold && k_uv.x >= 0.0 && k_uv.x <= 1.0 && k_uv.y >= 0.0 && k_uv.y <= 1.0)
{ paper_base = paper_base - ((paper_color.rgb - black_color.rgb)); }
return vec4(paper_base, a);
}
void vertex() {
world_p = (canvas_global_transform * vec4(VERTEX, 0.0, 1.0)).xy;
}
void fragment() {
vec2 sample_uv;
vec4 sample_color = vec4(0.0);
if (object_space) {
// Object based multi sampling using the canvas_global_transform and camera_global_transform
// Get the UVs of the pixels corners
float camera_x_basis_length = length(vec2(camera_global_transform[0][0], -camera_global_transform[0][1]));
float camera_y_basis_length = length(vec2(-camera_global_transform[1][0], camera_global_transform[1][1]));
vec2 tl_g_pos = world_p + vec2(0.5 / camera_x_basis_length, 0.5 / camera_y_basis_length);
vec2 tr_g_pos = world_p + vec2(0.5 / camera_x_basis_length, -0.5 / camera_y_basis_length);
vec2 bl_g_pos = world_p + vec2(-0.5 / camera_x_basis_length, 0.5 / camera_y_basis_length);
vec2 br_g_pos = world_p + vec2(-0.5 / camera_x_basis_length, -0.5 / camera_y_basis_length);
mat4 inv_canvas = inverse(canvas_global_transform);
vec2 texture_res = vec2(textureSize(TEXTURE,0));
vec2 tl_uv = (inv_canvas * vec4(tl_g_pos, 0.0, 1.0)).xy / texture_res - vec2(-0.5);
vec2 tr_uv = (inv_canvas * vec4(tr_g_pos, 0.0, 1.0)).xy / texture_res - vec2(-0.5);
vec2 bl_uv = (inv_canvas * vec4(bl_g_pos, 0.0, 1.0)).xy / texture_res - vec2(-0.5);
vec2 br_uv = (inv_canvas * vec4(br_g_pos, 0.0, 1.0)).xy / texture_res - vec2(-0.5);
// Dynamic amount of samples based on the amount of CMYK dot pixels that fit within the current fragment.
vec2 p_uv_1 = tl_uv * texture_res;
vec2 p_uv_2 = tr_uv * texture_res;
vec2 p_uv_4 = bl_uv * texture_res;
vec2 p_uv_3 = br_uv * texture_res;
float area_term_1 = ((p_uv_1.x * p_uv_2.y) - (p_uv_2.x * p_uv_1.y));
float area_term_2 = ((p_uv_2.x * p_uv_3.y) - (p_uv_3.x * p_uv_2.y));
float area_term_3 = ((p_uv_3.x * p_uv_4.y) - (p_uv_4.x * p_uv_3.y));
float area_term_4 = ((p_uv_4.x * p_uv_1.y) - (p_uv_1.x * p_uv_4.y));
float pixel_area = abs(area_term_1 + area_term_2 + area_term_3 + area_term_4) / 2.0;
float pixel_area_sqrt = clamp(sqrt(pixel_area), 1.0, 10.0);
int samples = int(ceil(pixel_area_sqrt * pattern_scaling * sampling_quality));
int sqrt_samples = int(ceil(sqrt(float(samples))));
// Sample 'samples' amount of times with even spacing within those pixel corners
samples = sqrt_samples * sqrt_samples;
for (int x = 0; x < sqrt_samples; x++) {
float x_progress = float(x) / (float(sqrt_samples - 1));
for (int y = 0; y < sqrt_samples; y++) {
float y_progress = float(y) / (float(sqrt_samples - 1));
sample_uv = vec2(x_progress, y_progress);
sample_color = sample_color + (one_pass(tl_uv, tr_uv, bl_uv, br_uv, sample_uv, TEXTURE)
/ float(samples));
}
}
}
else {
// This is screen space multi sampling
// Get the SCREEN_UVs of the pixels corners
vec2 tl_s_uv = (FRAGCOORD.xy + vec2(0.5, 0.5)) * SCREEN_PIXEL_SIZE;
vec2 tr_s_uv = (FRAGCOORD.xy + vec2(0.5, -0.5)) * SCREEN_PIXEL_SIZE;
vec2 bl_s_uv = (FRAGCOORD.xy + vec2(-0.5, 0.5)) * SCREEN_PIXEL_SIZE;
vec2 br_s_uv = (FRAGCOORD.xy + vec2(-0.5, -0.5)) * SCREEN_PIXEL_SIZE;
int samples = int(ceil(pattern_scaling * sampling_quality));
int sqrt_samples = int(ceil(sqrt(float(samples))));
// Sample 'samples' amount of times with even spacing within those pixel corners
samples = sqrt_samples * sqrt_samples;
for (int x = 0; x < sqrt_samples; x++) {
float x_progress = float(x) / (float(sqrt_samples - 1));
for (int y = 0; y < sqrt_samples; y++) {
float y_progress = float(y) / (float(sqrt_samples - 1));
sample_uv = vec2(x_progress, y_progress);
sample_color = sample_color + (one_pass(tl_s_uv, tr_s_uv, bl_s_uv, br_s_uv, sample_uv, SCREEN_TEXTURE)
/ float(samples));
}
}
}
COLOR = sample_color;
}
