Color Dither

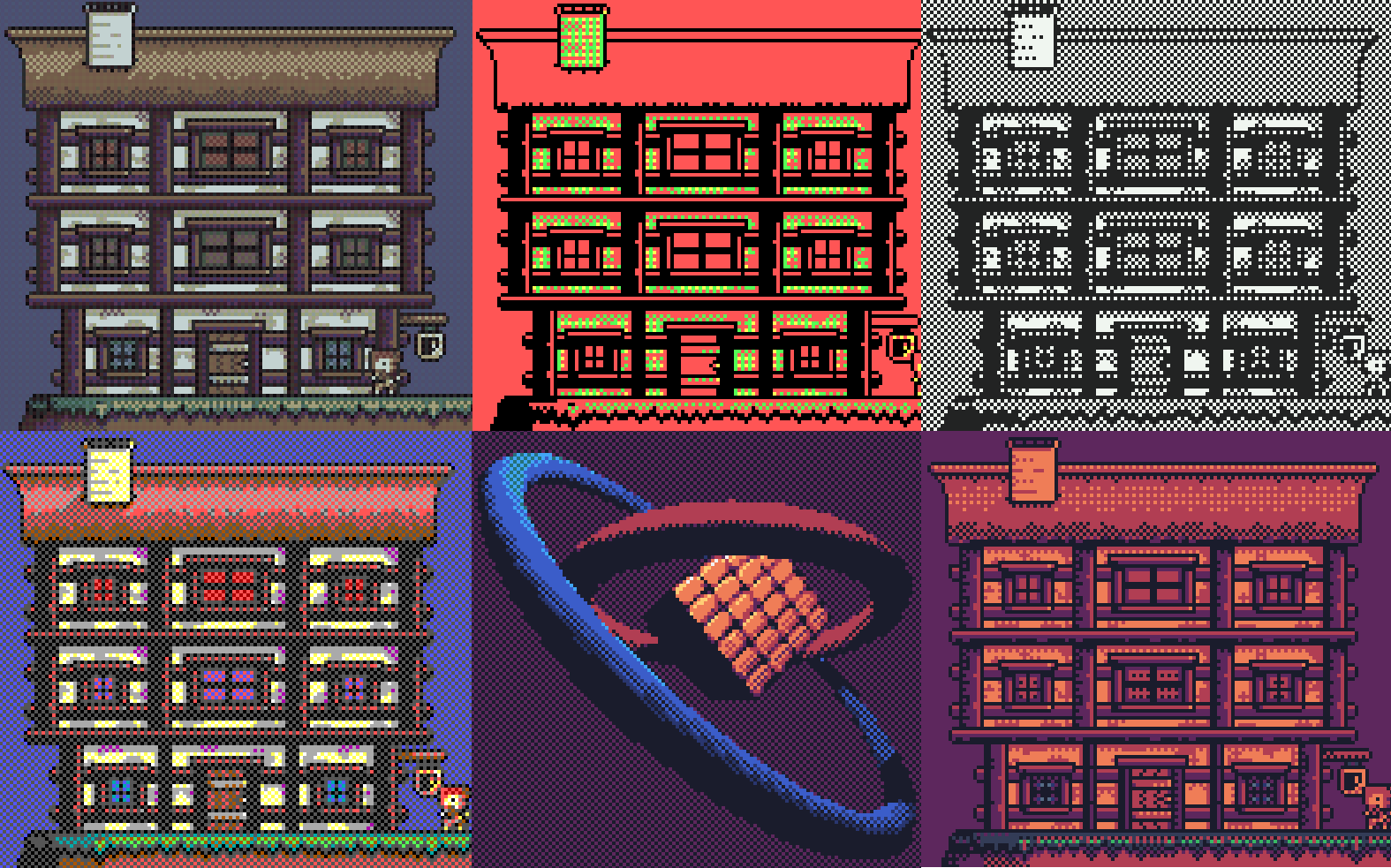

The following is the 2D dithering shader from a set of four dithering shaders made for Godot 4. The shaders work by replacing the original color with a pre-planned dithering pattern of one or more colors taken from a “dither palette” image. The resulting dither mix roughly approximates the original color, giving the scene an old-school retro look.
As mentioned, this is one of four shaders. The other shaders are used for postprocessing, 3D and 3D postprocessing. The remaining shaders and the code required for generating the dither palette files can be found at https://github.com/Donitzo/godot-color-dither
The dithering algorithms used in color selection for the dither palette images is derived from code and algorithms by Joel Yliluoma. You can read more about his algorithms in this article: Joel Yliluoma’s arbitrary-palette positional dithering algorithm. A dithering pattern with over 2 colors uses the gamma-corrected algorithm 3, while algorithm 2 is used for dithering patterns with 2 colors.
Shader code
shader_type canvas_item;
render_mode unshaded;
const mat4 bayer_matrix = mat4(
vec4(00.0 / 16.0, 12.0 / 16.0, 03.0 / 16.0, 15.0 / 16.0),
vec4(08.0 / 16.0, 04.0 / 16.0, 11.0 / 16.0, 07.0 / 16.0),
vec4(02.0 / 16.0, 14.0 / 16.0, 01.0 / 16.0, 13.0 / 16.0),
vec4(10.0 / 16.0, 06.0 / 16.0, 09.0 / 16.0, 05.0 / 16.0));
// Get the dither value from a 4x4 Bayer Matrix
float get_dither_value(vec2 pixel) {
int x = int(pixel.x - 4.0 * floor(pixel.x / 4.0));
int y = int(pixel.y - 4.0 * floor(pixel.y / 4.0));
return bayer_matrix[x][y];
}
// Pixel size used in dithering
uniform float dither_pixel_size = 1.0;
// The pixel offset used for dithering
uniform vec2 dither_pixel_offset = vec2(0.0);
// Albedo color
uniform vec4 albedo : source_color = vec4(1.0);
// Albedo multiplier
uniform float albedo_strength = 1.0;
vec4 get_albedo(sampler2D texture_albedo, vec2 uv) {
return texture(texture_albedo, uv) * albedo * vec4(vec3(albedo_strength), 1.0);
}
vec2 get_pixel_center(sampler2D texture_albedo, vec2 uv) {
return floor(uv * vec2(textureSize(texture_albedo, 0)) / dither_pixel_size + dither_pixel_offset) + 0.5;
}
// The dither palette texture
uniform sampler2D dither_palette : source_color, filter_nearest;
// Return the dither value for a color based on only the dither value
vec4 get_dither_color(float dither_value, vec4 color) {

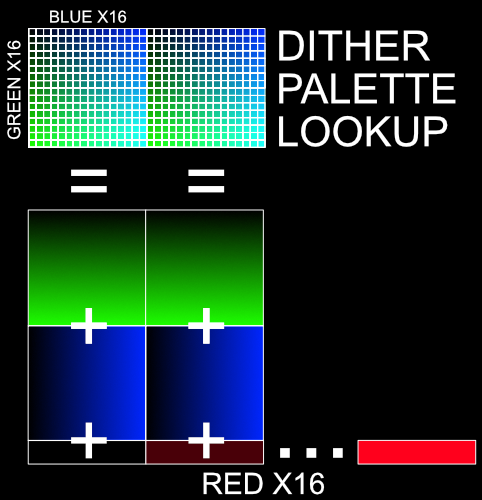

// Each color tile in the palette is 16x16, so color count = rows = Y / 16
vec2 palette_size = vec2(textureSize(dither_palette, 0));
float color_count = floor((palette_size.y + 1.0) / 16.0);
// The dither value determines which color index (tile row) to use.
// The green color component determines the vertical color within the targetted 16x16 tile.
float y = (clamp(color.g * 16.0, 0.5, 15.5) + floor(dither_value * color_count) * 16.0) / palette_size.y;
// The red color component determines which tile column to use.
// Finally, the blue color component determines the horizontal color within the targetted 16x16 tile.
float x = clamp(floor(color.r * 16.0), 0.0, 15.0) / 16.0 + clamp(color.b * 16.0, 0.5, 15.5) / 256.0;
return vec4(texture(dither_palette, vec2(x, y)).rgb, 1.0);
}
// Pixel offset used only for alpha dithering
uniform vec2 alpha_dither_pixel_offset = vec2(0.0);
void fragment() {
vec4 color = get_albedo(TEXTURE, UV);
vec2 pixel = get_pixel_center(TEXTURE, UV);
float dither_value_alpha = get_dither_value(pixel + alpha_dither_pixel_offset);
if (color.a <= dither_value_alpha) {
discard;
}
float dither_value = get_dither_value(pixel);
COLOR = get_dither_color(dither_value, color);
}
