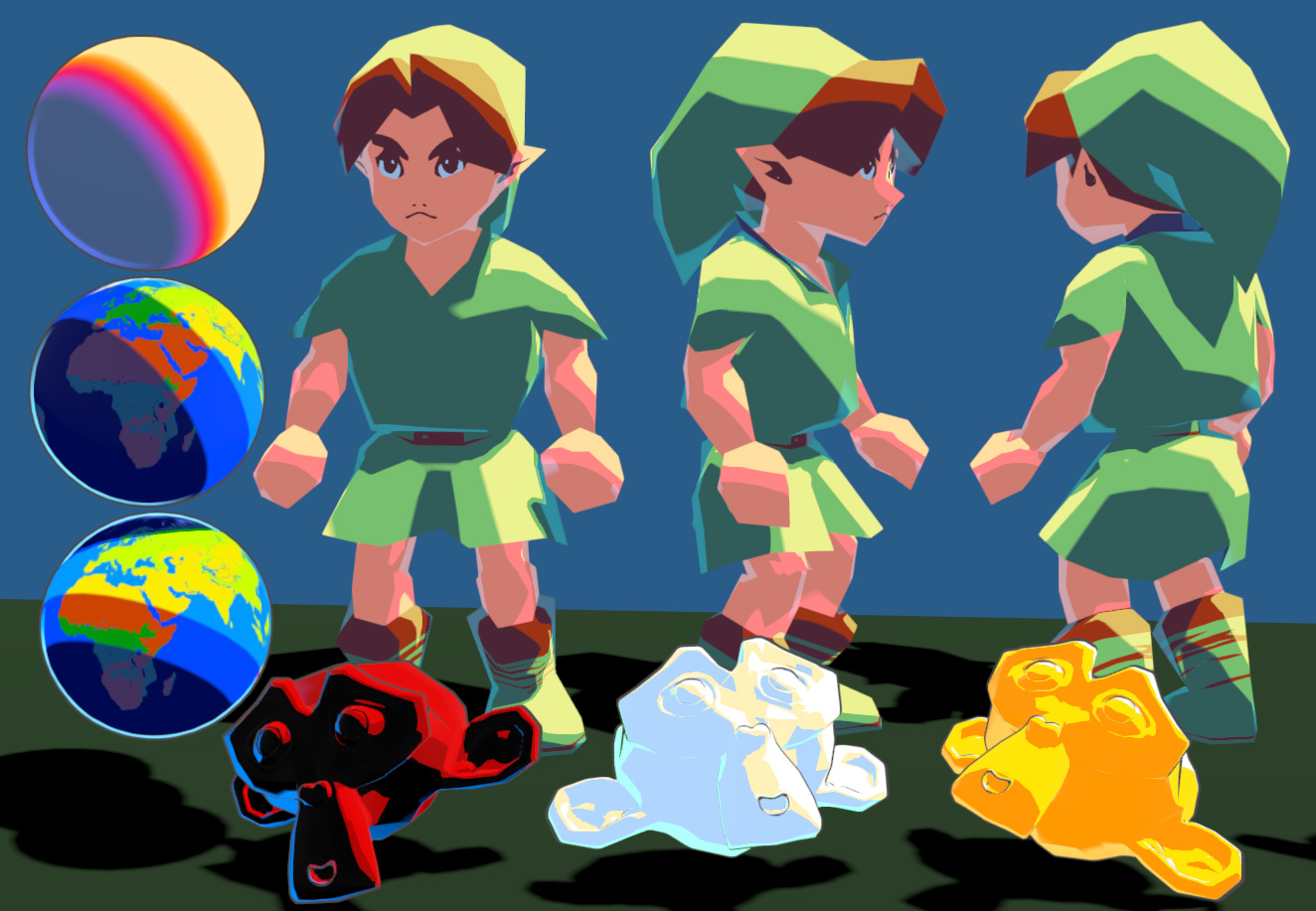

Comic / Cell / Toon – With up to 3 inputs, soft or hard banding, rimlight

Frank

I recommend downloading the project from my github page: https://github.com/frankschoeman/Godot-ComicShader

Shader code
[gd_resource type="VisualShader" load_steps=51 format=3 uid="uid://cbj5lflxb3moq"]

[sub_resource type="VisualShaderNodeVectorOp" id="VisualShaderNodeVectorOp_lvjx8"]

[sub_resource type="VisualShaderNodeColorParameter" id="VisualShaderNodeColorParameter_5qd4w"]
parameter_name = "Source_Between"
default_value_enabled = true

[sub_resource type="VisualShaderNodeTexture2DParameter" id="VisualShaderNodeTexture2DParameter_xrwh5"]
parameter_name = "Texture_Between"
texture_type = 1
texture_repeat = 2

[sub_resource type="VisualShaderNodeTexture" id="VisualShaderNodeTexture_1ou4d"]
source = 5

[sub_resource type="VisualShaderNodeVectorOp" id="VisualShaderNodeVectorOp_u5nvv"]
operator = 2

[sub_resource type="VisualShaderNodeTexture" id="VisualShaderNodeTexture_86uv2"]
source = 5

[sub_resource type="VisualShaderNodeTexture" id="VisualShaderNodeTexture_eayk4"]
source = 5

[sub_resource type="VisualShaderNodeColorParameter" id="VisualShaderNodeColorParameter_2wwta"]
parameter_name = "Source_Lit"
default_value_enabled = true

[sub_resource type="VisualShaderNodeVectorOp" id="VisualShaderNodeVectorOp_mwu7k"]
operator = 2

[sub_resource type="VisualShaderNodeTexture2DParameter" id="VisualShaderNodeTexture2DParameter_qmu6d"]
parameter_name = "Texture_Lit"
texture_type = 1
texture_repeat = 2

[sub_resource type="VisualShaderNodeInput" id="VisualShaderNodeInput_dmd0d"]
input_name = "attenuation"

[sub_resource type="VisualShaderNodeTexture2DParameter" id="VisualShaderNodeTexture2DParameter_n2xvd"]
parameter_name = "Texture_Shaded"
texture_type = 1
texture_repeat = 2

[sub_resource type="VisualShaderNodeColorParameter" id="VisualShaderNodeColorParameter_uwrhd"]
parameter_name = "Source_Shaded"
default_value_enabled = true

[sub_resource type="VisualShaderNodeVectorOp" id="VisualShaderNodeVectorOp_wa0hh"]
operator = 2

[sub_resource type="VisualShaderNodeVectorOp" id="VisualShaderNodeVectorOp_ylgys"]
operator = 2

[sub_resource type="VisualShaderNodeVectorOp" id="VisualShaderNodeVectorOp_v8evo"]
operator = 2

[sub_resource type="VisualShaderNodeVectorOp" id="VisualShaderNodeVectorOp_pdmta"]
operator = 2

[sub_resource type="VisualShaderNodeFloatParameter" id="VisualShaderNodeFloatParameter_t7bdw"]
parameter_name = "Transfer"
default_value_enabled = true
default_value = 1.0

[sub_resource type="VisualShaderNodeVectorOp" id="VisualShaderNodeVectorOp_jwt2i"]

[sub_resource type="VisualShaderNodeVectorOp" id="VisualShaderNodeVectorOp_kfcr1"]

[sub_resource type="VisualShaderNodeColorParameter" id="VisualShaderNodeColorParameter_0cmsh"]
parameter_name = "RimLightColor"
default_value_enabled = true
default_value = Color(0, 0.517647, 0.623529, 1)

[sub_resource type="VisualShaderNodeVectorOp" id="VisualShaderNodeVectorOp_m286t"]
default_input_values = [0, Vector3(0, 0, 0), 1, Vector3(1, 2, 2)]
operator = 1

[sub_resource type="VisualShaderNodeVectorOp" id="VisualShaderNodeVectorOp_vulc0"]
operator = 1

[sub_resource type="VisualShaderNodeFloatParameter" id="VisualShaderNodeFloatParameter_7sn33"]
parameter_name = "FresnelPower"
default_value_enabled = true
default_value = 3.0

[sub_resource type="VisualShaderNodeClamp" id="VisualShaderNodeClamp_exr4f"]
default_input_values = [0, Vector3(0, 0, 0), 1, Vector3(0, 0, 0), 2, Vector3(1, 1, 1)]
op_type = 4

[sub_resource type="VisualShaderNodeVectorOp" id="VisualShaderNodeVectorOp_edng5"]
operator = 2

[sub_resource type="VisualShaderNodeFresnel" id="VisualShaderNodeFresnel_msero"]
default_input_values = [2, false, 3, 4.695]

[sub_resource type="CompressedTexture2D" id="CompressedTexture2D_wes1b"]

[sub_resource type="VisualShaderNodeTexture" id="VisualShaderNodeTexture_d6pf5"]
expanded_output_ports = [0]
source = 5
texture = SubResource("CompressedTexture2D_wes1b")

[sub_resource type="VisualShaderNodeVectorFunc" id="VisualShaderNodeVectorFunc_35sav"]
function = 2

[sub_resource type="VisualShaderNodeFloatParameter" id="VisualShaderNodeFloatParameter_8uhpq"]
parameter_name = "Light_Direction_X"
hint = 1
default_value_enabled = true
default_value = 0.5

[sub_resource type="VisualShaderNodeMix" id="VisualShaderNodeMix_1e66g"]

[sub_resource type="VisualShaderNodeFloatParameter" id="VisualShaderNodeFloatParameter_ls6cr"]
parameter_name = "Light_Direction_Y"
hint = 1

[sub_resource type="VisualShaderNodeVectorOp" id="VisualShaderNodeVectorOp_pjqi6"]

[sub_resource type="VisualShaderNodeMix" id="VisualShaderNodeMix_rfsja"]

[sub_resource type="VisualShaderNodeVectorFunc" id="VisualShaderNodeVectorFunc_mhxkf"]
function = 2

[sub_resource type="VisualShaderNodeFloatParameter" id="VisualShaderNodeFloatParameter_vhuuk"]
parameter_name = "Light_Direction_Z"

[sub_resource type="VisualShaderNodeVectorFunc" id="VisualShaderNodeVectorFunc_13am5"]
function = 2

[sub_resource type="VisualShaderNodeMix" id="VisualShaderNodeMix_he6lf"]

[sub_resource type="VisualShaderNodeClamp" id="VisualShaderNodeClamp_lvjx8"]

[sub_resource type="VisualShaderNodeFloatOp" id="VisualShaderNodeFloatOp_5qd4w"]
default_input_values = [0, 0.0, 1, 2.0]
operator = 5

[sub_resource type="VisualShaderNodeDotProduct" id="VisualShaderNodeDotProduct_xrwh5"]

[sub_resource type="VisualShaderNodeFloatOp" id="VisualShaderNodeFloatOp_l4yr2"]
default_input_values = [0, 0.0, 1, 0.5]
operator = 1

[sub_resource type="VisualShaderNodeInput" id="VisualShaderNodeInput_lvjx8"]
input_name = "normal"

[sub_resource type="VisualShaderNodeFloatParameter" id="VisualShaderNodeFloatParameter_5qd4w"]
parameter_name = "Hybrid_Lighting_Mix"
hint = 1
default_value_enabled = true
default_value = 0.5

[sub_resource type="VisualShaderNodeMix" id="VisualShaderNodeMix_xrwh5"]
default_input_values = [0, Vector3(0, 0, 0), 1, Vector3(1, 1, 1), 2, Vector3(0.5, 0.5, 0.5)]
op_type = 3

[sub_resource type="VisualShaderNodeInput" id="VisualShaderNodeInput_w5ul5"]
output_port_for_preview = 0
expanded_output_ports = [0]
input_name = "normal"

[sub_resource type="VisualShaderNodeTexture" id="VisualShaderNodeTexture_4fucv"]
expanded_output_ports = [0]
source = 5
texture = SubResource("CompressedTexture2D_wes1b")

[sub_resource type="VisualShaderNodeTexture2DParameter" id="VisualShaderNodeTexture2DParameter_ppt7b"]
parameter_name = "GradientTexture_required"
texture_filter = 2
texture_repeat = 2

[sub_resource type="VisualShaderNodeVectorFunc" id="VisualShaderNodeVectorFunc_y3y3w"]
function = 2

[resource]
code = "shader_type spatial;
render_mode blend_mix, depth_draw_opaque, cull_back, diffuse_lambert, specular_schlick_ggx;

uniform sampler2D Texture_Between : source_color, repeat_disable;
uniform vec4 Source_Between : source_color = vec4(1.000000, 1.000000, 1.000000, 1.000000);
uniform float Light_Direction_X : hint_range(0.0, 1.0) = 0.5;
uniform float Light_Direction_Y : hint_range(0.0, 1.0);
uniform float Light_Direction_Z;
uniform float Transfer = 1.0;
uniform float Hybrid_Lighting_Mix : hint_range(0.0, 1.0) = 0.5;
uniform sampler2D GradientTexture_required : filter_linear, repeat_disable;
uniform sampler2D Texture_Lit : source_color, repeat_disable;
uniform vec4 Source_Lit : source_color = vec4(1.000000, 1.000000, 1.000000, 1.000000);
uniform sampler2D Texture_Shaded : source_color, repeat_disable;
uniform vec4 Source_Shaded : source_color = vec4(1.000000, 1.000000, 1.000000, 1.000000);
uniform float FresnelPower = 3.0;
uniform vec4 RimLightColor : source_color = vec4(0.000000, 0.517647, 0.623529, 1.000000);



void light() {
	vec4 n_out13p0;
// Texture2D:13
	n_out13p0 = texture(Texture_Between, UV);


// ColorParameter:11
	vec4 n_out11p0 = Source_Between;


// VectorOp:14
	vec3 n_out14p0 = vec3(n_out13p0.xyz) * vec3(n_out11p0.xyz);


// Input:2
	float n_out2p0 = ATTENUATION;


// Input:50
	vec3 n_out50p0 = NORMAL;


// Input:6
	vec3 n_out6p0 = NORMAL;
	float n_out6p1 = n_out6p0.r;
	float n_out6p2 = n_out6p0.g;
	float n_out6p3 = n_out6p0.b;


// VectorFunc:36
	vec3 n_out36p0 = -(vec3(n_out6p1));


// FloatParameter:37
	float n_out37p0 = Light_Direction_X;


// Mix:38
	float n_out38p0 = mix(n_out6p1, n_out36p0.x, n_out37p0);


// VectorFunc:41
	vec3 n_out41p0 = -(vec3(n_out6p2));


// FloatParameter:39
	float n_out39p0 = Light_Direction_Y;


// Mix:40
	float n_out40p0 = mix(n_out6p2, n_out41p0.x, n_out39p0);


// VectorOp:4
	vec3 n_out4p0 = vec3(n_out38p0) + vec3(n_out40p0);


// VectorFunc:43
	vec3 n_out43p0 = -(vec3(n_out6p3));


// FloatParameter:42
	float n_out42p0 = Light_Direction_Z;


// Mix:44
	float n_out44p0 = mix(n_out6p3, n_out43p0.x, n_out42p0);


// FloatParameter:26
	float n_out26p0 = Transfer;


// FloatOp:5
	float n_out5p0 = n_out44p0 - n_out26p0;


// VectorOp:3
	vec3 n_out3p0 = n_out4p0 - vec3(n_out5p0);


// FloatParameter:51
	float n_out51p0 = Hybrid_Lighting_Mix;


// Mix:52
	vec3 n_out52p0 = mix(n_out50p0, n_out3p0, vec3(n_out51p0));


// DotProduct:49
	float n_out49p0 = dot(vec3(n_out2p0), n_out52p0);


	vec4 n_out7p0;
// Texture2D:7
	n_out7p0 = texture(GradientTexture_required, vec2(n_out49p0));
	float n_out7p1 = n_out7p0.r;
	float n_out7p2 = n_out7p0.g;
	float n_out7p3 = n_out7p0.b;


// VectorOp:24
	vec3 n_out24p0 = n_out14p0 * vec3(n_out7p2);


	vec4 n_out15p0;
// Texture2D:15
	n_out15p0 = texture(Texture_Lit, UV);


// ColorParameter:17
	vec4 n_out17p0 = Source_Lit;


// VectorOp:18
	vec3 n_out18p0 = vec3(n_out15p0.xyz) * vec3(n_out17p0.xyz);


// VectorOp:25
	vec3 n_out25p0 = n_out18p0 * vec3(n_out7p1);


// VectorOp:27
	vec3 n_out27p0 = n_out24p0 + n_out25p0;


	vec4 n_out16p0;
// Texture2D:16
	n_out16p0 = texture(Texture_Shaded, UV);


// ColorParameter:21
	vec4 n_out21p0 = Source_Shaded;


// VectorOp:22
	vec3 n_out22p0 = vec3(n_out16p0.xyz) * vec3(n_out21p0.xyz);


// VectorOp:23
	vec3 n_out23p0 = n_out22p0 * vec3(n_out7p3);


// VectorOp:28
	vec3 n_out28p0 = n_out27p0 + n_out23p0;


// FloatParameter:31
	float n_out31p0 = FresnelPower;


// Fresnel:34
	float n_out34p0 = pow(1.0 - clamp(dot(NORMAL, VIEW), 0.0, 1.0), n_out31p0);


	vec4 n_out35p0;
// Texture2D:35
	n_out35p0 = texture(GradientTexture_required, vec2(n_out34p0));
	float n_out35p4 = n_out35p0.a;


// ColorParameter:29
	vec4 n_out29p0 = RimLightColor;


// VectorOp:33
	vec3 n_out33p0 = vec3(n_out35p4) * vec3(n_out29p0.xyz);


// VectorFunc:9
	vec3 n_out9p0 = -(vec3(n_out49p0));


// FloatOp:46
	float n_in46p1 = 2.00000;
	float n_out46p0 = pow(n_out9p0.x, n_in46p1);


// Clamp:45
	float n_in45p1 = 0.00000;
	float n_in45p2 = 1.00000;
	float n_out45p0 = clamp(n_out46p0, n_in45p1, n_in45p2);


// VectorOp:30
	vec3 n_out30p0 = n_out33p0 - vec3(n_out45p0);


// Clamp:32
	vec3 n_in32p1 = vec3(0.00000, 0.00000, 0.00000);
	vec3 n_in32p2 = vec3(1.00000, 1.00000, 1.00000);
	vec3 n_out32p0 = clamp(n_out30p0, n_in32p1, n_in32p2);


// VectorOp:10
	vec3 n_out10p0 = n_out28p0 + n_out32p0;


// Output:0
	DIFFUSE_LIGHT = n_out10p0;


}
"
graph_offset = Vector2(-2045.27, -1371.14)
nodes/fragment/0/position = Vector2(960, 340)
nodes/light/0/position = Vector2(520, 540)
nodes/light/2/node = SubResource("VisualShaderNodeInput_dmd0d")
nodes/light/2/position = Vector2(-2660, 480)
nodes/light/3/node = SubResource("VisualShaderNodeVectorOp_m286t")
nodes/light/3/position = Vector2(-2580, 720)
nodes/light/4/node = SubResource("VisualShaderNodeVectorOp_pjqi6")
nodes/light/4/position = Vector2(-2840, 640)
nodes/light/5/node = SubResource("VisualShaderNodeFloatOp_l4yr2")
nodes/light/5/position = Vector2(-2860, 1100)
nodes/light/6/node = SubResource("VisualShaderNodeInput_w5ul5")
nodes/light/6/position = Vector2(-3960, 660)
nodes/light/7/node = SubResource("VisualShaderNodeTexture_4fucv")
nodes/light/7/position = Vector2(-1360, 540)
nodes/light/8/node = SubResource("VisualShaderNodeTexture2DParameter_ppt7b")
nodes/light/8/position = Vector2(-1720, 800)
nodes/light/9/node = SubResource("VisualShaderNodeVectorFunc_y3y3w")
nodes/light/9/position = Vector2(-1800, 1180)
nodes/light/10/node = SubResource("VisualShaderNodeVectorOp_lvjx8")
nodes/light/10/position = Vector2(140, 620)
nodes/light/11/node = SubResource("VisualShaderNodeColorParameter_5qd4w")
nodes/light/11/position = Vector2(-1960, -920)
nodes/light/12/node = SubResource("VisualShaderNodeTexture2DParameter_xrwh5")
nodes/light/12/position = Vector2(-1960, -1320)
nodes/light/13/node = SubResource("VisualShaderNodeTexture_1ou4d")
nodes/light/13/position = Vector2(-1600, -1060)
nodes/light/14/node = SubResource("VisualShaderNodeVectorOp_u5nvv")
nodes/light/14/position = Vector2(-1360, -860)
nodes/light/15/node = SubResource("VisualShaderNodeTexture_86uv2")
nodes/light/15/position = Vector2(-1600, -420)
nodes/light/16/node = SubResource("VisualShaderNodeTexture_eayk4")
nodes/light/16/position = Vector2(-1580, 100)
nodes/light/17/node = SubResource("VisualShaderNodeColorParameter_2wwta")
nodes/light/17/position = Vector2(-2240, -460)
nodes/light/18/node = SubResource("VisualShaderNodeVectorOp_mwu7k")
nodes/light/18/position = Vector2(-1360, -220)
nodes/light/19/node = SubResource("VisualShaderNodeTexture2DParameter_qmu6d")
nodes/light/19/position = Vector2(-1960, -680)
nodes/light/20/node = SubResource("VisualShaderNodeTexture2DParameter_n2xvd")
nodes/light/20/position = Vector2(-1940, -160)
nodes/light/21/node = SubResource("VisualShaderNodeColorParameter_uwrhd")
nodes/light/21/position = Vector2(-2200, 80)
nodes/light/22/node = SubResource("VisualShaderNodeVectorOp_wa0hh")
nodes/light/22/position = Vector2(-1300, 260)
nodes/light/23/node = SubResource("VisualShaderNodeVectorOp_ylgys")
nodes/light/23/position = Vector2(-700, 340)
nodes/light/24/node = SubResource("VisualShaderNodeVectorOp_v8evo")
nodes/light/24/position = Vector2(-660, -280)
nodes/light/25/node = SubResource("VisualShaderNodeVectorOp_pdmta")
nodes/light/25/position = Vector2(-680, 60)
nodes/light/26/node = SubResource("VisualShaderNodeFloatParameter_t7bdw")
nodes/light/26/position = Vector2(-3120, 1440)
nodes/light/27/node = SubResource("VisualShaderNodeVectorOp_jwt2i")
nodes/light/27/position = Vector2(-380, 20)
nodes/light/28/node = SubResource("VisualShaderNodeVectorOp_kfcr1")
nodes/light/28/position = Vector2(-180, 300)
nodes/light/29/node = SubResource("VisualShaderNodeColorParameter_0cmsh")
nodes/light/29/position = Vector2(-1080, 1320)
nodes/light/30/node = SubResource("VisualShaderNodeVectorOp_vulc0")
nodes/light/30/position = Vector2(-440, 920)
nodes/light/31/node = SubResource("VisualShaderNodeFloatParameter_7sn33")
nodes/light/31/position = Vector2(-1820, 1460)
nodes/light/32/node = SubResource("VisualShaderNodeClamp_exr4f")
nodes/light/32/position = Vector2(-160, 780)
nodes/light/33/node = SubResource("VisualShaderNodeVectorOp_edng5")
nodes/light/33/position = Vector2(-760, 1160)
nodes/light/34/node = SubResource("VisualShaderNodeFresnel_msero")
nodes/light/34/position = Vector2(-1480, 1380)
nodes/light/35/node = SubResource("VisualShaderNodeTexture_d6pf5")
nodes/light/35/position = Vector2(-1040, 760)
nodes/light/36/node = SubResource("VisualShaderNodeVectorFunc_35sav")
nodes/light/36/position = Vector2(-3320, 580)
nodes/light/37/node = SubResource("VisualShaderNodeFloatParameter_8uhpq")
nodes/light/37/position = Vector2(-3540, 300)
nodes/light/38/node = SubResource("VisualShaderNodeMix_1e66g")
nodes/light/38/position = Vector2(-3120, 380)
nodes/light/39/node = SubResource("VisualShaderNodeFloatParameter_ls6cr")
nodes/light/39/position = Vector2(-3360, 980)
nodes/light/40/node = SubResource("VisualShaderNodeMix_rfsja")
nodes/light/40/position = Vector2(-3080, 820)
nodes/light/41/node = SubResource("VisualShaderNodeVectorFunc_mhxkf")
nodes/light/41/position = Vector2(-3340, 740)
nodes/light/42/node = SubResource("VisualShaderNodeFloatParameter_vhuuk")
nodes/light/42/position = Vector2(-3560, 1440)
nodes/light/43/node = SubResource("VisualShaderNodeVectorFunc_13am5")
nodes/light/43/position = Vector2(-3540, 1240)
nodes/light/44/node = SubResource("VisualShaderNodeMix_he6lf")
nodes/light/44/position = Vector2(-3280, 1280)
nodes/light/45/node = SubResource("VisualShaderNodeClamp_lvjx8")
nodes/light/45/position = Vector2(-1080, 1100)
nodes/light/46/node = SubResource("VisualShaderNodeFloatOp_5qd4w")
nodes/light/46/position = Vector2(-1540, 1180)
nodes/light/49/node = SubResource("VisualShaderNodeDotProduct_xrwh5")
nodes/light/49/position = Vector2(-2000, 720)
nodes/light/50/node = SubResource("VisualShaderNodeInput_lvjx8")
nodes/light/50/position = Vector2(-2600, 1040)
nodes/light/51/node = SubResource("VisualShaderNodeFloatParameter_5qd4w")
nodes/light/51/position = Vector2(-2620, 1200)
nodes/light/52/node = SubResource("VisualShaderNodeMix_xrwh5")
nodes/light/52/position = Vector2(-2240, 880)
nodes/light/connections = PackedInt32Array(4, 0, 3, 0, 8, 0, 7, 2, 5, 0, 3, 1, 12, 0, 13, 2, 13, 0, 14, 0, 11, 0, 14, 1, 19, 0, 15, 2, 15, 0, 18, 0, 20, 0, 16, 2, 16, 0, 22, 0, 17, 0, 18, 1, 21, 0, 22, 1, 14, 0, 24, 0, 18, 0, 25, 0, 7, 1, 25, 1, 7, 2, 24, 1, 22, 0, 23, 0, 7, 3, 23, 1, 26, 0, 5, 1, 24, 0, 27, 0, 25, 0, 27, 1, 27, 0, 28, 0, 23, 0, 28, 1, 28, 0, 10, 0, 31, 0, 34, 3, 29, 0, 33, 1, 30, 0, 32, 0, 35, 4, 33, 0, 8, 0, 35, 2, 37, 0, 38, 2, 6, 1, 38, 0, 36, 0, 38, 1, 38, 0, 4, 0, 39, 0, 40, 2, 41, 0, 40, 1, 6, 1, 36, 0, 6, 2, 41, 0, 6, 2, 40, 0, 40, 0, 4, 1, 42, 0, 44, 2, 43, 0, 44, 1, 6, 3, 43, 0, 6, 3, 44, 0, 44, 0, 5, 0, 34, 0, 35, 0, 32, 0, 10, 1, 33, 0, 30, 0, 9, 0, 46, 0, 46, 0, 45, 0, 45, 0, 30, 1, 2, 0, 49, 0, 49, 0, 9, 0, 49, 0, 7, 0, 51, 0, 52, 2, 52, 0, 49, 1, 50, 0, 52, 0, 3, 0, 52, 1, 10, 0, 0, 0)
Tags
cartoon, cell, comic, godot4, stylized, toon
Get demo project
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.

Related shaders

guest

0 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
