ORM material blending using vertex colors and noise with hard/soft transitions

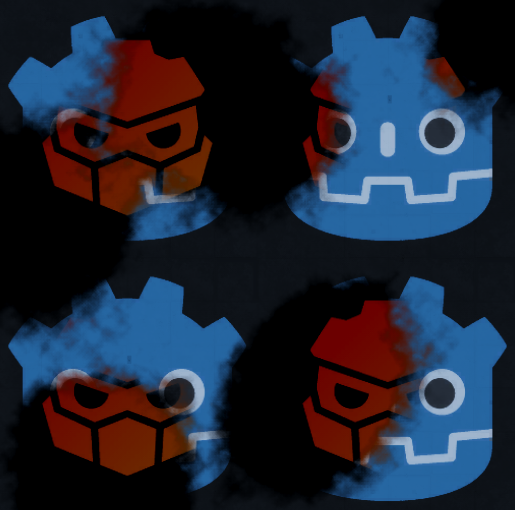

This shaders blends 2 ORM materials using red vertex color value, and does some noise texture on the transition for an orgnaic look.

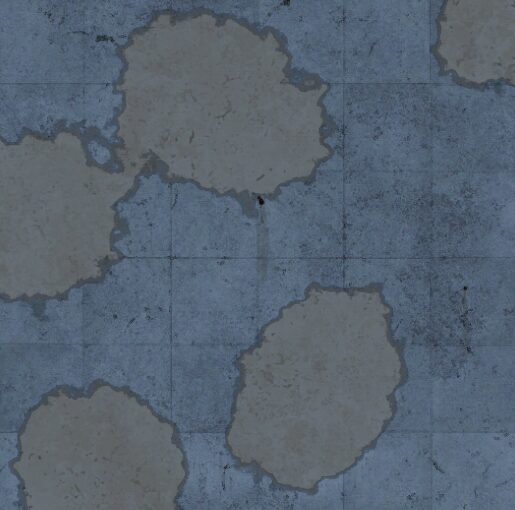

You can control how soft or hard will be the transition between materials, you can also “tint” the transition with a custom color (with alpha). This shader is useful if you want to do things like drawing a wall with damaged plaster being able to see the bricks bellow.

Of course, your mesh needs to have vertex colors painted (red channel).

Shader code

shader_type spatial;
render_mode blend_mix,depth_draw_opaque,cull_back,diffuse_burley,specular_schlick_ggx;

// Textures for material A, for Material B and for the transition noise
group_uniforms textures;
uniform sampler2D texture_albedo_a : source_color,filter_linear_mipmap,repeat_enable;
uniform sampler2D texture_orm_a : hint_roughness_g,filter_linear_mipmap,repeat_enable;
uniform sampler2D texture_normal_a : hint_roughness_normal,filter_linear_mipmap,repeat_enable;
uniform sampler2D texture_albedo_b : source_color,filter_linear_mipmap,repeat_enable;
uniform sampler2D texture_orm_b : hint_roughness_g,filter_linear_mipmap,repeat_enable;
uniform sampler2D texture_normal_b : hint_roughness_normal,filter_linear_mipmap,repeat_enable;
uniform sampler2D texture_noise : source_color,filter_linear_mipmap,repeat_enable;

group_uniforms main_settings;
uniform vec4 albedo_a : source_color = vec4(1.0, 1.0, 1.0, 1.0);
uniform vec4 albedo_b : source_color = vec4(1.0, 1.0, 1.0, 1.0);
uniform float normal_scale : hint_range(-16,16) = 1.0;
uniform float ao_light_affect = 1.0;
uniform vec3 uv1_scale = vec3(1.0, 1.0, 1.0);
uniform vec3 uv1_offset;

group_uniforms blend_settings;
uniform float blend_threshold = 0.5;
uniform float blend_noise_intensity = 0.5;
uniform float blend_noise_scale = 5.0;
uniform float blend_softness = 0.05;
uniform vec4 blend_transition_color : source_color = vec4(0.0, 0.0, 0.0, 0.25);

void vertex() {
	UV=UV*uv1_scale.xy+uv1_offset.xy;
}

void fragment() {
	// UVs
	vec2 base_uv = UV;
	vec2 noise_uv = UV * blend_noise_scale;

    // get vertex color mask value
    float mask = COLOR.r;

    // compute noise value (RED channel only)
    float noise = texture(texture_noise, noise_uv).r * blend_noise_intensity;

    // compute threshold
    float threshold = clamp(blend_threshold + noise, 0.0, 1.0);

    // compute blend
    float blend = smoothstep(threshold - blend_softness, threshold + blend_softness, mask);

	// albedo
	vec4 albedo_tex_a = texture(texture_albedo_a, base_uv) * albedo_a.rgba;
	vec4 albedo_tex_b = texture(texture_albedo_b, base_uv) * albedo_b.rgba;
	vec3 albedo_mixed = mix(albedo_tex_a.rgb, albedo_tex_b.rgb, blend);
    float transition = clamp(1.0 - smoothstep(blend_softness * 0.5, blend_softness * 1.5, abs(mask - threshold)), 0.0, 1.0);
    vec3 transition_visual = mix(albedo_mixed.rgb, blend_transition_color.rgb, transition * blend_transition_color.a);
	ALBEDO = transition_visual;

	// rough + metal
	vec4 orm_tex_a = texture(texture_orm_a, base_uv);
	vec4 orm_tex_b = texture(texture_orm_b, base_uv);
	ROUGHNESS = mix(orm_tex_a.g, orm_tex_b.g, blend);
	METALLIC = mix(orm_tex_a.b, orm_tex_b.b, blend);

	// normal
	vec3 normal_map_a = texture(texture_normal_a, base_uv).rgb;
	vec3 normal_map_b = texture(texture_normal_b, base_uv).rgb;
	NORMAL_MAP = mix(normal_map_a, normal_map_b, blend);
	NORMAL_MAP_DEPTH = normal_scale;

	// ao
	AO = mix(orm_tex_a.r, orm_tex_b.r, blend);;
	AO_LIGHT_AFFECT = ao_light_affect;
}
