# Connected Circles

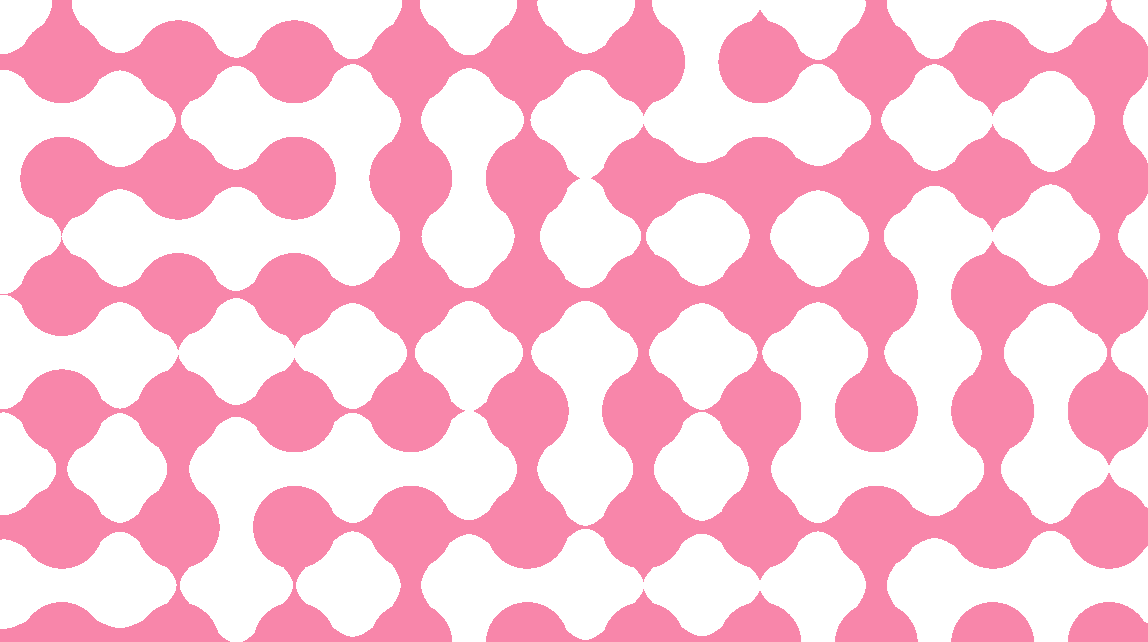

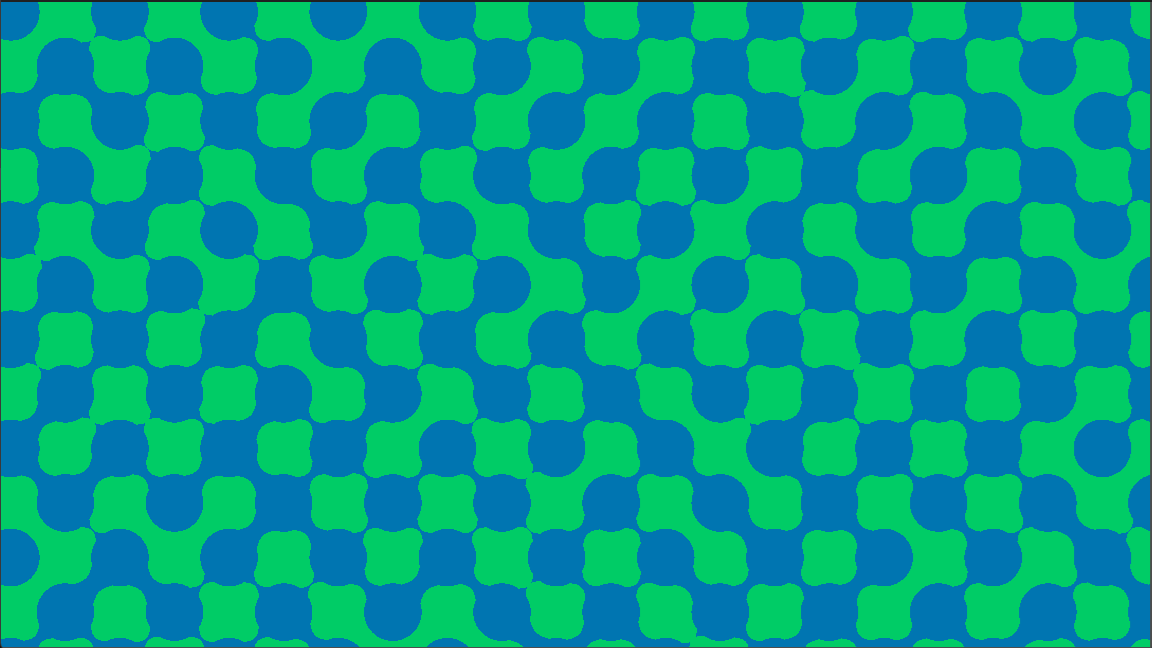

A grid of circles connect with sinular lines and change randomly while the pattern scrolls around. Great for a scrolling menu background.

Use a Simplex Smooth seamless noise texture with a higher fractal weight for smooth transitions.

``````shader_type canvas_item;

uniform float separation: hint_range(0.0, 0.2) = 0.05;
uniform float radius: hint_range(0.0, 0.1) = 0.001;
uniform float min_thick: hint_range(0.0, 1.0) = 0.2;
uniform float speed: hint_range(0.0, 0.1) = 0.04;
uniform bool tilt_45 = true;
uniform float direction: hint_range(-180.0, 180.0) = -45.0;
uniform sampler2D noise_texture: repeat_enable;
uniform vec4 color1: source_color = vec4(0.0, 1.0, 1.0, 1.0);
uniform vec4 color2: source_color = vec4(0.0, 0.8, 0.4, 1.0);

float get_line(vec2 uv, vec2 point1, vec2 point2, vec2 dir) {
// get the distance of the uv from our line
float line_dist = length(cross(vec3(point2 - point1, 0.0), vec3(point1 - uv, 0.0))) / length(point2 - point1);
// Calculate the position along the line
float t = dot(uv - point1, point2 - point1) / dot(point2 - point1, point2 - point1);
// sample the noise midpoint at the midpoint of the line
vec2 midpoint = (point1 + point2) / 2.0;
float sample = smoothstep(0.0, 1.0, texture(noise_texture,
midpoint + -dir * speed * TIME
).r);
// calculate our thickness range
float range = (sample - 0.5) * 2.0 + 0.5;
float min_thickness = radius * min_thick * (range);
float max_thickness = radius * 0.95;
// use a gaussian function for the curve of the connecting line
float line_thickness = mix(max_thickness, min_thickness, exp(-pow((t - 0.5) * 4.0, 2.0)));
// is our pixel within the line?
float line = mix(0.0, 1.0, step(line_dist, line_thickness * 0.8));
// cut off the line after a certain point if the line would be thin enough
line = mix(0.0, line, step(0.2, sample));
return line;
}

void fragment() {
// set up the direction
// preserve ratio
float ratio = SCREEN_PIXEL_SIZE.x / SCREEN_PIXEL_SIZE.y;
vec2 uv = vec2(SCREEN_UV.x, SCREEN_UV.y * ratio)
+ dir * speed * TIME;
// rotate by 45 if checked
float angle = PI / 4.0 * float(tilt_45);
uv = vec2(cos(angle) * uv.x - sin(angle) * uv.y, sin(angle) * uv.x + cos(angle) * uv.y);
// get our circle points
vec2 point1 = vec2(floor(uv.x / separation), round(uv.y / separation)) * separation;
vec2 point2 = vec2(point1.x + separation, point1.y);
vec2 cpoint1 = vec2(round(uv.x / separation), floor(uv.y / separation)) * separation;
vec2 cpoint2 = vec2(cpoint1.x, cpoint1.y + separation);
// this is going to draw two half circles
float circle1 = mix(0.0, 1.0, step(distance(uv, point1), radius));
float circle2 = mix(0.0, 1.0, step(distance(uv, point2), radius));
// horizontal line connection and vertical line
float line1 = get_line(uv, point1, point2, dir);
float line4 = get_line(uv, cpoint1, cpoint2, dir);
// merge all of our pixel values
// if our uv is one of these lines or circles, then it's 1.0
float lines = max(line1, line4);
float circles = max(circle1, circle2);
// make our pixel white where ever there are lines or circle pixels
float shape = max(circles, lines);
// we replace black with color2 and white with color1
vec4 color = mix(color2, color1, shape);
COLOR = color;
}``````
###### Tags
background, circle, pattern, repeat
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
