Counter-Strike Style Scope

Emulates how the sniper scopes in counter strike works all in a shader.

Shader code
shader_type canvas_item;
uniform vec2 scope_screen_position = vec2(0.0);
uniform float scope_focus : hint_range(0.0, 1.0, 0.01) = 1.0;
uniform vec3 crosshair_screen_transform = vec3(0.0);
uniform float crosshair_focus: hint_range(0.0, 1.0, 0.01) = 1.0;

uniform sampler2D screen_sampler : hint_screen_texture;

void fragment() {

	vec2 aspect_ratio = vec2(1.0, SCREEN_PIXEL_SIZE.x / SCREEN_PIXEL_SIZE.y);
	vec2 centered_screen_uv = (((SCREEN_UV - 0.5) * 2.0) * aspect_ratio);

	float uv_distance_from_center = clamp(distance(scope_screen_position, centered_screen_uv), 0.0, 1.0);
	vec2 uv_direction_from_center = normalize(scope_screen_position - centered_screen_uv);
	vec2 distortion = ((pow(max(uv_distance_from_center - 0.275, 0.0), 2.0) * 20.0) * (-uv_direction_from_center));
	vec3 screen_texture = texture(screen_sampler, SCREEN_UV + distortion).rgb;
	vec3 cache_color = COLOR.rgb;

	float scope_blend = pow(
		uv_distance_from_center * 3.0,
		20.0 * scope_focus
		);

	float new_crosshair_focus = crosshair_focus * crosshair_focus;


	float sin_scale_1 = (crosshair_screen_transform.y - centered_screen_uv.y) * sin(crosshair_screen_transform.z);
	float cos_scale_1 = (crosshair_screen_transform.x - centered_screen_uv.x) * cos(crosshair_screen_transform.z);

	float sin_scale_2 = (crosshair_screen_transform.x - centered_screen_uv.x) * sin(-crosshair_screen_transform.z);
	float cos_scale_2 = (crosshair_screen_transform.y - centered_screen_uv.y) * cos(-crosshair_screen_transform.z);


	float rotated_scale_1 = distance(
		vec2(sin_scale_1, cos_scale_1),
		vec2(cos_scale_1, sin_scale_1)
		);
	float rotated_scale_2 = distance(
		vec2(sin_scale_2, cos_scale_2),
		vec2(cos_scale_2, sin_scale_2)
		);

	float crosshair_blend_1 = clamp(1.0 - (rotated_scale_1 * 300.0 * new_crosshair_focus), 0.0, 1.0) * crosshair_focus;
	float crosshair_blend_2 = clamp(1.0 - (rotated_scale_2 * 300.0 * new_crosshair_focus), 0.0, 1.0) * crosshair_focus;
	float crosshair_blend = clamp(crosshair_blend_1 + crosshair_blend_2, 0.0, 1.0);

	COLOR.rgb = mix(screen_texture, cache_color, scope_blend + crosshair_blend);
}

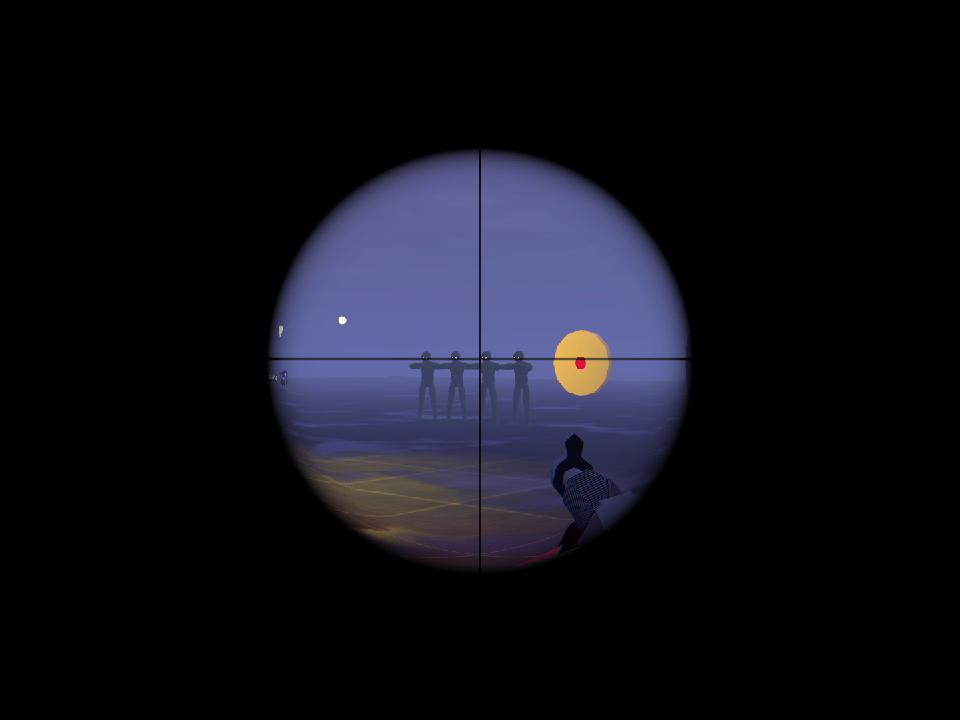

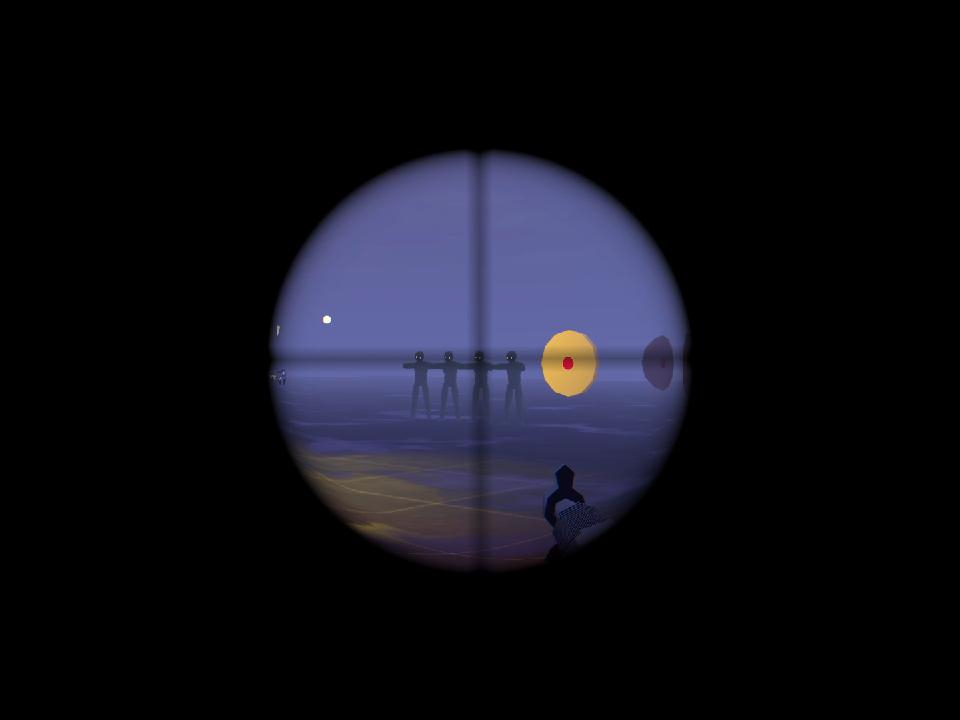

Live Preview
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
