CRTLottes for Godot 4.x

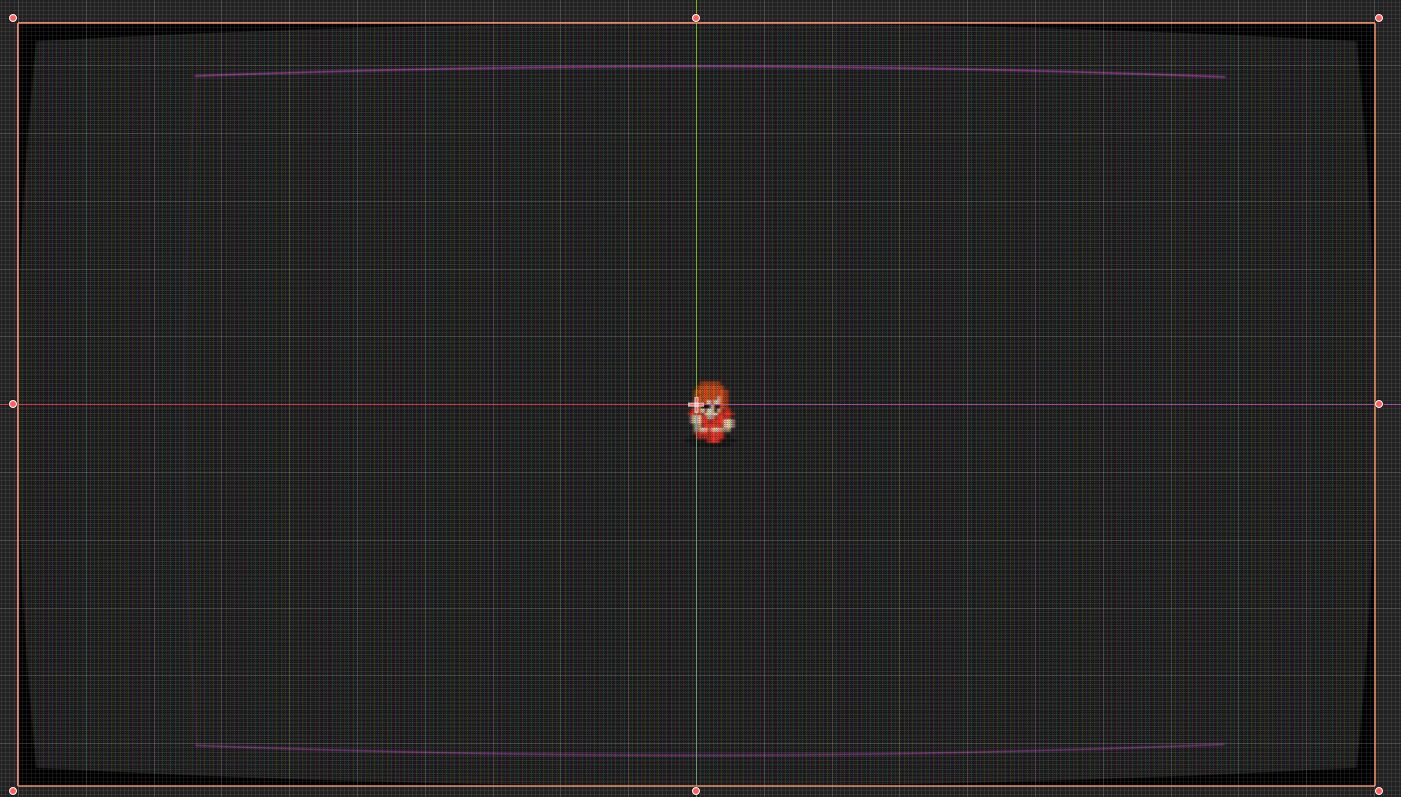

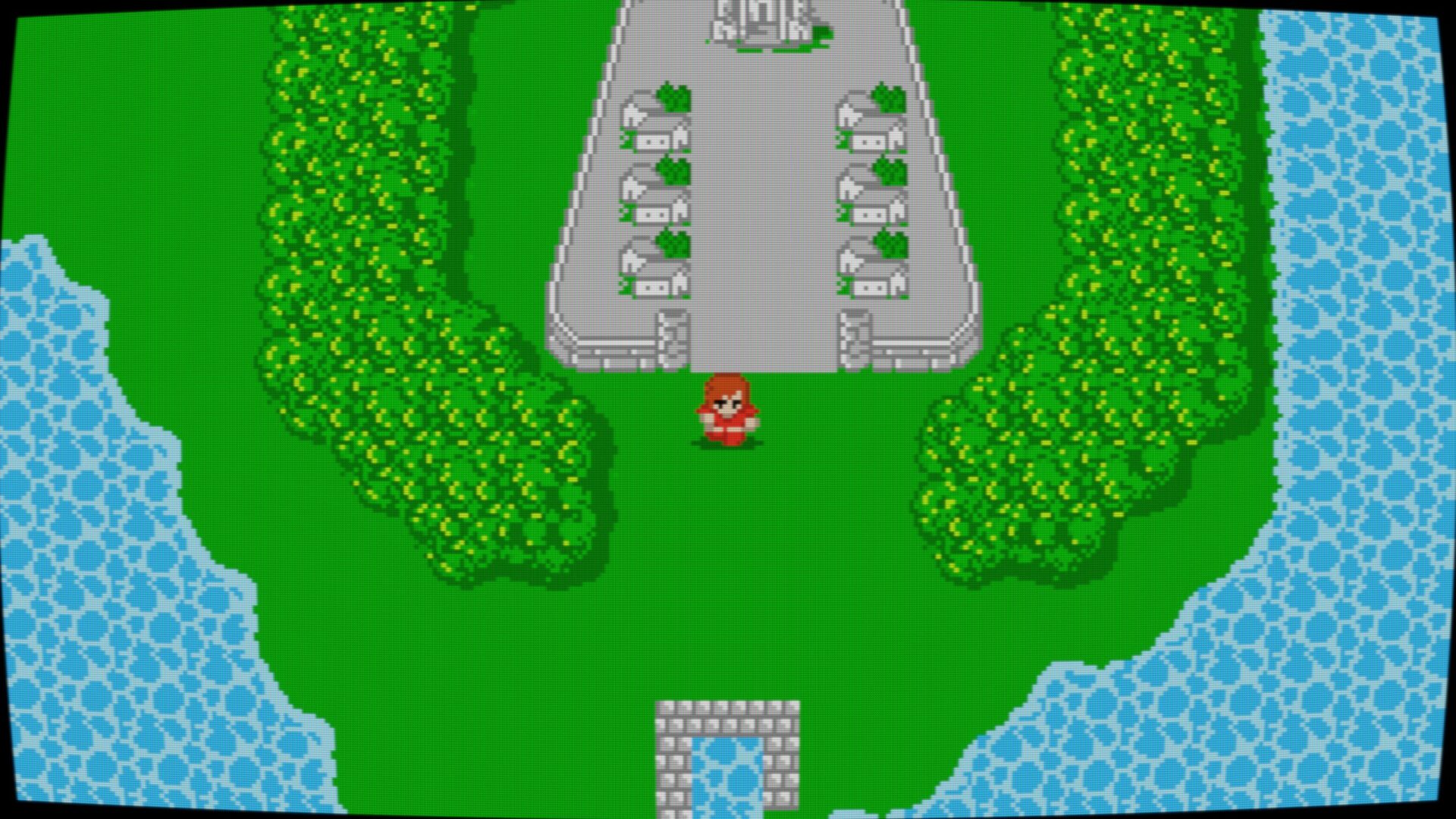

A proper port of CRTLottes, based on ReShade’s RetroArch port. Everything works as intended. Tested using ForwardPlus.

Shader code
//
// PUBLIC DOMAIN CRT STYLED SCAN-LINE SHADER
//
//   by Timothy Lottes
//
// This is more along the style of a really good CGA arcade monitor.
// With RGB inputs instead of NTSC.
// The shadow mask example has the mask rotated 90 degrees for less chromatic aberration.
//
// Left it unoptimized to show the theory behind the algorithm.
//
// It is an example what I personally would want as a display option for pixel art games.
// Please take and use, change, or whatever.
//
shader_type canvas_item;

uniform vec2 screen_size;
uniform vec2 viewport_size;
uniform float hardScan:hint_range(-20.0, 0.0, 1.0)=-8.0;
uniform float hardPix:hint_range(-20.0, 0.0, 1.0)=-3.0;
uniform float warpX:hint_range(0.0, 0.125, 0.001)=0.031;
uniform float warpY:hint_range(0.0, 0.125, 0.001)=0.041;
uniform float maskDark:hint_range(0.0, 2.0, 0.1)=0.5;
uniform float maskLight:hint_range(0.0, 2.0, 0.1)=1.5;
uniform bool scaleInLinearGamma=true;
uniform int shadowMask:hint_range(0, 4, 1)=3;
uniform float brightBoost:hint_range(0.0, 2.0, 0.05)=1.0;
uniform float hardBloomPix:hint_range(-2.0, -0.5, 0.1)=-1.5;
uniform float hardBloomScan:hint_range(-4.0, -1.0, 0.1)=-2.0;
uniform float bloomAmount:hint_range(0.0, 1.0, 0.05)=0.15;
uniform float shape:hint_range(0.0, 10.0, 0.05)=2.0;
uniform bool doBloom=true;

uniform sampler2D CRTBackBuffer:hint_screen_texture;

#define warp vec2(warpX,warpY)

float ToLinear1(float c)
{
	if (scaleInLinearGamma==false) {return c;}
	return(c<=0.04045)?c/12.92:pow((c+0.055)/1.055,2.4);
}
vec3 ToLinear(vec3 c)
{
	if (scaleInLinearGamma==false) {return c;}
	return vec3(ToLinear1(c.r),ToLinear1(c.g),ToLinear1(c.b));
}
float ToSrgb1(float c)
{
	if (scaleInLinearGamma==false) {return c;}
	return (c<0.0031308?c*12.92:1.055*pow(c,0.41666)-0.055);
}

vec3 ToSrgb(vec3 c)
{
	if (scaleInLinearGamma==false) {return c;}
	return vec3(ToSrgb1(c.r),ToSrgb1(c.g),ToSrgb1(c.b));
}
vec3 Fetch(vec2 pos,vec2 off){
  vec2 res = screen_size;
  pos=(floor(pos*res.xy+off)+vec2(0.5,0.5))/res.xy;
  if(max(abs(pos.x-0.5),abs(pos.y-0.5))>0.5)return vec3(0.0,0.0,0.0);
  return ToLinear(brightBoost * texture(CRTBackBuffer,pos.xy).rgb);
}

vec2 Dist(vec2 pos){
	vec2 res = screen_size;

	pos=pos*res;
	return -((pos-floor(pos))-vec2(0.5,0.5));
}
float Gaus(float pos,float scale){return exp2(scale*pow(abs(pos),shape));}
vec3 Horz3(vec2 pos,float off){
  vec3 b=Fetch(pos,vec2(-1.0,off));
  vec3 c=Fetch(pos,vec2( 0.0,off));
  vec3 d=Fetch(pos,vec2( 1.0,off));
  float dst=Dist(pos).x;
  // Convert distance to weight.
  float scale=hardPix;
  float wb=Gaus(dst-1.0,scale);
  float wc=Gaus(dst+0.0,scale);
  float wd=Gaus(dst+1.0,scale);
  // Return filtered sample.
  return (b*wb+c*wc+d*wd)/(wb+wc+wd);}

vec3 Horz5(vec2 pos,float off){
  vec3 a=Fetch(pos,vec2(-2.0,off));
  vec3 b=Fetch(pos,vec2(-1.0,off));
  vec3 c=Fetch(pos,vec2( 0.0,off));
  vec3 d=Fetch(pos,vec2( 1.0,off));
  vec3 e=Fetch(pos,vec2( 2.0,off));
  float dst=Dist(pos).x;
  // Convert distance to weight.
  float scale=hardPix;
  float wa=Gaus(dst-2.0,scale);
  float wb=Gaus(dst-1.0,scale);
  float wc=Gaus(dst+0.0,scale);
  float wd=Gaus(dst+1.0,scale);
  float we=Gaus(dst+2.0,scale);
  // Return filtered sample.
  return (a*wa+b*wb+c*wc+d*wd+e*we)/(wa+wb+wc+wd+we);}

vec3 Horz7( vec2 pos,float off){
  vec3 a=Fetch(pos,vec2(-3.0,off));
  vec3 b=Fetch(pos,vec2(-2.0,off));
  vec3 c=Fetch(pos,vec2(-1.0,off));
  vec3 d=Fetch(pos,vec2( 0.0,off));
  vec3 e=Fetch(pos,vec2( 1.0,off));
  vec3 f=Fetch(pos,vec2( 2.0,off));
  vec3 g=Fetch(pos,vec2( 3.0,off));
  float dst=Dist(pos).x;
  // Convert distance to weight.
  float scale=hardBloomPix;
  float wa=Gaus(dst-3.0,scale);
  float wb=Gaus(dst-2.0,scale);
  float wc=Gaus(dst-1.0,scale);
  float wd=Gaus(dst+0.0,scale);
  float we=Gaus(dst+1.0,scale);
  float wf=Gaus(dst+2.0,scale);
  float wg=Gaus(dst+3.0,scale);
  // Return filtered sample.
  return (a*wa+b*wb+c*wc+d*wd+e*we+f*wf+g*wg)/(wa+wb+wc+wd+we+wf+wg);}

float Scan(vec2 pos,float off){
  float dst=Dist(pos).y;
  return Gaus(dst+off,hardScan);}

float BloomScan(vec2 pos,float off){
  float dst=Dist(pos).y;
  return Gaus(dst+off,hardBloomScan);}

vec3 Tri(vec2 pos){
  vec3 a=Horz3(pos,-1.0);
  vec3 b=Horz5(pos, 0.0);
  vec3 c=Horz3(pos, 1.0);
  float wa=Scan(pos,-1.0);
  float wb=Scan(pos, 0.0);
  float wc=Scan(pos, 1.0);
  return a*wa+b*wb+c*wc;}

vec3 Bloom(vec2 pos){
  vec3 a=Horz5(pos,-2.0);
  vec3 b=Horz7(pos,-1.0);
  vec3 c=Horz7(pos, 0.0);
  vec3 d=Horz7(pos, 1.0);
  vec3 e=Horz5(pos, 2.0);
  float wa=BloomScan(pos,-2.0);
  float wb=BloomScan(pos,-1.0);
  float wc=BloomScan(pos, 0.0);
  float wd=BloomScan(pos, 1.0);
  float we=BloomScan(pos, 2.0);
  return a*wa+b*wb+c*wc+d*wd+e*we;}

vec2 Warp(vec2 pos){
  pos=pos*2.0-1.0;
  pos*=vec2(1.0+(pos.y*pos.y)*warp.x,1.0+(pos.x*pos.x)*warp.y);
  return pos*0.5+0.5;}

vec3 Mask(vec2 pos){
  vec3 mask=vec3(maskDark,maskDark,maskDark);

  // Very compressed TV style shadow mask.
  if (shadowMask == 1) {
    float sline=maskLight;
    float odd=0.0;
    if(fract(pos.x/6.0)<0.5)odd=1.0;
    if(fract((pos.y+odd)/2.0)<0.5)sline=maskDark;
    pos.x=fract(pos.x/3.0);

    if(pos.x<0.333)mask.r=maskLight;
    else if(pos.x<0.666)mask.g=maskLight;
    else mask.b=maskLight;
    mask*=sline;
  }

  // Aperture-grille.
  else if (shadowMask == 2) {
    pos.x=fract(pos.x/3.0);

    if(pos.x<0.333)mask.r=maskLight;
    else if(pos.x<0.666)mask.g=maskLight;
    else mask.b=maskLight;
  }

  // Stretched VGA style shadow mask (same as prior shaders).
  else if (shadowMask == 3) {
    pos.x+=pos.y*3.0;
    pos.x=fract(pos.x/6.0);

    if(pos.x<0.333)mask.r=maskLight;
    else if(pos.x<0.666)mask.g=maskLight;
    else mask.b=maskLight;
  }

  // VGA style shadow mask.
  else if (shadowMask == 4) {
    pos.xy=floor(pos.xy*vec2(1.0,0.5));
    pos.x+=pos.y*3.0;
    pos.x=fract(pos.x/6.0);

    if(pos.x<0.333)mask.r=maskLight;
    else if(pos.x<0.666)mask.g=maskLight;
    else mask.b=maskLight;
  }

  return mask;}

void fragment(){
	vec2 ppos=Warp(UV.xy*(screen_size/viewport_size)*(viewport_size/screen_size));
	vec3 outColor=Tri(ppos);

	if (doBloom==true) {outColor.rgb+=(Bloom(ppos)*bloomAmount);}
	outColor.rgb;
	if (shadowMask>=0){outColor.rgb*=(Mask(floor(UV.xy*(screen_size/viewport_size)/SCREEN_PIXEL_SIZE)+vec2(0.5,0.5)));}
	outColor.rgb;

	COLOR = (vec4(ToSrgb(outColor.rgb),1.0));
}
Tags
CRT, CRTLottes, Lottes
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
