Dance Floor Shader

TaphouseGames

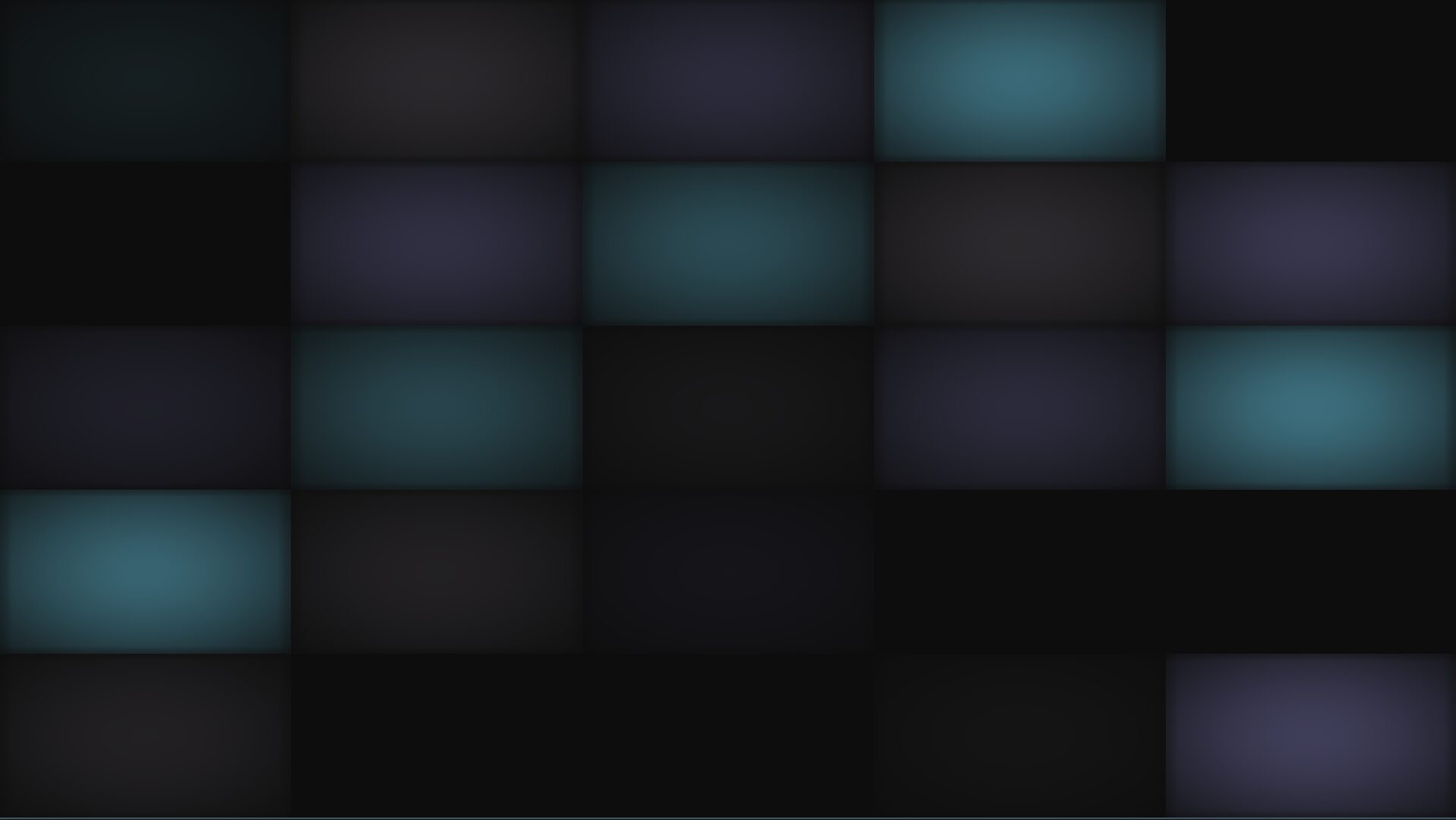

This is the shader I use in my game Midnight at the Disco. Inspired by NRX’s Dance Floor shader on Shader Toy.

Get demo project
Shader code
shader_type canvas_item;

const float TWO_PI = 6.283185307179586;

uniform float grid_size : hint_range(1.0, 100.0) = 15.0;
uniform float tile_speed : hint_range(0.1, 10.0) = 2.0;
uniform vec4 color1 : hint_color = vec4(0.62, 0.14, 0.0, 1.0);
uniform vec4 color2 : hint_color = vec4(0.93, 0.54, 1.0, 1.0);
uniform vec4 color3 : hint_color = vec4(0.36, 0.29, 0.41, 1.0);

vec2 grid(in vec2 uv, in float size) {
    return fract(uv * size);
}

float random (vec2 uv) {
    return fract(sin(dot(uv.xy, vec2(12.9898,78.233))) * 43758.5453123);
}

vec3 getColor(in vec2 coord, in vec2 tile_coord) {
    float tile_mod = mod(tile_coord.x + tile_coord.y, 3.0);

    if (tile_mod == 1.0) {
        return color1.rgb;
    } else if (tile_mod == 2.0) {
        return color2.rgb;
    }

    return color3.rgb;
}

void fragment() {
    vec2 res = 1.0 / SCREEN_PIXEL_SIZE;
    vec2 frag = (2.0 * FRAGCOORD.xy - res.xy) / res.y;

    frag = grid(UV, grid_size);
    vec2 tile_coord = floor(UV*grid_size);

    vec3 color = getColor(frag, tile_coord);
    vec2 black = smoothstep(1.08, 0.95, cos(frag * TWO_PI));

    color *= black.x * black.y * smoothstep(1.0, 0.0, length(fract(frag) - 0.5));
    color *= 0.1 + 0.5 * cos(random(floor(UV*grid_size)) * TIME * tile_speed);

    COLOR = vec4(color, 1.0);
}
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.

Related shaders

Canvas item136

Simple rain/snow shader

Canvas item113

Mana Resource Orb Shader

Canvas item10

Port of “An introduction to Shader Art Coding” by kishimisu

Subscribe
Notify of
guest

2 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
TaphouseGames
TaphouseGames
5 months ago

Here is a modified version which would make the grid tile either the player position or mouse position is on green. So for the mouse position in your GDScript do something like:

var normalized_pos: Vector2 = Vector2(get_viewport().get_mouse_position().x / get_viewport_rect().size.x, (get_viewport().get_mouse_position().y) / get_viewport_rect().size.y);

material.set_shader_param(“player_position”, normalized_pos);
And then modify the shader like this:

shader_type canvas_item;

const float TWO_PI = 6.283185307179586;

uniform float grid_size : hint_range(1.0, 100.0) = 15.0;

uniform float tile_speed : hint_range(0.1, 10.0) = 2.0;

uniform vec4 color1 : hint_color = vec4(0.62, 0.14, 0.0, 1.0);

uniform vec4 color2 : hint_color = vec4(0.93, 0.54, 1.0, 1.0);

uniform vec4 color3 : hint_color = vec4(0.36, 0.29, 0.41, 1.0);

uniform vec2 player_position = vec2(-1.0, -1.0);

vec2 grid(in vec2 uv, in float size) {

return fract(uv * size);

}

float random (vec2 uv) {

  return fract(sin(dot(uv.xy,

    vec2(12.9898,78.233))) * 43758.5453123);

}

vec3 getColor(in vec2 coord, in vec2 tile_coord) {

  float tile_mod = mod(tile_coord.x + tile_coord.y, 3.0);

if (tile_mod == 1.0) {

return color1.rgb;

} else if (tile_mod == 2.0) {

return color2.rgb;

}


return color3.rgb;

}

void fragment() {

vec2 res = 1.0 / SCREEN_PIXEL_SIZE;

vec2 frag = (2.0 * FRAGCOORD.xy – res.xy) / res.y;

frag = grid(UV, grid_size);

vec2 tile_coord = floor(UV*grid_size);

vec2 player_coord = floor(player_position*grid_size);
if (tile_coord == player_coord) {

COLOR = vec4(0.3, 0.7, 0.0, 0.2);

}

else {

vec3 color = getColor(frag, tile_coord);

  vec2 black = smoothstep(1.08, 0.95, cos(frag * TWO_PI));

  color *= black.x * black.y * smoothstep(1.0, 0.0, length(fract(frag) – 0.5));

  color *= 0.1 + 0.5 * cos(random(floor(UV*grid_size)) * TIME * tile_speed);

  COLOR = vec4(color, 1.0);

}
}

Last edited 5 months ago by TaphouseGames
0
Reply
rhingel
rhingel
5 months ago

If you would like to use a Godot 4 version for this script, here’s my take on the updated script:

shader_type canvas_item;


const float TWO_PI = 6.283185307179586;


uniform float grid_size = 15.0;
uniform float tile_speed = 2.0;
uniform vec4 color1 = vec4(0.62, 0.14, 0.0, 1.0);
uniform vec4 color2 = vec4(0.93, 0.54, 1.0, 1.0);
uniform vec4 color3 = vec4(0.36, 0.29, 0.41, 1.0);


vec2 grid(in vec2 uv, in float size) {
    return fract(uv * size);
}


float random (vec2 uv) {
    return fract(sin(dot(uv.xy, vec2(12.9898,78.233))) * 43758.5453123);
}


vec3 getColor(in vec2 coord, in vec2 tile_coord) {
    float tile_mod = mod(tile_coord.x + tile_coord.y, 3.0);


    if (tile_mod == 1.0) {
        return color1.rgb;
    } else if (tile_mod == 2.0) {
        return color2.rgb;
    }

    return color3.rgb;
}


void fragment() {
    vec2 res = 1.0 / SCREEN_PIXEL_SIZE;
    vec2 frag = (2.0 * FRAGCOORD.xy - res.xy) / res.y;


    frag = grid(UV, grid_size);
    vec2 tile_coord = floor(UV*grid_size);


    vec3 color = getColor(frag, tile_coord);
    vec2 black = smoothstep(1.08, 0.95, cos(frag * TWO_PI));


    color *= black.x * black.y * smoothstep(1.0, 0.0, length(fract(frag) - 0.5));
    color *= 0.1 + 0.5 * cos(random(floor(UV*grid_size)) * TIME * tile_speed);


    COLOR = vec4(color, 1.0);
}
