Dilate screen effect

Dilate screen effect.

How to use:
– Create a CanvasLayer and put a ColorRect inside
– Create a ShaderMaterial and use this shader
– Assign that material to the ColorRect

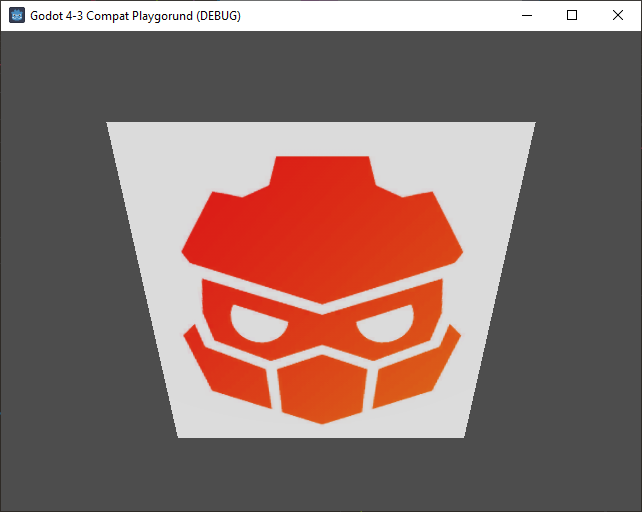

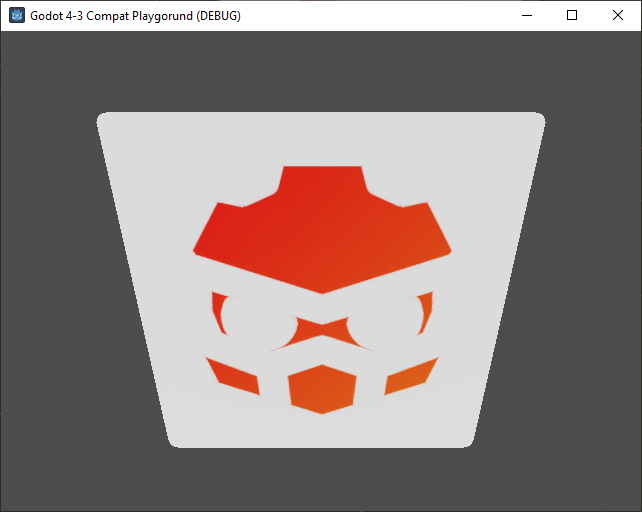

Attached screenshots show the effect on/off

Shader code

shader_type canvas_item;

#define USE_CIRCLE_SHAPE 1

uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, repeat_disable, filter_nearest;

uniform float radius : hint_range(1, 10, 1) = 5;

void fragment() {

	// sample radius*radius values and find max light value
	float max_light = 0.0;
	vec4 max_color = vec4(0.0, 0.0, 0.0, 1.0);
	vec2 center = vec2(0, 0);
	for (float i = -radius; i <= radius; i++) {
		for (float j = -radius; j <= radius; j++) {
			vec2 sample_uv = vec2(i, j);

#if USE_CIRCLE_SHAPE
			// be sure its a circle
			if (distance(sample_uv, center) > radius) {
				continue;
			}
#endif

			// sample
			vec4 color = texture(SCREEN_TEXTURE, SCREEN_UV + sample_uv * SCREEN_PIXEL_SIZE);

			// convert to grayscale
			float gray = (color.r * 0.299) + (color.g * 0.587) + (color.b * 0.114);

			// max value?
			if (gray > max_light) {
				max_light = gray;
				max_color = color;
			}
		}
	}

	// set max light color as current one
	COLOR = max_color;
}
