Dissolve/Add details Pixel Art

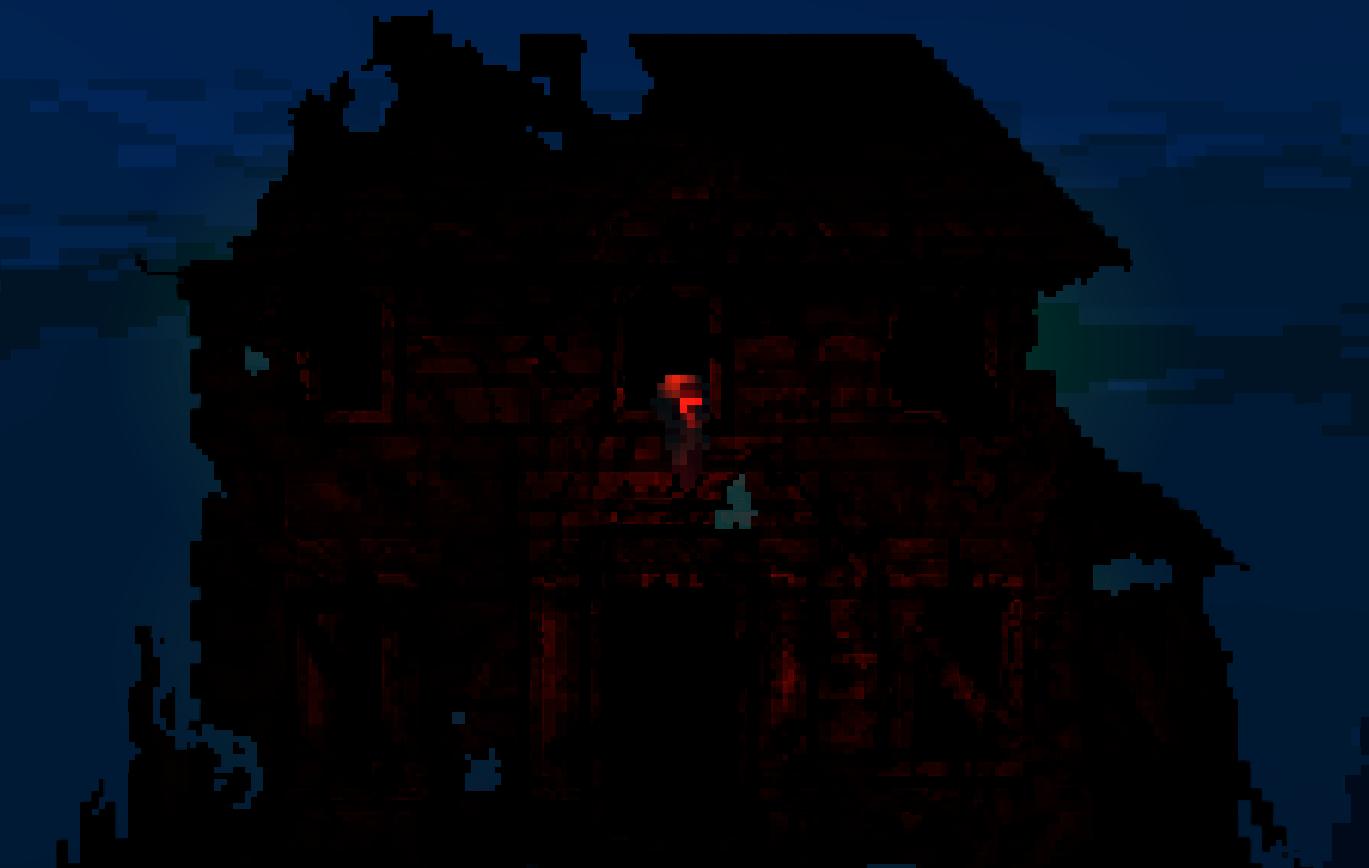

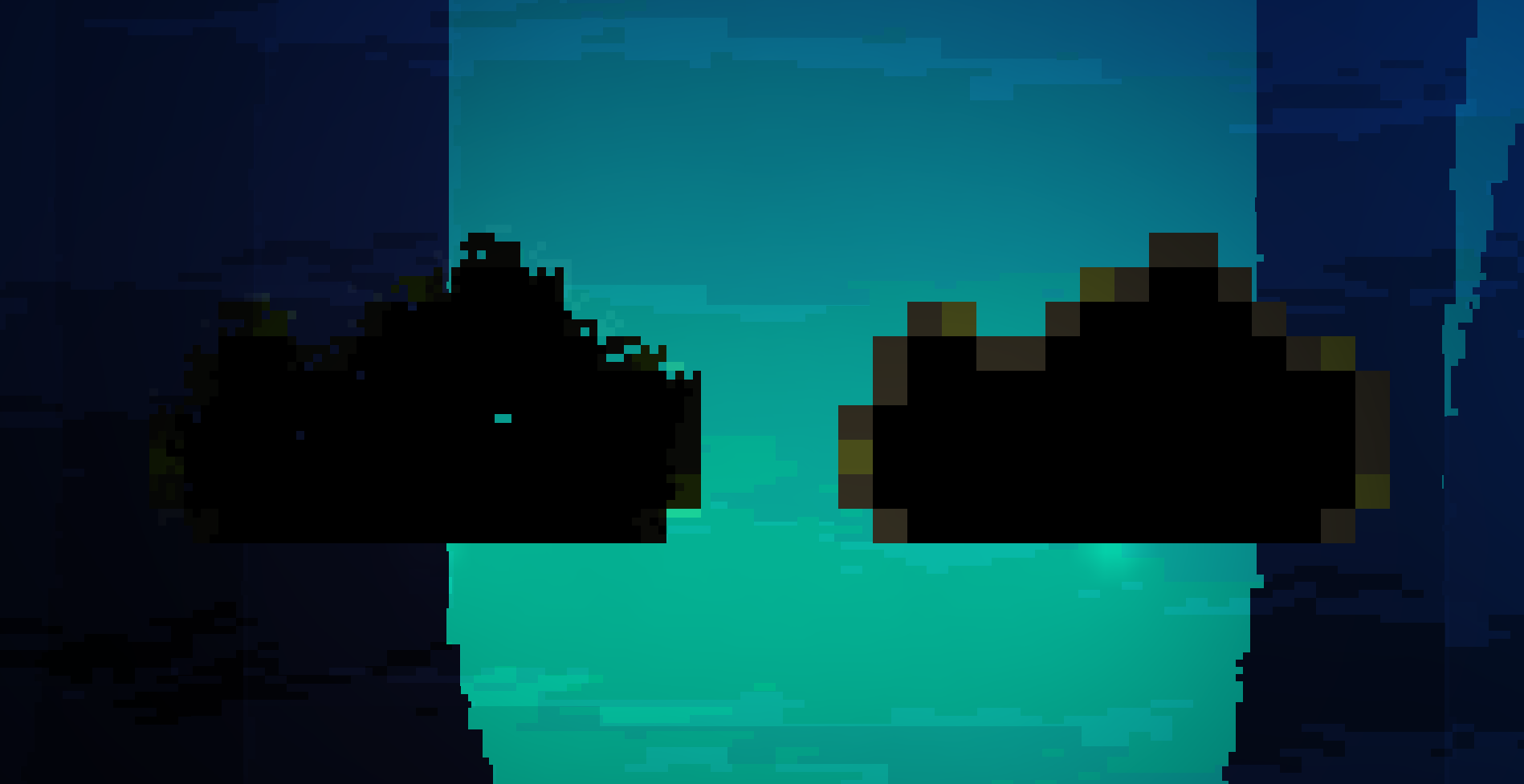

This stylized dissolve shader for 2D pixel art combines pixelation with directional distortion, creating a unique, dynamic transition effect. The shader uses a noise normal map to distort the sprite’s texture based on the progress uniform, allowing for smooth dissolving or revealing of the sprite.

Key Features:

• Light2D Support: Fully compatible with dynamic lighting for pixel art scenes.

• CanvasModulate & Modulate: Supports global tint and node color modulation, including transparency effects.

• Blend Premultiplied Alpha: Ensures correct blending with lighting and transparency for a clean dissolve effect.

Ideal for magical fades, teleportation effects, digital glitches, or dramatic transitions in pixel-art games. This shader can add visual impact to any game, particularly those with 2D pixel art aesthetics.

Shader code

shader_type canvas_item;
render_mode blend_premul_alpha;


uniform sampler2D noise_tex_normal;
uniform sampler2D noise_tex;
uniform float progress : hint_range(0.0, 1.0) = 0.0;
uniform float strength = 1.0;
uniform float pixel_count : hint_range(1.0, 512.0) = 64.0;
uniform float alpha_threshold : hint_range(0.0, 1.0) = 0.1;


void fragment() {
    // Pixelation
    float pixel_size = 1.0 / pixel_count;
    vec2 pixel_uv = floor(UV / pixel_size) * pixel_size;

    // Distortion
    vec2 direction = texture(noise_tex_normal, pixel_uv).xy;
    direction = (direction - 0.5) * 2.0;
    direction *= strength * progress;
    vec2 distorted_uv = pixel_uv - direction;

    // Base texture
    vec4 tex = texture(TEXTURE, distorted_uv);

    // Discard almost transparent pixels to avoid mess
    if (tex.a < alpha_threshold) {
        discard;
    }

    // Dissolve
    float dissolve = texture(noise_tex, pixel_uv).x;
    dissolve = step(progress, dissolve);
    tex.a *= dissolve;

    // Apply light/modulation
    COLOR = tex * COLOR;
}
