Easy Pixel Planet
Allows users to upload a world map and have it added to a spinning ball with little friction.
0. Apply shader to shader mat on a color rect.
- If you want a consisent rocky terrain upload a full planet map to Earth Texture, e.g. earth or mars (needs a minor crop before use). Use a map with a 2:1 aspect ratio (e.g., 2048×1024 pixels). Check use texture surface. If you are making a gas planet skip this step
- Set Surface palette to be a 1d graident using constant interpolation. Give it the colors you want used to make your planet. I use ~4 on gas giants and ~16 on rocky planets
- if making a gas giant, enable secondary and teriary surfaces and mess with their settings to find something you like.
- Set cloud textures and pallets like you would the ground texture. If using a texture make sure that area you don’t want cloud covered is transparent, not just black like on this NASA image.
Mild seeming still can happen but has been signifigantly reduced. Check your image for any kind of border if you are getting a weird vertical black line.
This project is heavily based on/forked from : https://godotshaders.com/shader/animated-pixel-art-planet/

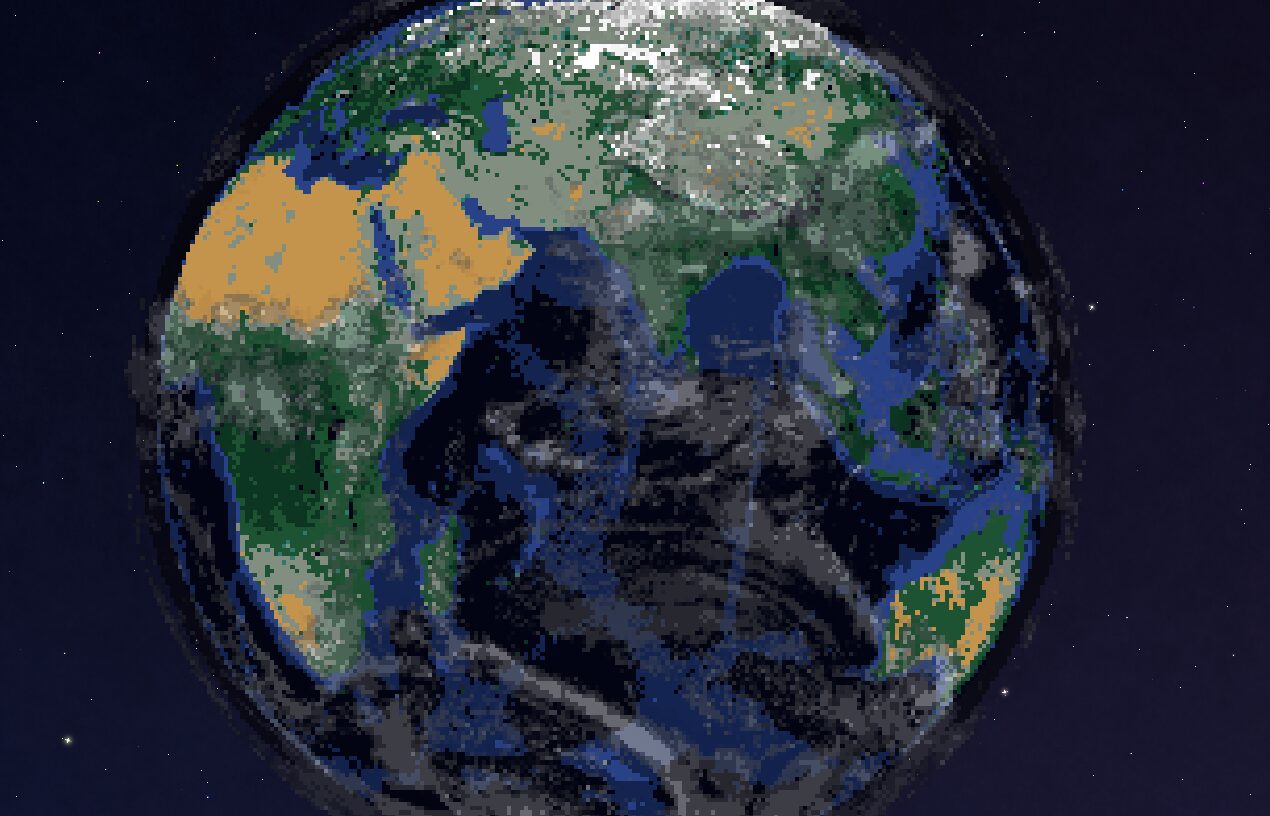

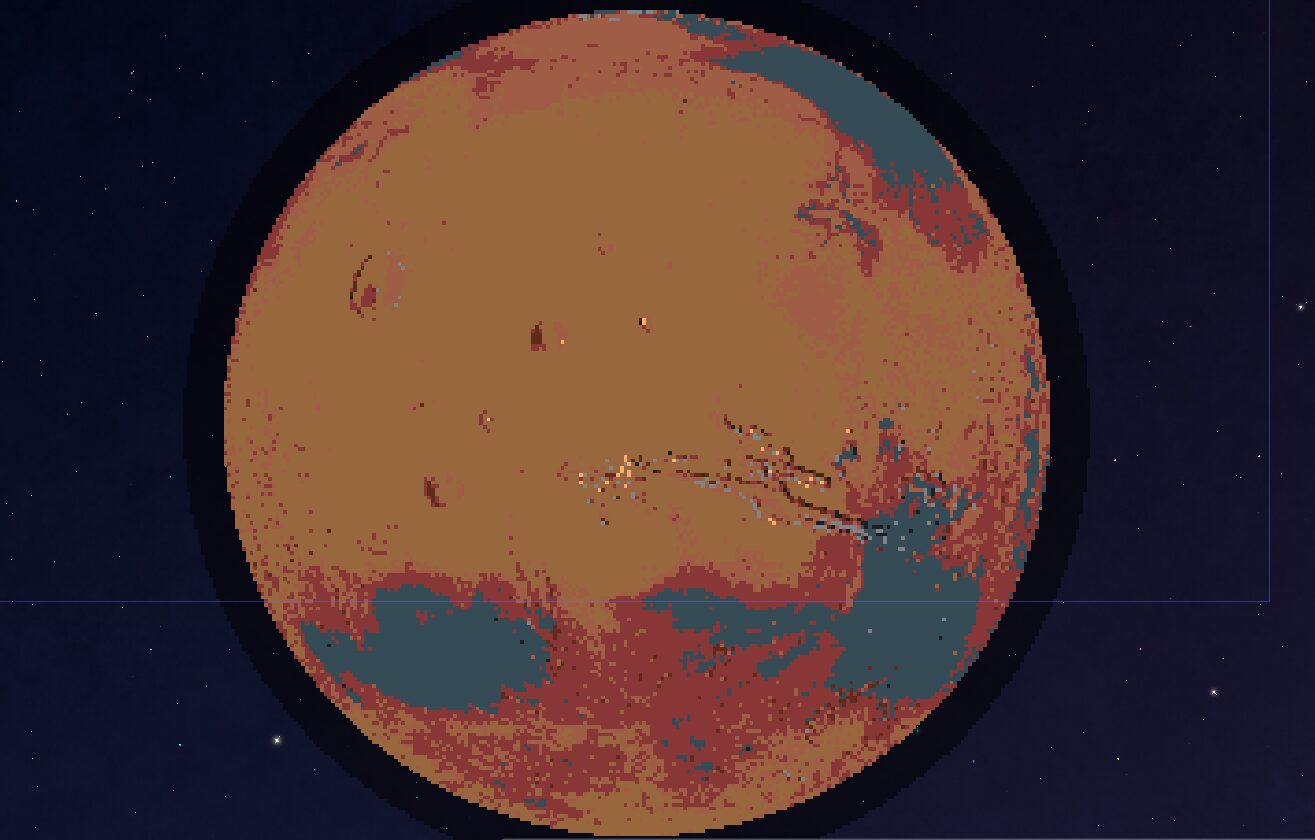

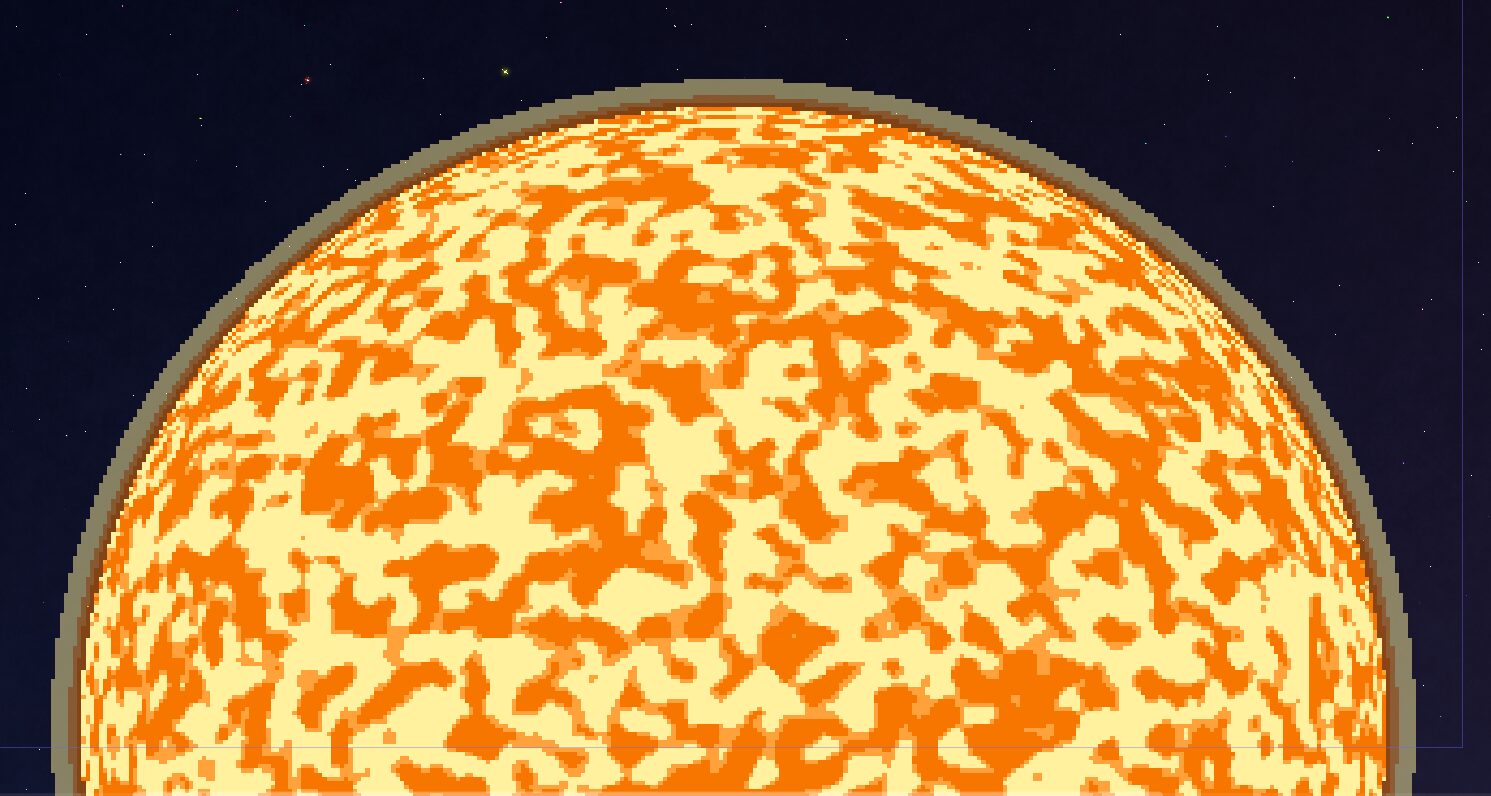

Stars in background of screenshots: https://godotshaders.com/shader/2d-starfield-in-the-sky-with-scrolling-effect-ver-1-0/
Used Claude AI and Gemini
Shader code
shader_type canvas_item;
render_mode unshaded;
const int SHADING_MODE_NONE = 0;
const int SHADING_MODE_SMOOTH = 1;
const int SHADING_MODE_QUANT = 2;
const int SHADING_MODE_DITHER = 3;
const int SHADING_MODE_MAX = 4;
const float COLOUR_ESTIMATION_CUTOFF = 0.001;
// This should usually be set to the side of the rect that is displaying the
// planet, to match the size of pixels of sprites.
uniform float pixel_scale = 360.0;
//// Surface Generation Mode
uniform bool use_texture_surface = false; // false = procedural (gas giant), true = image-based (Earth)
uniform bool use_texture_clouds = false; // false = procedural clouds, true = image-based clouds
//// Surface
uniform float surface_radius : hint_range(0.01, 0.5, 0.001) = .3;
// Image-based surface (Earth mode)
uniform sampler2D earth_texture : filter_linear, hint_default_white;
// Palette for the surface - works for both modes
// Default: 16 color gradient for Earth (blues, greens, browns, whites)
// For gas giants: Use oranges, reds, browns for Jupiter-like, or blues for Neptune-like
uniform sampler2D surface_palette : filter_nearest, hint_default_white;
// Create a default 16-color Earth palette gradient
// Colors go from deep ocean blue -> shallow water -> beach -> grass -> forest -> mountain -> snow
const vec3 DEFAULT_EARTH_PALETTE[16] = vec3[16](
vec3(0.051, 0.110, 0.235), // Deep ocean
vec3(0.078, 0.169, 0.361), // Ocean
vec3(0.110, 0.235, 0.490), // Ocean
vec3(0.157, 0.329, 0.580), // Shallow ocean
vec3(0.235, 0.463, 0.698), // Shallow water
vec3(0.353, 0.580, 0.761), // Very shallow water
vec3(0.761, 0.698, 0.502), // Beach sand
vec3(0.639, 0.580, 0.420), // Dry sand
vec3(0.361, 0.510, 0.282), // Grass green
vec3(0.282, 0.420, 0.235), // Forest green
vec3(0.200, 0.329, 0.169), // Dark forest
vec3(0.420, 0.361, 0.282), // Mountain brown
vec3(0.502, 0.439, 0.361), // Mountain rock
vec3(0.698, 0.698, 0.698), // Mountain grey
vec3(0.878, 0.878, 0.878), // Snow
vec3(1.000, 1.000, 1.000) // Pure snow white
);
uniform vec4 background_colour : source_color = vec4(0., 0., 0., 1.0);
uniform float surface_base_rotation : hint_range(0.0, 6.28, 0.1) = 0.0;
uniform float surface_rotation_speed : hint_range(-1.0, 1.0, 0.001) = 0.0;
// Procedural surface options (for gas giants / sun)
// Primary noise layer (main bands/features)
uniform int surface_primary_cell_amount = 10;
uniform float surface_primary_strength : hint_range(-5.0, 5.0, 0.01) = 1.0;
uniform vec3 surface_primary_period = vec3(9.5, 9.5, 9.5);
// Secondary noise (turbulence/detail)
uniform bool surface_secondary_enabled = false;
uniform int surface_secondary_cell_amount = 20;
uniform float surface_secondary_strength : hint_range(-5.0, 5.0, 0.01) = 0.3;
uniform vec3 surface_secondary_period = vec3(9.5, 9.5, 9.5);
uniform float surface_secondary_rotation : hint_range(0.0, 6.28, 0.1) = 0.0;
uniform float surface_secondary_rotation_speed : hint_range(-1.0, 1.0, 0.001) = 0.0;
// Tertiary noise (fine detail)
uniform bool surface_tertiary_enabled = false;
uniform int surface_tertiary_cell_amount = 30;
uniform float surface_tertiary_strength : hint_range(-5.0, 5.0, 0.01) = 0.3;
uniform vec3 surface_tertiary_period = vec3(9.5, 9.5, 9.5);
uniform float surface_tertiary_rotation : hint_range(0.0, 6.28, 0.1) = 0.0;
uniform float surface_tertiary_rotation_speed : hint_range(-1.0, 1.0, 0.001) = 0.0;
// Band distortion for gas giants
uniform bool use_band_distortion = false;
uniform float band_frequency : hint_range(1.0, 50.0, 0.5) = 10.0;
uniform float band_distortion_strength : hint_range(0.0, 1.0, 0.01) = 0.3;
//// Clouds
uniform bool display_cloud_shadows = true;
uniform float cloud_shadow_darkness : hint_range(0.0, 1.0, 0.05) = 0.25;
// First cloud layer
uniform float cloud_1_cover : hint_range(0.0, 1.0, 0.01) = 0.3;
uniform float cloud_1_radius : hint_range(0.01, 0.5, 0.001) = .32;
// Cloud texture (for image-based clouds)
uniform sampler2D cloud_1_texture : filter_linear, hint_default_transparent;
// Cloud palette - works for both procedural and image modes
// Default: 8 color gradient for clouds (whites and grays)
uniform sampler2D cloud_1_palette: filter_nearest, hint_default_transparent;
const vec3 DEFAULT_CLOUD_PALETTE[8] = vec3[8](
vec3(0.502, 0.502, 0.502), // Dark gray shadow
vec3(0.639, 0.639, 0.639), // Gray
vec3(0.761, 0.761, 0.761), // Light gray
vec3(0.831, 0.831, 0.831), // Lighter gray
vec3(0.878, 0.878, 0.878), // Very light gray
vec3(0.925, 0.925, 0.925), // Almost white
vec3(0.969, 0.969, 0.969), // Near white
vec3(1.000, 1.000, 1.000) // Pure white
);
uniform float cloud_1_rotation_speed : hint_range(-1.0, 1.0, 0.001) = 0.03;
uniform float cloud_1_opacity : hint_range(0.0, 1.0, 0.01) = 0.8;
// Procedural cloud options
uniform int cloud_1_cell_amount = 10;
uniform float cloud_1_fluctuation_speed : hint_range(-1.0, 1.0, 0.001) = 0.03;
uniform vec3 cloud_1_period = vec3(9.5, 9.5, 9.5);
uniform vec3 cloud_1_secondary_period = vec3(9.5, 9.5, 9.5);
uniform int cloud_1_secondary_cell_amount = 10;
uniform float cloud_1_secondary_strength : hint_range(-1.0, 1.0, 0.01) = 0.3;
// Second cloud layer
uniform float cloud_2_cover : hint_range(0.0, 1.0, 0.01) = 0.0;
uniform float cloud_2_radius : hint_range(0.01, 0.5, 0.001) = .34;
uniform sampler2D cloud_2_texture : filter_linear, hint_default_transparent;
uniform sampler2D cloud_2_palette: filter_nearest, hint_default_transparent;
uniform float cloud_2_rotation_speed : hint_range(-1.0, 1.0, 0.001) = -0.02;
uniform float cloud_2_opacity : hint_range(0.0, 1.0, 0.01) = 0.5;
// Procedural options for cloud 2
uniform int cloud_2_cell_amount = 10;
uniform float cloud_2_fluctuation_speed : hint_range(-1.0, 1.0, 0.001) = 0.03;
uniform vec3 cloud_2_period = vec3(9.5, 9.5, 9.5);
uniform vec3 cloud_2_secondary_period = vec3(9.5, 9.5, 9.5);
uniform int cloud_2_secondary_cell_amount = 10;
uniform float cloud_2_secondary_strength : hint_range(-1.0, 1.0, 0.01) = 0.3;
//// Atmosphere
uniform float atmosphere_radius : hint_range(0.01, 0.5, 0.001) = .34;
uniform sampler2D atmosphere_palette : filter_nearest, hint_default_transparent;
//// Posterisation
uniform bool posterise = false;
uniform sampler2D posterisation_palette : filter_nearest, hint_default_black;
//// Light/shading
uniform int shading_mode : hint_enum(
"None",
"Smooth",
"Quantised",
"Dithered",
"Max Brightness"
) = 2;
uniform float maximum_brightness : hint_range(0.0, 10.0, 0.1) = 1.0;
uniform float sun_strength = 2.0;
uniform float shade_transition = 10.0;
uniform float shade_step = 8.0;
uniform vec3 sun_direction = vec3(1.0, 0.2, -0.3);
uniform sampler2D dither_texture : filter_nearest;
uniform int dither_levels = 0;
// Noise for shading variation
uniform int shading_noise_cell_amount = 40;
uniform float shading_noise_strength : hint_range(-1.0, 1.0, 0.01) = 0.1;
uniform vec3 shading_noise_period = vec3(9.5, 9.5, 9.5);
// modulo function that returns positive wrapped values
vec3 modulo(vec3 divident, vec3 divisor){
vec3 positiveDivident = mod(divident, divisor) + divisor;
return mod(positiveDivident, divisor);
}
// 3D pseudo random number generator
vec3 random(vec3 value){
vec3 return_value = vec3( dot(value, vec3(127.1,311.7, 201.9) ),
dot(value, vec3(269.5,183.3, 367.7) ),
dot(value, vec3(245.1,367.7, 105.6) ) );
return -1.0 + 2.0 * fract(sin(return_value) * 43758.5453123);
}
// Calculate z-position of sphere surface
float calculate_z(vec2 uv, float radius) {
float w = sqrt(pow(radius, 2.) - pow(uv.x - .5, 2.) - pow(uv.y - .5, 2.));
return w;
}
// construct rotation matrix
mat3 generate_rotation_matrix(float theta) {
vec3 rot_1 = vec3(
.5*(1.-cos(theta)) + cos(theta),
.5*(1.-cos(theta)),
-(1./sqrt(2))*sin(theta)
);
vec3 rot_2 = vec3(
.5*(1.-cos(theta)),
.5*(1.-cos(theta)) + cos(theta),
(1./sqrt(2))*sin(theta)
);
vec3 rot_3 = vec3(
(1./sqrt(2))*sin(theta),
-(1./sqrt(2))*sin(theta),
cos(theta)
);
return mat3(rot_1, rot_2, rot_3);
}
// Put the UV on a pixel grid
vec2 calculate_grid_uv(vec2 uv) {
return round(uv * pixel_scale) / pixel_scale;
}
// Get a default palette color if no texture is provided
vec3 get_default_palette_color(int index, bool is_cloud) {
if (is_cloud) {
int clamped = clamp(index, 0, 7);
return DEFAULT_CLOUD_PALETTE[clamped];
} else {
int clamped = clamp(index, 0, 15);
return DEFAULT_EARTH_PALETTE[clamped];
}
}
// Return the colour from a palette that most closely matches target
vec3 get_nearest_colour(in sampler2D palette, in vec3 target, bool is_cloud) {
ivec2 palette_size = textureSize(palette, 0);
// Use default palette if texture is too small
if (palette_size.x <= 1 || palette_size.y <= 1) {
float min_dist = 2.0;
vec3 closest_color = background_colour.rgb;
int palette_length = is_cloud ? 8 : 16;
for (int i = 0; i < palette_length; i++) {
vec3 index_color = get_default_palette_color(i, is_cloud);
float dist = length(index_color - target);
if (dist < min_dist) {
min_dist = dist;
closest_color = index_color;
if (min_dist < COLOUR_ESTIMATION_CUTOFF){
return closest_color;
}
}
}
return closest_color;
}
// Use provided palette texture
vec3 closest_color = background_colour.rgb;
float min_dist = 2.0;
for (int row = 0; row < palette_size.y; row++) {
float yuv = 1.0 / (2.0 * float(palette_size.y)) + float(row) / float(palette_size.y);
for (int column = 0; column < palette_size.x; column++){
float xuv = 1.0 / (2.0 * float(palette_size.x)) + float(column) / float(palette_size.x);
vec3 index_color = texture(palette, vec2(xuv,yuv)).rgb;
float dist = length(index_color - target);
if (dist < min_dist) {
min_dist = dist;
closest_color = index_color;
if (min_dist < COLOUR_ESTIMATION_CUTOFF){
return closest_color;
}
}
}
}
return closest_color;
}
// Get dithering value
float get_leveled_dither(int level, vec2 uv) {
ivec2 texture_size = textureSize(dither_texture, 0);
int level_width = texture_size.x / dither_levels;
float pattern_x = mod(uv.x * pixel_scale, float(level_width));
pattern_x = pattern_x + float(level_width * level);
float duvx = pattern_x / float(texture_size.x);
float duvy = round(
mod(uv.y * pixel_scale, float(texture_size.y))
) / float(texture_size.y);
vec2 dither_uv = vec2(duvx, duvy);
return 1.0 - texture(dither_texture, dither_uv).a;
}
// Get color from palette by index
vec4 get_colour_by_index(sampler2D palette, int index, bool is_cloud) {
ivec2 palette_size = textureSize(palette, 0);
// Use default palette if texture is too small
if (palette_size.x <= 1 || palette_size.y < 1) {
vec3 color = get_default_palette_color(index, is_cloud);
return vec4(color, 1.0);
}
// Use first row only for simplified palette
float uvx = (1.0 / float(palette_size.x + 1)) * (float(index + 1));
float uvy = 1.0 / (2.0 * float(palette_size.y));
return texture(palette, vec2(uvx, uvy));
}
// Seamless noise function
float seamless_noise(vec2 uv, float w, vec3 _period, mat3 rot_p, int cell_amount) {
vec3 uvw = rot_p * vec3(uv, w);
uvw = vec3(uvw * float(cell_amount));
vec3 cells_minimum = floor(uvw);
vec3 cells_maximum = ceil(uvw);
vec3 uvw_fract = fract(uvw);
cells_minimum = modulo(cells_minimum, _period);
cells_maximum = modulo(cells_maximum, _period);
vec3 blur = smoothstep(0.3, 1.0, uvw_fract);
vec3 p_000 = random(vec3(cells_minimum.x, cells_minimum.y, cells_minimum.z));
vec3 p_100 = random(vec3(cells_maximum.x, cells_minimum.y, cells_minimum.z));
vec3 p_010 = random(vec3(cells_minimum.x, cells_maximum.y, cells_minimum.z));
vec3 p_110 = random(vec3(cells_maximum.x, cells_maximum.y, cells_minimum.z));
vec3 p_001 = random(vec3(cells_minimum.x, cells_minimum.y, cells_maximum.z));
vec3 p_101 = random(vec3(cells_maximum.x, cells_minimum.y, cells_maximum.z));
vec3 p_011 = random(vec3(cells_minimum.x, cells_maximum.y, cells_maximum.z));
vec3 p_111 = random(vec3(cells_maximum.x, cells_maximum.y, cells_maximum.z));
return mix(mix( mix( dot( p_000, uvw_fract - vec3(0, 0, 0) ),
dot( p_100, uvw_fract - vec3(1, 0, 0) ), blur.x),
mix( dot( p_010, uvw_fract - vec3(0, 1, 0) ),
dot( p_110, uvw_fract - vec3(1, 1, 0) ), blur.x), blur.y),
mix( mix( dot( p_001, uvw_fract - vec3(0, 0, 1) ),
dot( p_101, uvw_fract - vec3(1, 0, 1) ), blur.x),
mix( dot( p_011, uvw_fract - vec3(0, 1, 1) ),
dot( p_111, uvw_fract - vec3(1, 1, 1) ), blur.x), blur.y), blur.z) * 0.8 + 0.5;
}
// Calculate lighting
float calculate_light(vec2 grid_uv, float radius) {
if (shading_mode == SHADING_MODE_NONE) {
return 1.0;
} else if (shading_mode == SHADING_MODE_MAX) {
return maximum_brightness;
}
vec2 normalized_uv = (grid_uv - vec2(0.5)) / radius;
vec3 sphere_point = vec3(
normalized_uv.x,
sqrt(max(0.0, 1.0 - dot(normalized_uv, normalized_uv))),
normalized_uv.y
);
float light = dot(
normalize(sphere_point),
normalize(sun_direction)
);
float brightness_cap = maximum_brightness / sun_strength;
if (shading_noise_strength != 0.0) {
float w = calculate_z(grid_uv, radius);
float noise = seamless_noise(
grid_uv,
w,
shading_noise_period,
mat3(1.0),
shading_noise_cell_amount
);
if (!isnan(light)) {
light = clamp(
light + ((noise - 0.5) * shading_noise_strength),
0.0,
1.0
);
}
}
if (shading_mode == SHADING_MODE_SMOOTH) {
light = sun_strength * min(
brightness_cap,
(light * shade_transition) / shade_step
);
} else if (shading_mode == SHADING_MODE_QUANT) {
light = sun_strength * min(
brightness_cap,
floor(light * shade_transition) / shade_step
);
} else if (shading_mode == SHADING_MODE_DITHER) {
light = sun_strength * min(
brightness_cap,
(light * shade_transition) / shade_step
);
for (int level = 0; level < dither_levels; level++) {
float cutoff = float(level + 1) * (1.0 / float(dither_levels));
if (light <= cutoff) {
light = maximum_brightness * get_leveled_dither(level, grid_uv);
break;
}
}
}
return light;
}
// Convert UV on sphere to spherical coordinates for texture mapping
vec2 uv_to_spherical(vec2 uv, float radius, float rotation) {
vec2 centered = uv - vec2(0.5);
float dist_from_center = length(centered);
if (dist_from_center > radius) {
return vec2(-1.0);
}
float z = sqrt(radius * radius - dist_from_center * dist_from_center);
vec3 sphere_pos = vec3(centered.x, centered.y, z) / radius;
float theta = atan(sphere_pos.x, sphere_pos.z);
float phi = asin(sphere_pos.y);
float tex_u = (theta + rotation) / (2.0 * 3.14159265359) + 0.5;
float tex_v = phi / 3.14159265359 + 0.5;
tex_u = fract(tex_u);
return vec2(tex_u, tex_v);
}
// Apply surface noise layers
float apply_surface_noise(
float perlin,
vec3 period,
vec2 uv,
float w,
mat3 rot_p,
int cell_amount,
float strength
) {
if (isnan(perlin)) {
return perlin;
}
float noise = seamless_noise(
uv,
w,
period,
rot_p,
cell_amount
);
return clamp(
perlin + ((noise - 0.5) * strength),
0.0,
1.0
);
}
// Generate procedural surface (for gas giants/sun)
vec4 surface_procedural(vec2 uv, mat3 rot_p, mat3 rot_p2, mat3 rot_p3) {
float w = calculate_z(uv, surface_radius);
if (isnan(w)) {
return vec4(0.0);
}
float perlin = seamless_noise(
uv,
w,
surface_primary_period,
rot_p,
surface_primary_cell_amount
);
if (!isnan(perlin)) {
perlin = clamp(
((perlin - 0.5) * surface_primary_strength) + 0.5,
0.0,
1.0
);
}
// Apply band distortion for gas giant effect
if (use_band_distortion && !isnan(perlin)) {
float band = sin((uv.y - 0.5) * band_frequency * 3.14159) * 0.5 + 0.5;
perlin = mix(perlin, band, band_distortion_strength);
}
// Secondary noise layer
if (surface_secondary_enabled) {
perlin = apply_surface_noise(
perlin,
surface_secondary_period,
uv,
w,
rot_p * rot_p2,
surface_secondary_cell_amount,
surface_secondary_strength
);
}
// Tertiary noise layer
if (surface_tertiary_enabled) {
perlin = apply_surface_noise(
perlin,
surface_tertiary_period,
uv,
w,
rot_p * rot_p3,
surface_tertiary_cell_amount,
surface_tertiary_strength
);
}
// Map noise to palette colors
vec4 color = background_colour;
if (!isnan(perlin)) {
ivec2 palette_size = textureSize(surface_palette, 0);
int num_colors = (palette_size.x <= 1) ? 16 : palette_size.x;
int color_index = int(perlin * float(num_colors - 1));
color = get_colour_by_index(surface_palette, color_index, false);
}
// Apply lighting
float light = calculate_light(uv, surface_radius);
color.rgb = color.rgb * light;
return color;
}
// Generate surface from Earth texture
vec4 surface_from_texture(vec2 uv, float rotation) {
float w = calculate_z(uv, surface_radius);
if (isnan(w)) {
return vec4(0.0);
}
vec2 tex_coords = uv_to_spherical(uv, surface_radius, rotation);
if (tex_coords.x < 0.0) {
return vec4(0.0);
}
vec4 earth_color = texture(earth_texture, tex_coords);
// Quantize to palette colors for pixelated effect
earth_color.rgb = get_nearest_colour(surface_palette, earth_color.rgb, false);
// Apply lighting
float light = calculate_light(uv, surface_radius);
earth_color.rgb = earth_color.rgb * light;
return earth_color;
}
// Generate procedural clouds
vec4 clouds_procedural(
float cover,
vec2 uv,
vec3 period,
int cell_amount,
vec3 noise_period,
int noise_cell_amount,
float noise_strength,
mat3 rot_p,
float radius,
sampler2D palette,
float fluctuation_speed,
float opacity,
bool shadow
) {
if (cover == 0.0) {
return vec4(0.0);
}
float w = calculate_z(uv, radius);
if (isnan(w)) {
return vec4(0.0);
}
float theta = TIME * fluctuation_speed;
mat3 rot_0 = mat3(
vec3(1, 0, 0),
vec3(0, cos(theta), -sin(theta)),
vec3(0, sin(theta), cos(theta))
);
float perlin = seamless_noise(
uv,
w,
period,
rot_0*rot_p,
cell_amount
);
float noise = seamless_noise(
uv,
w,
noise_period,
rot_0*rot_p,
noise_cell_amount
);
if (!isnan(perlin)) {
perlin = clamp(
perlin + ((noise - 0.5) * noise_strength),
0.0,
1.0
);
}
float base_cutoff = 1.0 - cover;
vec4 color = vec4(0.0);
if (shadow) {
if (perlin > base_cutoff && perlin <= 1.0) {
color = vec4(0.0, 0.0, 0.0, cloud_shadow_darkness * opacity);
}
} else {
if (perlin > base_cutoff) {
// Map to palette
float cloud_range = perlin - base_cutoff;
float normalized = cloud_range / (1.0 - base_cutoff);
ivec2 palette_size = textureSize(palette, 0);
int num_colors = (palette_size.x <= 1) ? 8 : palette_size.x;
int color_index = int(normalized * float(num_colors - 1));
color = get_colour_by_index(palette, color_index, true);
color.a = opacity;
// Apply lighting
float light = calculate_light(uv, radius);
color.rgb = color.rgb * light;
}
}
return color;
}
// Generate clouds from texture
vec4 clouds_from_texture(
vec2 uv,
float radius,
sampler2D cloud_tex,
sampler2D palette,
float rotation,
float opacity,
bool is_shadow
) {
float w = calculate_z(uv, radius);
if (isnan(w)) {
return vec4(0.0);
}
vec2 tex_coords = uv_to_spherical(uv, radius, rotation);
if (tex_coords.x < 0.0) {
return vec4(0.0);
}
vec4 cloud_color = texture(cloud_tex, tex_coords);
if (is_shadow) {
if (cloud_color.a > 0.1) {
return vec4(0.0, 0.0, 0.0, cloud_shadow_darkness * cloud_color.a * opacity);
}
return vec4(0.0);
} else {
if (cloud_color.a > 0.1) {
cloud_color.rgb = get_nearest_colour(palette, cloud_color.rgb, true);
cloud_color.a *= opacity;
float light = calculate_light(uv, radius);
cloud_color.rgb = cloud_color.rgb * light;
}
return cloud_color;
}
}
// Atmosphere rendering
vec4 atmosphere(vec2 uv) {
vec4 result = vec4(0.0);
if (atmosphere_radius <= surface_radius) {
return result;
}
ivec2 palette_size = textureSize(atmosphere_palette, 0);
float atmosphere_thickness = (atmosphere_radius - surface_radius);
float atmos_layer_thickness = atmosphere_thickness / float(palette_size.x);
for (int column = palette_size.x - 1; column >= 0; column--) {
float radius = surface_radius + (atmos_layer_thickness * float(column + 1));
float w = calculate_z(uv, radius);
if (w < 1.0) {
float light = calculate_light(uv, radius);
result = vec4(texture(atmosphere_palette, vec2(float(column) / float(palette_size.x), 0.5)).rgb, 0.5);
result.rgb = result.rgb * light;
}
}
return result;
}
void fragment() {
vec2 grid_uv = calculate_grid_uv(UV);
// Calculate rotations
float surface_rotation = surface_base_rotation + (TIME * surface_rotation_speed);
float cloud_1_rotation = TIME * cloud_1_rotation_speed;
float cloud_2_rotation = TIME * cloud_2_rotation_speed;
// Surface rotation matrices for procedural mode
mat3 srot = generate_rotation_matrix(surface_rotation);
mat3 srot2 = generate_rotation_matrix(
surface_secondary_rotation + (TIME * surface_secondary_rotation_speed)
);
mat3 srot3 = generate_rotation_matrix(
surface_tertiary_rotation + (TIME * surface_tertiary_rotation_speed)
);
// Generate surface based on mode
vec4 color;
if (use_texture_surface && textureSize(earth_texture, 0).x > 1) {
color = surface_from_texture(grid_uv, surface_rotation);
} else {
color = surface_procedural(grid_uv, srot, srot2, srot3);
}
// Cloud shadows
vec4 cloud_1_shadows = vec4(0.0);
vec4 cloud_2_shadows = vec4(0.0);
// Cloud rotation matrix for procedural clouds
mat3 crot1 = generate_rotation_matrix(cloud_1_rotation);
mat3 crot2 = generate_rotation_matrix(cloud_2_rotation);
// First cloud layer shadows
if (display_cloud_shadows) {
if (use_texture_clouds && textureSize(cloud_1_texture, 0).x > 1) {
cloud_1_shadows = clouds_from_texture(
grid_uv,
surface_radius,
cloud_1_texture,
cloud_1_palette,
cloud_1_rotation,
cloud_1_opacity,
true
);
} else if (cloud_1_cover > 0.0) {
cloud_1_shadows = clouds_procedural(
cloud_1_cover,
grid_uv,
cloud_1_period,
cloud_1_cell_amount,
cloud_1_secondary_period,
cloud_1_secondary_cell_amount,
cloud_1_secondary_strength,
crot1,
surface_radius,
cloud_1_palette,
cloud_1_fluctuation_speed,
cloud_1_opacity,
true
);
}
// Second cloud layer shadows
if (use_texture_clouds && textureSize(cloud_2_texture, 0).x > 1) {
cloud_2_shadows = clouds_from_texture(
grid_uv,
surface_radius,
cloud_2_texture,
cloud_2_palette,
cloud_2_rotation,
cloud_2_opacity,
true
);
} else if (cloud_2_cover > 0.0) {
cloud_2_shadows = clouds_procedural(
cloud_2_cover,
grid_uv,
cloud_2_period,
cloud_2_cell_amount,
cloud_2_secondary_period,
cloud_2_secondary_cell_amount,
cloud_2_secondary_strength,
crot2,
surface_radius,
cloud_2_palette,
cloud_2_fluctuation_speed,
cloud_2_opacity,
true
);
}
}
// Get cloud layers
vec4 clouds_1 = vec4(0.0);
vec4 clouds_2 = vec4(0.0);
// First cloud layer
if (use_texture_clouds && textureSize(cloud_1_texture, 0).x > 1) {
clouds_1 = clouds_from_texture(
grid_uv,
cloud_1_radius,
cloud_1_texture,
cloud_1_palette,
cloud_1_rotation,
cloud_1_opacity,
false
);
} else if (cloud_1_cover > 0.0) {
clouds_1 = clouds_procedural(
cloud_1_cover,
grid_uv,
cloud_1_period,
cloud_1_cell_amount,
cloud_1_secondary_period,
cloud_1_secondary_cell_amount,
cloud_1_secondary_strength,
crot1,
cloud_1_radius,
cloud_1_palette,
cloud_1_fluctuation_speed,
cloud_1_opacity,
false
);
}
// Second cloud layer
if (use_texture_clouds && textureSize(cloud_2_texture, 0).x > 1) {
clouds_2 = clouds_from_texture(
grid_uv,
cloud_2_radius,
cloud_2_texture,
cloud_2_palette,
cloud_2_rotation,
cloud_2_opacity,
false
);
} else if (cloud_2_cover > 0.0) {
clouds_2 = clouds_procedural(
cloud_2_cover,
grid_uv,
cloud_2_period,
cloud_2_cell_amount,
cloud_2_secondary_period,
cloud_2_secondary_cell_amount,
cloud_2_secondary_strength,
crot2,
cloud_2_radius,
cloud_2_palette,
cloud_2_fluctuation_speed,
cloud_2_opacity,
false
);
}
// Compose final image
COLOR = vec4(0.0, 0.0, 0.0, 0.0);
// Atmosphere
COLOR.rgba = atmosphere(grid_uv);
// Surface with shadows
if (color.a > 0.0) {
COLOR.rgba = color.rgba;
COLOR.rgb = COLOR.rgb * (1.0 - cloud_1_shadows.a);
COLOR.rgb = COLOR.rgb * (1.0 - cloud_2_shadows.a);
}
// Add clouds
if (clouds_1.a > 0.0) {
COLOR.rgb = mix(COLOR.rgb, clouds_1.rgb, clouds_1.a);
COLOR.a = max(COLOR.a, clouds_1.a);
}
if (clouds_2.a > 0.0) {
COLOR.rgb = mix(COLOR.rgb, clouds_2.rgb, clouds_2.a);
COLOR.a = max(COLOR.a, clouds_2.a);
}
// Final posterization
if (posterise) {
COLOR.rgb = get_nearest_colour(posterisation_palette, COLOR.rgb, false);
}
}Live Preview
